Here you will find all available parts and drawings of the 'Hikoki DS14DCL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

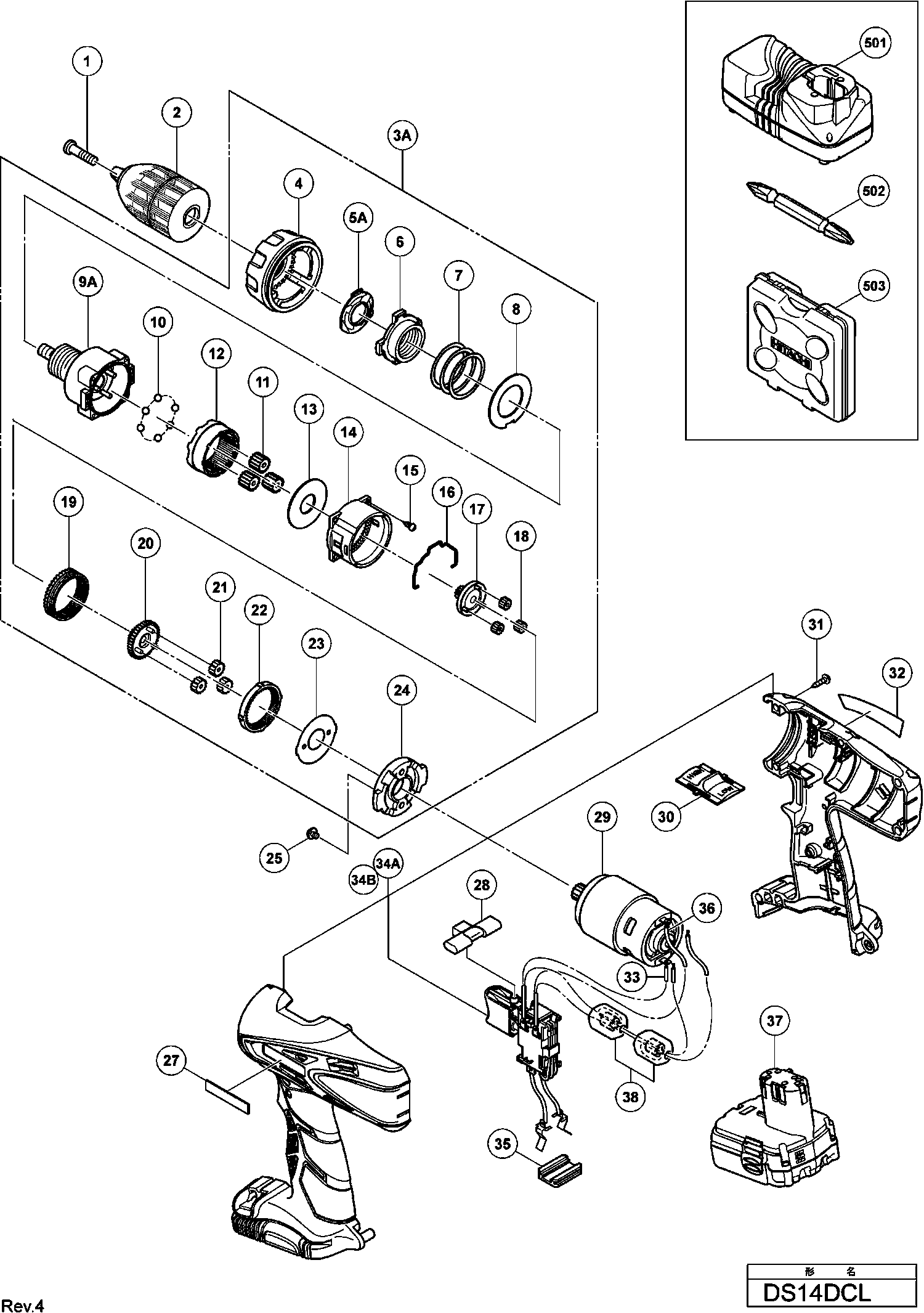

Technical drawing of model Hikoki DS14DCL
Spare parts list of model Hikoki DS14DCL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *2A | 332050 | |||
| Special Screw (left Hand) M6x23 | ||||
| 1 | 311959 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 2 | 332050 | |||
| Gear Box Ass'y Includ.4-24 | ||||
| 3A | 333315 | 74.11 | 89.68 | |
| Clutch Dial | ||||
| 4 | 332025 | 5.03 | 6.08 | |
| Click Spring | ||||
| 5A | 332741 | 8.33 | 10.07 | |
| Nut | ||||
| 6 | 324109 | 3.30 | 3.99 | |
| Spring | ||||
| 7 | 324110 | 3.30 | 3.99 | |
| Washer (d) | ||||
| 8 | 324347 | 3.30 | 3.99 | |
| Front Case | ||||
| 9A | 333314 | 16.78 | 20.30 | |
| Steel Ball D5 | ||||
| 10 | 306936 | 1.05 | 1.27 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 11 | 332028 | 3.38 | 4.08 | |
| Ring Gear | ||||
| 12 | 332027 | 5.03 | 6.08 | |
| Washer (a) | ||||
| 13 | 324349 | 3.30 | 3.99 | |
| Gear Housing | ||||
| 14 | 324501 | 4.80 | 5.81 | |
| Phillips head screws D3X12 (4 pieces) | ||||
| 15 | 324357 | 1.65 | 2.00 | |
| Shift Arm | ||||
| 16 | 324115 | 3.30 | 3.99 | |
| Pinion (c) | ||||
| 17 | 332029 | 3.38 | 4.08 | |
| Planet Gear (b) Set (3 Pcs.) | ||||
| 18 | 332031 | 1.73 | 2.09 | |
| Slide Ring Gear | ||||
| 19 | 332030 | 6.68 | 8.08 | |
| Pinion (b) | ||||
| 20 | 332032 | 3.38 | 4.08 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| 21 | 332034 | 3.38 | 4.08 | |
| First Ring Gear | ||||
| 22 | 332033 | 3.38 | 4.08 | |
| Washer (b) | ||||
| 23 | 324355 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 24 | 324495 | |||
| Machine Screw (w/sp. Washer) M4x6 | ||||
| 25 | 317333 | 1.50 | 1.82 | |
| Name Plate | ||||
| 27 | 330719 | 2.10 | 2.54 | |
| Pushing Button | ||||
| 28 | 332836 | 1.13 | 1.36 | |
| Motor Dc 14.4v | ||||
| 29 | 332559 | 34.18 | 41.35 | |
| Shift Knob | ||||
| 30 | 332036 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 31 | 313687 | 1.04 | 1.26 | |
| Internal Wire (black) | ||||
| 33 | 332843 | 1.05 | 1.27 | |
| Housing. Switch Set (green) | ||||
| 34A | 336806 | 27.23 | 32.94 | |
| Housing. Switch Set (black) | ||||
| 34B | 336807 | 27.23 | 32.94 | |
| Holder | ||||
| 35 | 315141 | 1.20 | 1.45 | |
| Internal wiring red 140L | ||||
| 36 | 324499 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 37 | 327729 | |||
| No information available, not orderable | ||||
| 37A | 326824 | |||
| Internal Wire Ferrite Set Since 3.2012 For Europe | ||||
| 38 | 334857 | 6.90 | 8.35 | |
| No information available, not orderable | ||||
| 502 | 983006 | |||
| No information available, not orderable | ||||
| 503 | 332022 | |||
