Here you will find all available parts and drawings of the 'Hikoki DS14DBEL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

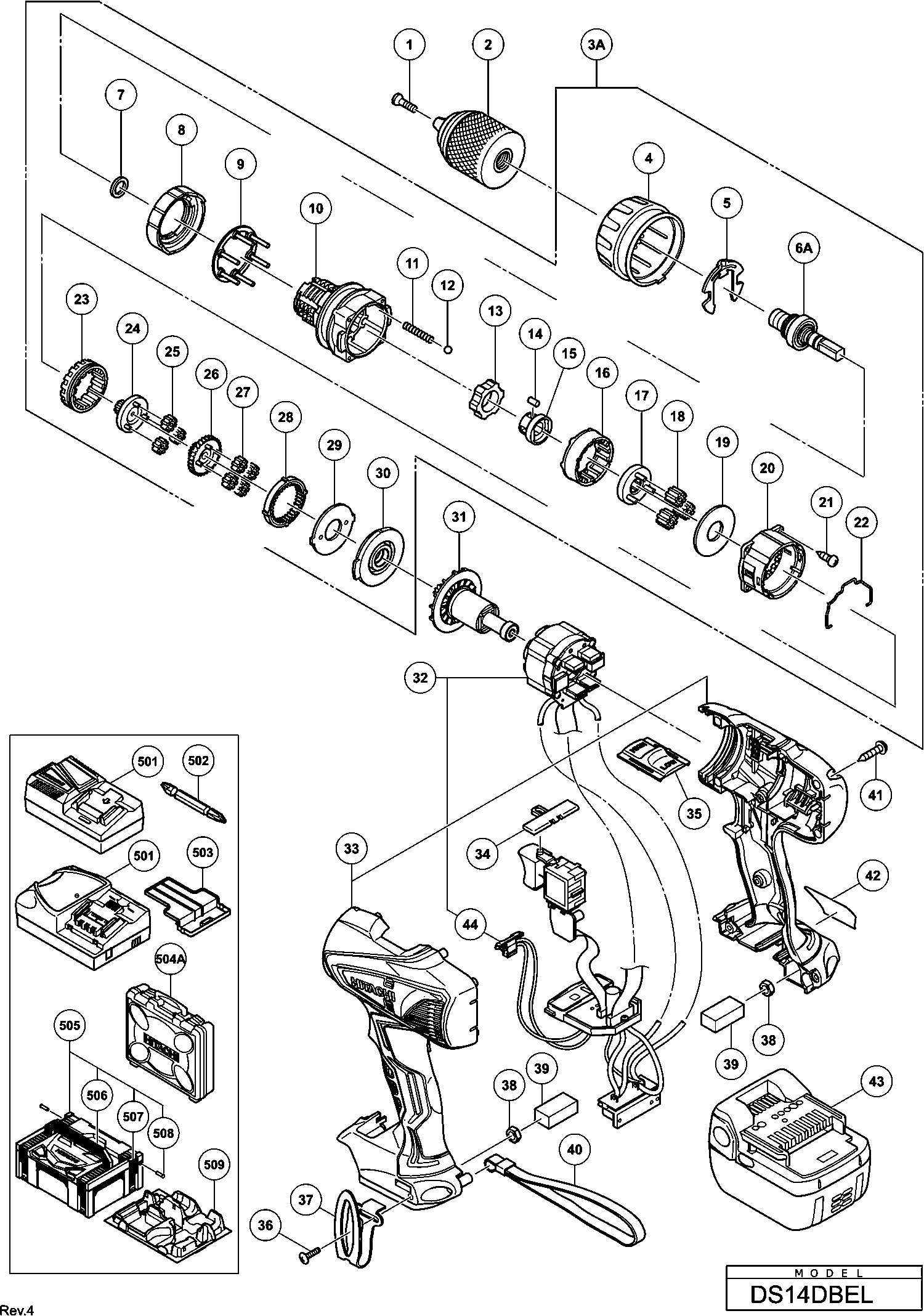

Technical drawing of model Hikoki DS14DBEL
Spare parts list of model Hikoki DS14DBEL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Flat Hd. Screw (left Hand) M6x20 | ||||
| 1 | 331966 | 6.75 | 8.17 | |
| SPECIAL SCREW M6 (LEFT THREAD) | ||||
| 1 | 330094 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 2 | 335961 | |||
| Gear Box Ass'y Includ.4,5,6a,7-30 | ||||
| 3A | 338289 | 55.69 | 67.38 | |
| Clutch Dial | ||||
| 4 | 336379 | 3.90 | 4.72 | |
| Click Spring | ||||
| 5 | 327146 | 1.65 | 2.00 | |
| Spindle Ass'y | ||||
| 6A | 338290 | 15.54 | 18.80 | |
| Washer (a) | ||||
| 7 | 327147 | 1.65 | 2.00 | |
| Cap Holder | ||||
| 8 | 327145 | 1.65 | 2.00 | |
| Washer Set | ||||
| 9 | 335948 | 1.05 | 1.27 | |
| Front Case | ||||
| 10 | 336377 | 7.95 | 9.62 | |
| Spring (a) | ||||
| 11 | 327143 | 1.65 | 2.00 | |
| Steel Ball D5 | ||||
| 12 | 306936 | 1.05 | 1.27 | |
| Lock Ring | ||||
| 13 | 335945 | 1.80 | 2.18 | |
| Needle Roller Set (4 Pcs.) | ||||
| 14 | 335946 | 1.35 | 1.63 | |
| Sleeve | ||||
| 15 | 335944 | 1.05 | 1.27 | |
| Ring Gear | ||||
| 16 | 328055 | 3.30 | 3.99 | |
| Carrier | ||||
| 17 | 327139 | 3.30 | 3.99 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 18 | 312705 | 2.40 | 2.90 | |
| Washer (a) | ||||
| 19 | 312704 | 1.95 | 2.36 | |
| Rear Case | ||||
| 20 | 335959 | 1.50 | 1.82 | |
| Phillips head screws D3X12 (4 pieces) | ||||
| 21 | 324357 | 1.65 | 2.00 | |
| Shift Arm | ||||
| 22 | 332017 | 1.73 | 2.09 | |
| Slide Ring Gear | ||||
| 23 | 332013 | 3.38 | 4.08 | |
| Pinion (c) | ||||
| 24 | 332012 | 5.03 | 6.08 | |
| Planet Gear (a) Set (6 Pcs.) | ||||
| 25 | 332019 | 13.95 | 16.88 | |
| Pinion (b) | ||||
| 26 | 335947 | 2.10 | 2.54 | |
| Planet Gear (a) Set (4 Pcs.) | ||||
| 27 | 335941 | 1.20 | 1.45 | |
| First Ring Gear | ||||
| 28 | 335942 | 1.65 | 2.00 | |
| Washer (b) | ||||
| 29 | 312716 | 1.95 | 2.36 | |
| Motor Spacer | ||||
| 30 | 335943 | 1.20 | 1.45 | |
| Rotor Pinion Set | ||||
| 31 | 336380 | 59.81 | 72.37 | |
| Wiring Set Includ.49,50 | ||||
| 32 | 335954 | 97.55 | 118.04 | |
| Housing (a).(b) Set | ||||
| 33 | 335956 | 22.55 | 27.29 | |
| Pushing Button (b) | ||||
| 34 | 324225 | 1.05 | 1.27 | |
| Shift Knob | ||||
| 35 | 335950 | 4.65 | 5.63 | |
| Truss Hd. Screw M4 (black) | ||||
| 36 | 327001 | 1.80 | 2.18 | |
| Hook | ||||
| 37 | 332824 | 4.58 | 5.54 | |
| Lock Nut M4 (black) | ||||
| 38 | 327002 | 1.80 | 2.18 | |
| Gasket | ||||
| 39 | 328644 | 1.80 | 2.18 | |
| Strap (black) | ||||
| 40 | 306952 | 4.05 | 4.90 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 41 | 313687 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 43 | 336262 | |||
| Led Holder | ||||
| 44 | 339280 | 4.65 | 5.63 | |
| No longer available, no replacement | ||||
| 45 | 371001 | |||
| No information available, not orderable | ||||
| 502 | 983006 | |||
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 504A | 337852 | |||
| No information available, not orderable | ||||
| 505 | 336471 | |||
| No information available, not orderable | ||||
| 506 | 336473 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336474 | |||
| No information available, not orderable | ||||
| 509 | 336475 | |||
| No information available, not orderable | ||||
| 601 | 955657 | |||
| No information available, not orderable | ||||
| 602 | 955659 | |||
| No information available, not orderable | ||||
| 603 | 955674 | |||
| No information available, not orderable | ||||
| 604 | 983004 | |||
| No information available, not orderable | ||||
| 605 | 983011 | |||
