Here you will find all available parts and drawings of the 'Hikoki DS12DVFA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

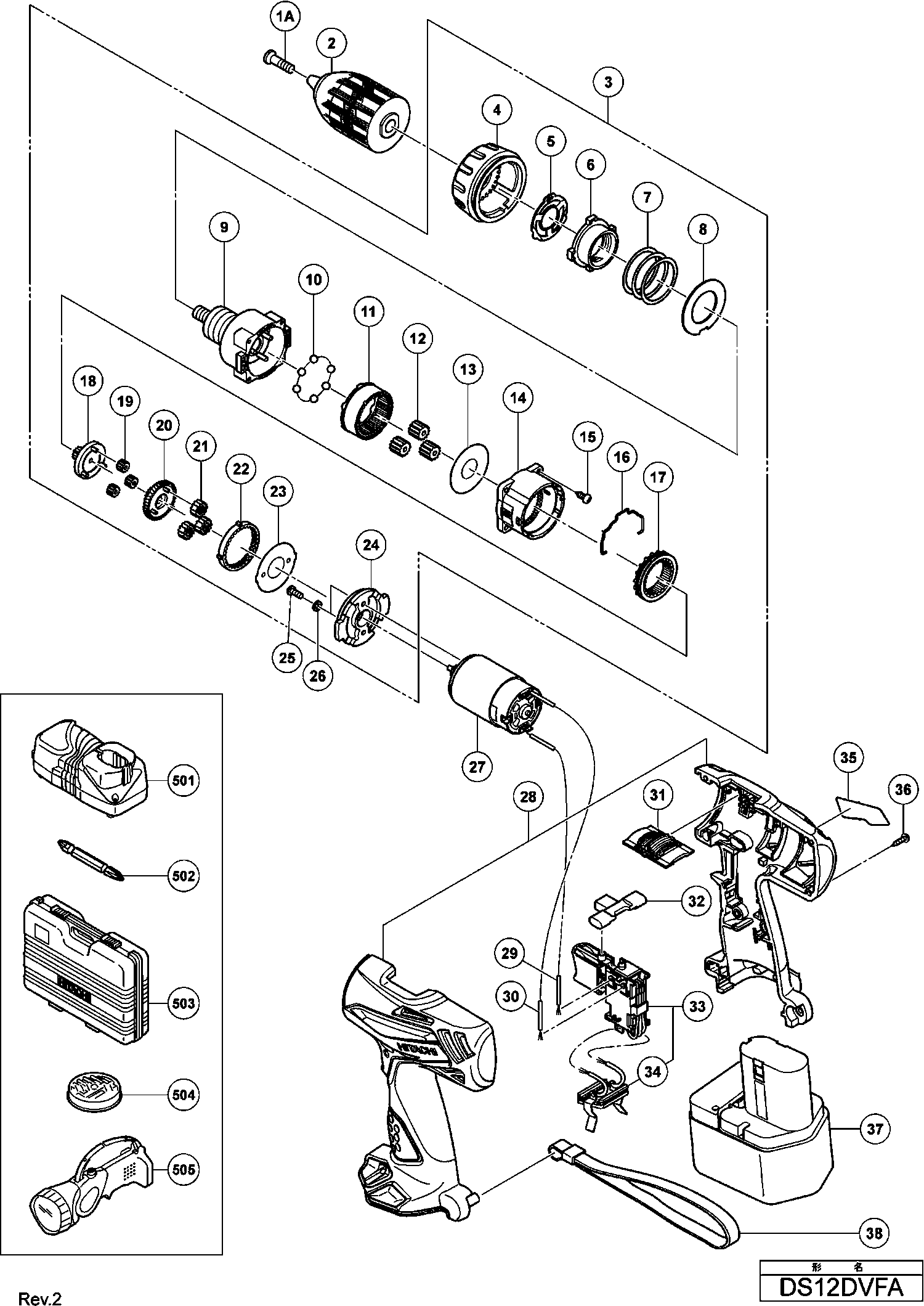

Technical drawing of model Hikoki DS12DVFA
Spare parts list of model Hikoki DS12DVFA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Left-hand Hexalobular M5 | ||||
| 1A | 337426 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 2 | 331602 | |||
| Complete Slip Coupling | ||||
| 3 | 335672 | 20.08 | 24.29 | |
| No information available, not orderable | ||||
| 4 | 335673 | |||
| Spring Plate | ||||
| 5 | 324108 | 4.80 | 5.81 | |
| Nut | ||||
| 6 | 324109 | 3.30 | 3.99 | |
| Spring | ||||
| 7 | 324110 | 3.30 | 3.99 | |
| Washer (d) | ||||
| 8 | 324347 | 3.30 | 3.99 | |
| Front Case | ||||
| 9 | 324720 | 23.38 | 28.28 | |
| Steel Ball D5 | ||||
| 10 | 306936 | 1.05 | 1.27 | |
| Ring Gear | ||||
| 11 | 324111 | 4.80 | 5.81 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 12 | 324348 | 3.30 | 3.99 | |
| Washer (a) | ||||
| 13 | 324349 | 3.30 | 3.99 | |
| Gear Housing | ||||
| 14 | 324501 | 4.80 | 5.81 | |
| Phillips head screws D3X12 (4 pieces) | ||||
| 15 | 324357 | 1.65 | 2.00 | |
| Shift Arm | ||||
| 16 | 324115 | 3.30 | 3.99 | |
| Slide Ring Gear | ||||
| 17 | 324351 | 4.80 | 5.81 | |
| Pinion (c) | ||||
| 18 | 324112 | 4.80 | 5.81 | |
| Planet Gear (b) Set (3 Pcs.) | ||||
| 19 | 324352 | 3.30 | 3.99 | |
| Pinion (b) | ||||
| 20 | 324113 | 4.80 | 5.81 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| 21 | 324354 | 3.30 | 3.99 | |
| First Ring Gear | ||||
| 22 | 324353 | 3.30 | 3.99 | |
| Washer (b) | ||||
| 23 | 324355 | 3.30 | 3.99 | |
| Motor Spacer | ||||
| 24 | 324356 | 3.30 | 3.99 | |
| Machine Screw M3x8 (10 Pcs.) Since 9.2012 For Eur | ||||
| 25 | 949203 | 1.05 | 1.27 | |
| Spring Washer M3 (10 pieces) | ||||
| 26 | 949451 | 1.05 | 1.27 | |
| Motor | ||||
| 27 | 318244 | 19.39 | 23.46 | |
| No information available, not orderable | ||||
| 28 | 335675 | |||
| No information available, not orderable | ||||
| 29 | 335713 | |||
| Black Wiring L130 | ||||
| 30 | 335714 | 1.05 | 1.27 | |
| Shift Knob | ||||
| 31 | 324116 | 1.05 | 1.27 | |
| Pushing Button Since 01.2008 | ||||
| 32 | 329181 | 1.05 | 1.27 | |
| Control Switch for DS9DVF3/12DVF3 | ||||
| 33 | 332806 | 24.75 | 29.95 | |
| Holder | ||||
| 34 | 315141 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 36 | 313687 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 37 | 333156 | |||
| Strap (black) | ||||
| 38 | 306952 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 502 | 983006 | |||
| No information available, not orderable | ||||
| 503 | 324083 | |||
