Here you will find all available parts and drawings of the 'Hikoki DS12DVC'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

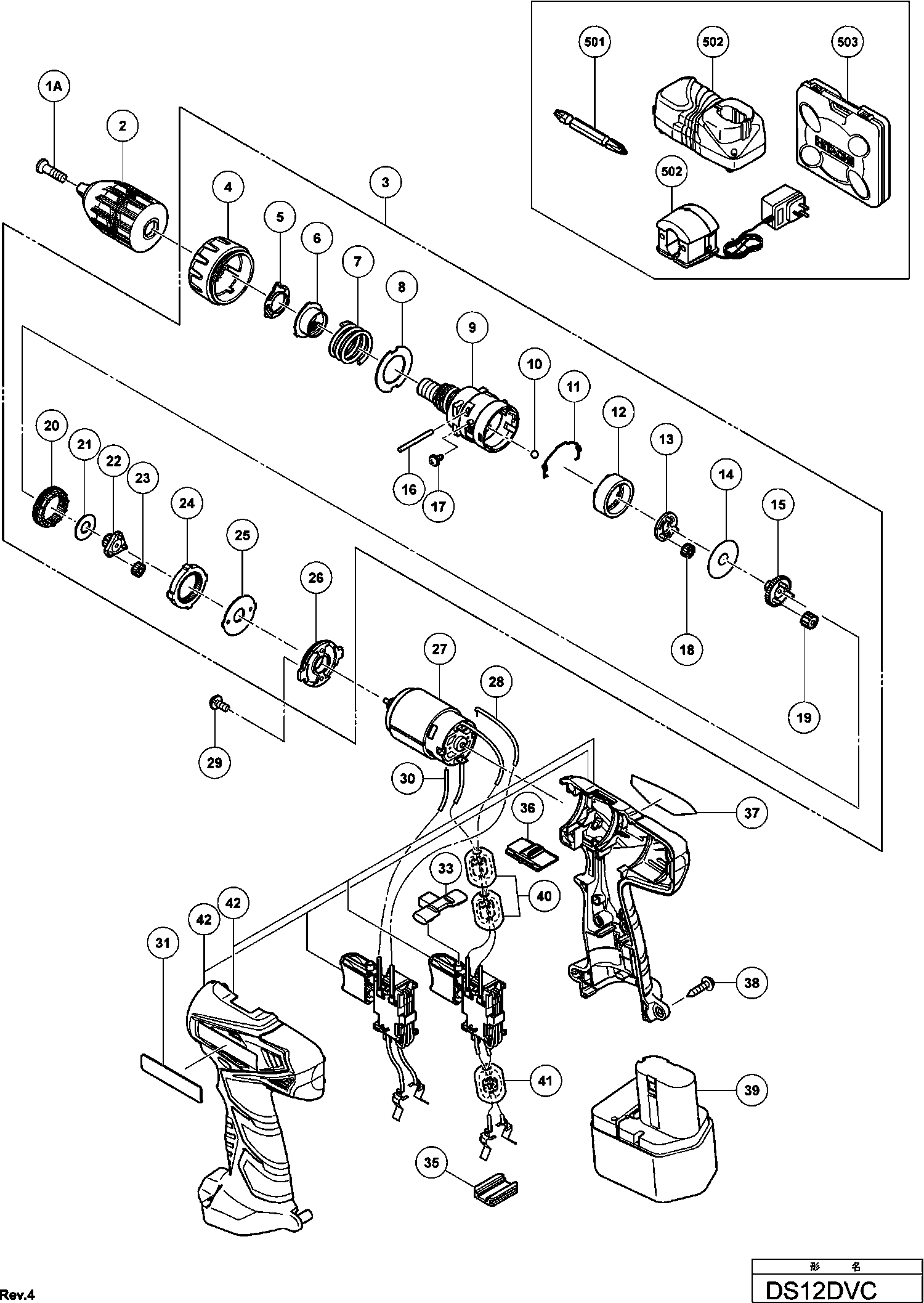

Technical drawing of model Hikoki DS12DVC
Spare parts list of model Hikoki DS12DVC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Left-hand Hexalobular M5 | ||||
| 1A | 337426 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 2 | 331602 | |||
| Complete Slip Coupling | ||||
| 3 | 331324 | 32.31 | 39.10 | |
| Clutch Dial | ||||
| 4 | 331587 | 3.75 | 4.54 | |
| Click Spring | ||||
| 5 | 329579 | 1.80 | 2.18 | |
| Nut | ||||
| 6 | 331582 | 1.88 | 2.27 | |
| Spring | ||||
| 7 | 331583 | 1.88 | 2.27 | |
| Thrust Plate | ||||
| 8 | 331584 | 1.88 | 2.27 | |
| Gear Cover | ||||
| 9 | 331585 | 12.98 | 15.70 | |
| Steel Ball D5 | ||||
| 10 | 306936 | 1.05 | 1.27 | |
| Shift Arm | ||||
| 11 | 331586 | 1.88 | 2.27 | |
| Ring Gear | ||||
| 12 | 331592 | 3.75 | 4.54 | |
| Carrier | ||||
| 13 | 331589 | 1.88 | 2.27 | |
| Washer (b) | ||||
| 14 | 331593 | 1.88 | 2.27 | |
| No longer available, no replacement | ||||
| 15 | 331590 | |||
| Pin | ||||
| 16 | 331588 | 1.88 | 2.27 | |
| Screw Set D2x3.5 (2 Pcs.) | ||||
| 17 | 330579 | 1.88 | 2.27 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 18 | 331591 | 1.88 | 2.27 | |
| Planet Gear (b) Set (3 Pcs.) | ||||
| 19 | 331595 | 1.88 | 2.27 | |
| Slide Ring Gear | ||||
| 20 | 331594 | 3.75 | 4.54 | |
| Washer (c) | ||||
| 21 | 331599 | 1.88 | 2.27 | |
| Pinion (b) | ||||
| 22 | 331596 | 1.88 | 2.27 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| 23 | 331597 | 1.88 | 2.27 | |
| First Ring Gear | ||||
| 24 | 331598 | 3.75 | 4.54 | |
| Washer (a) | ||||
| 25 | 331600 | 1.88 | 2.27 | |
| Motor Spacer | ||||
| 26 | 331601 | 1.88 | 2.27 | |
| Motor | ||||
| 27 | 333129 | 11.93 | 14.43 | |
| Internal Wire (b) | ||||
| 28 | 306040 | 1.04 | 1.26 | |
| Machine Screw M3x8 (10 Pcs.) Since 9.2012 For Eur | ||||
| 29 | 949203 | 1.05 | 1.27 | |
| Internal Wire (b) 90l (black) Except For Europe(t | ||||
| 30 | 324121 | 1.05 | 1.27 | |
| Pushing Button Since 01.2008 | ||||
| 33 | 329181 | 1.05 | 1.27 | |
| Holder | ||||
| 35 | 315141 | 1.20 | 1.45 | |
| Shift Knob | ||||
| 36 | 331332 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 38 | 313687 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 39 | 333358 | |||
| Internal Wire Ferrite Set Since 3.2012 For Europe | ||||
| 40 | 334862 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 41 | 334883 | |||
| Housing. Switch Set For Europe | ||||
| 42 | 338439 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 501 | 983006 | |||
| No information available, not orderable | ||||
| 503 | 323950 | |||
