Here you will find all available parts and drawings of the 'Hikoki DS12DBV2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

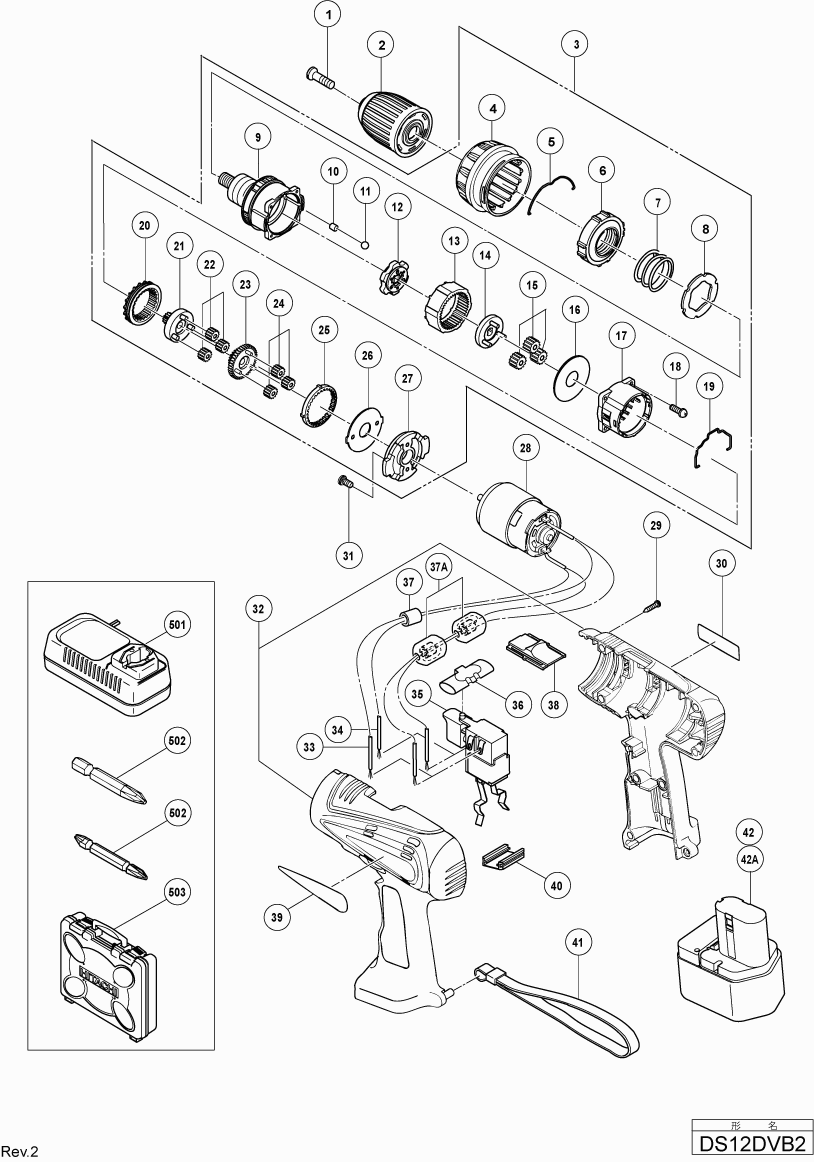

Technical drawing of model Hikoki DS12DBV2
Spare parts list of model Hikoki DS12DBV2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Special Screw (left Hand) M6x23 | ||||
| 1 | 311959 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 2 | 320684 | |||
| Gear Box Ass'y Includ.4-27 | ||||
| 3 | 323013 | 87.18 | 105.48 | |
| Clutch Dial | ||||
| 4 | 319755 | 6.45 | 7.80 | |
| Spring Plate | ||||
| 5 | 319754 | 3.30 | 3.99 | |
| Inner Ring | ||||
| 6 | 319743 | 1.65 | 2.00 | |
| Spring | ||||
| 7 | 319742 | 3.30 | 3.99 | |
| Spring retaining ring | ||||
| 8 | 319741 | 1.65 | 2.00 | |
| Front Case | ||||
| 9 | 323014 | 26.40 | 31.94 | |
| Roller | ||||
| 10 | 319744 | 1.65 | 2.00 | |
| Steel Ball D5 | ||||
| 11 | 306936 | 1.05 | 1.27 | |
| LOCK RING | ||||
| 12 | 320928 | 10.20 | 12.34 | |
| Ring Gear | ||||
| 13 | 319745 | 3.30 | 3.99 | |
| Carrier | ||||
| 14 | 320929 | 3.30 | 3.99 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 15 | 319769 | 1.80 | 2.18 | |
| Washer (a) | ||||
| 16 | 312704 | 1.95 | 2.36 | |
| Gear Cover | ||||
| 17 | 319748 | 3.30 | 3.99 | |
| Phillips head screws D3X12 (4 pieces) | ||||
| 18A | 324357 | 1.65 | 2.00 | |
| Shift Arm | ||||
| 19 | 319753 | 3.30 | 3.99 | |
| Slide Ring Gear | ||||
| 20 | 319750 | 4.80 | 5.81 | |
| Pinion (c) | ||||
| 21 | 319749 | 3.30 | 3.99 | |
| Planet Gear (b) Set (3 Pcs.) | ||||
| 22 | 319768 | 1.65 | 2.00 | |
| Pinion (b) | ||||
| 23 | 319751 | 3.30 | 3.99 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| 24 | 319767 | 1.65 | 2.00 | |
| First Ring Gear | ||||
| 25 | 319752 | 4.80 | 5.81 | |
| Washer (b) | ||||
| 26 | 312716 | 1.95 | 2.36 | |
| Motor Spacer | ||||
| 27 | 316955 | 4.80 | 5.81 | |
| Motor | ||||
| 28 | 320931 | 35.75 | 43.26 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 29 | 313687 | 1.04 | 1.26 | |
| Machine Screw (w/sp. Washer) M4x6 | ||||
| 31 | 317333 | 1.50 | 1.82 | |
| Machine Screw (w/sp. Washer) M4x8 Since D106801 | ||||
| 31 | 958523 | 1.04 | 1.26 | |
| HOUSING | ||||
| 32 | 320930 | 15.81 | 19.13 | |
| Internal Wire (black) 160l Till 2.2012 For Europe | ||||
| 33 | 320159 | 1.35 | 1.63 | |
| Internal Wire (black) 100l Except For Europe(till | ||||
| 33 | 319759 | 1.05 | 1.27 | |
| Internal Wire (red) 130l Except For Europe (till | ||||
| 34 | 319758 | 1.05 | 1.27 | |
| Control Switch | ||||
| 35 | 318245 | 23.65 | 28.62 | |
| Pushing Button | ||||
| 36 | 319760 | 1.05 | 1.27 | |
| Ferrite Core For Europe,rus,aut,isr | ||||
| 37 | 318247 | 1.05 | 1.27 | |
| Internal Wire Ferrite Set Since 3.2012 For Europe | ||||
| 37A | 334867 | 11.10 | 13.43 | |
| Shift Knob | ||||
| 38 | 318234 | 1.05 | 1.27 | |
| Holder | ||||
| 40 | 315141 | 1.20 | 1.45 | |
| Strap (black) | ||||
| 41 | 306952 | 4.05 | 4.90 | |
| No longer available, no replacement | ||||
| 42 | 320387 | |||
| No information available, not orderable | ||||
| 42A | 325290 | |||
| No information available, not orderable | ||||
| 502 | 983006 | |||
| No information available, not orderable | ||||
| 503 | 323230 | |||
