Here you will find all available parts and drawings of the 'Hikoki DS12DAWEZ'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

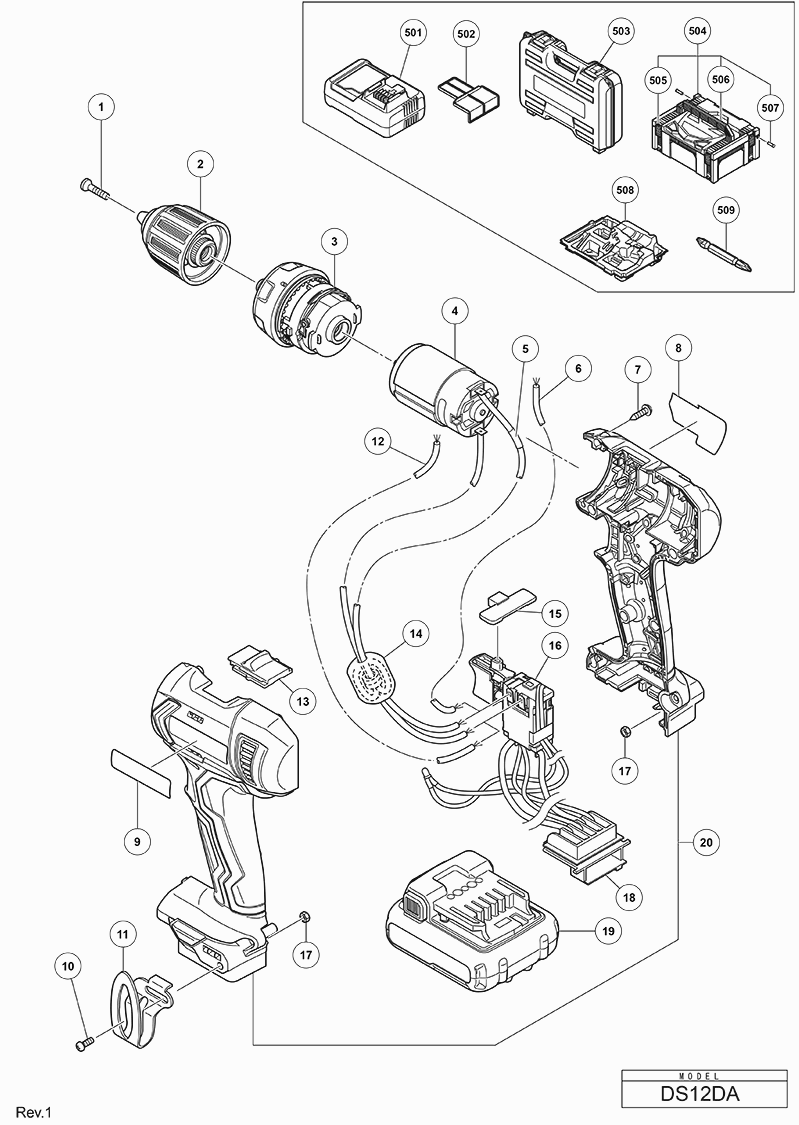

Technical drawing of model Hikoki DS12DAWEZ
Spare parts list of model Hikoki DS12DAWEZ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Left-hand Hexalobular M5 | ||||
| 1 | 337426 | 1.04 | 1.26 | |
| Drill Chuck 10tlrm-n (w/o Chuck Wrench) | ||||
| 2 | 337390 | 7.05 | 8.53 | |
| Slip clutch complete (D) | ||||
| 3 | 374938 | 21.18 | 25.62 | |
| MOTOR SET | ||||
| 4 | 374937 | 9.75 | 11.80 | |
| Tube | ||||
| 5 | 375587 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 6 | 375588 | |||
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 7 | 313687 | 1.04 | 1.26 | |
| Truss Hd. Screw M4 (black) Except For Europe | ||||
| 10 | 337357 | 1.04 | 1.26 | |
| HOOK | ||||
| 11 | 372229 | 2.85 | 3.45 | |
| No information available, not orderable | ||||
| 12 | 375589 | |||
| SHIFT KNOB | ||||
| 13 | 374382 | 1.04 | 1.26 | |
| INTERNAL WIRE FERRITE SET | ||||
| 14 | 375590 | 2.70 | 3.27 | |
| Pushing Button (a) | ||||
| 15 | 329548 | 1.65 | 2.00 | |
| Variable switch | ||||
| 16 | 374935 | 13.50 | 16.34 | |
| Lock Nut M4 (black) | ||||
| 17 | 327002 | 1.80 | 2.18 | |
| BATTERY TERMINAL | ||||
| 18 | 374387 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 19 | 375346 | |||
| No information available, not orderable | ||||
| 20 | 374934 | |||
| Battery Cover | ||||
| 502 | 374778 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 503 | 336642 | |||
| No information available, not orderable | ||||
| 504 | 336471 | |||
| No information available, not orderable | ||||
| 505 | 336472 | |||
| No information available, not orderable | ||||
| 506 | 336473 | |||
| No information available, not orderable | ||||
| 507 | 336474 | |||
| No information available, not orderable | ||||
| 508 | 374779 | |||
| No information available, not orderable | ||||
| 509 | 983006 | |||
