Here you will find all available parts and drawings of the 'Hikoki DS10DFL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

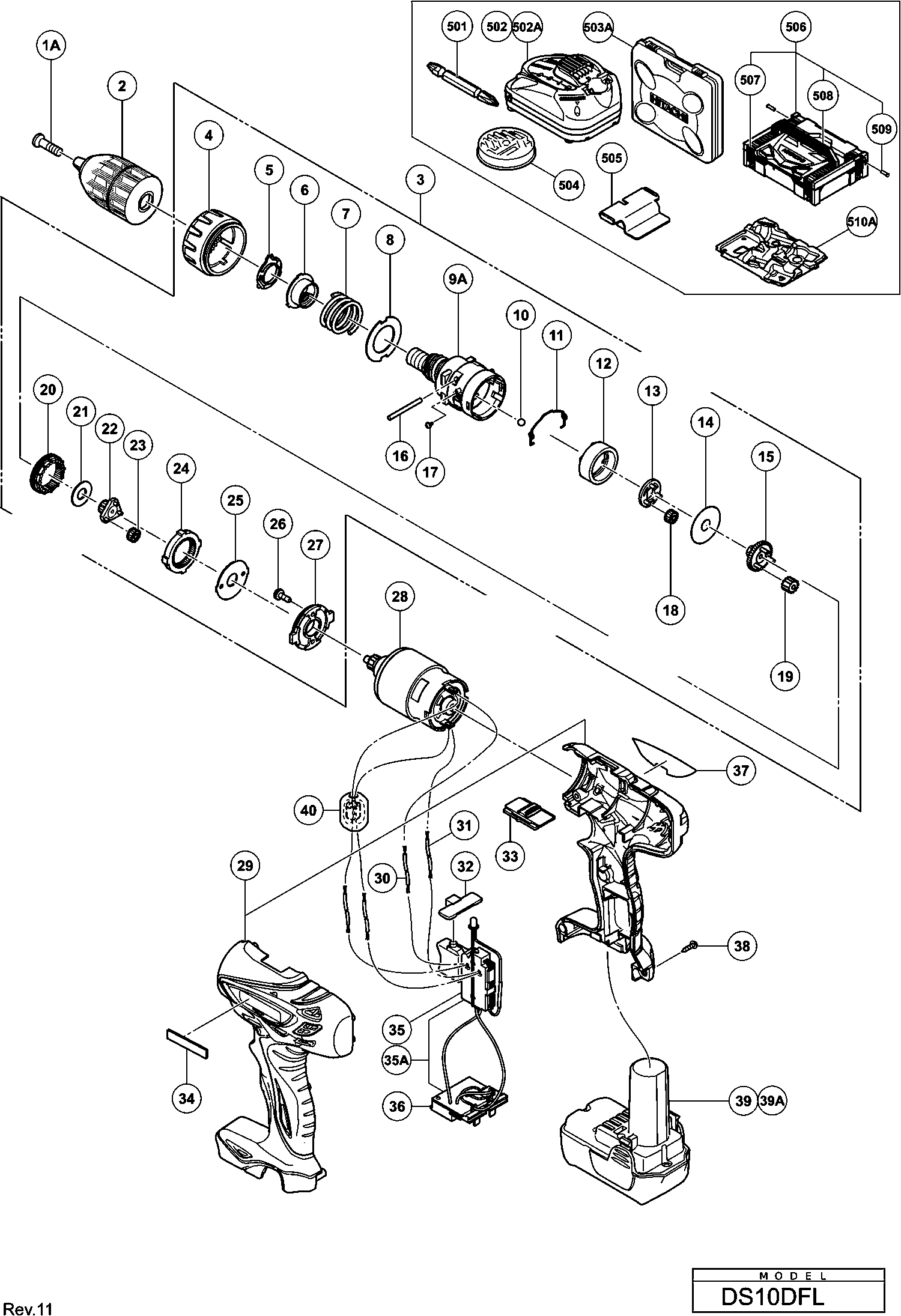

Technical drawing of model Hikoki DS10DFL
Spare parts list of model Hikoki DS10DFL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Left-hand Hexalobular M5 | ||||
| 1A | 337426 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 2 | 331602 | |||
| Complete Slip Coupling | ||||
| 3 | 331324 | 32.31 | 39.10 | |
| Clutch Dial | ||||
| 4 | 331587 | 3.75 | 4.54 | |
| Click Spring | ||||
| 5 | 329579 | 1.80 | 2.18 | |
| Nut | ||||
| 6 | 331582 | 1.88 | 2.27 | |
| Spring | ||||
| 7 | 331583 | 1.88 | 2.27 | |
| Thrust Plate | ||||
| 8 | 331584 | 1.88 | 2.27 | |
| Gear Cover | ||||
| 9A | 331585 | 12.98 | 15.70 | |
| Steel Ball D5 | ||||
| 10 | 306936 | 1.05 | 1.27 | |
| Shift Arm | ||||
| 11 | 331586 | 1.88 | 2.27 | |
| Ring Gear | ||||
| 12 | 331592 | 3.75 | 4.54 | |
| Carrier | ||||
| 13 | 331589 | 1.88 | 2.27 | |
| No information available, not orderable | ||||
| 14 | 331593 | |||
| No longer available, no replacement | ||||
| 15 | 331590 | |||
| No information available, not orderable | ||||
| 16 | 331588 | |||
| Screw Set D2x3.5 (2 Pcs.) | ||||
| 17 | 330579 | 1.88 | 2.27 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 18 | 331591 | 1.88 | 2.27 | |
| Planet Gear (b) Set (3 Pcs.) | ||||
| 19 | 331595 | 1.88 | 2.27 | |
| Slide Ring Gear | ||||
| 20 | 331594 | 3.75 | 4.54 | |
| Washer (c) | ||||
| 21 | 331599 | 1.88 | 2.27 | |
| Pinion (b) | ||||
| 22 | 331596 | 1.88 | 2.27 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| 23 | 331597 | 1.88 | 2.27 | |
| First Ring Gear | ||||
| 24 | 331598 | 3.75 | 4.54 | |
| Washer (a) | ||||
| 25 | 331600 | 1.88 | 2.27 | |
| Machine Screw M3x8 (10 Pcs.) Since 9.2012 For Eur | ||||
| 26 | 949203 | 1.05 | 1.27 | |
| Motor Spacer | ||||
| 27 | 331601 | 1.88 | 2.27 | |
| Motor Dc12v | ||||
| 28 | 331333 | 17.68 | 21.39 | |
| Housing (a).(b) Set | ||||
| 29 | 331326 | 16.03 | 19.39 | |
| Pushing Button (a) | ||||
| 32 | 329548 | 1.65 | 2.00 | |
| Shift Knob | ||||
| 33 | 331332 | 1.05 | 1.27 | |
| Name Plate | ||||
| 34 | 330719 | 2.10 | 2.54 | |
| Switch | ||||
| 35 | 331330 | 16.91 | 20.46 | |
| Switch Terminal Set Since 5.2012 For Aus,nzl,asia | ||||
| 35A | 334907 | 25.85 | 31.28 | |
| Controller (b) Till 4.2012 For Aus,nzl,asia | ||||
| 36 | 331331 | 17.13 | 20.72 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 38 | 313687 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 39 | 331067 | |||
| No information available, not orderable | ||||
| 39A | 329371 | |||
| No longer available, no replacement | ||||
| 40 | 334855 | |||
| No information available, not orderable | ||||
| 501 | 983006 | |||
| No information available, not orderable | ||||
| 503 | 331603 | |||
| No information available, not orderable | ||||
| 503A | 337385 | |||
| Battery Cover | ||||
| 505 | 331086 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 506 | 336643 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336474 | |||
| No information available, not orderable | ||||
| 510 | 336644 | |||
| No information available, not orderable | ||||
| 510A | 337941 | |||
