Here you will find all available parts and drawings of the 'Hikoki DS10DAL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

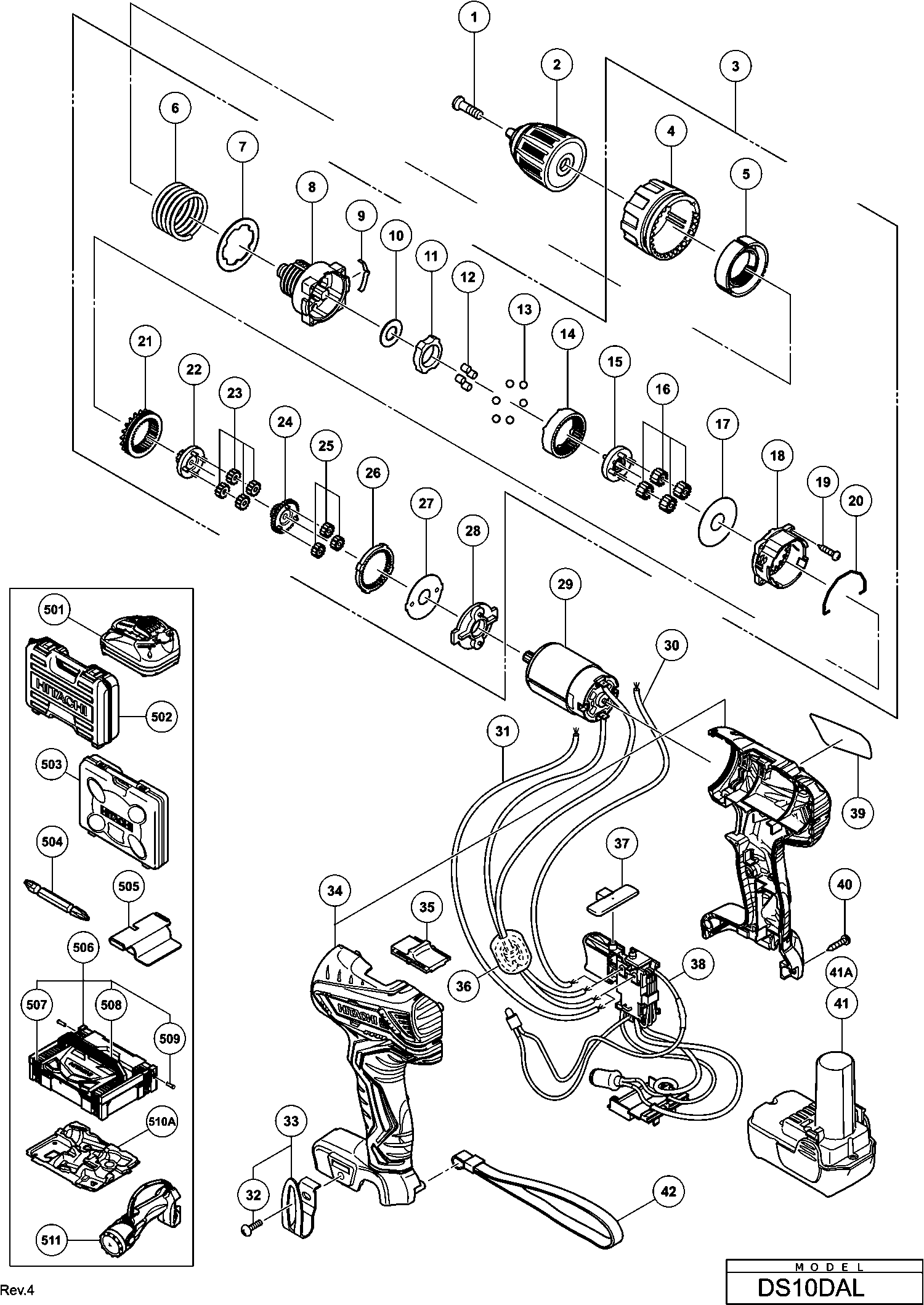

Technical drawing of model Hikoki DS10DAL
Spare parts list of model Hikoki DS10DAL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *41B | 372962 | |||
| Left-hand Hexalobular M5 | ||||
| 1 | 337426 | 1.04 | 1.26 | |
| Drill Chuck 10tlrm-n (w/o Chuck Wrench) | ||||
| 2 | 337390 | 7.05 | 8.53 | |
| Gear Box Ass'y Includ.4-28 | ||||
| 3 | 337407 | 33.00 | 39.93 | |
| Clutch Dial | ||||
| 4 | 337423 | 3.00 | 3.63 | |
| NUT | ||||
| 5 | 337422 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 6 | 337421 | |||
| No information available, not orderable | ||||
| 7 | 337420 | |||
| Front Case | ||||
| 8 | 337408 | 13.65 | 16.52 | |
| Spring Plate | ||||
| 9 | 320773 | 1.65 | 2.00 | |
| Washer (b) | ||||
| 10 | 337411 | 1.04 | 1.26 | |
| Lock Ring | ||||
| 11 | 337409 | 1.95 | 2.36 | |
| Roller | ||||
| 12 | 319744 | 1.65 | 2.00 | |
| Steel Ball D5 | ||||
| 13 | 306936 | 1.05 | 1.27 | |
| Ring Gear | ||||
| 14 | 337412 | 1.35 | 1.63 | |
| Carrier | ||||
| 15 | 337410 | 2.10 | 2.54 | |
| Planet Gear (c) Set (4 Pcs.) | ||||
| 16 | 337415 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 17 | 320762 | |||
| Gear Cover | ||||
| 18 | 337413 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 19 | 337425 | |||
| Shift Arm (a) | ||||
| 20 | 337424 | 1.04 | 1.26 | |
| Slide Ring Gear | ||||
| 21 | 337416 | 1.05 | 1.27 | |
| Pinion (c) | ||||
| 22 | 337414 | 1.50 | 1.82 | |
| Gear Set (B) (4 Pieces) | ||||
| 23 | 320781 | 3.30 | 3.99 | |
| Pinion (b) | ||||
| 24 | 337417 | 2.10 | 2.54 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| 25 | 337418 | 1.04 | 1.26 | |
| First Ring Gear | ||||
| 26 | 328726 | 3.45 | 4.17 | |
| Plate (a) | ||||
| 27 | 320768 | 1.65 | 2.00 | |
| Motor Spacer | ||||
| 28 | 337419 | 1.73 | 2.09 | |
| Motor Dc 12v | ||||
| 29 | 337406 | 11.70 | 14.16 | |
| No information available, not orderable | ||||
| 30 | 337889 | |||
| No information available, not orderable | ||||
| 31 | 337890 | |||
| Truss Hd. Screw M4 (black) Except For Europe | ||||
| 32 | 337357 | 1.04 | 1.26 | |
| Hook (a) Ass'y Includ.602 Except For Europe | ||||
| 33 | 337362 | 4.80 | 5.81 | |
| Housing (a).(b) Set | ||||
| 34 | 337403 | 10.50 | 12.70 | |
| Housing (a).(b) Set | ||||
| 34A | 337403 | 10.50 | 12.70 | |
| Shift Knob | ||||
| 35 | 337405 | 1.04 | 1.26 | |
| Internal Wire Ferrite Set Since 3.2012 For Europe | ||||
| 36 | 334866 | 5.70 | 6.90 | |
| Switch Terminal Set | ||||
| 37 | 337359 | 30.66 | 37.10 | |
| Pushing Button (a) | ||||
| 37 | 329548 | 1.65 | 2.00 | |
| Switch Terminal Set | ||||
| 38 | 337359 | 30.66 | 37.10 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 40 | 313687 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 41 | 337391 | |||
| No information available, not orderable | ||||
| 41A | 329389 | |||
| Strap (black) | ||||
| 42 | 306952 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 502 | 336642 | |||
| No information available, not orderable | ||||
| 503 | 337385 | |||
| No information available, not orderable | ||||
| 504 | 983006 | |||
| Battery Cover | ||||
| 505 | 331086 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 506 | 336643 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336474 | |||
| No information available, not orderable | ||||
| 510A | 337941 | |||
| Hook (a) Ass'y Includ.602 Except For Europe | ||||
| 601 | 337362 | 4.80 | 5.81 | |
| Truss Hd. Screw M4 (black) Except For Europe | ||||
| 602 | 337357 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 603 | 333301 | |||
| No information available, not orderable | ||||
| 604 | 337384 | |||
