Here you will find all available parts and drawings of the 'Hikoki DM20V'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

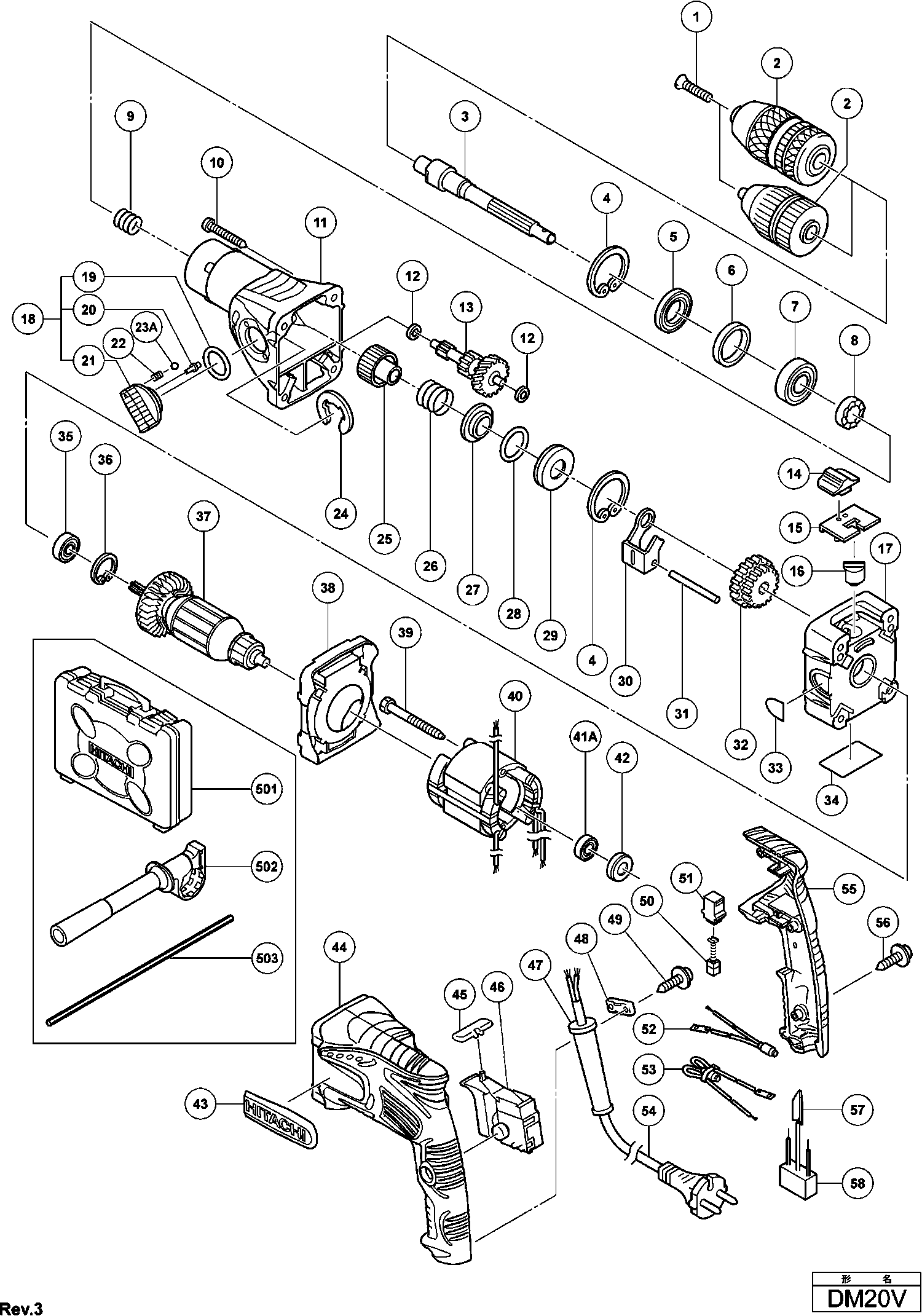

Technical drawing of model Hikoki DM20V
Spare parts list of model Hikoki DM20V
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Second Gear | ||||
| *13 | 325340 | 29.15 | 35.27 | |
| Second Gear | ||||
| *13 | 325339 | 16.78 | 20.30 | |
| No information available, not orderable | ||||
| *2 | 319546 | |||
| Armature 230v | ||||
| *37 | 360652E | 36.16 | 43.76 | |
| ARMATURE 110 V | ||||
| *37 | 360652C | 33.77 | 40.86 | |
| Stator 230v | ||||
| *40 | 340650E | 15.26 | 18.47 | |
| FIELD 110 VOLT | ||||
| *40 | 340650C | 14.24 | 17.23 | |
| Interf. suppr. | ||||
| *52 | 321634 | 6.15 | 7.44 | |
| Choke Coil (brown) 220v-240v | ||||
| *53 | 322517 | 7.65 | 9.26 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *54 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *54 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| 1 | 995344 | |||
| No information available, not orderable | ||||
| 2 | 319546 | |||
| Spindle Ass'y | ||||
| 3 | 325319 | 10.80 | 13.07 | |
| Retaining Ring For D35 Hole (10 Pcs.) | ||||
| 4 | 939556 | 10.20 | 12.34 | |
| Oil Seal | ||||
| 5 | 971745 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 6 | 325335 | |||
| Ball Bearing 6202dd | ||||
| 7 | 6202DD | 6.75 | 8.17 | |
| Ratchet (a) | ||||
| 8 | 325330 | 4.65 | 5.63 | |
| Spring | ||||
| 9 | 984101 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 10 | 325336 | |||
| Gear Cover | ||||
| 11 | 325326 | 14.16 | 17.14 | |
| Washer (b) | ||||
| 12 | 322852 | 1.05 | 1.27 | |
| Second Gear | ||||
| 13 | 325340 | 29.15 | 35.27 | |
| Second Gear | ||||
| 13 | 325339 | 16.78 | 20.30 | |
| Change Lever | ||||
| 14 | 325323 | 1.05 | 1.27 | |
| Change Cover | ||||
| 15 | 325324 | 1.05 | 1.27 | |
| Change Shaft | ||||
| 16 | 325322 | 3.15 | 3.81 | |
| Inner Cover | ||||
| 17 | 325320 | 8.40 | 10.16 | |
| Shift Lever Ass'y | ||||
| 18 | 322847 | 3.00 | 3.63 | |
| O-ring (s-22) | ||||
| 19 | 306353 | 1.04 | 1.26 | |
| Shift Pin | ||||
| 20 | 322848 | 1.05 | 1.27 | |
| Spring (see 984123) | ||||
| 22 | 981328 | 1.05 | 1.27 | |
| Steel Ball D3.5 (10 Pcs.) | ||||
| 23A | 335299 | 1.04 | 1.26 | |
| Retaining Ring (e-type) For D15 Shaft | ||||
| 24 | 323048 | 1.35 | 1.63 | |
| Ratchet (b) | ||||
| 25 | 325331 | 8.40 | 10.16 | |
| Spring | ||||
| 26 | 325332 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 27 | 325333 | |||
| O-RING | ||||
| 28 | 884909 | 1.38 | 1.67 | |
| Sleeve (b) | ||||
| 29 | 325334 | 4.80 | 5.81 | |
| Shift Arm | ||||
| 30 | 322849 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 31 | 325321 | |||
| Gear | ||||
| 32 | 325327 | 14.16 | 17.14 | |
| Ball Bearing 608dd | ||||
| 35 | 608DDM | 5.55 | 6.72 | |
| Washer Spring | ||||
| 36 | 939553 | 3.60 | 4.36 | |
| Armature 230v | ||||
| 37 | 360652E | 36.16 | 43.76 | |
| ARMATURE 110 V | ||||
| 37 | 360652C | 33.77 | 40.86 | |
| Fan Guide | ||||
| 38 | 325325 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D4x50 | ||||
| 39 | 961672 | 1.04 | 1.26 | |
| Stator 230v | ||||
| 40 | 340650E | 15.26 | 18.47 | |
| FIELD 110 VOLT | ||||
| 40 | 340650C | 14.24 | 17.23 | |
| No information available, not orderable | ||||
| 41A | 698VVC | |||
| Rubber Ring | ||||
| 42 | 309929 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 43 | 325338 | |||
| No information available, not orderable | ||||
| 43A | 325338 | |||
| Housing | ||||
| 44 | 324553 | 26.95 | 32.61 | |
| Pushing Button | ||||
| 45 | 322853 | 1.05 | 1.27 | |
| Switch | ||||
| 46 | 325337 | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| 47 | 953327 | |||
| Cord Clip | ||||
| 48 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 49 | 984750 | |||
| Carbon Brush (1 Pair) | ||||
| 50 | 999041 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 51 | 955203 | 2.40 | 2.90 | |
| Interf. suppr. | ||||
| 52 | 321634 | 6.15 | 7.44 | |
| CHOKE COIL, BLUE, 110 V | ||||
| 52 | 322519 | 5.46 | 6.61 | |
| Choke Coil (brown) 220v-240v | ||||
| 53 | 322517 | 7.65 | 9.26 | |
| Brown choke coil 110 V | ||||
| 53 | 322518 | 7.14 | 8.64 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 54 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 54 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 54 | 500247Z | 6.18 | 7.48 | |
| Handle Cover | ||||
| 55 | 324554 | 14.03 | 16.97 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 56 | 301653 | 1.04 | 1.26 | |
| Earth Terminal | ||||
| 57 | 992635 | 1.05 | 1.27 | |
| Noise Suppressor | ||||
| 58 | 994273 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 501 | 325341 | |||
| Side Handle | ||||
| 502 | 323050 | 28.53 | 34.52 | |
| No information available, not orderable | ||||
| 503 | 303709 | |||
| No information available, not orderable | ||||
| 608 | 971670 | |||
