Here you will find all available parts and drawings of the 'Hikoki DM-13A'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

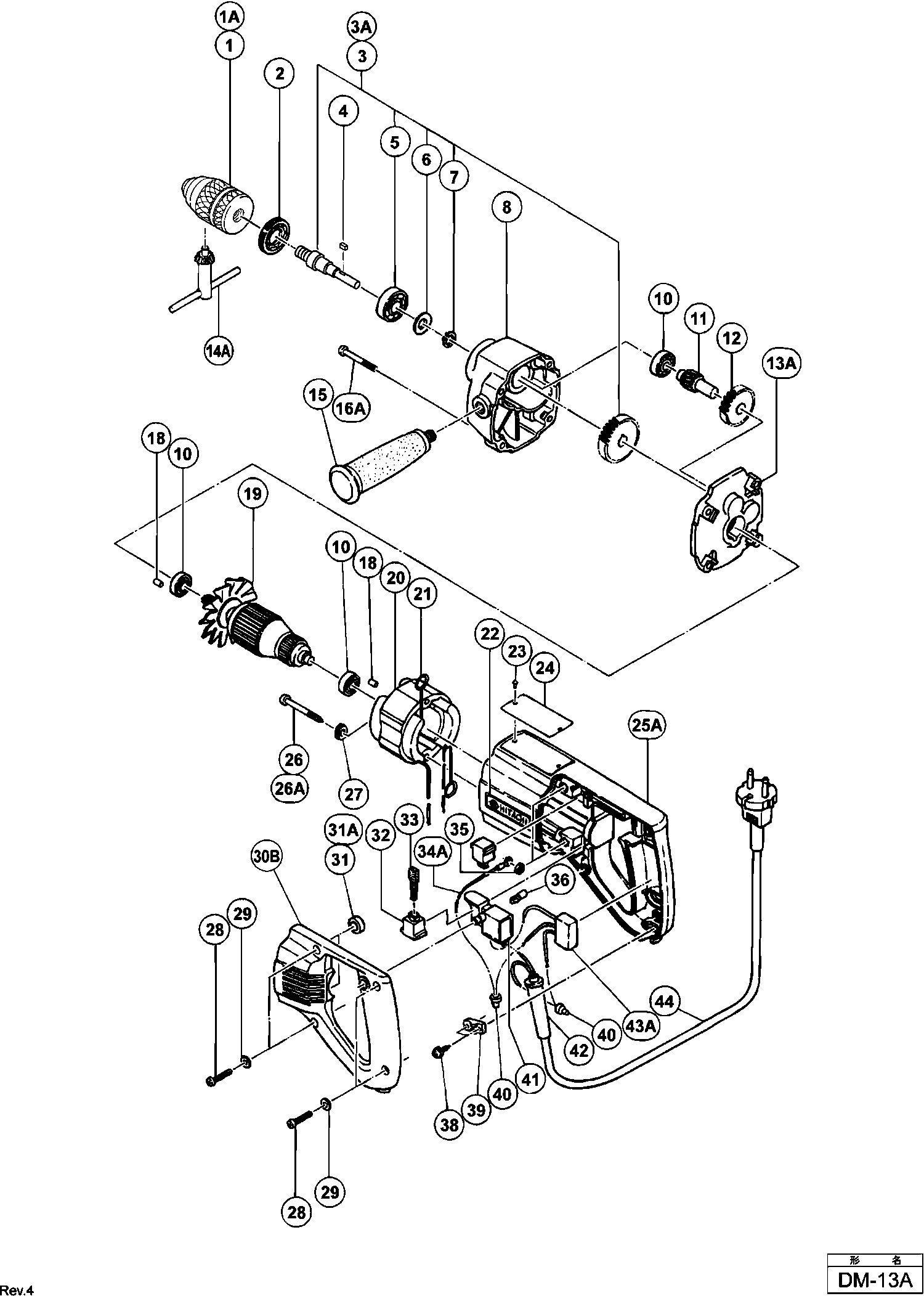

Technical drawing of model Hikoki DM-13A
Spare parts list of model Hikoki DM-13A
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 321810 | |||
| No information available, not orderable | ||||
| 1A | 321813 | |||
| Bearing Cap | ||||
| 2 | 930214 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 3 | 960355 | |||
| Spindle And Gear Set Includ.7-9 | ||||
| 3A | 960380 | 22.83 | 27.62 | |
| Feather Key 3x3x8 | ||||
| 4 | 944109 | 1.70 | 2.06 | |
| Ball Bearing 6201vv | ||||
| 5 | 6201VV | 6.45 | 7.80 | |
| Ring | ||||
| 6 | 930334 | 1.05 | 1.27 | |
| Spring Washer D12 (10 pieces) | ||||
| 7 | 939542 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 8 | 980400 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 10 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 11 | 930850 | |||
| No information available, not orderable | ||||
| 12 | 930368 | |||
| Inner Cover | ||||
| 13A | 980403 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 14A | 321869 | |||
| No information available, not orderable | ||||
| 15 | 961073 | |||
| Tapping Screw D5x40 | ||||
| 16A | 971303 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 17 | 949454 | 1.04 | 1.26 | |
| RUBBER PEN | ||||
| 18 | 931701 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 19 | 930424F | |||
| Stator 220v-230v | ||||
| 20 | 930422E | 38.50 | 46.58 | |
| No information available, not orderable | ||||
| 21 | 930843 | |||
| No information available, not orderable | ||||
| 22 | 957561 | |||
| No information available, not orderable | ||||
| 23 | 932642 | |||
| No information available, not orderable | ||||
| 25A | 930420 | |||
| No information available, not orderable | ||||
| 26 | 949250 | |||
| Tapping Screw D5x45 | ||||
| 26A | 955912 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 27 | 955906 | |||
| Tapping Screw D4x20 | ||||
| 28 | 956384 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 29 | 949453 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 30B | 308533 | |||
| No information available, not orderable | ||||
| 31 | 930426 | |||
| Socket | ||||
| 31A | 940811 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 32 | 930435 | |||
| Carbon Brush (1 Pair) | ||||
| 33 | 999041 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 34A | 931911 | |||
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 35 | 949555 | 1.05 | 1.27 | |
| Terminal (a) M3.5 (10 Pcs.) | ||||
| 36 | 960356 | 3.00 | 3.63 | |
| connecting terminal | ||||
| 36 | 980063 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 38 | 930446 | |||
| Cord Clip | ||||
| 39 | 937631 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 40 | 959140 | 3.30 | 3.99 | |
| Switch | ||||
| 41 | 957747 | 14.03 | 16.97 | |
| Cord Armor D10.2 Till 11.1982 For Aus | ||||
| 42 | 930026 | 3.00 | 3.63 | |
| Cord Armor D8.2 | ||||
| 42 | 930487 | 2.25 | 2.72 | |
| Noise Suppressor | ||||
| 43A | 994273 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 44 | 500234Z | |||
