Here you will find all available parts and drawings of the 'Hikoki DH52MEY'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

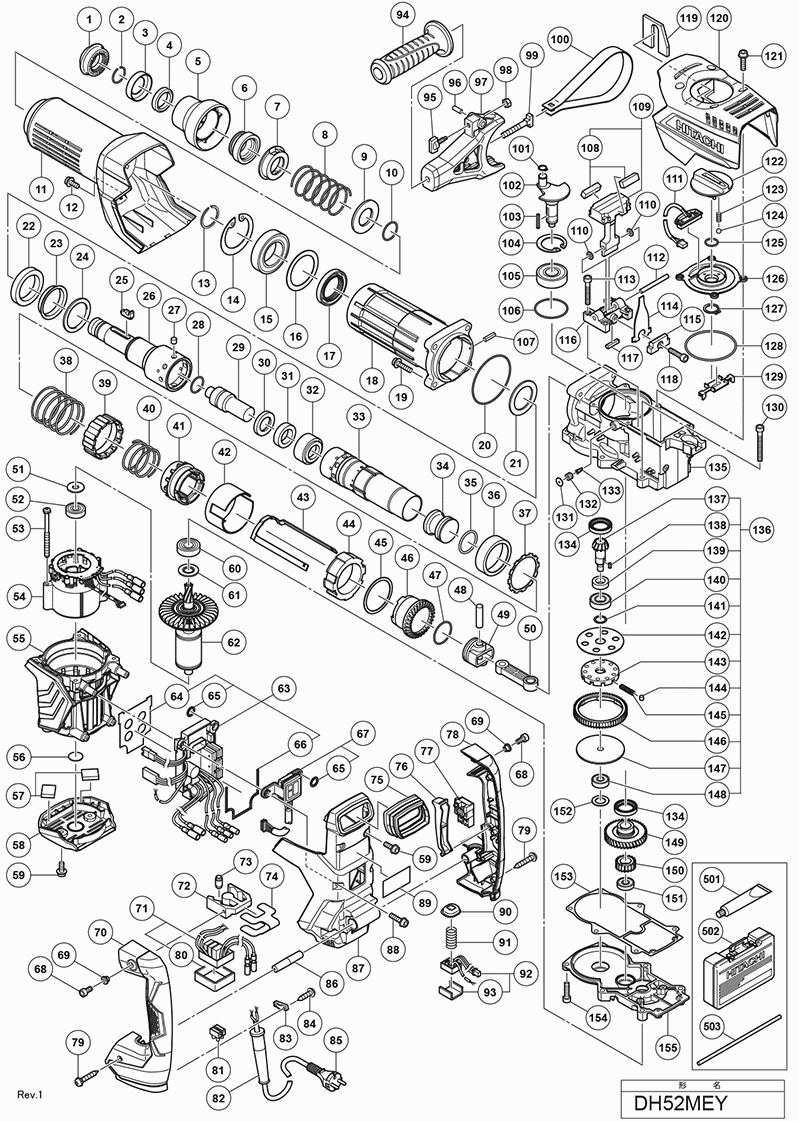

Technical drawing of model Hikoki DH52MEY
Spare parts list of model Hikoki DH52MEY
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Crank Cover | ||||
| *120B | 338237 | 4.35 | 5.26 | |
| No information available, not orderable | ||||
| *503 | 971786 | |||
| Stator Fet Pcb Set 100v-127v Since 2.2015 | ||||
| *54 | 340921 | 42.35 | 51.24 | |
| Stator Sensor Pcb Set 220v-240v | ||||
| *54 | 340899 | 41.39 | 50.08 | |
| Stator Sensor Pcb Set 100v-127v Till 12.2014 | ||||
| *54 | 340898 | 41.39 | 50.08 | |
| Rotor | ||||
| *62 | 360992 | 149.19 | 180.52 | |
| Controller Ass'y 110v-127v Includ.64-66 Since 2.2 | ||||
| *63 | 339186 | 96.11 | 116.30 | |
| No information available, not orderable | ||||
| *63A | 383251 | |||
| Filter Pcb Ass'y 100v-127v Includ.77 | ||||
| *71 | 338180 | 12.45 | 15.06 | |
| Filter Pcb Ass'y 220v-240v Includ.77 | ||||
| *71 | 338181 | 12.45 | 15.06 | |
| Cord Armor D10.7 | ||||
| *82 | 940778 | 2.10 | 2.54 | |
| Cord Armor D11.2 | ||||
| *82 | 331335 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| *85 | 500503Z | |||
| Wing Bolt | ||||
| *95 | 337577 | 1.04 | 1.26 | |
| Roll Pin D2x8 (10 Pcs.) | ||||
| *96 | 949859 | 1.20 | 1.45 | |
| Tpe (sl),kor (sl) | ||||
| *98 | 949556 | 1.05 | 1.27 | |
| Front Cap | ||||
| 1 | 337562 | 2.85 | 3.45 | |
| Spring retaining ring | ||||
| 2 | 318590 | 1.65 | 2.00 | |
| Retainer Washer | ||||
| 3 | 338155 | 4.80 | 5.81 | |
| Retainer Damper (a) | ||||
| 4 | 339053 | 9.75 | 11.80 | |
| Grip | ||||
| 5 | 338154 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 6 | 338153 | |||
| Bit Lock Holder | ||||
| 6A | 370669 | 9.15 | 11.07 | |
| Thrust Plate | ||||
| 7 | 339051 | 13.05 | 15.79 | |
| Retainer Spring | ||||
| 8 | 339052 | 1.95 | 2.36 | |
| Spring Holder (a) | ||||
| 9 | 337557 | 1.20 | 1.45 | |
| Spring Holder (a) | ||||
| 9A | 371145 | 1.04 | 1.26 | |
| O-RING (S-26) | ||||
| 10 | 872470 | 1.65 | 2.00 | |
| Cylinder Case Cover | ||||
| 11 | 338198 | 14.25 | 17.24 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 12 | 998471 | 1.05 | 1.27 | |
| Retaining Ring D40 | ||||
| 13 | 318582 | 5.10 | 6.17 | |
| Retaining Ring D68 | ||||
| 14 | 338200 | 4.95 | 5.99 | |
| Ball Bearing 6008ddu | ||||
| 15 | 339063 | 14.93 | 18.06 | |
| Bearing Ring | ||||
| 16 | 338201 | 1.35 | 1.63 | |
| Oil Seal | ||||
| 17 | 318588 | 6.45 | 7.80 | |
| Cylinder Case | ||||
| 18 | 338199 | 21.45 | 25.95 | |
| Hex. Socket Hd. Bolt (w/flange) M8x35 | ||||
| 19 | 990083 | 1.05 | 1.27 | |
| O-ring (c) | ||||
| 20 | 338222 | 1.05 | 1.27 | |
| Retainer Damper Holder | ||||
| 21 | 338204 | 5.55 | 6.72 | |
| Retainer Damper (b) | ||||
| 22 | 338203 | 4.20 | 5.08 | |
| Damper Sleeve | ||||
| 23 | 339064 | 1.05 | 1.27 | |
| Retainer Damper Washer | ||||
| 24 | 338202 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 25 | 337554 | |||
| Bit Lock | ||||
| 25A | 370654 | 4.95 | 5.99 | |
| Retainer Sleeve | ||||
| 26 | 338205 | 45.10 | 54.57 | |
| Needle Pin D8 | ||||
| 27 | 338210 | 1.95 | 2.36 | |
| O-ring | ||||
| 28 | 986104 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 29 | 338206 | |||
| Second Hammer | ||||
| 29A | 370657 | 19.66 | 23.79 | |
| No information available, not orderable | ||||
| 30 | 338207 | |||
| Damper Washer | ||||
| 30A | 370659 | 7.95 | 9.62 | |
| Damper | ||||
| 31 | 328887 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 32 | 338208 | |||
| Damper Holder | ||||
| 32A | 370658 | 2.85 | 3.45 | |
| Cylinder | ||||
| 33 | 338209 | 44.69 | 54.07 | |
| Striker | ||||
| 34 | 338214 | 14.58 | 17.64 | |
| No information available, not orderable | ||||
| 34A | 375254 | |||
| O-ring | ||||
| 35 | 328880 | 4.80 | 5.81 | |
| Spring Holder (b) | ||||
| 36 | 338211 | 15.54 | 18.80 | |
| Lock Spring Washer | ||||
| 37 | 338216 | 1.20 | 1.45 | |
| Lock Spring | ||||
| 38 | 338217 | 1.50 | 1.82 | |
| Lock Sleeve | ||||
| 39 | 338215 | 1.20 | 1.45 | |
| Lock Sleeve | ||||
| 39A | 338215 | 1.20 | 1.45 | |
| Clutch Spring | ||||
| 40 | 338212 | 1.50 | 1.82 | |
| Clutch | ||||
| 41 | 338213 | 37.81 | 45.75 | |
| Sleeve | ||||
| 42 | 338218 | 1.04 | 1.26 | |
| Slider (1) | ||||
| 43 | 338235 | 3.45 | 4.17 | |
| Metal (a) | ||||
| 44 | 338219 | 10.65 | 12.89 | |
| Metal Washer | ||||
| 45 | 338220 | 1.05 | 1.27 | |
| Bevel Gear (1) | ||||
| 46 | 338221 | 13.80 | 16.70 | |
| O-ring | ||||
| 47 | 328880 | 4.80 | 5.81 | |
| Piston Pin | ||||
| 48 | 338228 | 4.35 | 5.26 | |
| Piston Pin | ||||
| 48A | 372216 | 1.80 | 2.18 | |
| Piston | ||||
| 49 | 328877 | 7.05 | 8.53 | |
| Connecting Rod | ||||
| 50 | 328878 | 7.05 | 8.53 | |
| Bearing Washer | ||||
| 51 | 944954 | 1.05 | 1.27 | |
| Ball Bearing 6201vv | ||||
| 52 | 6201VV | 6.45 | 7.80 | |
| Hex. Hd. Tapping Screw D5x60 | ||||
| 53 | 961501 | 1.04 | 1.26 | |
| Stator Fet Pcb Set 100v-127v Since 2.2015 | ||||
| 54 | 340921 | 42.35 | 51.24 | |
| Stator Sensor Pcb Set 220v-240v | ||||
| 54 | 340899 | 41.39 | 50.08 | |
| Stator Sensor Pcb Set 100v-127v Till 12.2014 | ||||
| 54 | 340898 | 41.39 | 50.08 | |
| Housing | ||||
| 55 | 338168 | 22.96 | 27.78 | |
| Dust Seal | ||||
| 56 | 333225 | 1.05 | 1.27 | |
| Packing (b) | ||||
| 57 | 339065 | 1.04 | 1.26 | |
| Tail Cover | ||||
| 58 | 338170 | 2.40 | 2.90 | |
| Hex. Socket Hd. Bolt (w/flange) M5x14 | ||||
| 59 | 998485 | 1.05 | 1.27 | |
| Ball Bearing 6202dd | ||||
| 60 | 6202DD | 6.75 | 8.17 | |
| Washer | ||||
| 61 | 980700 | 1.04 | 1.26 | |
| Rotor | ||||
| 62 | 360992 | 149.19 | 180.52 | |
| Controller Ass'y 220v-240v Includ.64-66 | ||||
| 63 | 338189 | 96.94 | 117.29 | |
| Controller Ass'y 110v-127v Includ.64-66 Since 2.2 | ||||
| 63 | 339186 | 96.11 | 116.30 | |
| Rubber Sheet (c) | ||||
| 64 | 339056 | 2.25 | 2.72 | |
| Rubber Sheet (a) | ||||
| 65 | 339055 | 1.04 | 1.26 | |
| Rubber Sheet (d) | ||||
| 66 | 339057 | 1.65 | 2.00 | |
| Panel Ass'y Includ.65 | ||||
| 67 | 338184 | 14.40 | 17.42 | |
| Seal Lock Hd. Allen bolt M5x12 | ||||
| 68 | 991690 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 69 | 991711 | 1.05 | 1.27 | |
| Handle (a) | ||||
| 70 | 338173 | 5.55 | 6.72 | |
| Filter Pcb Ass'y 220v-240v Includ.77 | ||||
| 71 | 338181 | 12.45 | 15.06 | |
| Filter Pcb Ass'y 100v-127v Includ.77 | ||||
| 71 | 338180 | 12.45 | 15.06 | |
| Holder | ||||
| 72 | 310123 | 11.85 | 14.34 | |
| Handle Damper | ||||
| 73 | 310124 | 4.20 | 5.08 | |
| Handle Damper Holder | ||||
| 74 | 338162 | 1.04 | 1.26 | |
| Bellows | ||||
| 75 | 338176 | 4.80 | 5.81 | |
| Trigger (1) | ||||
| 76 | 337588 | 1.04 | 1.26 | |
| Switch | ||||
| 77 | 337587 | 13.95 | 16.88 | |
| Handle (b) | ||||
| 78 | 338174 | 5.55 | 6.72 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 79 | 307028 | 1.05 | 1.27 | |
| Filter Packing | ||||
| 80 | 339058 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 81 | 958308Z | |||
| Cord Armor D10.7 | ||||
| 82 | 940778 | 2.10 | 2.54 | |
| Cord Armor D11.2 | ||||
| 82 | 331335 | 1.20 | 1.45 | |
| Cord Clip | ||||
| 83 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 84 | 984750 | |||
| No longer available, no replacement | ||||
| 85 | 337366 | |||
| Handle Shaft | ||||
| 86 | 338175 | 1.04 | 1.26 | |
| Back Cover | ||||
| 87 | 338197 | 7.35 | 8.89 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 88 | 994192 | 1.04 | 1.26 | |
| Pushing Button | ||||
| 90 | 338171 | 1.05 | 1.27 | |
| Spring | ||||
| 91 | 338172 | 1.05 | 1.27 | |
| On Lock Pcb (a) Ass'y Includ.93 | ||||
| 92 | 338185 | 8.70 | 10.53 | |
| Packing (a) | ||||
| 93 | 339059 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 94 | 330209 | |||
| Wing Bolt | ||||
| 95 | 337577 | 1.04 | 1.26 | |
| Mount | ||||
| 97 | 338239 | 4.35 | 5.26 | |
| Tpe (sl),kor (sl) | ||||
| 98 | 949556 | 1.05 | 1.27 | |
| Handle Bolt Except For Esp,ind,ina | ||||
| 99 | 333227 | 13.58 | 16.43 | |
| Band | ||||
| 100 | 338238 | 6.00 | 7.26 | |
| Spring Washer D12 (10 pieces) | ||||
| 101 | 939542 | 1.50 | 1.82 | |
| Crank Shaft | ||||
| 102 | 338224 | 26.68 | 32.28 | |
| Feather Key 3x3x25 | ||||
| 103 | 328869 | 1.65 | 2.00 | |
| Retaining Ring For D47 Hole | ||||
| 104 | 948227 | 1.35 | 1.63 | |
| Ball Bearing 6204dd | ||||
| 105 | 6204DD | 9.00 | 10.89 | |
| O-ring (f) | ||||
| 106 | 338227 | 1.05 | 1.27 | |
| Roll Pin D2x8 (10 Pcs.) | ||||
| 107 | 949859 | 1.20 | 1.45 | |
| Weight Damper | ||||
| 108 | 339112 | 2.25 | 2.72 | |
| Weight Ass'y Includ.108 | ||||
| 109 | 339067 | 47.44 | 57.40 | |
| Ring | ||||
| 110 | 338191 | 1.04 | 1.26 | |
| On Lock Pcb (b) | ||||
| 111 | 338179 | 7.35 | 8.89 | |
| Weight Pin | ||||
| 112 | 338192 | 3.90 | 4.72 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 113 | 306061 | 1.05 | 1.27 | |
| Leaf Spring (b) | ||||
| 114 | 338187 | 1.05 | 1.27 | |
| Spring Holder | ||||
| 115 | 328906 | 6.45 | 7.80 | |
| Base Plate | ||||
| 116 | 338190 | 10.35 | 12.52 | |
| Weight Bumper | ||||
| 117 | 338194 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 118 | 990079 | 1.05 | 1.27 | |
| Felt Packing (d) | ||||
| 119 | 339050 | 2.25 | 2.72 | |
| Crank Cover | ||||
| 120 | 338237 | 4.35 | 5.26 | |
| Hex. Socket Hd. Bolt (w/flange) M5x18 | ||||
| 121 | 338177 | 1.04 | 1.26 | |
| Change Lever | ||||
| 122 | 338159 | 2.10 | 2.54 | |
| Lever Spring | ||||
| 123 | 337567 | 1.04 | 1.26 | |
| Steel Ball D4.76 (10 pieces) | ||||
| 124 | 959149 | 1.04 | 1.26 | |
| O-ring (s-18) | ||||
| 125 | 878885 | 1.05 | 1.27 | |
| Lever Shaft Holder | ||||
| 126 | 338236 | 9.45 | 11.43 | |
| Retaining Ring D20 (10 Pcs.) | ||||
| 127 | 939547 | 3.90 | 4.72 | |
| O-ring (a) | ||||
| 128 | 338160 | 1.05 | 1.27 | |
| Change Plate | ||||
| 129 | 338234 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 130 | 986940 | 1.05 | 1.27 | |
| Felt Packing (c) | ||||
| 131 | 339062 | 1.04 | 1.26 | |
| Cap Screw | ||||
| 132 | 339061 | 6.75 | 8.17 | |
| Cap Screw | ||||
| 132A | 371179 | 17.46 | 21.13 | |
| Valve | ||||
| 133 | 995396 | 1.80 | 2.18 | |
| Oil Seal | ||||
| 134 | 328867 | 4.80 | 5.81 | |
| Crank Case | ||||
| 135 | 338223 | 39.74 | 48.08 | |
| Slip Clutch Ass'y Includ.137-148 | ||||
| 136 | 338242 | 62.84 | 76.03 | |
| Bevel Pinion | ||||
| 137 | 338229 | 7.80 | 9.44 | |
| Feather Key 3x3x8 | ||||
| 138 | 944109 | 1.70 | 2.06 | |
| Collar | ||||
| 139 | 338230 | 1.35 | 1.63 | |
| Ball Bearing 6202dd | ||||
| 140 | 6202DD | 6.75 | 8.17 | |
| Ring | ||||
| 141 | 313058 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 142 | 338231 | 2.25 | 2.72 | |
| Gear Holder | ||||
| 143 | 318554 | 10.20 | 12.34 | |
| Needle Pin D6x6 | ||||
| 144 | 313057 | 4.20 | 5.08 | |
| Spring (c) | ||||
| 145 | 329095 | 1.65 | 2.00 | |
| Second Gear | ||||
| 146 | 338232 | 13.95 | 16.88 | |
| Spacer (1) | ||||
| 147 | 338233 | 12.75 | 15.43 | |
| Ball Bearing 629vv | ||||
| 148 | 629VVM | 5.85 | 7.08 | |
| First Gear | ||||
| 149 | 338225 | 31.08 | 37.60 | |
| Second Gear | ||||
| 150 | 338226 | 5.70 | 6.90 | |
| Ball Bearing 629vv | ||||
| 151 | 629VVM | 5.85 | 7.08 | |
| Ring | ||||
| 152 | 944525 | 1.05 | 1.27 | |
| Seal Packing | ||||
| 153 | 338240 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M6x22 | ||||
| 154 | 321313 | 1.65 | 2.00 | |
| Gear Cover | ||||
| 155 | 338241 | 17.60 | 21.30 | |
| MOUNT ASSEMBLY | ||||
| 156 | 376578 | 5.10 | 6.17 | |
| COMPLETE SIDE HANDLE | ||||
| 157 | 376577 | 19.66 | 23.79 | |
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 501 | 981840 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 502 | 339066 | |||
| No information available, not orderable | ||||
| 503 | 971786 | |||
| Clamp | ||||
| 504 | 372113 | 1.80 | 2.18 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 601 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 602 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 603 | 320859 | |||
| No information available, not orderable | ||||
| 604 | 318085 | |||
| No information available, not orderable | ||||
| 605 | 313448 | |||
| No information available, not orderable | ||||
| 606 | 313456 | |||
| No information available, not orderable | ||||
| 607 | 313449 | |||
| No information available, not orderable | ||||
| 608 | 313457 | |||
| No information available, not orderable | ||||
| 609 | 313450 | |||
| No information available, not orderable | ||||
| 610 | 313458 | |||
| No information available, not orderable | ||||
| 611 | 313451 | |||
| No information available, not orderable | ||||
| 612 | 313459 | |||
| No information available, not orderable | ||||
| 613 | 313452 | |||
| No information available, not orderable | ||||
| 614 | 313460 | |||
| No information available, not orderable | ||||
| 615 | 313453 | |||
| No information available, not orderable | ||||
| 616 | 313461 | |||
| No information available, not orderable | ||||
| 617 | 313454 | |||
| No information available, not orderable | ||||
| 618 | 313462 | |||
| No information available, not orderable | ||||
| 619 | 313455 | |||
| No information available, not orderable | ||||
| 620 | 313463 | |||
| No information available, not orderable | ||||
| 621 | 944460 | |||
| No information available, not orderable | ||||
| 622 | 944461 | |||
| No information available, not orderable | ||||
| 623 | 993038 | |||
| No information available, not orderable | ||||
| 624 | 944500 | |||
| No information available, not orderable | ||||
| 625 | 944477 | |||
| No information available, not orderable | ||||
| 626 | 313465 | |||
| No information available, not orderable | ||||
| 627 | 955994 | |||
| No information available, not orderable | ||||
| 628 | 955995 | |||
| No information available, not orderable | ||||
| 629 | 955996 | |||
| No information available, not orderable | ||||
| 630 | 955997 | |||
| No information available, not orderable | ||||
| 631 | 955998 | |||
| No information available, not orderable | ||||
| 632 | 955999 | |||
| No information available, not orderable | ||||
| 633 | 956000 | |||
| No information available, not orderable | ||||
| 634 | 956001 | |||
| No information available, not orderable | ||||
| 635 | 955154 | |||
| No information available, not orderable | ||||
| 636 | 955166 | |||
| No information available, not orderable | ||||
| 637 | 955155 | |||
| No information available, not orderable | ||||
| 638 | 955167 | |||
| No information available, not orderable | ||||
| 639 | 956002 | |||
| No information available, not orderable | ||||
| 640 | 956003 | |||
| No information available, not orderable | ||||
| 641 | 955157 | |||
| No information available, not orderable | ||||
| 642 | 955168 | |||
| No information available, not orderable | ||||
| 643 | 956004 | |||
| No information available, not orderable | ||||
| 644 | 956005 | |||
| No information available, not orderable | ||||
| 645 | 955159 | |||
| No information available, not orderable | ||||
| 646 | 955169 | |||
| No information available, not orderable | ||||
| 647 | 956006 | |||
| No information available, not orderable | ||||
| 648 | 956007 | |||
| No information available, not orderable | ||||
| 649 | 956728 | |||
| No information available, not orderable | ||||
| 650 | 956743 | |||
| No information available, not orderable | ||||
| 651 | 313466 | |||
| No information available, not orderable | ||||
| 652 | 313467 | |||
| No information available, not orderable | ||||
| 653 | 956009 | |||
| No information available, not orderable | ||||
| 654 | 955165 | |||
| No information available, not orderable | ||||
| 655 | 321813 | |||
| No information available, not orderable | ||||
| 656 | 313468 | |||
| No information available, not orderable | ||||
| 657 | 303334 | |||
| No information available, not orderable | ||||
| 658 | 930515 | |||
| No information available, not orderable | ||||
| 659 | 313469 | |||
| No information available, not orderable | ||||
| 660 | 313470 | |||
| No information available, not orderable | ||||
| 661 | 313471 | |||
| No information available, not orderable | ||||
| 662 | 313472 | |||
| No information available, not orderable | ||||
| 663 | 313473 | |||
| No information available, not orderable | ||||
| 664 | 313474 | |||
| No information available, not orderable | ||||
| 665 | 313475 | |||
| No information available, not orderable | ||||
| 666 | 313476 | |||
| No information available, not orderable | ||||
| 667 | 313478 | |||
| No information available, not orderable | ||||
| 668 | 313477 | |||
| No information available, not orderable | ||||
| 669 | 313479 | |||
