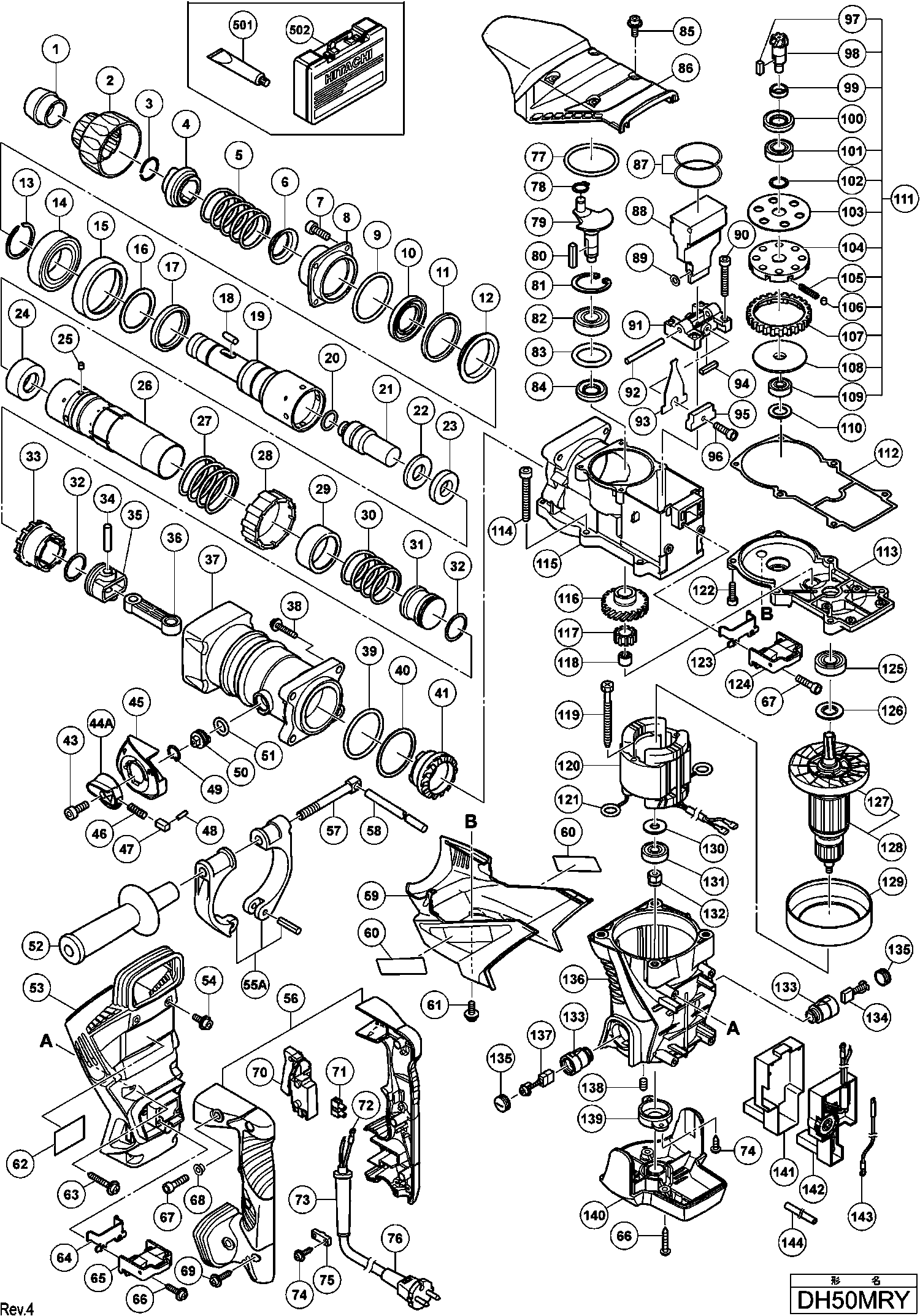

Technical drawing of model Hikoki DH50MRY
Spare parts list of model Hikoki DH50MRY
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 313415 | |||
| Grip | ||||
| 2 | 328900 | 3.30 | 3.99 | |
| Spring retaining ring | ||||
| 3 | 318590 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 4 | 328899 | |||
| Spring washer | ||||
| 5 | 313419 | 3.00 | 3.63 | |
| Spring Holder | ||||
| 6 | 318589 | 4.80 | 5.81 | |
| Seal Lock Hex. Socket Hd. Bolt M8x25 | ||||
| 7 | 985479 | 2.55 | 3.09 | |
| Front Case | ||||
| 8 | 318587 | 22.83 | 27.62 | |
| O-ring (s-70) | ||||
| 9 | 878863 | 2.40 | 2.90 | |
| Oil Seal | ||||
| 10 | 318588 | 6.45 | 7.80 | |
| Urethane Ring | ||||
| 11 | 318586 | 6.45 | 7.80 | |
| Urethane Ring Holder | ||||
| 12 | 318585 | 3.30 | 3.99 | |
| Retaining Ring D40 | ||||
| 13 | 318582 | 5.10 | 6.17 | |
| Ball Bearing 6008cm | ||||
| 14 | 6008CM | 13.80 | 16.70 | |
| Bushing | ||||
| 15 | 318581 | 25.30 | 30.61 | |
| Spring retaining ring | ||||
| 16 | 328884 | 3.30 | 3.99 | |
| Retainer Damper | ||||
| 17 | 328883 | 3.30 | 3.99 | |
| Needle Roller D8x20 | ||||
| 18 | 313421 | 5.25 | 6.35 | |
| No longer available, no replacement | ||||
| 19 | 328882 | |||
| O-ring | ||||
| 20 | 986104 | 1.05 | 1.27 | |
| Second Hammer | ||||
| 21 | 328885 | 19.94 | 24.12 | |
| Damper Washer | ||||
| 22 | 328886 | 7.65 | 9.26 | |
| Damper | ||||
| 23 | 328887 | 3.30 | 3.99 | |
| Damper Holder | ||||
| 24 | 328888 | 12.15 | 14.70 | |
| Needle Pin D8x6 | ||||
| 25 | 328891 | 1.65 | 2.00 | |
| Cylinder | ||||
| 26 | 328889 | 116.74 | 141.25 | |
| Holding Spring | ||||
| 27 | 328895 | 4.80 | 5.81 | |
| Lock Sleeve | ||||
| 28 | 318562 | 6.45 | 7.80 | |
| No longer available, no replacement | ||||
| 29 | 329330 | |||
| No longer available, no replacement | ||||
| 30 | 328893 | |||
| Striker | ||||
| 31 | 328890 | 18.15 | 21.96 | |
| O-ring | ||||
| 32 | 328880 | 4.80 | 5.81 | |
| Clutch | ||||
| 33 | 328894 | 61.33 | 74.20 | |
| Piston Pin | ||||
| 34 | 328879 | 4.80 | 5.81 | |
| Piston | ||||
| 35 | 328877 | 7.05 | 8.53 | |
| Connecting Rod | ||||
| 36 | 328878 | 7.05 | 8.53 | |
| No longer available, no replacement | ||||
| 37 | 328896 | |||
| Hex. Socket Hd. Bolt (w/flange) M8x35 | ||||
| 38 | 990083 | 1.05 | 1.27 | |
| O-ring | ||||
| 39 | 985779 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 40 | 328897 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 41 | 328898 | |||
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 43 | 983162 | 1.05 | 1.27 | |
| Change Lever (old 321309) | ||||
| 44A | 331545 | 3.75 | 4.54 | |
| Lever Holder | ||||
| 45 | 328901 | 3.30 | 3.99 | |
| Spring | ||||
| 46 | 321310 | 1.65 | 2.00 | |
| Pushing Button | ||||
| 47 | 321311 | 1.65 | 2.00 | |
| Pin D2x10 | ||||
| 48 | 321312 | 1.65 | 2.00 | |
| Retaining Ring (1) | ||||
| 49 | 311229 | 1.05 | 1.27 | |
| Lever Shaft | ||||
| 50 | 324934 | 20.49 | 24.79 | |
| O-ring (p-16) | ||||
| 51 | 873095 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 52 | 318574 | |||
| No information available, not orderable | ||||
| 53 | 328910 | |||
| Hex. Socket Hd. Bolt (w/flange) M5x14 | ||||
| 54 | 998485 | 1.05 | 1.27 | |
| Handle Holder | ||||
| 55A | 331096 | 12.23 | 14.79 | |
| Handle (a).(b) Set | ||||
| 56 | 328920 | 27.23 | 32.94 | |
| No longer available, no replacement | ||||
| 57 | 318576 | |||
| No information available, not orderable | ||||
| 58 | 971786 | |||
| Hood | ||||
| 59 | 328909 | 15.54 | 18.80 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 61 | 998471 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D5x30 (black) | ||||
| 63 | 328707 | 1.05 | 1.27 | |
| Plate | ||||
| 64 | 980750 | 17.05 | 20.63 | |
| Handle Rubber | ||||
| 65 | 980727 | 14.10 | 17.06 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 66 | 305558 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 67 | 990079 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 68 | 991711 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 69 | 307028 | 1.05 | 1.27 | |
| Switch (b) (1p Screw Type) W/o Lock | ||||
| 70 | 990941 | 26.40 | 31.94 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 71 | 938307 | 2.13 | 2.57 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 72 | 930804 | 3.00 | 3.63 | |
| connecting terminal | ||||
| 72 | 980063 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 73 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 74 | 984750 | |||
| Cord Clip | ||||
| 75 | 960266 | 1.04 | 1.26 | |
| Cord 5m 2 X 1,5 H07rn-f (w/o plug) | ||||
| 76 | 500460Z | 37.26 | 45.09 | |
| Cylinder O-ring (i.d 69.3) | ||||
| 77 | 877314 | 1.95 | 2.36 | |
| Spring Washer D12 (10 pieces) | ||||
| 78 | 939542 | 1.50 | 1.82 | |
| Crank Shaft | ||||
| 79 | 328868 | 46.75 | 56.57 | |
| Feather Key 3x3x25 | ||||
| 80 | 328869 | 1.65 | 2.00 | |
| Retaining Ring For D47 Hole | ||||
| 81 | 948227 | 1.35 | 1.63 | |
| Ball Bearing 6204dd | ||||
| 82 | 6204DD | 9.00 | 10.89 | |
| O-ring (b) | ||||
| 83 | 985765 | 1.95 | 2.36 | |
| Oil Seal | ||||
| 84 | 328867 | 4.80 | 5.81 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 85 | 994192 | 1.04 | 1.26 | |
| Crank Cover | ||||
| 86 | 328908 | 14.99 | 18.13 | |
| Cylinder O-ring (b) | ||||
| 87 | 878713 | 2.10 | 2.54 | |
| Weight | ||||
| 88 | 328902 | 40.84 | 49.41 | |
| SLUITRING | ||||
| 89 | 957585 | 1.00 | 1.21 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 90 | 306061 | 1.05 | 1.27 | |
| Base | ||||
| 91 | 328903 | 16.09 | 19.47 | |
| No information available, not orderable | ||||
| 92 | 328904 | |||
| Leaf Spring | ||||
| 93 | 328905 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 94 | 328907 | |||
| Spring Holder | ||||
| 95 | 328906 | 6.45 | 7.80 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 96 | 990079 | 1.05 | 1.27 | |
| Feather Key 3x3x8 | ||||
| 97 | 944109 | 1.70 | 2.06 | |
| No information available, not orderable | ||||
| 98 | 328873 | |||
| Spacer | ||||
| 99 | 328874 | 11.25 | 13.61 | |
| Oil Seal | ||||
| 100 | 328867 | 4.80 | 5.81 | |
| Ball Bearing 6202dd | ||||
| 101 | 6202DD | 6.75 | 8.17 | |
| Ring | ||||
| 102 | 313058 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 103 | 318552 | 6.45 | 7.80 | |
| Gear Holder | ||||
| 104 | 318554 | 10.20 | 12.34 | |
| Spring (c) | ||||
| 105 | 329095 | 1.65 | 2.00 | |
| Needle Pin D6x6 | ||||
| 106 | 313057 | 4.20 | 5.08 | |
| No longer available, no replacement | ||||
| 107 | 328875 | |||
| Spacer | ||||
| 108 | 328876 | 14.30 | 17.30 | |
| Ball Bearing 629vv | ||||
| 109 | 629VVM | 5.85 | 7.08 | |
| Ring | ||||
| 110 | 944525 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 111 | 328872 | |||
| Gasket | ||||
| 112 | 328881 | 3.30 | 3.99 | |
| Gear Cover | ||||
| 113 | 328916 | 43.86 | 53.07 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 114 | 986940 | 1.05 | 1.27 | |
| Crank Case | ||||
| 115 | 328866 | 84.56 | 102.32 | |
| First Gear | ||||
| 116 | 328870 | 29.15 | 35.27 | |
| Second Gear | ||||
| 117 | 328871 | 12.15 | 14.70 | |
| Needle-roller Bearing | ||||
| 118 | 939299 | 10.65 | 12.89 | |
| Hex. Hd. Tapping Screw D5x50 | ||||
| 119 | 953121 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 120 | 340712E | 96.25 | 116.46 | |
| Brush holder connector | ||||
| 121 | 958032 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M6x22 | ||||
| 122 | 321313 | 1.65 | 2.00 | |
| Plate | ||||
| 123 | 980750 | 17.05 | 20.63 | |
| Handle Rubber | ||||
| 124 | 980727 | 14.10 | 17.06 | |
| Ball Bearing 6202dd | ||||
| 125 | 6202DD | 6.75 | 8.17 | |
| Washer | ||||
| 126 | 980700 | 1.04 | 1.26 | |
| Fan | ||||
| 127 | 318918 | 7.95 | 9.62 | |
| Armature 230v | ||||
| 128 | 360819E | 198.28 | 239.91 | |
| ANKER 110-115 VOLT | ||||
| 128 | 360819C | 185.13 | 224.01 | |
| Fan Guide | ||||
| 129 | 328917 | 3.30 | 3.99 | |
| Bearing Washer | ||||
| 130 | 944954 | 1.05 | 1.27 | |
| Ball Bearing 6201vv | ||||
| 131 | 6201VV | 6.45 | 7.80 | |
| Magnet | ||||
| 132 | 301797 | 6.75 | 8.17 | |
| Brush Holder | ||||
| 133 | 980487 | 5.68 | 6.87 | |
| Carbon Brush (1 Pair) | ||||
| 134 | 999044 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 135 | 940540 | 1.04 | 1.26 | |
| Housing | ||||
| 136 | 328915 | 49.64 | 60.06 | |
| Carbon Brush (auto Stop Type) (1 Pair) For Sin,ma | ||||
| 137 | 999074 | 14.40 | 17.42 | |
| Hex Adjustment Screw M5x8 | ||||
| 138 | 938477 | 1.05 | 1.27 | |
| Bearing Holder | ||||
| 139 | 328918 | 9.30 | 11.25 | |
| Tail Cover | ||||
| 140 | 328919 | 12.15 | 14.70 | |
| Case (b) | ||||
| 141 | 328914 | 4.80 | 5.81 | |
| Controller Circuit 220v-240v | ||||
| 142 | 328913 | 122.51 | 148.24 | |
| TOERENREGELAAR 110 VOLT | ||||
| 142 | 328911 | 114.40 | 138.42 | |
| Internal wire | ||||
| 143 | 317113 | 3.30 | 3.99 | |
| Vinyl Tube (i.d.9.5xt0.56x85) | ||||
| 144 | 326541 | 1.65 | 2.00 | |
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 501 | 981840 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 502 | 328921 | |||
| Grease For Hammer.hammer Drill (70g) | ||||
| 601 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 602 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 603 | 320859 | |||
| No information available, not orderable | ||||
| 604 | 318085 | |||
| No information available, not orderable | ||||
| 605 | 313448 | |||
| No information available, not orderable | ||||
| 606 | 313456 | |||
| No information available, not orderable | ||||
| 607 | 313449 | |||
| No information available, not orderable | ||||
| 608 | 313457 | |||
| No information available, not orderable | ||||
| 609 | 313450 | |||
| No information available, not orderable | ||||
| 610 | 313458 | |||
| No information available, not orderable | ||||
| 611 | 313451 | |||
| No information available, not orderable | ||||
| 612 | 313459 | |||
| No information available, not orderable | ||||
| 613 | 313452 | |||
| No information available, not orderable | ||||
| 614 | 313460 | |||
| No information available, not orderable | ||||
| 615 | 313453 | |||
| No information available, not orderable | ||||
| 616 | 313461 | |||
| No information available, not orderable | ||||
| 617 | 313454 | |||
| No information available, not orderable | ||||
| 618 | 313462 | |||
| No information available, not orderable | ||||
| 619 | 313455 | |||
| No information available, not orderable | ||||
| 620 | 313463 | |||
| No information available, not orderable | ||||
| 621 | 944460 | |||
| No information available, not orderable | ||||
| 622 | 944461 | |||
| No information available, not orderable | ||||
| 623 | 993038 | |||
| No information available, not orderable | ||||
| 625 | 944500 | |||
| No information available, not orderable | ||||
| 628 | 944477 | |||
| No information available, not orderable | ||||
| 629 | 313465 | |||
| No information available, not orderable | ||||
| 630 | 955994 | |||
| No information available, not orderable | ||||
| 631 | 955995 | |||
| No information available, not orderable | ||||
| 632 | 955996 | |||
| No information available, not orderable | ||||
| 633 | 955997 | |||
| No information available, not orderable | ||||
| 634 | 955998 | |||
| No information available, not orderable | ||||
| 635 | 955999 | |||
| No information available, not orderable | ||||
| 636 | 956000 | |||
| No information available, not orderable | ||||
| 637 | 956001 | |||
| No information available, not orderable | ||||
| 638 | 955154 | |||
| No information available, not orderable | ||||
| 639 | 955166 | |||
| No information available, not orderable | ||||
| 640 | 955155 | |||
| No information available, not orderable | ||||
| 641 | 955167 | |||
| No information available, not orderable | ||||
| 642 | 956002 | |||
| No information available, not orderable | ||||
| 643 | 956003 | |||
| No information available, not orderable | ||||
| 644 | 955157 | |||
| No information available, not orderable | ||||
| 645 | 955168 | |||
| No information available, not orderable | ||||
| 646 | 956004 | |||
| No information available, not orderable | ||||
| 647 | 956005 | |||
| No information available, not orderable | ||||
| 648 | 955159 | |||
| No information available, not orderable | ||||
| 649 | 955169 | |||
| No information available, not orderable | ||||
| 650 | 956006 | |||
| No information available, not orderable | ||||
| 651 | 956007 | |||
| No information available, not orderable | ||||
| 652 | 956728 | |||
| No information available, not orderable | ||||
| 653 | 956743 | |||
| No information available, not orderable | ||||
| 654 | 313466 | |||
| No information available, not orderable | ||||
| 655 | 313467 | |||
| No information available, not orderable | ||||
| 656 | 956009 | |||
| No information available, not orderable | ||||
| 657 | 955165 | |||
| No information available, not orderable | ||||
| 658 | 321813 | |||
| No information available, not orderable | ||||
| 659 | 313468 | |||
| No information available, not orderable | ||||
| 660 | 303334 | |||
| No information available, not orderable | ||||
| 661 | 930515 | |||
| No information available, not orderable | ||||
| 662 | 313469 | |||
| No information available, not orderable | ||||
| 663 | 313470 | |||
| No information available, not orderable | ||||
| 664 | 313471 | |||
| No information available, not orderable | ||||
| 665 | 313472 | |||
| No information available, not orderable | ||||
| 666 | 313473 | |||
| No information available, not orderable | ||||
| 667 | 313474 | |||
| No information available, not orderable | ||||
| 668 | 313475 | |||
| No information available, not orderable | ||||
| 669 | 313476 | |||
| No information available, not orderable | ||||
| 670 | 313478 | |||
| No information available, not orderable | ||||
| 671 | 313477 | |||
| No information available, not orderable | ||||
| 672 | 313479 | |||
