Here you will find all available parts and drawings of the 'Hikoki DH50MR'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

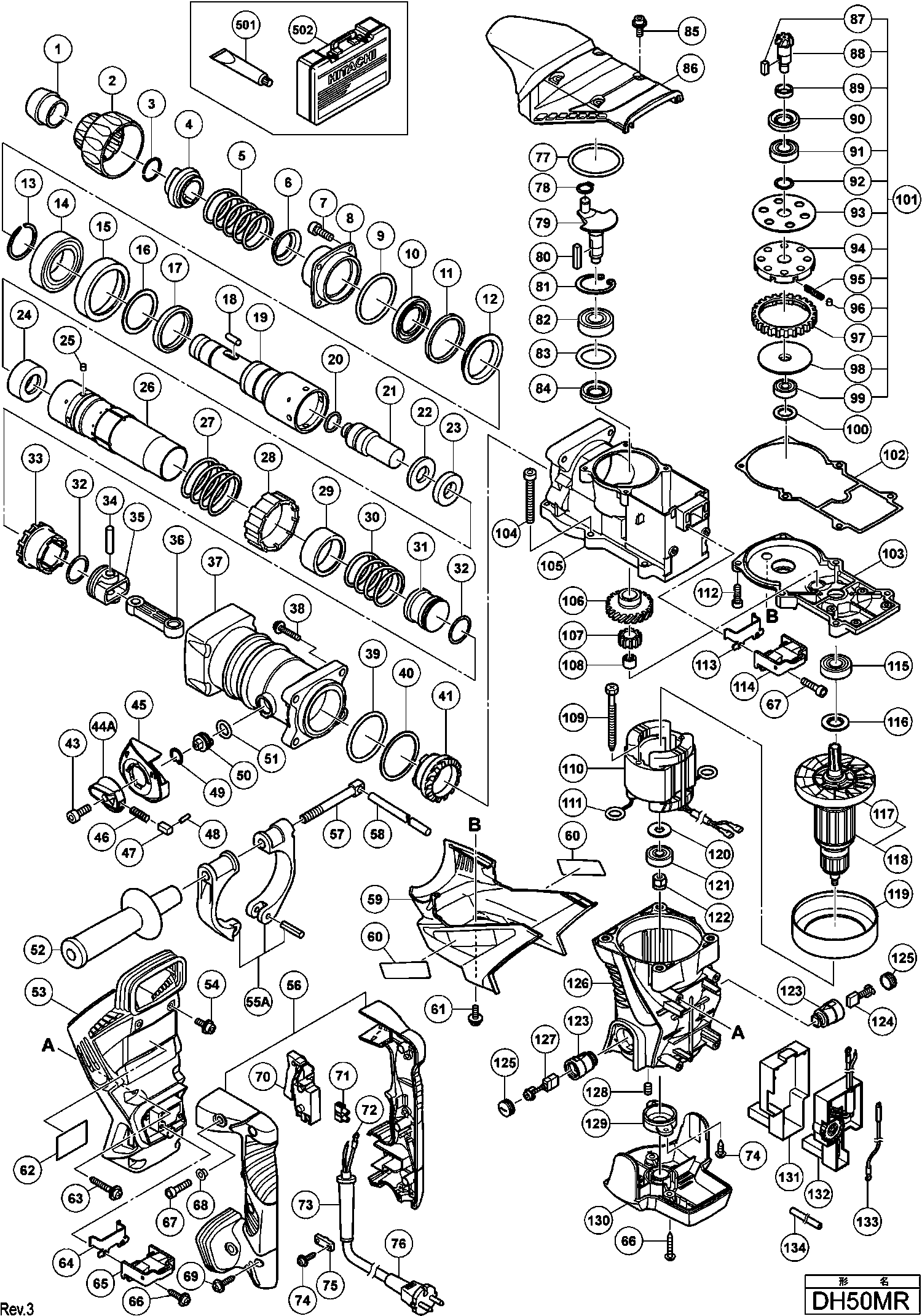

Technical drawing of model Hikoki DH50MR
Spare parts list of model Hikoki DH50MR
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 313415 | |||
| Grip | ||||
| 2 | 328900 | 3.30 | 3.99 | |
| Spring retaining ring | ||||
| 3 | 318590 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 4 | 328899 | |||
| Spring washer | ||||
| 5 | 313419 | 3.00 | 3.63 | |
| Spring Holder | ||||
| 6 | 318589 | 4.80 | 5.81 | |
| Seal Lock Hex. Socket Hd. Bolt M8x25 | ||||
| 7 | 985479 | 2.55 | 3.09 | |
| Front Case | ||||
| 8 | 318587 | 22.83 | 27.62 | |
| O-ring (s-70) | ||||
| 9 | 878863 | 2.40 | 2.90 | |
| Oil Seal | ||||
| 10 | 318588 | 6.45 | 7.80 | |
| Urethane Ring | ||||
| 11 | 318586 | 6.45 | 7.80 | |
| Urethane Ring Holder | ||||
| 12 | 318585 | 3.30 | 3.99 | |
| Retaining Ring D40 | ||||
| 13 | 318582 | 5.10 | 6.17 | |
| Ball Bearing 6008cm | ||||
| 14 | 6008CM | 13.80 | 16.70 | |
| Bushing | ||||
| 15 | 318581 | 25.30 | 30.61 | |
| Spring retaining ring | ||||
| 16 | 328884 | 3.30 | 3.99 | |
| Retainer Damper | ||||
| 17 | 328883 | 3.30 | 3.99 | |
| Needle Roller D8x20 | ||||
| 18 | 313421 | 5.25 | 6.35 | |
| No longer available, no replacement | ||||
| 19 | 328882 | |||
| O-ring | ||||
| 20 | 986104 | 1.05 | 1.27 | |
| Second Hammer | ||||
| 21 | 328885 | 19.94 | 24.12 | |
| Damper Washer | ||||
| 22 | 328886 | 7.65 | 9.26 | |
| Damper | ||||
| 23 | 328887 | 3.30 | 3.99 | |
| Damper Holder | ||||
| 24 | 328888 | 12.15 | 14.70 | |
| Needle Pin D8x6 | ||||
| 25 | 328891 | 1.65 | 2.00 | |
| Cylinder | ||||
| 26 | 328889 | 116.74 | 141.25 | |
| Holding Spring | ||||
| 27 | 328895 | 4.80 | 5.81 | |
| Lock Sleeve | ||||
| 28 | 318562 | 6.45 | 7.80 | |
| No longer available, no replacement | ||||
| 29 | 329330 | |||
| No longer available, no replacement | ||||
| 30 | 328893 | |||
| Striker | ||||
| 31 | 328890 | 18.15 | 21.96 | |
| O-ring | ||||
| 32 | 328880 | 4.80 | 5.81 | |
| Clutch | ||||
| 33 | 328894 | 61.33 | 74.20 | |
| Piston Pin | ||||
| 34 | 328879 | 4.80 | 5.81 | |
| Piston | ||||
| 35 | 328877 | 7.05 | 8.53 | |
| Connecting Rod | ||||
| 36 | 328878 | 7.05 | 8.53 | |
| No longer available, no replacement | ||||
| 37 | 328896 | |||
| Hex. Socket Hd. Bolt (w/flange) M8x35 | ||||
| 38 | 990083 | 1.05 | 1.27 | |
| O-ring | ||||
| 39 | 985779 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 40 | 328897 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 41 | 328898 | |||
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 43 | 983162 | 1.05 | 1.27 | |
| Change Lever (old 321309) | ||||
| 44A | 331545 | 3.75 | 4.54 | |
| Lever Holder | ||||
| 45 | 328901 | 3.30 | 3.99 | |
| Spring | ||||
| 46 | 321310 | 1.65 | 2.00 | |
| Pushing Button | ||||
| 47 | 321311 | 1.65 | 2.00 | |
| Pin D2x10 | ||||
| 48 | 321312 | 1.65 | 2.00 | |
| Retaining Ring (1) | ||||
| 49 | 311229 | 1.05 | 1.27 | |
| Lever Shaft | ||||
| 50 | 324934 | 20.49 | 24.79 | |
| O-ring (p-16) | ||||
| 51 | 873095 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 52 | 318574 | |||
| Back Cover | ||||
| 53 | 328928 | 26.26 | 31.78 | |
| Hex. Socket Hd. Bolt (w/flange) M5x14 | ||||
| 54 | 998485 | 1.05 | 1.27 | |
| Handle Holder | ||||
| 55A | 331096 | 12.23 | 14.79 | |
| Handle (a).(b) Set | ||||
| 56 | 328920 | 27.23 | 32.94 | |
| No longer available, no replacement | ||||
| 57 | 318576 | |||
| No information available, not orderable | ||||
| 58 | 971786 | |||
| Hood | ||||
| 59 | 328909 | 15.54 | 18.80 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 61 | 998471 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D5x30 (black) | ||||
| 63 | 328707 | 1.05 | 1.27 | |
| Plate | ||||
| 64 | 980750 | 17.05 | 20.63 | |
| Handle Rubber | ||||
| 65 | 980727 | 14.10 | 17.06 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 66 | 305558 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 67 | 990079 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 68 | 991711 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 69 | 307028 | 1.05 | 1.27 | |
| Switch (b) (1p Screw Type) W/o Lock | ||||
| 70 | 990941 | 26.40 | 31.94 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 71 | 938307 | 2.13 | 2.57 | |
| connecting terminal | ||||
| 72 | 980063 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 73 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 74 | 984750 | |||
| Cord Clip | ||||
| 75 | 960266 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 76 | 500391Z | |||
| Cylinder O-ring (i.d 69.3) | ||||
| 77 | 877314 | 1.95 | 2.36 | |
| Spring Washer D12 (10 pieces) | ||||
| 78 | 939542 | 1.50 | 1.82 | |
| Crank Shaft | ||||
| 79 | 328868 | 46.75 | 56.57 | |
| Feather Key 3x3x25 | ||||
| 80 | 328869 | 1.65 | 2.00 | |
| Retaining Ring For D47 Hole | ||||
| 81 | 948227 | 1.35 | 1.63 | |
| Ball Bearing 6204dd | ||||
| 82 | 6204DD | 9.00 | 10.89 | |
| O-ring (b) | ||||
| 83 | 985765 | 1.95 | 2.36 | |
| Oil Seal | ||||
| 84 | 328867 | 4.80 | 5.81 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 85 | 994192 | 1.04 | 1.26 | |
| Crank Cover | ||||
| 86 | 328908 | 14.99 | 18.13 | |
| Feather Key 3x3x8 | ||||
| 87 | 944109 | 1.70 | 2.06 | |
| No information available, not orderable | ||||
| 88 | 328873 | |||
| Spacer | ||||
| 89 | 328874 | 11.25 | 13.61 | |
| Oil Seal | ||||
| 90 | 328867 | 4.80 | 5.81 | |
| Ball Bearing 6202dd | ||||
| 91 | 6202DD | 6.75 | 8.17 | |
| Ring | ||||
| 92 | 313058 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 93 | 318552 | 6.45 | 7.80 | |
| Gear Holder | ||||
| 94 | 318554 | 10.20 | 12.34 | |
| Spring (c) | ||||
| 95 | 329095 | 1.65 | 2.00 | |
| Needle Pin D6x6 | ||||
| 96 | 313057 | 4.20 | 5.08 | |
| No longer available, no replacement | ||||
| 97 | 328875 | |||
| Spacer | ||||
| 98 | 328876 | 14.30 | 17.30 | |
| Ball Bearing 629vv | ||||
| 99 | 629VVM | 5.85 | 7.08 | |
| Ring | ||||
| 100 | 944525 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 101 | 328872 | |||
| Gasket | ||||
| 102 | 328881 | 3.30 | 3.99 | |
| Gear Cover | ||||
| 103 | 328916 | 43.86 | 53.07 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 104 | 986940 | 1.05 | 1.27 | |
| Crank Case | ||||
| 105 | 328866 | 84.56 | 102.32 | |
| First Gear | ||||
| 106 | 328870 | 29.15 | 35.27 | |
| Second Gear | ||||
| 107 | 328871 | 12.15 | 14.70 | |
| Needle-roller Bearing | ||||
| 108 | 939299 | 10.65 | 12.89 | |
| Hex. Hd. Tapping Screw D5x50 | ||||
| 109 | 953121 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 110 | 340712E | 96.25 | 116.46 | |
| Brush holder connector | ||||
| 111 | 958032 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M6x22 | ||||
| 112 | 321313 | 1.65 | 2.00 | |
| Plate | ||||
| 113 | 980750 | 17.05 | 20.63 | |
| Handle Rubber | ||||
| 114 | 980727 | 14.10 | 17.06 | |
| Ball Bearing 6202dd | ||||
| 115 | 6202DD | 6.75 | 8.17 | |
| Washer | ||||
| 116 | 980700 | 1.04 | 1.26 | |
| Fan | ||||
| 117 | 318918 | 7.95 | 9.62 | |
| Armature 230v | ||||
| 118 | 360819E | 198.28 | 239.91 | |
| Armature 110–115 V | ||||
| 118 | 360819C | 185.13 | 224.01 | |
| Fan Guide | ||||
| 119 | 328917 | 3.30 | 3.99 | |
| Bearing Washer | ||||
| 120 | 944954 | 1.05 | 1.27 | |
| Ball Bearing 6201vv | ||||
| 121 | 6201VV | 6.45 | 7.80 | |
| Magnet | ||||
| 122 | 301797 | 6.75 | 8.17 | |
| Brush Holder | ||||
| 123 | 980487 | 5.68 | 6.87 | |
| Carbon Brush (1 Pair) | ||||
| 124 | 999044 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 125 | 940540 | 1.04 | 1.26 | |
| Housing | ||||
| 126 | 328915 | 49.64 | 60.06 | |
| Carbon Brush (auto Stop Type) (1 Pair) For Sin,ma | ||||
| 127 | 999074 | 14.40 | 17.42 | |
| Hex Adjustment Screw M5x8 | ||||
| 128 | 938477 | 1.05 | 1.27 | |
| Bearing Holder | ||||
| 129 | 328918 | 9.30 | 11.25 | |
| Tail Cover | ||||
| 130 | 328919 | 12.15 | 14.70 | |
| Case (b) | ||||
| 131 | 328914 | 4.80 | 5.81 | |
| Controller Circuit 220v-240v | ||||
| 132 | 328913 | 122.51 | 148.24 | |
| SPEED CONTROLLER 110 VOLT | ||||
| 132 | 328911 | 114.40 | 138.42 | |
| Vinyl Tube (i.d.9.5xt0.56x85) | ||||
| 134 | 326541 | 1.65 | 2.00 | |
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 501 | 981840 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 502 | 328921 | |||
| Grease For Hammer.hammer Drill (70g) | ||||
| 601 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 602 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 603 | 320859 | |||
| No information available, not orderable | ||||
| 604 | 318085 | |||
| No information available, not orderable | ||||
| 605 | 313448 | |||
| No information available, not orderable | ||||
| 606 | 313456 | |||
| No information available, not orderable | ||||
| 607 | 313449 | |||
| No information available, not orderable | ||||
| 608 | 313457 | |||
| No information available, not orderable | ||||
| 609 | 313450 | |||
| No information available, not orderable | ||||
| 610 | 313458 | |||
| No information available, not orderable | ||||
| 611 | 313451 | |||
| No information available, not orderable | ||||
| 612 | 313459 | |||
| No information available, not orderable | ||||
| 613 | 313452 | |||
| No information available, not orderable | ||||
| 614 | 313460 | |||
| No information available, not orderable | ||||
| 615 | 313453 | |||
| No information available, not orderable | ||||
| 616 | 313461 | |||
| No information available, not orderable | ||||
| 617 | 313454 | |||
| No information available, not orderable | ||||
| 618 | 313462 | |||
| No information available, not orderable | ||||
| 620 | 313463 | |||
| No information available, not orderable | ||||
| 628 | 944477 | |||
| No information available, not orderable | ||||
| 629 | 313465 | |||
| No information available, not orderable | ||||
| 630 | 955994 | |||
| No information available, not orderable | ||||
| 631 | 955995 | |||
| No information available, not orderable | ||||
| 632 | 955996 | |||
| No information available, not orderable | ||||
| 633 | 955997 | |||
| No information available, not orderable | ||||
| 634 | 955998 | |||
| No information available, not orderable | ||||
| 635 | 955999 | |||
| No information available, not orderable | ||||
| 636 | 956000 | |||
| No information available, not orderable | ||||
| 637 | 956001 | |||
| No information available, not orderable | ||||
| 638 | 955154 | |||
| No information available, not orderable | ||||
| 639 | 955166 | |||
| No information available, not orderable | ||||
| 640 | 955155 | |||
| No information available, not orderable | ||||
| 641 | 955167 | |||
| No information available, not orderable | ||||
| 642 | 956002 | |||
| No information available, not orderable | ||||
| 643 | 956003 | |||
| No information available, not orderable | ||||
| 644 | 955157 | |||
| No information available, not orderable | ||||
| 645 | 955168 | |||
| No information available, not orderable | ||||
| 646 | 956004 | |||
| No information available, not orderable | ||||
| 647 | 956005 | |||
| No information available, not orderable | ||||
| 648 | 955159 | |||
| No information available, not orderable | ||||
| 649 | 955169 | |||
| No information available, not orderable | ||||
| 650 | 956006 | |||
| No information available, not orderable | ||||
| 651 | 956007 | |||
| No information available, not orderable | ||||
| 652 | 956728 | |||
| No information available, not orderable | ||||
| 653 | 956743 | |||
| No information available, not orderable | ||||
| 654 | 313466 | |||
| No information available, not orderable | ||||
| 655 | 313467 | |||
| No information available, not orderable | ||||
| 656 | 956009 | |||
| No information available, not orderable | ||||
| 657 | 955165 | |||
| No information available, not orderable | ||||
| 658 | 321813 | |||
| No information available, not orderable | ||||
| 659 | 313468 | |||
| No information available, not orderable | ||||
| 660 | 303334 | |||
| No information available, not orderable | ||||
| 661 | 930515 | |||
| No information available, not orderable | ||||
| 662 | 313469 | |||
| No information available, not orderable | ||||
| 663 | 313470 | |||
| No information available, not orderable | ||||
| 664 | 313471 | |||
| No information available, not orderable | ||||
| 665 | 313472 | |||
| No information available, not orderable | ||||
| 666 | 313473 | |||
| No information available, not orderable | ||||
| 667 | 313474 | |||
| No information available, not orderable | ||||
| 668 | 313475 | |||
| No information available, not orderable | ||||
| 669 | 313476 | |||
| No information available, not orderable | ||||
| 670 | 313478 | |||
| No information available, not orderable | ||||
| 671 | 313477 | |||
| No information available, not orderable | ||||
| 672 | 313479 | |||
