Here you will find all available parts and drawings of the 'Hikoki DH45SA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

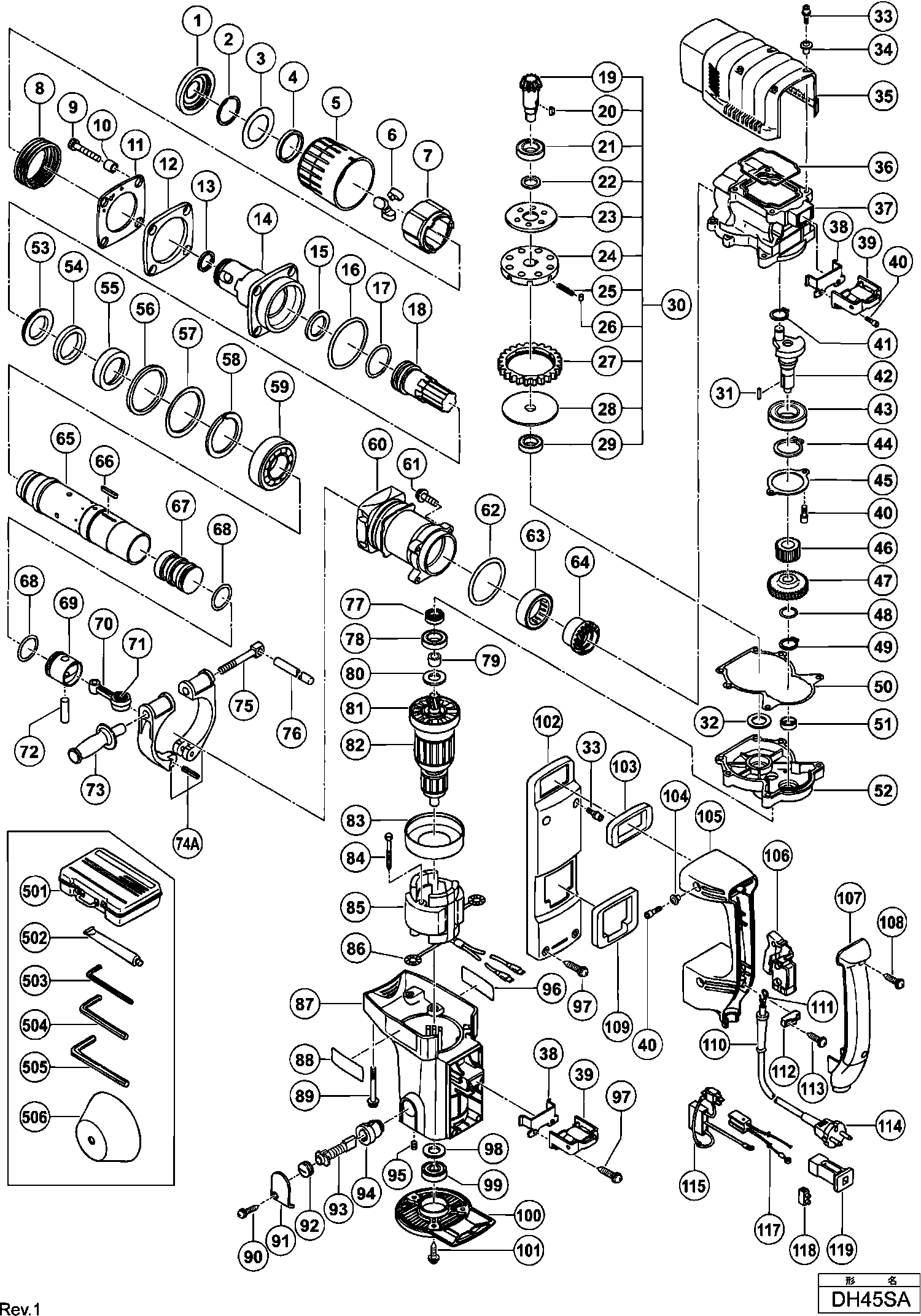

Technical drawing of model Hikoki DH45SA
Spare parts list of model Hikoki DH45SA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| connecting terminal | ||||
| *111 | 980063 | 1.04 | 1.26 | |
| Cord (cord Armor D10.7) For Saf | ||||
| *114 | 500454Z | 15.54 | 18.80 | |
| Front Cap | ||||
| 1 | 318758 | 3.00 | 3.63 | |
| Retaining Ring D35 | ||||
| 2 | 318757 | 6.45 | 7.80 | |
| Front Washer (a) | ||||
| 3 | 318756 | 4.80 | 5.81 | |
| Damper Ring | ||||
| 4 | 318755 | 3.30 | 3.99 | |
| Grip | ||||
| 5 | 318754 | 5.85 | 7.08 | |
| Saddle Key | ||||
| 6 | 313069 | 20.49 | 24.79 | |
| Saddle Key Holder | ||||
| 7 | 318752 | 61.33 | 74.20 | |
| Washer Spring | ||||
| 8 | 318753 | 6.45 | 7.80 | |
| Nylock Hex Socket Head Bolt M8x30 since 6.1981 | ||||
| 9 | 306437 | 1.35 | 1.63 | |
| Ring | ||||
| 10 | 986892 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 11 | 319075 | |||
| No information available, not orderable | ||||
| 12 | 319074 | |||
| Dust Cover | ||||
| 13 | 318759 | 1.65 | 2.00 | |
| Front Cover | ||||
| 14 | 318751 | 201.44 | 243.74 | |
| Damper (b) | ||||
| 15 | 318762 | 4.80 | 5.81 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 16 | 956996 | 3.00 | 3.63 | |
| O-ring | ||||
| 17 | 986882 | 10.20 | 12.34 | |
| Second Hammer | ||||
| 18 | 318743 | 71.50 | 86.52 | |
| Bevel Pinion | ||||
| 19 | 318551 | 32.18 | 38.93 | |
| Feather Key 3x3x8 | ||||
| 20 | 944109 | 1.70 | 2.06 | |
| Ball Bearing 6202dd | ||||
| 21 | 6202DD | 6.75 | 8.17 | |
| Ring | ||||
| 22 | 313058 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 23 | 318552 | 6.45 | 7.80 | |
| Gear Holder | ||||
| 24 | 318554 | 10.20 | 12.34 | |
| Spring (c) | ||||
| 25 | 318555 | 7.95 | 9.62 | |
| Needle Pin D6x6 | ||||
| 26 | 313057 | 4.20 | 5.08 | |
| Second Gear | ||||
| 27 | 318553 | 37.95 | 45.92 | |
| No information available, not orderable | ||||
| 28 | 318556 | |||
| Ball Bearing 629vv | ||||
| 29 | 629VVM | 5.85 | 7.08 | |
| Slip Clutch Ass'y | ||||
| 30 | 318550 | 125.40 | 151.73 | |
| Feather Key 5x5x15 | ||||
| 31 | 945072 | 1.35 | 1.63 | |
| Ring | ||||
| 32 | 944525 | 1.05 | 1.27 | |
| Nylock Bolt (w/flange) M5x16 | ||||
| 33 | 313082 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 34 | 991711 | 1.05 | 1.27 | |
| Crank Case Cover Ass'y | ||||
| 35 | 318584 | 21.31 | 25.79 | |
| Rubber Seal | ||||
| 36 | 313084 | 2.55 | 3.09 | |
| Crank Case | ||||
| 37 | 318543 | 43.86 | 53.07 | |
| Plate | ||||
| 38 | 980750 | 17.05 | 20.63 | |
| Handle Rubber | ||||
| 39 | 980727 | 14.10 | 17.06 | |
| Nylock Hex. Socket Hd. Bolt M5x16 | ||||
| 40 | 878181 | 1.05 | 1.27 | |
| Spring Washer D12 (10 pieces) | ||||
| 41 | 939542 | 1.50 | 1.82 | |
| Crank Shaft | ||||
| 42 | 318544 | 43.86 | 53.07 | |
| Ball Bearing 6205ddcmps2l | ||||
| 43 | 6205DD | 10.35 | 12.52 | |
| Washer Spring | ||||
| 44 | 965469 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 45 | 318548 | 2.55 | 3.09 | |
| Second Gear | ||||
| 46 | 318545 | 13.80 | 16.70 | |
| First Gear | ||||
| 47 | 318546 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 48 | 318547 | |||
| Ring | ||||
| 49 | 967261 | 1.05 | 1.27 | |
| Gasket | ||||
| 50 | 318549 | 2.55 | 3.09 | |
| Needle-roller Bearing | ||||
| 51 | 939299 | 10.65 | 12.89 | |
| Gear Cover | ||||
| 52 | 318595 | 35.06 | 42.43 | |
| Damper Washer | ||||
| 53 | 993235 | 12.45 | 15.06 | |
| No information available, not orderable | ||||
| 54 | 318745 | |||
| No information available, not orderable | ||||
| 55 | 318746 | |||
| No information available, not orderable | ||||
| 56 | 318748 | |||
| No information available, not orderable | ||||
| 57 | 318747 | |||
| Retaining Ring D40 | ||||
| 58 | 318582 | 5.10 | 6.17 | |
| Ball Bearing 6008cm | ||||
| 59 | 6008CM | 13.80 | 16.70 | |
| No information available, not orderable | ||||
| 60 | 318749 | |||
| Nylock Bolt (w/flange) M6x35 | ||||
| 61 | 318451 | 1.65 | 2.00 | |
| O-ring | ||||
| 62 | 985779 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 64 | 318741 | |||
| No information available, not orderable | ||||
| 65 | 318740 | |||
| Feather Key 3x3x20 Till 4.2002 | ||||
| 66 | 971750 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 67 | 318742 | |||
| O-ring (fpm 710) | ||||
| 68 | 318917 | 6.45 | 7.80 | |
| Piston | ||||
| 69 | 985772 | 52.53 | 63.56 | |
| Connecting Rod | ||||
| 70 | 318557 | 43.86 | 53.07 | |
| Needle Bearing (nsk Aj50 1203) | ||||
| 71 | 980756 | 10.65 | 12.89 | |
| Pin | ||||
| 72 | 955593 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 73 | 318574 | |||
| Handle Holder | ||||
| 74A | 331096 | 12.23 | 14.79 | |
| No longer available, no replacement | ||||
| 75 | 318576 | |||
| No information available, not orderable | ||||
| 76 | 971786 | |||
| Oil Seal | ||||
| 77 | 318596 | 6.45 | 7.80 | |
| Ball Bearing 6203vvcmps2l | ||||
| 78 | 6203VV | 7.80 | 9.44 | |
| Sleeve (b) | ||||
| 79 | 318597 | 14.03 | 16.97 | |
| Dust Washer | ||||
| 80 | 318594 | 1.65 | 2.00 | |
| Fan | ||||
| 81 | 318918 | 7.95 | 9.62 | |
| Armature 230v | ||||
| 82 | 360526E | 227.43 | 275.18 | |
| Fan Guide | ||||
| 83 | 318633 | 5.85 | 7.08 | |
| Hex. Hd. Tapping Screw D5x50 | ||||
| 84 | 953121 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 85 | 340467E | |||
| Brush holder connector | ||||
| 86 | 958032 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 87 | 318764 | |||
| Nylock Bolt (w/flange) M6x40 | ||||
| 89 | 318570 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 90 | 307811 | |||
| Brush Cap | ||||
| 91 | 318599 | 3.90 | 4.72 | |
| Brush Cap | ||||
| 92 | 940540 | 1.04 | 1.26 | |
| Carbon Brush (auto Stop Type) (1 Pair) For Sin,ma | ||||
| 93 | 999074 | 14.40 | 17.42 | |
| Brush Holder | ||||
| 94 | 980487 | 5.68 | 6.87 | |
| Hex Adjustment Screw M5x8 | ||||
| 95 | 938477 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 97 | 305558 | 1.04 | 1.26 | |
| Bearing Washer | ||||
| 98 | 944954 | 1.05 | 1.27 | |
| Ball Bearing 6201vv | ||||
| 99 | 6201VV | 6.45 | 7.80 | |
| Tail Cover | ||||
| 100 | 318598 | 35.06 | 42.43 | |
| No information available, not orderable | ||||
| 101 | 303273 | |||
| No information available, not orderable | ||||
| 102 | 318750 | |||
| Handle Packing (a) | ||||
| 103 | 318572 | 1.65 | 2.00 | |
| Spacer bushing | ||||
| 104 | 991711 | 1.05 | 1.27 | |
| Handle | ||||
| 105 | 318601 | 25.30 | 30.61 | |
| No longer available, no replacement | ||||
| 106 | 313093 | |||
| Handle Cover | ||||
| 107 | 318602 | 24.34 | 29.45 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 108 | 301653 | 1.04 | 1.26 | |
| Handle Packing (b) | ||||
| 109 | 318573 | 2.55 | 3.09 | |
| Cord Armor D10.7 | ||||
| 110 | 940778 | 2.10 | 2.54 | |
| connecting terminal | ||||
| 111 | 980063 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 112 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 113 | 984750 | |||
| Cord (cord Armor D10.7) For Saf | ||||
| 114 | 500454Z | 15.54 | 18.80 | |
| No information available, not orderable | ||||
| 115 | 313142 | |||
| PLUG (B) | ||||
| 117 | 318648 | 12.15 | 14.70 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 118 | 938307 | 2.13 | 2.57 | |
| PLUG HOLDER | ||||
| 119 | 318603 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 501 | 318646 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 502 | 981840 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 503 | 944458 | |||
| No information available, not orderable | ||||
| 504 | 944459 | |||
| No information available, not orderable | ||||
| 505 | 872422 | |||
| No information available, not orderable | ||||
| 506 | 315871 | |||
| No information available, not orderable | ||||
| 601 | 985721 | |||
| No information available, not orderable | ||||
| 602 | 985720 | |||
| No information available, not orderable | ||||
| 603 | 985722 | |||
| No information available, not orderable | ||||
| 604 | 991330 | |||
| No information available, not orderable | ||||
| 605 | 991331 | |||
| No information available, not orderable | ||||
| 606 | 985724 | |||
| No information available, not orderable | ||||
| 607 | 985723 | |||
| No information available, not orderable | ||||
| 608 | 985725 | |||
| No information available, not orderable | ||||
| 609 | 991332 | |||
| No information available, not orderable | ||||
| 610 | 991334 | |||
| No information available, not orderable | ||||
| 611 | 991333 | |||
| No information available, not orderable | ||||
| 612 | 985727 | |||
| No information available, not orderable | ||||
| 613 | 985726 | |||
| No information available, not orderable | ||||
| 614 | 985728 | |||
| No information available, not orderable | ||||
| 615 | 991335 | |||
| No information available, not orderable | ||||
| 616 | 985730 | |||
| No information available, not orderable | ||||
| 617 | 985729 | |||
| No information available, not orderable | ||||
| 618 | 985731 | |||
| No information available, not orderable | ||||
| 619 | 991336 | |||
| No information available, not orderable | ||||
| 620 | 985733 | |||
| No information available, not orderable | ||||
| 621 | 985732 | |||
| No information available, not orderable | ||||
| 622 | 985734 | |||
| No information available, not orderable | ||||
| 623 | 991337 | |||
| No information available, not orderable | ||||
| 624 | 991338 | |||
| No information available, not orderable | ||||
| 625 | 985736 | |||
| No information available, not orderable | ||||
| 626 | 985735 | |||
| No information available, not orderable | ||||
| 627 | 985737 | |||
| No information available, not orderable | ||||
| 628 | 991339 | |||
| No information available, not orderable | ||||
| 629 | 991340 | |||
| No information available, not orderable | ||||
| 630 | 985739 | |||
| No information available, not orderable | ||||
| 631 | 985738 | |||
| No information available, not orderable | ||||
| 632 | 985740 | |||
| No information available, not orderable | ||||
| 633 | 991341 | |||
| No information available, not orderable | ||||
| 641 | 985752 | |||
| No information available, not orderable | ||||
| 642 | 985753 | |||
| No information available, not orderable | ||||
| 643 | 944477 | |||
| No information available, not orderable | ||||
| 644 | 985754 | |||
| No information available, not orderable | ||||
| 645 | 985755 | |||
| No longer available, no replacement | ||||
| 646 | 992813 | |||
| No information available, not orderable | ||||
| 647 | 985750 | |||
| No information available, not orderable | ||||
| 648 | 985751 | |||
| No information available, not orderable | ||||
| 649 | 955994 | |||
| No information available, not orderable | ||||
| 650 | 955995 | |||
| No information available, not orderable | ||||
| 651 | 955996 | |||
| No information available, not orderable | ||||
| 652 | 955997 | |||
| No information available, not orderable | ||||
| 653 | 955998 | |||
| No information available, not orderable | ||||
| 654 | 955999 | |||
| No information available, not orderable | ||||
| 655 | 956000 | |||
| No information available, not orderable | ||||
| 656 | 956001 | |||
| No information available, not orderable | ||||
| 657 | 955154 | |||
| No information available, not orderable | ||||
| 658 | 955166 | |||
| No information available, not orderable | ||||
| 659 | 955155 | |||
| No information available, not orderable | ||||
| 660 | 955167 | |||
| No information available, not orderable | ||||
| 661 | 956002 | |||
| No information available, not orderable | ||||
| 662 | 956003 | |||
| No information available, not orderable | ||||
| 663 | 955157 | |||
| No information available, not orderable | ||||
| 664 | 955168 | |||
| No information available, not orderable | ||||
| 665 | 956004 | |||
| No information available, not orderable | ||||
| 666 | 956005 | |||
| No information available, not orderable | ||||
| 667 | 955159 | |||
| No information available, not orderable | ||||
| 668 | 955169 | |||
| No information available, not orderable | ||||
| 669 | 956008 | |||
| No information available, not orderable | ||||
| 670 | 955163 | |||
| No information available, not orderable | ||||
| 671 | 956009 | |||
| No information available, not orderable | ||||
| 672 | 955165 | |||
| No information available, not orderable | ||||
| 673 | 992814 | |||
| No information available, not orderable | ||||
| 674 | 992815 | |||
| No information available, not orderable | ||||
| 675 | 992816 | |||
| No information available, not orderable | ||||
| 676 | 992817 | |||
| No information available, not orderable | ||||
| 677 | 992818 | |||
| No information available, not orderable | ||||
| 678 | 992819 | |||
| No information available, not orderable | ||||
| 679 | 903901 | |||
| No information available, not orderable | ||||
| 680 | 985756 | |||
| No information available, not orderable | ||||
| 681 | 985757 | |||
| No information available, not orderable | ||||
| 682 | 985758 | |||
| No information available, not orderable | ||||
| 683 | 985759 | |||
| No information available, not orderable | ||||
| 684 | 985760 | |||
| No information available, not orderable | ||||
| 685 | 981929 | |||
| No information available, not orderable | ||||
| 686 | 981930 | |||
| No information available, not orderable | ||||
| 687 | 981931 | |||
| No information available, not orderable | ||||
| 688 | 985761 | |||
| No information available, not orderable | ||||
| 689 | 944574 | |||
| No information available, not orderable | ||||
| 690 | 981922 | |||
| No information available, not orderable | ||||
| 691 | 981923 | |||
| No information available, not orderable | ||||
| 692 | 981925 | |||
| No information available, not orderable | ||||
| 693 | 981926 | |||
| No information available, not orderable | ||||
| 694 | 981924 | |||
| No information available, not orderable | ||||
| 695 | 956126 | |||
| No information available, not orderable | ||||
| 696 | 955181 | |||
| No information available, not orderable | ||||
| 697 | 955183 | |||
| No information available, not orderable | ||||
| 698 | 955186 | |||
| No information available, not orderable | ||||
| 700 | 318085 | |||
| Grease For Hammer.hammer Drill (70g) | ||||
| 701 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 702 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 703 | 320859 | |||
