Here you will find all available parts and drawings of the 'Hikoki DH40SR'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

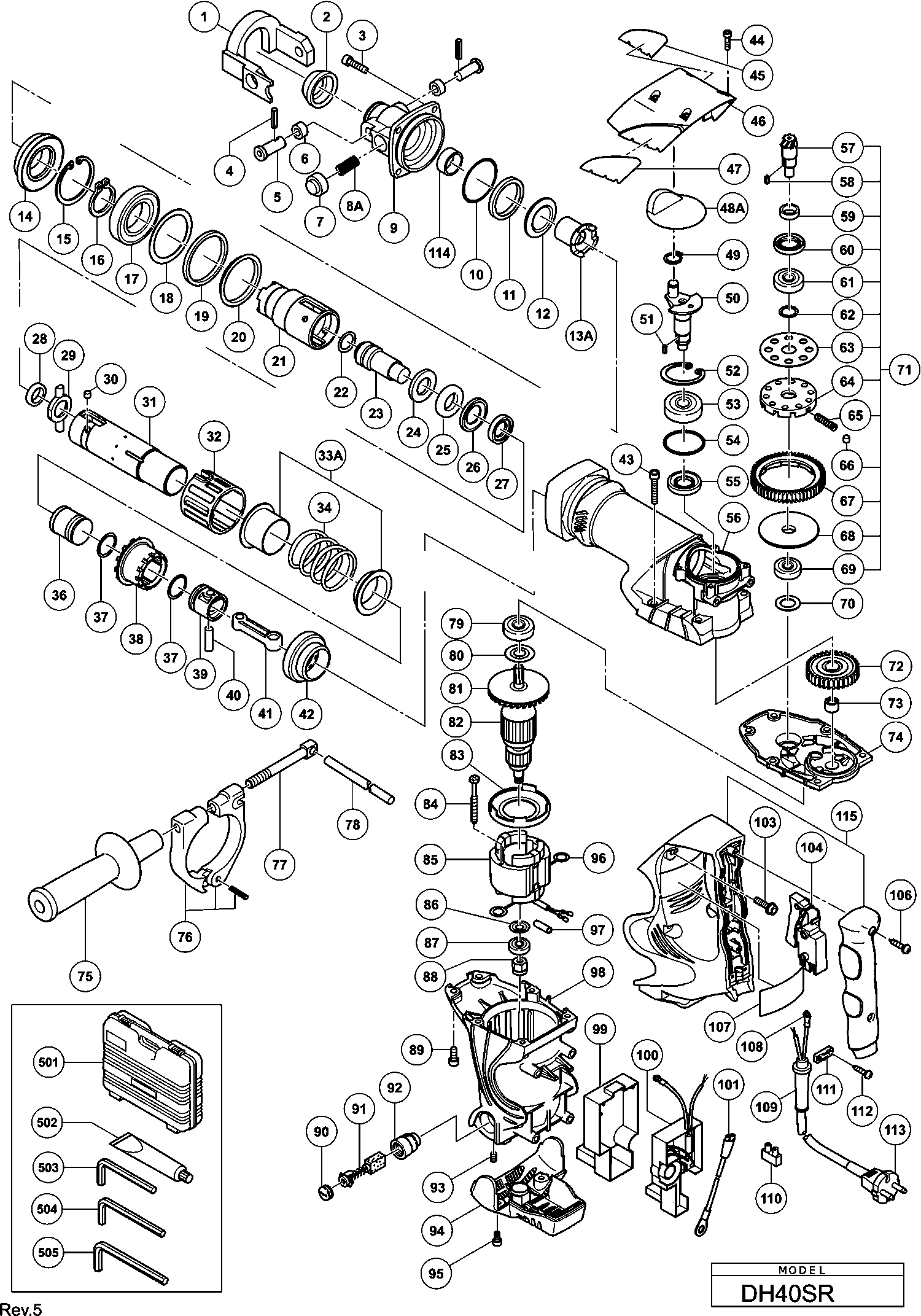

Technical drawing of model Hikoki DH40SR
Spare parts list of model Hikoki DH40SR
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Retainer | ||||
| 1 | 990131 | 35.06 | 42.43 | |
| Dust Cover | ||||
| 2 | 322078 | 1.65 | 2.00 | |
| Seal Lock Hex. Socket Hd. Bolt M6x25 | ||||
| 3 | 981942 | 1.65 | 2.00 | |
| Roll Pin D4x20 | ||||
| 4 | 991697 | 1.05 | 1.27 | |
| Retainer Pin | ||||
| 5 | 990135 | 11.85 | 14.34 | |
| Damper (b) | ||||
| 6 | 990134 | 2.40 | 2.90 | |
| Pushing Button | ||||
| 7 | 990133 | 9.60 | 11.62 | |
| Spring | ||||
| 8A | 331239 | 1.05 | 1.27 | |
| Front Case | ||||
| 9 | 321844 | 160.46 | 194.16 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 10 | 956996 | 3.00 | 3.63 | |
| Damper | ||||
| 11 | 321843 | 4.80 | 5.81 | |
| Driver Holder | ||||
| 12 | 321842 | 13.50 | 16.34 | |
| Driver | ||||
| 13A | 321841 | 35.06 | 42.43 | |
| Oil Seal | ||||
| 14 | 321840 | 6.75 | 8.17 | |
| Retaining Ring For D62 Hole | ||||
| 15 | 321839 | 3.30 | 3.99 | |
| Washer Spring | ||||
| 16 | 948131 | 1.65 | 2.00 | |
| Ball Bearing 6007dduav2s | ||||
| 17 | 6007DD | 14.25 | 17.24 | |
| Bearing Washer | ||||
| 18 | 321297 | 3.30 | 3.99 | |
| Urethane Ring | ||||
| 19 | 981859 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 20 | 321838 | |||
| Hammer Sleeve | ||||
| 21 | 321837 | 61.33 | 74.20 | |
| O-ring (c) | ||||
| 22 | 313396 | 4.80 | 5.81 | |
| Second Hammer | ||||
| 23 | 321833 | 18.43 | 22.29 | |
| No information available, not orderable | ||||
| 24 | 321836 | |||
| Damper | ||||
| 25 | 321835 | 6.45 | 7.80 | |
| Damper Holder | ||||
| 26 | 321834 | 8.10 | 9.80 | |
| Damper Holder (b) | ||||
| 27 | 321856 | 7.65 | 9.26 | |
| Damper | ||||
| 28 | 321832 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 29 | 321831 | |||
| Needle Pin D6x6 | ||||
| 30 | 313057 | 4.20 | 5.08 | |
| Cylinder | ||||
| 31 | 321827 | 144.79 | 175.19 | |
| Slide Sleeve (b) | ||||
| 32 | 321830 | 6.45 | 7.80 | |
| Slide Sleeve (a) Set | ||||
| 33A | 326512 | 31.90 | 38.60 | |
| No information available, not orderable | ||||
| 34 | 321828 | |||
| Striker | ||||
| 36 | 321976 | 15.26 | 18.47 | |
| O-ring | ||||
| 37 | 986104 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 38 | 321975 | |||
| Piston | ||||
| 39 | 321284 | 6.45 | 7.80 | |
| Piston Pin | ||||
| 40 | 980708 | 2.40 | 2.90 | |
| Connecting Rod | ||||
| 41 | 321285 | 4.80 | 5.81 | |
| Gear | ||||
| 42 | 321296 | 58.44 | 70.71 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 43 | 986940 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 44 | 983162 | 1.05 | 1.27 | |
| Crank Cover | ||||
| 46 | 321315 | 13.75 | 16.64 | |
| Rubber Seal | ||||
| 48A | 335023 | 1.04 | 1.26 | |
| Spring Washer D10 (10 pieces) | ||||
| 49 | 939540 | 1.95 | 2.36 | |
| Crank Shaft | ||||
| 50 | 321275 | 55.41 | 67.05 | |
| Feather Key 3x3x8 | ||||
| 51 | 944109 | 1.70 | 2.06 | |
| Retaining Ring For D40 Hole | ||||
| 52 | 948391 | 1.65 | 2.00 | |
| Ball Bearing 6203ddcmps2l | ||||
| 53 | 6203DD | 7.65 | 9.26 | |
| O-ring (s-40) | ||||
| 54 | 996363 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 55 | 321274 | |||
| Cylinder Crank Case | ||||
| 56 | 321826 | 107.94 | 130.60 | |
| Bevel Pinion | ||||
| 57 | 321278 | 27.23 | 32.94 | |
| Feather Key 3x3x8 | ||||
| 58 | 944109 | 1.70 | 2.06 | |
| Ring | ||||
| 59 | 321279 | 8.40 | 10.16 | |
| Oil Seal | ||||
| 60 | 313050 | 3.90 | 4.72 | |
| Ball Bearing 6002ddcmps2l | ||||
| 61 | 6002DD | 7.05 | 8.53 | |
| Ring | ||||
| 62 | 313058 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 63 | 313053 | 3.60 | 4.36 | |
| Gear Holder | ||||
| 64 | 321281 | 17.88 | 21.63 | |
| Spring | ||||
| 65 | 321282 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 66 | 320343 | |||
| Second Gear | ||||
| 67 | 321280 | 28.88 | 34.94 | |
| Spacer | ||||
| 68 | 321283 | 14.30 | 17.30 | |
| Ball Bearing 629vv | ||||
| 69 | 629VVM | 5.85 | 7.08 | |
| Ring | ||||
| 70 | 944525 | 1.05 | 1.27 | |
| Slip Clutch Ass'y Includ.57-59,61-69 | ||||
| 71 | 321277 | 137.09 | 165.88 | |
| First Gear | ||||
| 72 | 321276 | 28.05 | 33.94 | |
| Needle-roller Bearing | ||||
| 73 | 939299 | 10.65 | 12.89 | |
| Gear Cover | ||||
| 74 | 321319 | 40.84 | 49.41 | |
| No information available, not orderable | ||||
| 75 | 313078 | |||
| Handle Holder | ||||
| 76 | 313079 | 16.09 | 19.47 | |
| Handle Bolt | ||||
| 77 | 313080 | 11.85 | 14.34 | |
| No information available, not orderable | ||||
| 78 | 971786 | |||
| Ball Bearing 6201ddcmps2l | ||||
| 79 | 6201DD | 6.30 | 7.62 | |
| Dust Washer (b) | ||||
| 80 | 302429 | 1.05 | 1.27 | |
| Fan | ||||
| 81 | 321640 | 6.45 | 7.80 | |
| ARMATURE 110-120 VOLT | ||||
| 82 | 360591U | 122.65 | 148.41 | |
| Armature 230v | ||||
| 82 | 360591E | 110.83 | 134.10 | |
| Fan Guide | ||||
| 83 | 321320 | 3.30 | 3.99 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 84 | 953174 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 85 | 340542E | |||
| Washer (a) | ||||
| 86 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 87 | 608VVM | 5.70 | 6.90 | |
| Magnet | ||||
| 88 | 318721 | 17.60 | 21.30 | |
| Seal Lock Hex. Socket Hd. Bolt M6x22 | ||||
| 89 | 321313 | 1.65 | 2.00 | |
| Brush Cap | ||||
| 90 | 935829 | 1.05 | 1.27 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 91 | 999073 | 14.40 | 17.42 | |
| Brush Holder | ||||
| 92 | 971001 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 93 | 938477 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 94 | 321321 | 10.20 | 12.34 | |
| Seal Lock Hex. Socket Hd. Bolt M5x10 | ||||
| 95 | 877839 | 1.05 | 1.27 | |
| Brush Terminal | ||||
| 96 | 930703 | 2.40 | 2.90 | |
| Tube | ||||
| 97 | 321322 | 1.65 | 2.00 | |
| Housing | ||||
| 98 | 321318 | 102.16 | 123.62 | |
| No information available, not orderable | ||||
| 99 | 321858 | |||
| Controller Circuit 230v For Europe | ||||
| 100 | 321862 | 145.89 | 176.52 | |
| Speed controller 110 V | ||||
| 100 | 321861 | 123.80 | 149.80 | |
| Internal wire | ||||
| 101 | 317113 | 3.30 | 3.99 | |
| Hex. Socket Hd. Bolt (w/flange) M5x14 | ||||
| 103 | 998485 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 104 | 313093 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 106 | 301653 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 108 | 980063 | 1.04 | 1.26 | |
| Cord Armor D10.7 | ||||
| 109 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 109 | 958049 | 1.04 | 1.26 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 110 | 938307 | 2.13 | 2.57 | |
| Cord Clip | ||||
| 111 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 112 | 984750 | |||
| No information available, not orderable | ||||
| 113 | 500424Z | |||
| Metal | ||||
| 114 | 324481 | 3.00 | 3.63 | |
| Handle Set (old 321859) | ||||
| 115 | 335739 | 16.91 | 20.46 | |
| No information available, not orderable | ||||
| 501 | 321325 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 502 | 981840 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 503 | 943277 | |||
| No information available, not orderable | ||||
| 504 | 944458 | |||
| No information available, not orderable | ||||
| 505 | 944459 | |||
| No information available, not orderable | ||||
| 601 | 985721 | |||
| No information available, not orderable | ||||
| 602 | 985720 | |||
| No information available, not orderable | ||||
| 603 | 985722 | |||
| No information available, not orderable | ||||
| 604 | 991330 | |||
| No information available, not orderable | ||||
| 605 | 991331 | |||
| No information available, not orderable | ||||
| 606 | 985724 | |||
| No information available, not orderable | ||||
| 607 | 985723 | |||
| No information available, not orderable | ||||
| 608 | 985725 | |||
| No information available, not orderable | ||||
| 609 | 991332 | |||
| No information available, not orderable | ||||
| 610 | 991334 | |||
| No information available, not orderable | ||||
| 611 | 991333 | |||
| No information available, not orderable | ||||
| 612 | 985727 | |||
| No information available, not orderable | ||||
| 613 | 985726 | |||
| No information available, not orderable | ||||
| 614 | 985728 | |||
| No information available, not orderable | ||||
| 615 | 991335 | |||
| No information available, not orderable | ||||
| 616 | 985730 | |||
| No information available, not orderable | ||||
| 617 | 985729 | |||
| No information available, not orderable | ||||
| 618 | 985731 | |||
| No information available, not orderable | ||||
| 619 | 991336 | |||
| No information available, not orderable | ||||
| 620 | 985733 | |||
| No information available, not orderable | ||||
| 621 | 985732 | |||
| No information available, not orderable | ||||
| 622 | 985734 | |||
| No information available, not orderable | ||||
| 623 | 991337 | |||
| No information available, not orderable | ||||
| 624 | 991338 | |||
| No information available, not orderable | ||||
| 625 | 985736 | |||
| No information available, not orderable | ||||
| 626 | 985735 | |||
| No information available, not orderable | ||||
| 627 | 985737 | |||
| No information available, not orderable | ||||
| 628 | 991339 | |||
| No information available, not orderable | ||||
| 629 | 991340 | |||
| No information available, not orderable | ||||
| 630 | 985739 | |||
| No information available, not orderable | ||||
| 631 | 985738 | |||
| No information available, not orderable | ||||
| 632 | 985740 | |||
| No information available, not orderable | ||||
| 633 | 991341 | |||
| No information available, not orderable | ||||
| 641 | 985752 | |||
| No information available, not orderable | ||||
| 642 | 985753 | |||
| No information available, not orderable | ||||
| 643 | 944477 | |||
| No information available, not orderable | ||||
| 644 | 985754 | |||
| No information available, not orderable | ||||
| 645 | 985755 | |||
| No longer available, no replacement | ||||
| 646 | 992813 | |||
| No information available, not orderable | ||||
| 647 | 985750 | |||
| No information available, not orderable | ||||
| 648 | 985751 | |||
| No information available, not orderable | ||||
| 649 | 955994 | |||
| No information available, not orderable | ||||
| 650 | 955995 | |||
| No information available, not orderable | ||||
| 651 | 955996 | |||
| No information available, not orderable | ||||
| 652 | 955997 | |||
| No information available, not orderable | ||||
| 653 | 955998 | |||
| No information available, not orderable | ||||
| 654 | 955999 | |||
| No information available, not orderable | ||||
| 655 | 956000 | |||
| No information available, not orderable | ||||
| 656 | 956001 | |||
| No information available, not orderable | ||||
| 657 | 955154 | |||
| No information available, not orderable | ||||
| 658 | 955166 | |||
| No information available, not orderable | ||||
| 659 | 955155 | |||
| No information available, not orderable | ||||
| 660 | 955167 | |||
| No information available, not orderable | ||||
| 661 | 956002 | |||
| No information available, not orderable | ||||
| 662 | 956003 | |||
| No information available, not orderable | ||||
| 663 | 955157 | |||
| No information available, not orderable | ||||
| 664 | 955168 | |||
| No information available, not orderable | ||||
| 665 | 956004 | |||
| No information available, not orderable | ||||
| 666 | 956005 | |||
| No information available, not orderable | ||||
| 667 | 955159 | |||
| No information available, not orderable | ||||
| 668 | 955169 | |||
| No information available, not orderable | ||||
| 669 | 956008 | |||
| No information available, not orderable | ||||
| 670 | 955163 | |||
| No information available, not orderable | ||||
| 671 | 956009 | |||
| No information available, not orderable | ||||
| 672 | 955165 | |||
| No information available, not orderable | ||||
| 673 | 992814 | |||
| No information available, not orderable | ||||
| 674 | 992815 | |||
| No information available, not orderable | ||||
| 675 | 992816 | |||
| No information available, not orderable | ||||
| 676 | 992817 | |||
| No information available, not orderable | ||||
| 677 | 992818 | |||
| No information available, not orderable | ||||
| 678 | 992819 | |||
| No information available, not orderable | ||||
| 679 | 903901 | |||
| No information available, not orderable | ||||
| 680 | 985756 | |||
| No information available, not orderable | ||||
| 681 | 985757 | |||
| No information available, not orderable | ||||
| 682 | 985758 | |||
| No information available, not orderable | ||||
| 683 | 985759 | |||
| No information available, not orderable | ||||
| 684 | 985760 | |||
| No information available, not orderable | ||||
| 685 | 981929 | |||
| No information available, not orderable | ||||
| 686 | 981930 | |||
| No information available, not orderable | ||||
| 687 | 981931 | |||
| No information available, not orderable | ||||
| 688 | 985761 | |||
| No information available, not orderable | ||||
| 689 | 944574 | |||
| No information available, not orderable | ||||
| 691 | 981922 | |||
| No information available, not orderable | ||||
| 692 | 981923 | |||
| No information available, not orderable | ||||
| 693 | 981925 | |||
| No information available, not orderable | ||||
| 694 | 981926 | |||
| No information available, not orderable | ||||
| 695 | 981924 | |||
| No information available, not orderable | ||||
| 696 | 956126 | |||
| No information available, not orderable | ||||
| 697 | 955181 | |||
| No information available, not orderable | ||||
| 698 | 955183 | |||
| No information available, not orderable | ||||
| 699 | 955186 | |||
| No information available, not orderable | ||||
| 700 | 320859 | |||
| No information available, not orderable | ||||
| 701 | 318085 | |||
| Grease For Hammer.hammer Drill (70g) | ||||
| 702 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 703 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 704 | 317341 | |||
