Here you will find all available parts and drawings of the 'Hikoki DH40SC'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

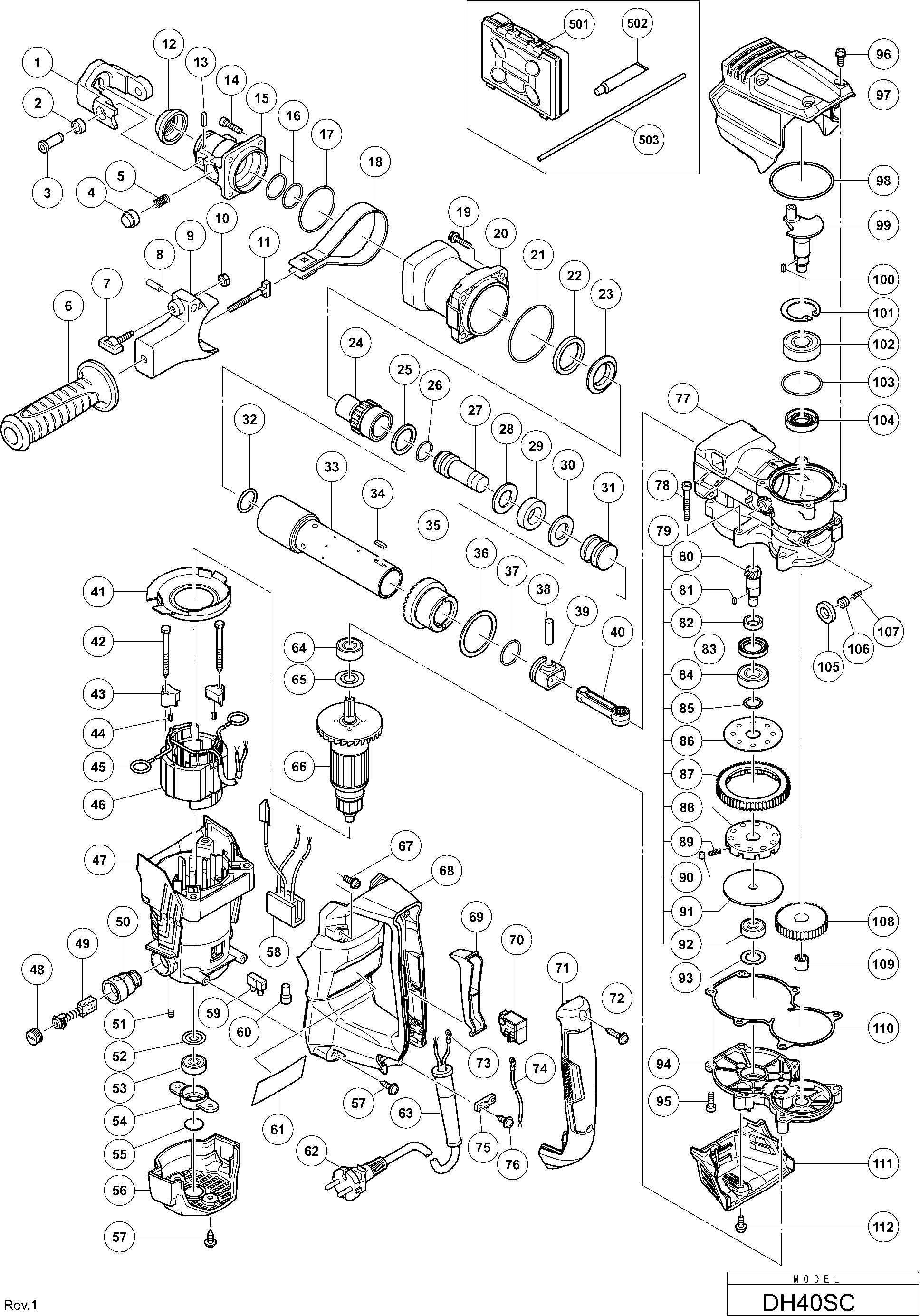

Technical drawing of model Hikoki DH40SC
Spare parts list of model Hikoki DH40SC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| STATOR ASS'Y 110 VOLT | ||||
| *46 | 340963C | 29.15 | 35.27 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| *49 | 999073 | 14.40 | 17.42 | |
| Carbon Brush (1 Pair) | ||||
| *49 | 999043 | 4.50 | 5.44 | |
| Connector 50092 (10 Pcs.) | ||||
| *60 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| *62 | 500477Z | |||
| Cord Armor D10.7 | ||||
| *63 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| *63 | 958049 | 1.04 | 1.26 | |
| ARMATURE 110 VOLT | ||||
| *66 | 361058C | 34.54 | 41.79 | |
| No information available, not orderable | ||||
| 1 | 371899 | |||
| Damper (b) | ||||
| 2 | 990134 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 3 | 331242 | |||
| No longer available, no replacement | ||||
| 4 | 331240 | |||
| Spring | ||||
| 5 | 331239 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 6 | 330209 | |||
| Wing Bolt | ||||
| 7 | 337577 | 1.04 | 1.26 | |
| Roll Pin D2x8 (10 Pcs.) | ||||
| 8 | 949859 | 1.20 | 1.45 | |
| Mount | ||||
| 9 | 371135 | 3.75 | 4.54 | |
| Tpe (sl),kor (sl) | ||||
| 10 | 949556 | 1.05 | 1.27 | |
| Handle Bolt | ||||
| 11 | 331247 | 4.20 | 5.08 | |
| No longer available, no replacement | ||||
| 12 | 331243 | |||
| Roll Pin D4x20 | ||||
| 13 | 991697 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M6x25 | ||||
| 14 | 981942 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 15 | 371898 | |||
| No information available, not orderable | ||||
| 16 | 329061 | |||
| O-ring | ||||
| 17 | 331244 | 1.05 | 1.27 | |
| Band | ||||
| 18 | 331246 | 3.15 | 3.81 | |
| Hex. Socket Hd. Bolt (w/flange) M6x25 | ||||
| 19 | 991712 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 20 | 371190 | |||
| O-ring (1as-60) Since 9.1979 | ||||
| 21 | 956996 | 3.00 | 3.63 | |
| Damper | ||||
| 22 | 321843 | 4.80 | 5.81 | |
| Driver Holder | ||||
| 23 | 331236 | 5.10 | 6.17 | |
| No information available, not orderable | ||||
| 24 | 371188 | |||
| No information available, not orderable | ||||
| 25 | 371900 | |||
| O-ring (c) | ||||
| 26 | 313396 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 27 | 371183 | |||
| Damper Washer | ||||
| 28 | 371163 | 2.85 | 3.45 | |
| No information available, not orderable | ||||
| 29 | 371901 | |||
| Damper Holder | ||||
| 30 | 371164 | 1.65 | 2.00 | |
| Striker | ||||
| 31 | 371165 | 3.60 | 4.36 | |
| O-ring | ||||
| 32 | 986104 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 33 | 371181 | |||
| No information available, not orderable | ||||
| 34 | 371185 | |||
| No information available, not orderable | ||||
| 35 | 371186 | |||
| Spring retaining ring | ||||
| 36 | 331234 | 1.05 | 1.27 | |
| O-ring | ||||
| 37 | 986104 | 1.05 | 1.27 | |
| Piston Pin | ||||
| 38 | 331221 | 1.05 | 1.27 | |
| Piston | ||||
| 39 | 326369 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 40 | 371175 | |||
| DRIJFSTANG (OUD 371175) | ||||
| 40A | 376787 | 5.64 | 6.82 | |
| Fan Guide | ||||
| 41 | 371172 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 42 | 953174 | 1.04 | 1.26 | |
| Stator Holder | ||||
| 43 | 371123 | 1.04 | 1.26 | |
| Rubber Bush | ||||
| 44 | 338755 | 1.04 | 1.26 | |
| Brush Terminal | ||||
| 45 | 930703 | 2.40 | 2.90 | |
| STATOR ASS'Y 110 VOLT | ||||
| 46 | 340963C | 29.15 | 35.27 | |
| Housing Ass'y Includ.50,51 | ||||
| 47 | 371174 | 12.60 | 15.25 | |
| Brush Cap | ||||
| 48 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 49 | 999073 | 14.40 | 17.42 | |
| Carbon Brush (1 Pair) | ||||
| 49 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 50 | 958900 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 51 | 938477 | 1.05 | 1.27 | |
| Bearing Ring | ||||
| 52 | 958915 | 1.04 | 1.26 | |
| Ball Bearing 629vv | ||||
| 53 | 629VVM | 5.85 | 7.08 | |
| Bearing Holder | ||||
| 54 | 371139 | 1.50 | 1.82 | |
| Dust Seal | ||||
| 55 | 331547 | 1.88 | 2.27 | |
| Tail Cover | ||||
| 56 | 371127 | 2.10 | 2.54 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 57 | 302089 | 1.05 | 1.27 | |
| Noise Suppressor (v) | ||||
| 58 | 371177 | 2.10 | 2.54 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 59 | 938307 | 2.13 | 2.57 | |
| Connector 50092 (10 Pcs.) | ||||
| 60 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 62 | 500477Z | |||
| Cord Armor D10.7 | ||||
| 63 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 63 | 958049 | 1.04 | 1.26 | |
| Ball Bearing 6201ddcmps2l | ||||
| 64 | 6201DD | 6.30 | 7.62 | |
| Dust Washer (b) | ||||
| 65 | 325003 | 1.05 | 1.27 | |
| ARMATURE 110 VOLT | ||||
| 66 | 361058C | 34.54 | 41.79 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 67 | 994192 | 1.04 | 1.26 | |
| Handle (1) | ||||
| 68 | 371129 | 9.15 | 11.07 | |
| Trigger (1) | ||||
| 69 | 371128 | 1.04 | 1.26 | |
| Switch (1) | ||||
| 70 | 371171 | 8.55 | 10.35 | |
| Handle Cover | ||||
| 71 | 371130 | 7.05 | 8.53 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 72 | 307028 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 72A | 301653 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 73 | 980063 | 1.04 | 1.26 | |
| Internal Wire | ||||
| 74 | 371149 | 1.05 | 1.27 | |
| Cord Clip | ||||
| 75 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 76 | 984750 | |||
| Crank Case | ||||
| 77 | 371173 | 24.75 | 29.95 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 78 | 986940 | 1.05 | 1.27 | |
| Slip Clutch Ass'y Includ.80-82,84-92 | ||||
| 79 | 371176 | 42.08 | 50.91 | |
| Bevel Pinion | ||||
| 80 | 331211 | 12.45 | 15.06 | |
| Feather Key 3x3x8 | ||||
| 81 | 944109 | 1.70 | 2.06 | |
| Ring | ||||
| 82 | 321279 | 8.40 | 10.16 | |
| Oil Seal | ||||
| 83 | 313050 | 3.90 | 4.72 | |
| Ball Bearing 6002ddcmps2l | ||||
| 84 | 6002DD | 7.05 | 8.53 | |
| Ring | ||||
| 85 | 331213 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 86 | 331214 | 1.05 | 1.27 | |
| Second Gear | ||||
| 87 | 331215 | 19.11 | 23.13 | |
| Gear Holder | ||||
| 88 | 321281 | 17.88 | 21.63 | |
| Spring | ||||
| 89 | 321282 | 1.65 | 2.00 | |
| Needle Roller | ||||
| 90 | 331217 | 1.05 | 1.27 | |
| Spacer Ring | ||||
| 91 | 331219 | 11.40 | 13.79 | |
| Ball Bearing 629vv | ||||
| 92 | 629VVM | 5.85 | 7.08 | |
| Bearing Ring | ||||
| 93 | 331220 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 94 | 371124 | 13.20 | 15.97 | |
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 95 | 992803 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt (w/flange) M5x18 | ||||
| 96 | 371170 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 97 | 371180 | |||
| Crank Cover | ||||
| 97B | 373413 | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 98 | 877315 | |||
| Crank Shaft | ||||
| 99 | 371136 | 13.80 | 16.70 | |
| Feather Key 3x3x8 | ||||
| 100 | 944109 | 1.70 | 2.06 | |
| Retaining Ring For D40 Hole | ||||
| 101 | 948391 | 1.65 | 2.00 | |
| Ball Bearing 6203ddcmps2l | ||||
| 102 | 6203DD | 7.65 | 9.26 | |
| O-ring (s-40) | ||||
| 103 | 996363 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 104 | 321274 | |||
| OIL SEAL (B) (OLD 321274) | ||||
| 104A | 373199 | 1.00 | 1.21 | |
| Felt Packing (a) | ||||
| 105 | 371178 | 1.04 | 1.26 | |
| Cap Screw | ||||
| 106 | 371179 | 17.46 | 21.13 | |
| Valve | ||||
| 107 | 995396 | 1.80 | 2.18 | |
| First Gear | ||||
| 108 | 371162 | 7.05 | 8.53 | |
| Needle Bearing | ||||
| 109 | 371169 | 1.20 | 1.45 | |
| Seal Packing | ||||
| 110 | 371143 | 1.95 | 2.36 | |
| Hood | ||||
| 111 | 371132 | 1.95 | 2.36 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 112 | 998471 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 371122 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 502 | 981840 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 503 | 971786 | |||
