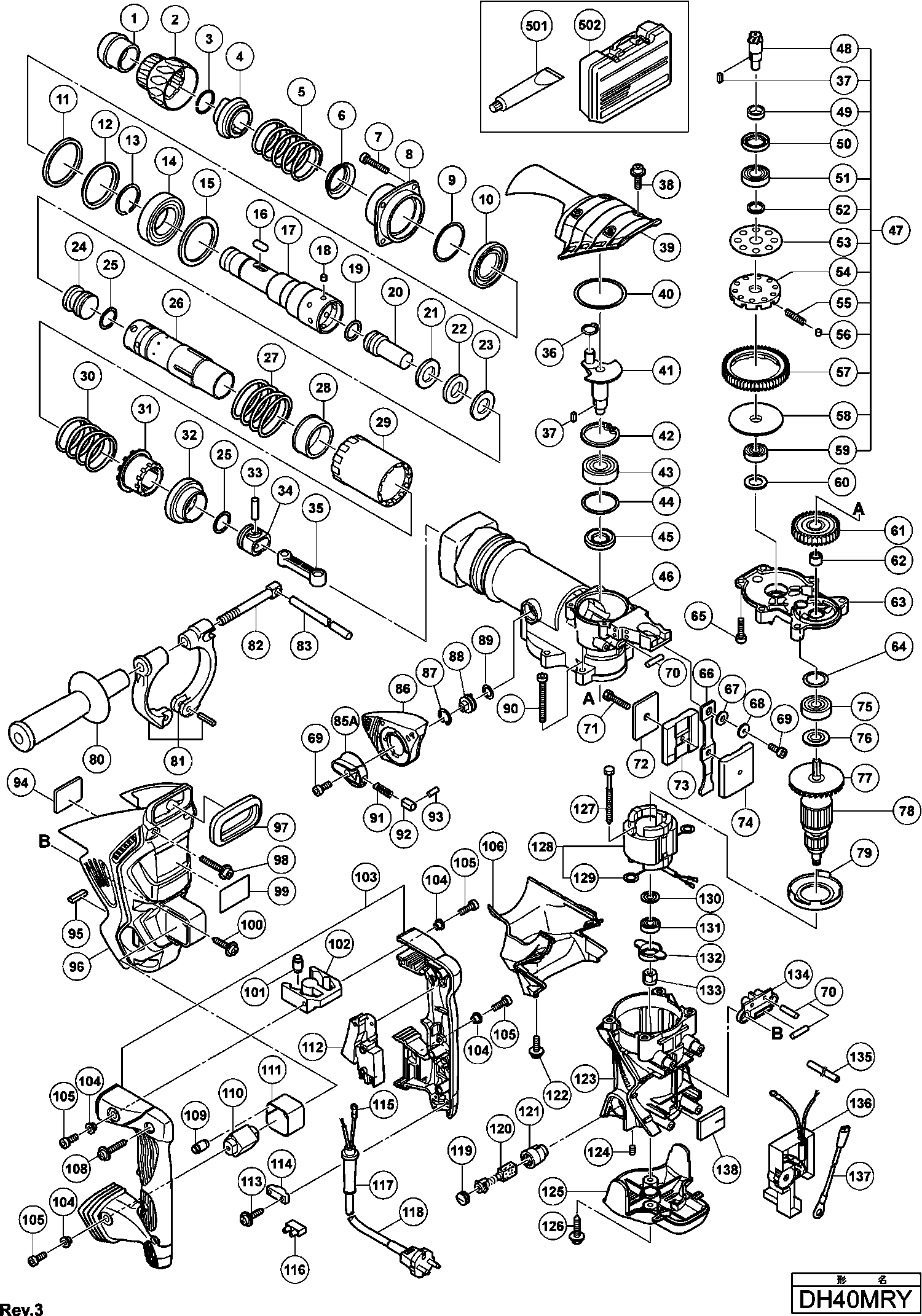

Technical drawing of model Hikoki DH40MRY
Spare parts list of model Hikoki DH40MRY
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Front Cap | ||||
| 1 | 321306 | 3.30 | 3.99 | |
| Grip | ||||
| 2 | 321305 | 4.80 | 5.81 | |
| Spring retaining ring | ||||
| 3 | 318590 | 1.65 | 2.00 | |
| Needle Holder | ||||
| 4 | 321304 | 22.83 | 27.62 | |
| Spring washer | ||||
| 5 | 321303 | 4.80 | 5.81 | |
| Spring Holder (a) | ||||
| 6 | 321302 | 4.80 | 5.81 | |
| Seal Lock Hex. Socket Hd. Bolt M6x25 | ||||
| 7 | 981942 | 1.65 | 2.00 | |
| Front Case | ||||
| 8 | 321300 | 20.49 | 24.79 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 9 | 956996 | 3.00 | 3.63 | |
| Oil Seal | ||||
| 10 | 321301 | 6.45 | 7.80 | |
| Rubber Ring | ||||
| 11 | 325229 | 3.30 | 3.99 | |
| Urethane Washer Holder | ||||
| 12 | 315868 | 3.30 | 3.99 | |
| Retaining Ring D35 | ||||
| 13 | 320850 | 1.65 | 2.00 | |
| Ball Bearing 6007dduav2s | ||||
| 14 | 6007DD | 14.25 | 17.24 | |
| Bearing Washer | ||||
| 15 | 321297 | 3.30 | 3.99 | |
| Needle Roller D8x20 | ||||
| 16 | 313421 | 5.25 | 6.35 | |
| Retainer Sleeve | ||||
| 17 | 321286 | 128.29 | 155.23 | |
| Needle Pin D6x6 | ||||
| 18 | 313057 | 4.20 | 5.08 | |
| O-ring (c) | ||||
| 19 | 313396 | 4.80 | 5.81 | |
| Second Hammer | ||||
| 20 | 326371 | 14.71 | 17.80 | |
| Damper Washer | ||||
| 21 | 321288 | 9.30 | 11.25 | |
| Damper | ||||
| 22 | 321289 | 6.45 | 7.80 | |
| Damper Holder | ||||
| 23 | 321290 | 10.20 | 12.34 | |
| Striker | ||||
| 24 | 326373 | 13.50 | 16.34 | |
| O-ring | ||||
| 25 | 986104 | 1.05 | 1.27 | |
| Cylinder | ||||
| 26 | 326372 | 69.99 | 84.68 | |
| Holding Spring | ||||
| 27 | 326470 | 4.80 | 5.81 | |
| Spring Holder (b) | ||||
| 28 | 321293 | 4.80 | 5.81 | |
| Lock Sleeve | ||||
| 29 | 321299 | 8.40 | 10.16 | |
| Clutch Spring | ||||
| 30 | 326469 | 3.30 | 3.99 | |
| Clutch | ||||
| 31 | 321295 | 43.86 | 53.07 | |
| Gear | ||||
| 32 | 321296 | 58.44 | 70.71 | |
| Piston Pin | ||||
| 33 | 980708 | 2.40 | 2.90 | |
| Piston | ||||
| 34 | 326369 | 3.30 | 3.99 | |
| Connecting Rod | ||||
| 35 | 326370 | 3.30 | 3.99 | |
| Spring Washer D10 (10 pieces) | ||||
| 36 | 939540 | 1.95 | 2.36 | |
| Feather Key 3x3x8 | ||||
| 37 | 944109 | 1.70 | 2.06 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 38 | 994192 | 1.04 | 1.26 | |
| Crank Cover | ||||
| 39 | 326473 | 9.60 | 11.62 | |
| O-RING (S-56) | ||||
| 40 | 317119 | 1.65 | 2.00 | |
| Crank Shaft | ||||
| 41 | 326468 | 35.06 | 42.43 | |
| Retaining Ring For D40 Hole | ||||
| 42 | 948391 | 1.65 | 2.00 | |
| Ball Bearing 6203ddcmps2l | ||||
| 43 | 6203DD | 7.65 | 9.26 | |
| O-ring (s-40) | ||||
| 44 | 996363 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 45 | 321274 | |||
| Cylinder Crank Case | ||||
| 46 | 326467 | 69.99 | 84.68 | |
| Slip Clutch Ass'y Includ.57-59,61-69 | ||||
| 47 | 321277 | 137.09 | 165.88 | |
| Bevel Pinion | ||||
| 48 | 321278 | 27.23 | 32.94 | |
| Ring | ||||
| 49 | 321279 | 8.40 | 10.16 | |
| Oil Seal | ||||
| 50 | 313050 | 3.90 | 4.72 | |
| Ball Bearing 6002ddcmps2l | ||||
| 51 | 6002DD | 7.05 | 8.53 | |
| Ring | ||||
| 52 | 313058 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 53 | 313053 | 3.60 | 4.36 | |
| Gear Holder | ||||
| 54 | 321281 | 17.88 | 21.63 | |
| Spring | ||||
| 55 | 321282 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 56 | 320343 | |||
| Second Gear | ||||
| 57 | 321280 | 28.88 | 34.94 | |
| Spacer | ||||
| 58 | 321283 | 14.30 | 17.30 | |
| Ball Bearing 629vv | ||||
| 59 | 629VVM | 5.85 | 7.08 | |
| Ring | ||||
| 60 | 944525 | 1.05 | 1.27 | |
| First Gear | ||||
| 61 | 321276 | 28.05 | 33.94 | |
| Needle-roller Bearing | ||||
| 62 | 939299 | 10.65 | 12.89 | |
| Gear Cover | ||||
| 63 | 326482 | 26.40 | 31.94 | |
| O-ring (s-32) | ||||
| 64 | 872767 | 1.65 | 2.00 | |
| Seal Lock Hex. Socket Hd. Bolt M6x22 | ||||
| 65 | 321313 | 1.65 | 2.00 | |
| Leaf Spring | ||||
| 66 | 326374 | 4.80 | 5.81 | |
| Intermediate Ring | ||||
| 67 | 326375 | 1.65 | 2.00 | |
| Ring | ||||
| 68 | 326477 | 1.65 | 2.00 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 69 | 983162 | 1.05 | 1.27 | |
| Needle Roller | ||||
| 70 | 878418 | 1.65 | 2.00 | |
| Seal Lock Hd. Allen bolt M5x12 | ||||
| 71 | 991690 | 1.05 | 1.27 | |
| Rubber Sheet (b) | ||||
| 72 | 326486 | 1.65 | 2.00 | |
| Weight (b) | ||||
| 73 | 326476 | 12.15 | 14.70 | |
| Weight (a) | ||||
| 74 | 326475 | 8.40 | 10.16 | |
| Ball Bearing 6201ddcmps2l | ||||
| 75 | 6201DD | 6.30 | 7.62 | |
| Dust Washer (b) | ||||
| 76 | 302429 | 1.05 | 1.27 | |
| Fan | ||||
| 77 | 321640 | 6.45 | 7.80 | |
| ANKER 110-120 VOLT | ||||
| 78 | 360591U | 122.65 | 148.41 | |
| Armature 230v | ||||
| 78 | 360591E | 110.83 | 134.10 | |
| Fan Guide | ||||
| 79 | 321320 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 80 | 313078 | |||
| Handle Holder | ||||
| 81 | 313079 | 16.09 | 19.47 | |
| Handle Bolt | ||||
| 82 | 313080 | 11.85 | 14.34 | |
| No information available, not orderable | ||||
| 83 | 971786 | |||
| Change Lever (old 321309) | ||||
| 85A | 331545 | 3.75 | 4.54 | |
| Lever Holder | ||||
| 86 | 326471 | 3.30 | 3.99 | |
| Retaining Ring (1) | ||||
| 87 | 311229 | 1.05 | 1.27 | |
| Lever Shaft | ||||
| 88 | 321307 | 16.09 | 19.47 | |
| O-ring (p-16) | ||||
| 89 | 873095 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 90 | 986940 | 1.05 | 1.27 | |
| Spring | ||||
| 91 | 321310 | 1.65 | 2.00 | |
| Pushing Button | ||||
| 92 | 321311 | 1.65 | 2.00 | |
| Pin D2x10 | ||||
| 93 | 321312 | 1.65 | 2.00 | |
| Rubber Sheet (a) | ||||
| 94 | 326487 | 1.65 | 2.00 | |
| Intermediate Ring | ||||
| 95 | 326376 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 96 | 326478 | |||
| Bellows | ||||
| 97 | 326378 | 3.30 | 3.99 | |
| Hex. Socket Hd. Bolt (w/flange) M5x35 | ||||
| 98 | 319589 | 1.65 | 2.00 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 100 | 302089 | 1.05 | 1.27 | |
| Handle Damper | ||||
| 101 | 310124 | 4.20 | 5.08 | |
| Holder | ||||
| 102 | 310123 | 11.85 | 14.34 | |
| Handle (a).(b) Set | ||||
| 103 | 326485 | 18.70 | 22.63 | |
| Spacer bushing | ||||
| 104 | 991711 | 1.05 | 1.27 | |
| Seal Lock Hd. Allen bolt M5x12 | ||||
| 105 | 991690 | 1.05 | 1.27 | |
| Hood | ||||
| 106 | 326472 | 6.45 | 7.80 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 108 | 307028 | 1.05 | 1.27 | |
| Handle Damper | ||||
| 109 | 310124 | 4.20 | 5.08 | |
| Chute | ||||
| 110 | 326377 | 4.80 | 5.81 | |
| Holder | ||||
| 111 | 326479 | 3.30 | 3.99 | |
| Switch (b) (1p Screw Type) W/o Lock | ||||
| 112 | 990941 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 113 | 984750 | |||
| Cord Clip | ||||
| 114 | 960266 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 115 | 980063 | 1.04 | 1.26 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 116 | 938307 | 2.13 | 2.57 | |
| No information available, not orderable | ||||
| 117 | 953327 | |||
| Cord (cord Armor D10.7) For Saf | ||||
| 118 | 500454Z | 15.54 | 18.80 | |
| Brush Cap | ||||
| 119 | 935829 | 1.05 | 1.27 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 120 | 999073 | 14.40 | 17.42 | |
| Brush Holder | ||||
| 121 | 971001 | 6.45 | 7.80 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 122 | 998471 | 1.05 | 1.27 | |
| Housing | ||||
| 123 | 326481 | 37.95 | 45.92 | |
| Hex Adjustment Screw M5x8 | ||||
| 124 | 938477 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 125 | 326483 | 6.45 | 7.80 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 126 | 302089 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 127 | 953174 | 1.04 | 1.26 | |
| Stator 230v | ||||
| 128 | 340680E | 75.90 | 91.84 | |
| VELD 110 VOLT | ||||
| 128 | 340680C | 70.84 | 85.72 | |
| Brush Terminal | ||||
| 129 | 930703 | 2.40 | 2.90 | |
| Washer (a) | ||||
| 130 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 131 | 608VVM | 5.70 | 6.90 | |
| Bearing Holder | ||||
| 132 | 326484 | 4.80 | 5.81 | |
| Magnet | ||||
| 133 | 318721 | 17.60 | 21.30 | |
| Base Plate | ||||
| 134 | 326474 | 3.30 | 3.99 | |
| Vinyl Tube (i.d.9.5xt0.56x85) | ||||
| 135 | 326541 | 1.65 | 2.00 | |
| Controller Circuit 220v-240v | ||||
| 136 | 326491 | 105.05 | 127.11 | |
| TOERENREGELAAR 110 VOLT | ||||
| 136 | 326490 | 103.46 | 125.19 | |
| Internal wire | ||||
| 137 | 326492 | 3.30 | 3.99 | |
| Cover (a) | ||||
| 138 | 326488 | 1.65 | 2.00 | |
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 501 | 981840 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 502 | 326489 | |||
| Grease For Hammer.hammer Drill (70g) | ||||
| 601 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 602 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 603 | 320859 | |||
| No information available, not orderable | ||||
| 604 | 313448 | |||
| No information available, not orderable | ||||
| 605 | 313456 | |||
| No information available, not orderable | ||||
| 606 | 313449 | |||
| No information available, not orderable | ||||
| 607 | 313457 | |||
| No information available, not orderable | ||||
| 608 | 313450 | |||
| No information available, not orderable | ||||
| 609 | 313458 | |||
| No information available, not orderable | ||||
| 610 | 313451 | |||
| No information available, not orderable | ||||
| 611 | 313459 | |||
| No information available, not orderable | ||||
| 612 | 313452 | |||
| No information available, not orderable | ||||
| 613 | 313460 | |||
| No information available, not orderable | ||||
| 614 | 313453 | |||
| No information available, not orderable | ||||
| 615 | 313461 | |||
| No information available, not orderable | ||||
| 616 | 313454 | |||
| No information available, not orderable | ||||
| 617 | 313462 | |||
| No information available, not orderable | ||||
| 618 | 313455 | |||
| No information available, not orderable | ||||
| 619 | 313463 | |||
| No information available, not orderable | ||||
| 620 | 318085 | |||
| No information available, not orderable | ||||
| 621 | 944460 | |||
| No information available, not orderable | ||||
| 622 | 944461 | |||
| No information available, not orderable | ||||
| 623 | 993038 | |||
| No information available, not orderable | ||||
| 625 | 944500 | |||
| No information available, not orderable | ||||
| 628 | 944477 | |||
| No information available, not orderable | ||||
| 629 | 313465 | |||
| No information available, not orderable | ||||
| 630 | 955994 | |||
| No information available, not orderable | ||||
| 631 | 955995 | |||
| No information available, not orderable | ||||
| 632 | 955996 | |||
| No information available, not orderable | ||||
| 633 | 955997 | |||
| No information available, not orderable | ||||
| 634 | 955998 | |||
| No information available, not orderable | ||||
| 635 | 955999 | |||
| No information available, not orderable | ||||
| 636 | 956000 | |||
| No information available, not orderable | ||||
| 637 | 956001 | |||
| No information available, not orderable | ||||
| 638 | 955154 | |||
| No information available, not orderable | ||||
| 639 | 955166 | |||
| No information available, not orderable | ||||
| 640 | 955155 | |||
| No information available, not orderable | ||||
| 641 | 955167 | |||
| No information available, not orderable | ||||
| 642 | 956002 | |||
| No information available, not orderable | ||||
| 643 | 956003 | |||
| No information available, not orderable | ||||
| 644 | 955157 | |||
| No information available, not orderable | ||||
| 645 | 955168 | |||
| No information available, not orderable | ||||
| 646 | 956004 | |||
| No information available, not orderable | ||||
| 647 | 956005 | |||
| No information available, not orderable | ||||
| 648 | 955159 | |||
| No information available, not orderable | ||||
| 649 | 955169 | |||
| No information available, not orderable | ||||
| 650 | 313466 | |||
| No information available, not orderable | ||||
| 651 | 313467 | |||
| No information available, not orderable | ||||
| 652 | 956009 | |||
| No information available, not orderable | ||||
| 653 | 955165 | |||
| No information available, not orderable | ||||
| 654 | 321813 | |||
| No information available, not orderable | ||||
| 655 | 313468 | |||
| No information available, not orderable | ||||
| 656 | 303334 | |||
| No information available, not orderable | ||||
| 657 | 930515 | |||
| No information available, not orderable | ||||
| 658 | 313469 | |||
| No information available, not orderable | ||||
| 659 | 313470 | |||
| No information available, not orderable | ||||
| 660 | 313471 | |||
| No information available, not orderable | ||||
| 661 | 313472 | |||
| No information available, not orderable | ||||
| 662 | 313473 | |||
| No information available, not orderable | ||||
| 663 | 313474 | |||
| No information available, not orderable | ||||
| 664 | 313475 | |||
| No information available, not orderable | ||||
| 665 | 313476 | |||
| No information available, not orderable | ||||
| 666 | 313478 | |||
| No information available, not orderable | ||||
| 667 | 313477 | |||
| No information available, not orderable | ||||
| 668 | 313479 | |||
| No information available, not orderable | ||||
| 669 | 317341 | |||
