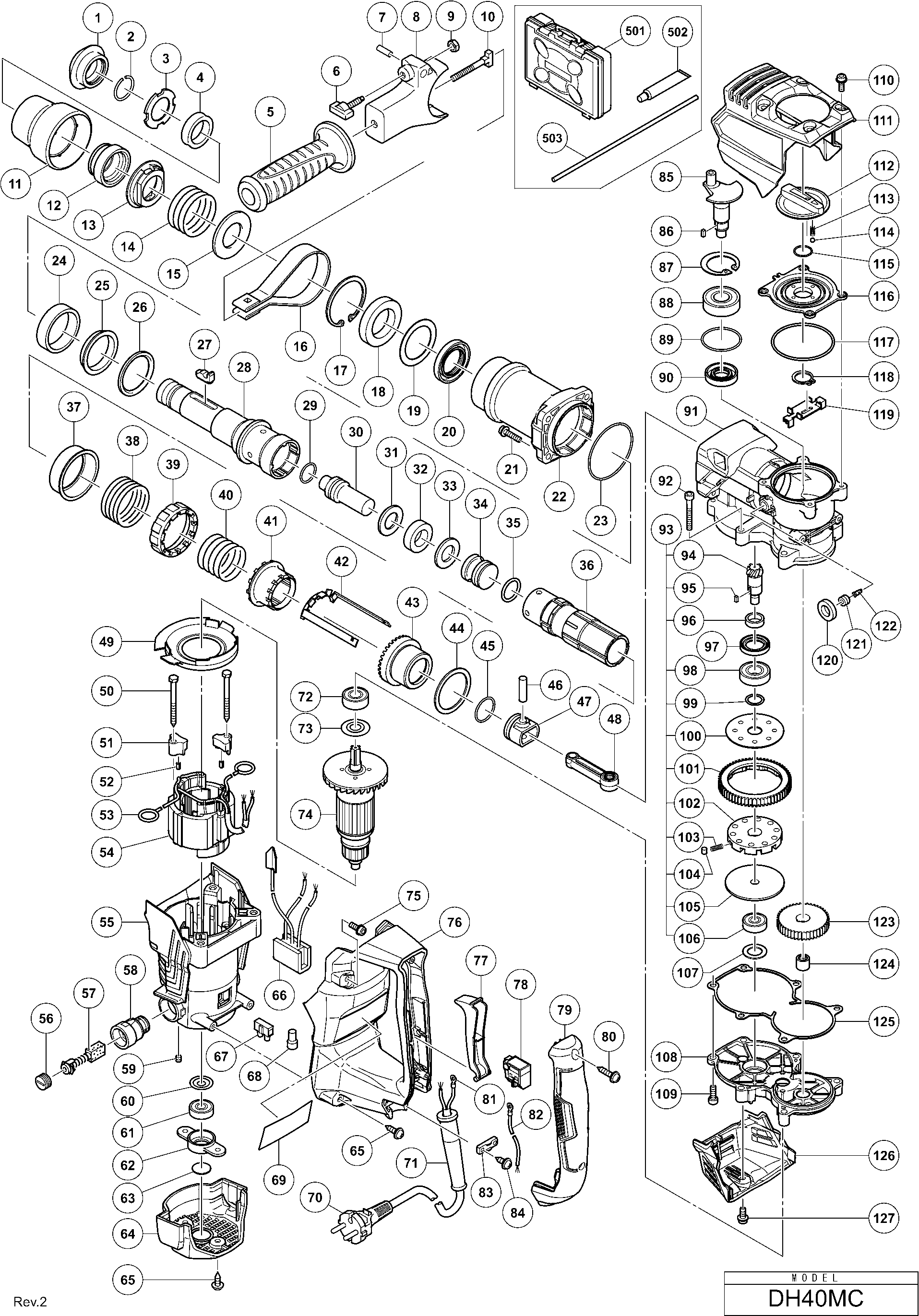

Technical drawing of model Hikoki DH40MC
Spare parts list of model Hikoki DH40MC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Crank Cover | ||||
| *111B | 373701 | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| *503 | 971786 | |||
| Stator 230v | ||||
| *54 | 340963E | 31.08 | 37.60 | |
| STATOR ASS'Y 110 VOLT | ||||
| *54 | 340963C | 29.15 | 35.27 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| *57 | 999073 | 14.40 | 17.42 | |
| Carbon Brush (1 Pair) | ||||
| *57 | 999043 | 4.50 | 5.44 | |
| Wing Bolt | ||||
| *6 | 337577 | 1.04 | 1.26 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| *67 | 938307 | 2.13 | 2.57 | |
| Connector 50092 (10 Pcs.) | ||||
| *68 | 959141 | 3.75 | 4.54 | |
| Roll Pin D2x8 (10 Pcs.) | ||||
| *7 | 949859 | 1.20 | 1.45 | |
| Cord (cord Armor D8.2) For Sin,mal | ||||
| *70 | 500440Z | 20.49 | 24.79 | |
| Cord Armor D10.7 | ||||
| *71 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| *71 | 958049 | 1.04 | 1.26 | |
| Armature 230v | ||||
| *74 | 361058E | 36.71 | 44.42 | |
| ARMATURE 110 VOLT | ||||
| *74 | 361058C | 34.54 | 41.79 | |
| connecting terminal | ||||
| *81 | 980063 | 1.04 | 1.26 | |
| Tpe (sl),kor (sl) | ||||
| *9 | 949556 | 1.05 | 1.27 | |
| Front Cap | ||||
| 1 | 371151 | 1.80 | 2.18 | |
| Stopper Ring | ||||
| 2 | 331540 | 1.88 | 2.27 | |
| Retainer Washer | ||||
| 3 | 371138 | 1.95 | 2.36 | |
| Retainer Damper (a) | ||||
| 4 | 371152 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 5 | 330209 | |||
| Wing Bolt | ||||
| 6 | 337577 | 1.04 | 1.26 | |
| Roll Pin D2x8 (10 Pcs.) | ||||
| 7 | 949859 | 1.20 | 1.45 | |
| Mount | ||||
| 8 | 371135 | 3.75 | 4.54 | |
| Tpe (sl),kor (sl) | ||||
| 9 | 949556 | 1.05 | 1.27 | |
| Handle Bolt | ||||
| 10 | 331247 | 4.20 | 5.08 | |
| Grip | ||||
| 11 | 371133 | 3.30 | 3.99 | |
| Bit Lock Holder | ||||
| 12 | 371157 | 3.60 | 4.36 | |
| Thrust Plate | ||||
| 13 | 371159 | 5.10 | 6.17 | |
| Retainer Spring | ||||
| 14 | 371167 | 1.04 | 1.26 | |
| Spring Holder (a) | ||||
| 15 | 371145 | 1.04 | 1.26 | |
| Band | ||||
| 16 | 331246 | 3.15 | 3.81 | |
| Retaining Ring D55 | ||||
| 17 | 371141 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 18 | 6907DD | |||
| Bearing Washer | ||||
| 19 | 371142 | 1.04 | 1.26 | |
| Oil Seal | ||||
| 20 | 371148 | 2.85 | 3.45 | |
| Hex. Socket Hd. Bolt (w/flange) M6x25 | ||||
| 21 | 991712 | 1.05 | 1.27 | |
| CYLINDER CASE | ||||
| 22 | 371125 | 10.20 | 12.34 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 23 | 956996 | 3.00 | 3.63 | |
| Retainer Damper (b) | ||||
| 24 | 371153 | 1.35 | 1.63 | |
| Damper Sleeve | ||||
| 25 | 371144 | 1.04 | 1.26 | |
| Retainer Damper Washer | ||||
| 26 | 371161 | 1.80 | 2.18 | |
| Bit Lock | ||||
| 27 | 370654 | 4.95 | 5.99 | |
| Retainer Sleeve | ||||
| 28 | 371155 | 42.49 | 51.41 | |
| O-ring (c) | ||||
| 29 | 313396 | 4.80 | 5.81 | |
| Second Hammer | ||||
| 30 | 371160 | 7.05 | 8.53 | |
| Damper Washer | ||||
| 31 | 371163 | 2.85 | 3.45 | |
| Damper | ||||
| 32 | 371316 | 10.95 | 13.25 | |
| Damper Holder | ||||
| 33 | 371164 | 1.65 | 2.00 | |
| Striker | ||||
| 34 | 371165 | 3.60 | 4.36 | |
| O-ring | ||||
| 35 | 986104 | 1.05 | 1.27 | |
| Cylinder | ||||
| 36 | 371156 | 24.06 | 29.12 | |
| Spring Holder (b) | ||||
| 37 | 331533 | 5.55 | 6.72 | |
| Holding Spring | ||||
| 38 | 331534 | 3.75 | 4.54 | |
| Lock Sleeve | ||||
| 39 | 331535 | 3.75 | 4.54 | |
| Lock Sleeve | ||||
| 39A | 331535 | 3.75 | 4.54 | |
| Clutch Spring | ||||
| 40 | 371166 | 1.04 | 1.26 | |
| Clutch | ||||
| 41 | 371137 | 1.04 | 1.26 | |
| Slider (1) | ||||
| 42 | 371147 | 1.95 | 2.36 | |
| Bevel Gear (1) | ||||
| 43 | 371158 | 15.26 | 18.47 | |
| Spring retaining ring | ||||
| 44 | 331234 | 1.05 | 1.27 | |
| O-ring | ||||
| 45 | 986104 | 1.05 | 1.27 | |
| Piston Pin | ||||
| 46 | 331221 | 1.05 | 1.27 | |
| Piston | ||||
| 47 | 326369 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 48 | 371175 | |||
| CONNECTING ROD (OLD 371175) | ||||
| 48A | 376787 | 5.64 | 6.82 | |
| Fan Guide | ||||
| 49 | 371172 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 50 | 953174 | 1.04 | 1.26 | |
| Stator Holder | ||||
| 51 | 371123 | 1.04 | 1.26 | |
| Rubber Bush | ||||
| 52 | 338755 | 1.04 | 1.26 | |
| Brush Terminal | ||||
| 53 | 930703 | 2.40 | 2.90 | |
| Stator 230v | ||||
| 54 | 340963E | 31.08 | 37.60 | |
| STATOR ASS'Y 110 VOLT | ||||
| 54 | 340963C | 29.15 | 35.27 | |
| Housing Ass'y Includ.50,51 | ||||
| 55 | 371174 | 12.60 | 15.25 | |
| Brush Cap | ||||
| 56 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 57 | 999073 | 14.40 | 17.42 | |
| Carbon Brush (1 Pair) | ||||
| 57 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 58 | 958900 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 59 | 938477 | 1.05 | 1.27 | |
| Bearing Ring | ||||
| 60 | 958915 | 1.04 | 1.26 | |
| Ball Bearing 629vv | ||||
| 61 | 629VVM | 5.85 | 7.08 | |
| Bearing Holder | ||||
| 62 | 371139 | 1.50 | 1.82 | |
| Dust Seal | ||||
| 63 | 331547 | 1.88 | 2.27 | |
| Tail Cover | ||||
| 64 | 371127 | 2.10 | 2.54 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 65 | 302089 | 1.05 | 1.27 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 67 | 938307 | 2.13 | 2.57 | |
| Connector 50092 (10 Pcs.) | ||||
| 68 | 959141 | 3.75 | 4.54 | |
| Cord (cord Armor D8.2) For Sin,mal | ||||
| 70 | 500440Z | 20.49 | 24.79 | |
| No information available, not orderable | ||||
| 70A | 500550Z | |||
| Cord Armor D10.7 | ||||
| 71 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 71 | 958049 | 1.04 | 1.26 | |
| Ball Bearing 6201ddcmps2l | ||||
| 72 | 6201DD | 6.30 | 7.62 | |
| Dust Washer (b) | ||||
| 73 | 325003 | 1.05 | 1.27 | |
| Armature 230v | ||||
| 74 | 361058E | 36.71 | 44.42 | |
| ARMATURE 110 VOLT | ||||
| 74 | 361058C | 34.54 | 41.79 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 75 | 994192 | 1.04 | 1.26 | |
| Handle (1) | ||||
| 76 | 371129 | 9.15 | 11.07 | |
| Trigger (1) | ||||
| 77 | 371128 | 1.04 | 1.26 | |
| Switch (1) | ||||
| 78 | 371171 | 8.55 | 10.35 | |
| Handle Cover | ||||
| 79 | 371130 | 7.05 | 8.53 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 80 | 307028 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 80A | 301653 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 81 | 980063 | 1.04 | 1.26 | |
| Internal Wire | ||||
| 82 | 371149 | 1.05 | 1.27 | |
| Cord Clip | ||||
| 83 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 84 | 984750 | |||
| Crank Shaft | ||||
| 85 | 371136 | 13.80 | 16.70 | |
| Feather Key 3x3x8 | ||||
| 86 | 944109 | 1.70 | 2.06 | |
| Retaining Ring For D40 Hole | ||||
| 87 | 948391 | 1.65 | 2.00 | |
| Ball Bearing 6203ddcmps2l | ||||
| 88 | 6203DD | 7.65 | 9.26 | |
| O-ring (s-40) | ||||
| 89 | 996363 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 90 | 321274 | |||
| OIL SEAL (B) (OLD 321274) | ||||
| 90A | 373199 | 1.00 | 1.21 | |
| Crank Case | ||||
| 91 | 371173 | 24.75 | 29.95 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 92 | 986940 | 1.05 | 1.27 | |
| Slip Clutch Ass'y Includ.80-82,84-92 | ||||
| 93 | 371176 | 42.08 | 50.91 | |
| Bevel Pinion | ||||
| 94 | 331211 | 12.45 | 15.06 | |
| Feather Key 3x3x8 | ||||
| 95 | 944109 | 1.70 | 2.06 | |
| Ring | ||||
| 96 | 321279 | 8.40 | 10.16 | |
| Oil Seal | ||||
| 97 | 313050 | 3.90 | 4.72 | |
| Ball Bearing 6002ddcmps2l | ||||
| 98 | 6002DD | 7.05 | 8.53 | |
| Ring | ||||
| 99 | 331213 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 100 | 331214 | 1.05 | 1.27 | |
| Second Gear | ||||
| 101 | 331215 | 19.11 | 23.13 | |
| Gear Holder | ||||
| 102 | 321281 | 17.88 | 21.63 | |
| Spring | ||||
| 103 | 321282 | 1.65 | 2.00 | |
| Needle Roller | ||||
| 104 | 331217 | 1.05 | 1.27 | |
| Spacer Ring | ||||
| 105 | 331219 | 11.40 | 13.79 | |
| Ball Bearing 629vv | ||||
| 106 | 629VVM | 5.85 | 7.08 | |
| Bearing Ring | ||||
| 107 | 331220 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 108 | 371124 | 13.20 | 15.97 | |
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 109 | 992803 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt (w/flange) M5x18 | ||||
| 110 | 371170 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 111 | 371131 | |||
| Change Lever | ||||
| 112 | 371134 | 6.30 | 7.62 | |
| Change lever (old 371134) | ||||
| 112A | 381391 | 1.00 | 1.21 | |
| Lever Spring | ||||
| 113 | 371168 | 1.04 | 1.26 | |
| Steel Ball D4.76 (10 pieces) | ||||
| 114 | 959149 | 1.04 | 1.26 | |
| O-ring (s-18) | ||||
| 115 | 878885 | 1.05 | 1.27 | |
| LEVER SHAFT HOLDER | ||||
| 116 | 371126 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 117 | 877315 | |||
| Retaining Ring D20 (10 Pcs.) | ||||
| 118 | 939547 | 3.90 | 4.72 | |
| Change Plate | ||||
| 119 | 371146 | 1.04 | 1.26 | |
| Felt Packing (a) | ||||
| 120 | 371178 | 1.04 | 1.26 | |
| Cap Screw | ||||
| 121 | 371179 | 17.46 | 21.13 | |
| Valve | ||||
| 122 | 995396 | 1.80 | 2.18 | |
| First Gear | ||||
| 123 | 371162 | 7.05 | 8.53 | |
| Needle Bearing | ||||
| 124 | 371169 | 1.20 | 1.45 | |
| Seal Packing | ||||
| 125 | 371143 | 1.95 | 2.36 | |
| Hood | ||||
| 126 | 371132 | 1.95 | 2.36 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 127 | 998471 | 1.05 | 1.27 | |
| SIDE HANDLE ASSEMBLY NEW | ||||
| 128 | 381618 | 12.10 | 14.64 | |
| CRANKCASE ASSEMBLY (A) NEW | ||||
| 129 | 381617 | 28.27 | 34.21 | |
| No information available, not orderable | ||||
| 501 | 371122 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 502 | 981840 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 503 | 971786 | |||
