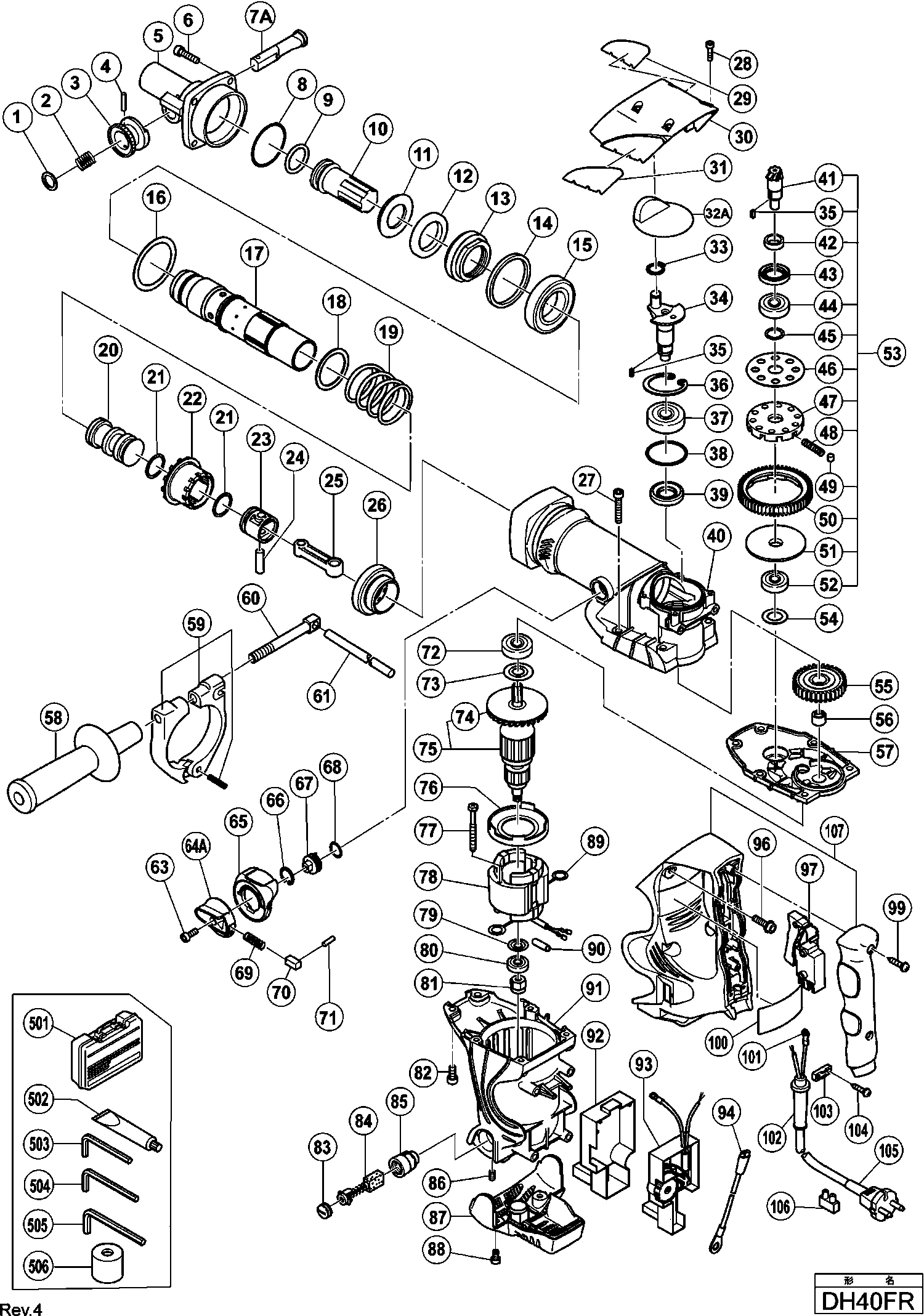

Technical drawing of model Hikoki DH40FR
Spare parts list of model Hikoki DH40FR
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stop Washer | ||||
| 1 | 983242 | 1.05 | 1.27 | |
| Stopper Spring Till 3.1995 | ||||
| 2 | 981937 | 1.05 | 1.27 | |
| Knob | ||||
| 3 | 983241 | 35.06 | 42.43 | |
| Needle Roller D4x20 Till 10.1987 (till 9.1987 For | ||||
| 4 | 943364 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 5 | 322159 | |||
| Seal Lock Hex. Socket Hd. Bolt M6x25 | ||||
| 6 | 981942 | 1.65 | 2.00 | |
| Stop Lever (b) | ||||
| 7A | 985372 | 58.44 | 70.71 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 8 | 956996 | 3.00 | 3.63 | |
| O-ring (c) | ||||
| 9 | 981857 | 5.85 | 7.08 | |
| Second Hammer | ||||
| 10 | 985370 | 93.36 | 112.97 | |
| Washer | ||||
| 11 | 981862 | 10.20 | 12.34 | |
| Damper | ||||
| 12 | 322497 | 2.85 | 3.45 | |
| Cylinder Cap | ||||
| 13 | 981860 | 26.68 | 32.28 | |
| Urethane Ring | ||||
| 14 | 981859 | 3.00 | 3.63 | |
| Ball Bearing 6007dduav2s | ||||
| 15 | 6007DD | 14.25 | 17.24 | |
| Bearing Washer | ||||
| 16 | 321297 | 3.30 | 3.99 | |
| Cylinder | ||||
| 17 | 322156 | 110.83 | 134.10 | |
| No information available, not orderable | ||||
| 18 | 322158 | |||
| Clutch Spring | ||||
| 19 | 321294 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 20 | 322157 | |||
| O-ring | ||||
| 21 | 986104 | 1.05 | 1.27 | |
| Clutch | ||||
| 22 | 321295 | 43.86 | 53.07 | |
| Piston | ||||
| 23 | 321284 | 6.45 | 7.80 | |
| Piston Pin | ||||
| 24 | 980708 | 2.40 | 2.90 | |
| Connecting Rod | ||||
| 25 | 321285 | 4.80 | 5.81 | |
| Gear | ||||
| 26 | 321296 | 58.44 | 70.71 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 27 | 986940 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 28 | 983162 | 1.05 | 1.27 | |
| Crank Cover | ||||
| 30 | 321315 | 13.75 | 16.64 | |
| Rubber Seal | ||||
| 32A | 335023 | 1.04 | 1.26 | |
| Spring Washer D10 (10 pieces) | ||||
| 33 | 939540 | 1.95 | 2.36 | |
| Crank Shaft | ||||
| 34 | 321275 | 55.41 | 67.05 | |
| Feather Key 3x3x8 | ||||
| 35 | 944109 | 1.70 | 2.06 | |
| Retaining Ring For D40 Hole | ||||
| 36 | 948391 | 1.65 | 2.00 | |
| Ball Bearing 6203ddcmps2l | ||||
| 37 | 6203DD | 7.65 | 9.26 | |
| O-ring (s-40) | ||||
| 38 | 996363 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 39 | 321274 | |||
| No information available, not orderable | ||||
| 40 | 322155 | |||
| Bevel Pinion | ||||
| 41 | 321278 | 27.23 | 32.94 | |
| Ring | ||||
| 42 | 321279 | 8.40 | 10.16 | |
| Oil Seal | ||||
| 43 | 313050 | 3.90 | 4.72 | |
| Ball Bearing 6002ddcmps2l | ||||
| 44 | 6002DD | 7.05 | 8.53 | |
| Ring | ||||
| 45 | 313058 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 46 | 313053 | 3.60 | 4.36 | |
| Gear Holder | ||||
| 47 | 321281 | 17.88 | 21.63 | |
| Spring | ||||
| 48 | 321282 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 49 | 320343 | |||
| Second Gear | ||||
| 50 | 321280 | 28.88 | 34.94 | |
| Spacer | ||||
| 51 | 321283 | 14.30 | 17.30 | |
| Ball Bearing 629vv | ||||
| 52 | 629VVM | 5.85 | 7.08 | |
| Slip Clutch Ass'y Includ.57-59,61-69 | ||||
| 53 | 321277 | 137.09 | 165.88 | |
| Ring | ||||
| 54 | 944525 | 1.05 | 1.27 | |
| First Gear | ||||
| 55 | 321276 | 28.05 | 33.94 | |
| Needle-roller Bearing | ||||
| 56 | 939299 | 10.65 | 12.89 | |
| Gear Cover | ||||
| 57 | 321319 | 40.84 | 49.41 | |
| No information available, not orderable | ||||
| 58 | 313078 | |||
| Handle Holder | ||||
| 59 | 313079 | 16.09 | 19.47 | |
| Handle Bolt | ||||
| 60 | 313080 | 11.85 | 14.34 | |
| No information available, not orderable | ||||
| 61 | 971786 | |||
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 63 | 983162 | 1.05 | 1.27 | |
| Change Lever (old 321309) | ||||
| 64A | 331545 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 65 | 322160 | |||
| Retaining Ring (1) | ||||
| 66 | 311229 | 1.05 | 1.27 | |
| Lever Shaft | ||||
| 67 | 321307 | 16.09 | 19.47 | |
| O-ring (p-16) | ||||
| 68 | 873095 | 1.04 | 1.26 | |
| Spring | ||||
| 69 | 321310 | 1.65 | 2.00 | |
| Pushing Button | ||||
| 70 | 321311 | 1.65 | 2.00 | |
| Pin D2x10 | ||||
| 71 | 321312 | 1.65 | 2.00 | |
| Ball Bearing 6201ddcmps2l | ||||
| 72 | 6201DD | 6.30 | 7.62 | |
| Dust Washer (b) | ||||
| 73 | 302429 | 1.05 | 1.27 | |
| Fan | ||||
| 74 | 321640 | 6.45 | 7.80 | |
| ANKER 110-120 VOLT | ||||
| 75 | 360591U | 122.65 | 148.41 | |
| Armature 230v | ||||
| 75 | 360591E | 110.83 | 134.10 | |
| Fan Guide | ||||
| 76 | 321320 | 3.30 | 3.99 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 77 | 953174 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 78 | 340542E | |||
| Washer (a) | ||||
| 79 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 80 | 608VVM | 5.70 | 6.90 | |
| Magnet | ||||
| 81 | 318721 | 17.60 | 21.30 | |
| Seal Lock Hex. Socket Hd. Bolt M6x22 | ||||
| 82 | 321313 | 1.65 | 2.00 | |
| Brush Cap | ||||
| 83 | 935829 | 1.05 | 1.27 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 84 | 999073 | 14.40 | 17.42 | |
| Brush Holder | ||||
| 85 | 971001 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 86 | 938477 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 87 | 321321 | 10.20 | 12.34 | |
| Seal Lock Hex. Socket Hd. Bolt M5x10 | ||||
| 88 | 877839 | 1.05 | 1.27 | |
| Brush Terminal | ||||
| 89 | 930703 | 2.40 | 2.90 | |
| Tube | ||||
| 90 | 321322 | 1.65 | 2.00 | |
| Housing | ||||
| 91 | 321318 | 102.16 | 123.62 | |
| No information available, not orderable | ||||
| 92 | 321317 | |||
| Controller Circuit 220v-240v | ||||
| 93 | 321327 | 177.93 | 215.29 | |
| Internal wire | ||||
| 94 | 317113 | 3.30 | 3.99 | |
| Hex. Socket Hd. Bolt (w/flange) M5x14 | ||||
| 96 | 998485 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 97 | 313093 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 99 | 301653 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 101 | 980063 | 1.04 | 1.26 | |
| Cord Armor D10.7 | ||||
| 102 | 940778 | 2.10 | 2.54 | |
| Cord Clip | ||||
| 103 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 104 | 984750 | |||
| No longer available, no replacement | ||||
| 105 | 500391Z | |||
| Pillar Terminal Till 10.1999 For Aus | ||||
| 106 | 938307 | 2.13 | 2.57 | |
| Handle Set (old 321323) | ||||
| 107 | 335738 | 16.91 | 20.46 | |
| No information available, not orderable | ||||
| 501 | 322152 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 502 | 981840 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 503 | 943277 | |||
| No information available, not orderable | ||||
| 504 | 944458 | |||
| No information available, not orderable | ||||
| 505 | 944459 | |||
| Dust Cover | ||||
| 506 | 993245 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| 601 | 985374 | |||
| No information available, not orderable | ||||
| 602 | 985375 | |||
| No information available, not orderable | ||||
| 603 | 985376 | |||
| No information available, not orderable | ||||
| 604 | 985377 | |||
| No information available, not orderable | ||||
| 605 | 985378 | |||
| No information available, not orderable | ||||
| 606 | 944477 | |||
| No information available, not orderable | ||||
| 607 | 984029 | |||
| No information available, not orderable | ||||
| 608 | 985379 | |||
| No information available, not orderable | ||||
| 609 | 985380 | |||
| No information available, not orderable | ||||
| 610 | 985388 | |||
| No information available, not orderable | ||||
| 611 | 955159 | |||
| No information available, not orderable | ||||
| 612 | 955169 | |||
| No information available, not orderable | ||||
| 613 | 955165 | |||
| No information available, not orderable | ||||
| 614 | 985383 | |||
| No information available, not orderable | ||||
| 615 | 985381 | |||
| No information available, not orderable | ||||
| 616 | 985382 | |||
| No information available, not orderable | ||||
| 617 | 985384 | |||
| No information available, not orderable | ||||
| 618 | 985385 | |||
| No information available, not orderable | ||||
| 619 | 985386 | |||
| No information available, not orderable | ||||
| 620 | 320859 | |||
| No information available, not orderable | ||||
| 621 | 318085 | |||
| Grease For Hammer.hammer Drill (70g) | ||||
| 622 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 623 | 980927 | 73.01 | 88.35 | |
