Here you will find all available parts and drawings of the 'Hikoki DH38SS'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

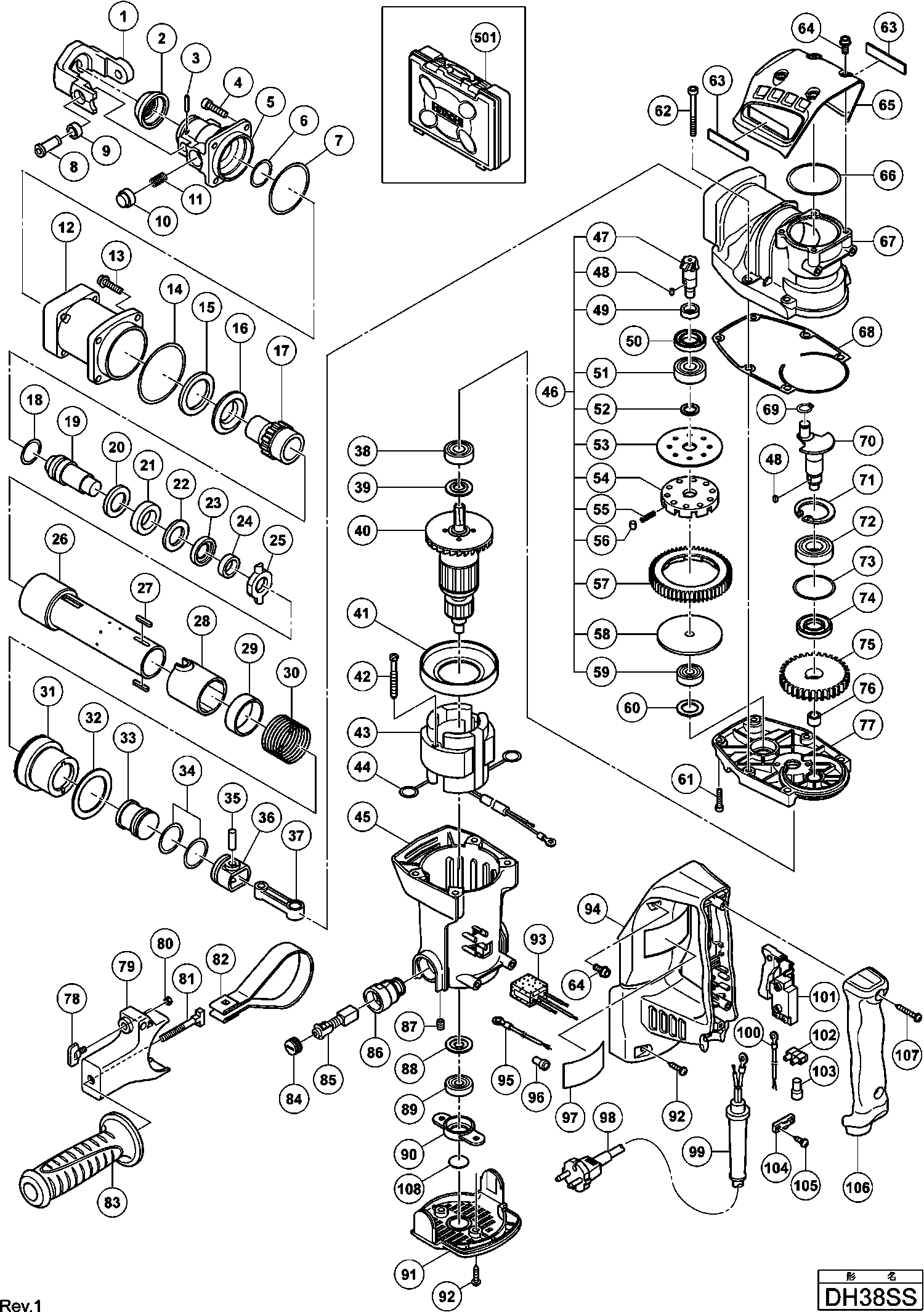

Technical drawing of model Hikoki DH38SS
Spare parts list of model Hikoki DH38SS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 331241 | |||
| No longer available, no replacement | ||||
| 2 | 331243 | |||
| Roll Pin D4x20 | ||||
| 3 | 991697 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M6x25 | ||||
| 4 | 981942 | 1.65 | 2.00 | |
| Front Cover | ||||
| 5 | 331238 | 51.29 | 62.06 | |
| O-ring (s-25) | ||||
| 6 | 319572 | 1.65 | 2.00 | |
| O-ring | ||||
| 7 | 331244 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 8 | 331242 | |||
| Damper (b) | ||||
| 9 | 990134 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 10 | 331240 | |||
| Spring | ||||
| 11 | 331239 | 1.05 | 1.27 | |
| Cylinder Case | ||||
| 12 | 331237 | 26.68 | 32.28 | |
| Hex. Socket Hd. Bolt (w/flange) M6x25 | ||||
| 13 | 991712 | 1.05 | 1.27 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 14 | 956996 | 3.00 | 3.63 | |
| Damper | ||||
| 15 | 321843 | 4.80 | 5.81 | |
| Driver Holder | ||||
| 16 | 331236 | 5.10 | 6.17 | |
| No longer available, no replacement | ||||
| 17 | 331222 | |||
| O-ring (c) | ||||
| 18 | 313396 | 4.80 | 5.81 | |
| Second Hammer | ||||
| 19 | 331223 | 11.40 | 13.79 | |
| Damper Washer | ||||
| 20 | 331224 | 4.65 | 5.63 | |
| Damper | ||||
| 21 | 321835 | 6.45 | 7.80 | |
| Damper Holder | ||||
| 22 | 331225 | 4.65 | 5.63 | |
| Damper Holder (b) | ||||
| 23 | 331227 | 4.20 | 5.08 | |
| Damper | ||||
| 24 | 321832 | 3.45 | 4.17 | |
| Slide Ring | ||||
| 25 | 331228 | 7.95 | 9.62 | |
| Cylinder | ||||
| 26 | 331226 | 36.16 | 43.76 | |
| No longer available, no replacement | ||||
| 27 | 331232 | |||
| Slide Sleeve (b) | ||||
| 28 | 331230 | 2.10 | 2.54 | |
| Slide Sleeve (a) | ||||
| 29 | 331229 | 6.45 | 7.80 | |
| Spring (a) | ||||
| 30 | 331231 | 1.05 | 1.27 | |
| Gear | ||||
| 31 | 331233 | 18.84 | 22.79 | |
| Spring retaining ring | ||||
| 32 | 331234 | 1.05 | 1.27 | |
| Striker | ||||
| 33 | 331235 | 6.90 | 8.35 | |
| O-ring | ||||
| 34 | 986104 | 1.05 | 1.27 | |
| Piston Pin | ||||
| 35 | 331221 | 1.05 | 1.27 | |
| Piston | ||||
| 36 | 326369 | 3.30 | 3.99 | |
| Connecting Rod | ||||
| 37 | 321285 | 4.80 | 5.81 | |
| Ball Bearing 6201ddcmps2l | ||||
| 38 | 6201DD | 6.30 | 7.62 | |
| Dust Washer (b) | ||||
| 39 | 325003 | 1.05 | 1.27 | |
| Armature 230v | ||||
| 40 | 360875E | 58.99 | 71.37 | |
| Fan Guide | ||||
| 41 | 331252 | 2.10 | 2.54 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 42 | 953174 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 43 | 340753E | 32.31 | 39.10 | |
| FIELD 110 VOLT | ||||
| 43 | 340753C | 30.20 | 36.54 | |
| Brush Terminal | ||||
| 44 | 930703 | 2.40 | 2.90 | |
| Housing | ||||
| 45 | 331251 | 26.68 | 32.28 | |
| Slip Clutch Ass'y | ||||
| 46 | 331210 | 79.89 | 96.66 | |
| Bevel Pinion | ||||
| 47 | 331211 | 12.45 | 15.06 | |
| Feather Key 3x3x8 | ||||
| 48 | 944109 | 1.70 | 2.06 | |
| Ring | ||||
| 49 | 331212 | 3.15 | 3.81 | |
| Oil Seal | ||||
| 50 | 313050 | 3.90 | 4.72 | |
| Ball Bearing 6002ddcmps2l | ||||
| 51 | 6002DD | 7.05 | 8.53 | |
| Ring | ||||
| 52 | 331213 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 53 | 331214 | 1.05 | 1.27 | |
| Gear Holder | ||||
| 54 | 321281 | 17.88 | 21.63 | |
| Spring (c) | ||||
| 55 | 331218 | 1.05 | 1.27 | |
| Needle Roller | ||||
| 56 | 331217 | 1.05 | 1.27 | |
| Second Gear | ||||
| 57 | 331215 | 19.11 | 23.13 | |
| Spacer Ring | ||||
| 58 | 331219 | 11.40 | 13.79 | |
| Ball Bearing 629vv | ||||
| 59 | 629VVM | 5.85 | 7.08 | |
| Bearing Ring | ||||
| 60 | 331220 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 61 | 992803 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 62 | 986940 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 64 | 994192 | 1.04 | 1.26 | |
| Crank Cover | ||||
| 65 | 331245 | 12.30 | 14.88 | |
| Cylinder O-ring (b) | ||||
| 66 | 878713 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 67 | 331207 | |||
| Gasket | ||||
| 68 | 331549 | 3.75 | 4.54 | |
| Spring Washer D10 (10 pieces) | ||||
| 69 | 939540 | 1.95 | 2.36 | |
| Crank Shaft | ||||
| 70 | 331208 | 19.11 | 23.13 | |
| Retaining Ring For D40 Hole | ||||
| 71 | 948391 | 1.65 | 2.00 | |
| Ball Bearing 6203ddcmps2l | ||||
| 72 | 6203DD | 7.65 | 9.26 | |
| O-ring (s-40) | ||||
| 73 | 996363 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 74 | 321274 | |||
| First Gear | ||||
| 75 | 331209 | 13.80 | 16.70 | |
| Needle-roller Bearing | ||||
| 76 | 939299 | 10.65 | 12.89 | |
| Gear Cover | ||||
| 77 | 331253 | 28.60 | 34.61 | |
| Wing Bolt M6x12 | ||||
| 78 | 307947 | 1.35 | 1.63 | |
| Mount | ||||
| 79 | 331248 | 8.25 | 9.98 | |
| Tpe (sl),kor (sl) | ||||
| 80 | 949556 | 1.05 | 1.27 | |
| Handle Bolt | ||||
| 81 | 331247 | 4.20 | 5.08 | |
| Band | ||||
| 82 | 331246 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 83 | 330209 | |||
| Brush Cap | ||||
| 84 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 85 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 86 | 958900 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 87 | 938477 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 88 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 89 | 608VVM | 5.70 | 6.90 | |
| Bearing Holder | ||||
| 90 | 331254 | 2.10 | 2.54 | |
| Tail Cover | ||||
| 91 | 331202 | 7.50 | 9.08 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 92 | 302089 | 1.05 | 1.27 | |
| Lever | ||||
| 94 | 331204 | 24.06 | 29.12 | |
| Connector 50092 (10 Pcs.) | ||||
| 96 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 98 | 500477Z | |||
| Cord Armor D10.7 | ||||
| 99 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 99 | 958049 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 101 | 313093 | |||
| Connector 50092 (10 Pcs.) | ||||
| 103 | 959141 | 3.75 | 4.54 | |
| Cord Clip | ||||
| 104 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 105 | 984750 | |||
| Handle Cover | ||||
| 106 | 331205 | 9.00 | 10.89 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 107 | 307028 | 1.05 | 1.27 | |
| Dust Seal | ||||
| 108 | 331547 | 1.88 | 2.27 | |
| No information available, not orderable | ||||
| 501 | 331206 | |||
