Here you will find all available parts and drawings of the 'Hikoki DH38MS'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

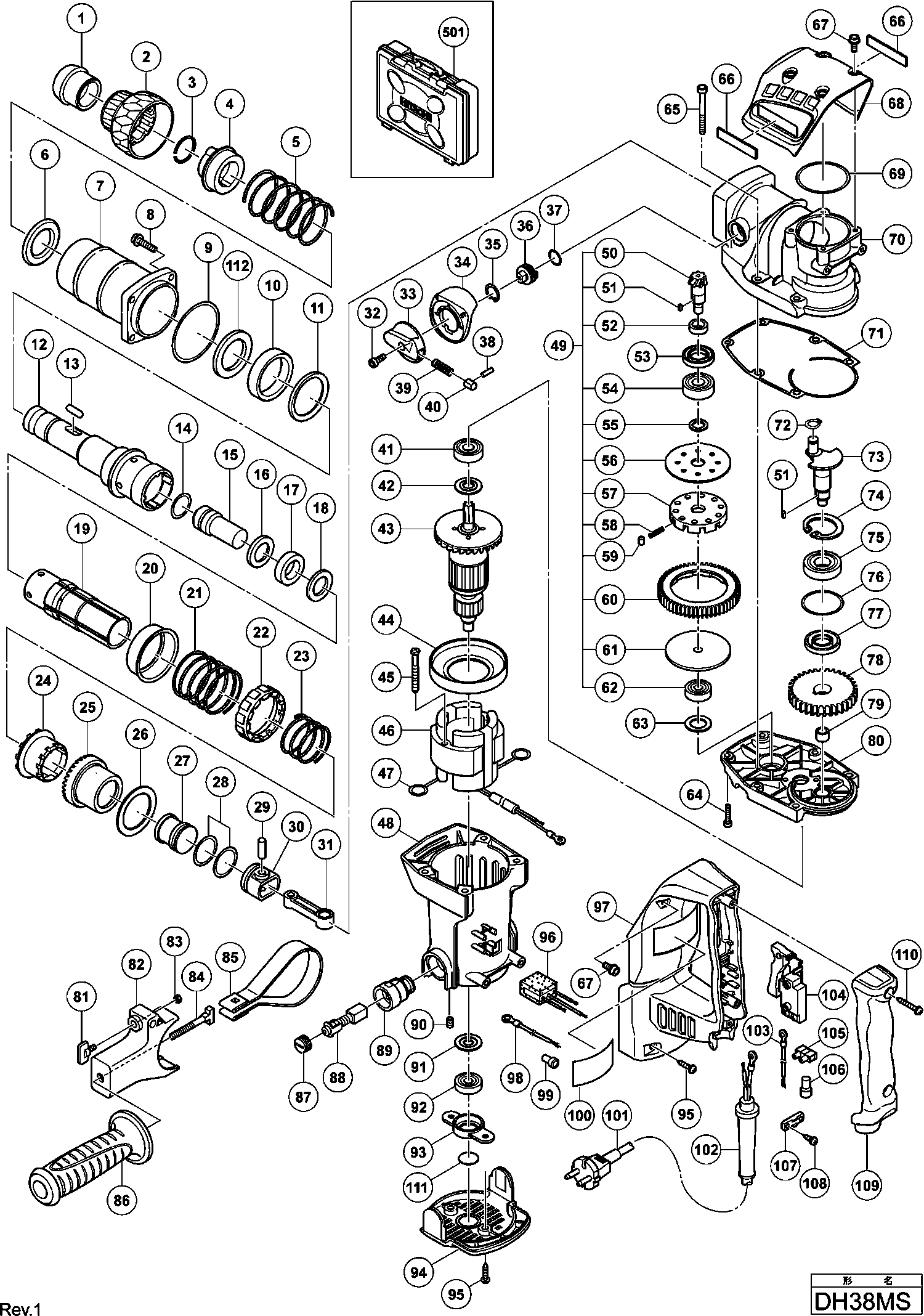

Technical drawing of model Hikoki DH38MS
Spare parts list of model Hikoki DH38MS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Front Cap | ||||
| 1 | 331542 | 5.55 | 6.72 | |
| Grip | ||||
| 2 | 331541 | 7.43 | 8.98 | |
| Stopper Ring | ||||
| 3 | 331540 | 1.88 | 2.27 | |
| Needle Holder | ||||
| 4 | 331539 | 26.05 | 31.52 | |
| Washer Spring | ||||
| 5 | 331538 | 1.88 | 2.27 | |
| Spring Holder (a) | ||||
| 6 | 331537 | 3.75 | 4.54 | |
| Cylinder Case | ||||
| 7 | 331530 | 60.98 | 73.78 | |
| Hex. Socket Hd. Bolt (w/flange) M6x25 | ||||
| 8 | 991712 | 1.05 | 1.27 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 9 | 956996 | 3.00 | 3.63 | |
| Retainer Damper | ||||
| 10 | 331531 | 5.55 | 6.72 | |
| Ring | ||||
| 11 | 331532 | 7.43 | 8.98 | |
| Retainer Sleeve | ||||
| 12 | 331524 | 81.26 | 98.33 | |
| Needle Roller D8x20 | ||||
| 13 | 331536 | 1.88 | 2.27 | |
| O-ring (c) | ||||
| 14 | 313396 | 4.80 | 5.81 | |
| Second Hammer | ||||
| 15 | 331525 | 18.63 | 22.54 | |
| Damper Washer | ||||
| 16 | 331224 | 4.65 | 5.63 | |
| Damper | ||||
| 17 | 321835 | 6.45 | 7.80 | |
| Damper Holder | ||||
| 18 | 331225 | 4.65 | 5.63 | |
| Cylinder | ||||
| 19 | 331526 | 57.61 | 69.71 | |
| Spring Holder (b) | ||||
| 20 | 331533 | 5.55 | 6.72 | |
| Holding Spring | ||||
| 21 | 331534 | 3.75 | 4.54 | |
| Lock Sleeve | ||||
| 22 | 331535 | 3.75 | 4.54 | |
| Clutch Spring | ||||
| 23 | 331527 | 1.88 | 2.27 | |
| Clutch | ||||
| 24 | 331528 | 31.49 | 38.10 | |
| Gear | ||||
| 25 | 331529 | 40.70 | 49.25 | |
| Spring retaining ring | ||||
| 26 | 331234 | 1.05 | 1.27 | |
| Striker | ||||
| 27 | 331235 | 6.90 | 8.35 | |
| O-ring | ||||
| 28 | 986104 | 1.05 | 1.27 | |
| Piston Pin | ||||
| 29 | 331221 | 1.05 | 1.27 | |
| Piston | ||||
| 30 | 326369 | 3.30 | 3.99 | |
| Connecting Rod | ||||
| 31 | 321285 | 4.80 | 5.81 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 32 | 983162 | 1.05 | 1.27 | |
| Change Lever (old 321309) | ||||
| 33 | 331545 | 3.75 | 4.54 | |
| Lever Holder | ||||
| 34 | 331544 | 3.75 | 4.54 | |
| Retaining Ring (1) | ||||
| 35 | 311229 | 1.05 | 1.27 | |
| Lever Shaft | ||||
| 36 | 331543 | 7.43 | 8.98 | |
| O-ring (p-16) | ||||
| 37 | 873095 | 1.04 | 1.26 | |
| Pin D2x10 | ||||
| 38 | 331548 | 1.88 | 2.27 | |
| Spring | ||||
| 39 | 331546 | 1.88 | 2.27 | |
| Pushing Button | ||||
| 40 | 321311 | 1.65 | 2.00 | |
| Ball Bearing 6201ddcmps2l | ||||
| 41 | 6201DD | 6.30 | 7.62 | |
| Dust Washer (b) | ||||
| 42 | 325003 | 1.05 | 1.27 | |
| Armature 230v | ||||
| 43 | 360875E | 58.99 | 71.37 | |
| Fan Guide | ||||
| 44 | 331252 | 2.10 | 2.54 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 45 | 953174 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 46 | 340753E | 32.31 | 39.10 | |
| VELD 110 VOLT | ||||
| 46 | 340753C | 30.20 | 36.54 | |
| Brush Terminal | ||||
| 47 | 930703 | 2.40 | 2.90 | |
| Housing | ||||
| 48 | 331251 | 26.68 | 32.28 | |
| Slip Clutch Ass'y | ||||
| 49 | 331210 | 79.89 | 96.66 | |
| Bevel Pinion | ||||
| 50 | 331211 | 12.45 | 15.06 | |
| Feather Key 3x3x8 | ||||
| 51 | 944109 | 1.70 | 2.06 | |
| Ring | ||||
| 52 | 331212 | 3.15 | 3.81 | |
| Oil Seal | ||||
| 53 | 313050 | 3.90 | 4.72 | |
| Ball Bearing 6002ddcmps2l | ||||
| 54 | 6002DD | 7.05 | 8.53 | |
| Ring | ||||
| 55 | 331213 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 56 | 331214 | 1.05 | 1.27 | |
| Gear Holder | ||||
| 57 | 321281 | 17.88 | 21.63 | |
| Spring (c) | ||||
| 58 | 331218 | 1.05 | 1.27 | |
| Needle Roller | ||||
| 59 | 331217 | 1.05 | 1.27 | |
| Second Gear | ||||
| 60 | 331215 | 19.11 | 23.13 | |
| Spacer Ring | ||||
| 61 | 331219 | 11.40 | 13.79 | |
| Ball Bearing 629vv | ||||
| 62 | 629VVM | 5.85 | 7.08 | |
| Bearing Ring | ||||
| 63 | 331220 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 64 | 992803 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 65 | 986940 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 67 | 994192 | 1.04 | 1.26 | |
| Crank Cover | ||||
| 68 | 331245 | 12.30 | 14.88 | |
| Cylinder O-ring (b) | ||||
| 69 | 878713 | 2.10 | 2.54 | |
| Crank Case | ||||
| 70 | 331523 | 104.98 | 127.02 | |
| Gasket | ||||
| 71 | 331549 | 3.75 | 4.54 | |
| Spring Washer D10 (10 pieces) | ||||
| 72 | 939540 | 1.95 | 2.36 | |
| Crank Shaft | ||||
| 73 | 331208 | 19.11 | 23.13 | |
| Retaining Ring For D40 Hole | ||||
| 74 | 948391 | 1.65 | 2.00 | |
| Ball Bearing 6203ddcmps2l | ||||
| 75 | 6203DD | 7.65 | 9.26 | |
| O-ring (s-40) | ||||
| 76 | 996363 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 77 | 321274 | |||
| First Gear | ||||
| 78 | 331209 | 13.80 | 16.70 | |
| Needle-roller Bearing | ||||
| 79 | 939299 | 10.65 | 12.89 | |
| Gear Cover | ||||
| 80 | 331253 | 28.60 | 34.61 | |
| Wing Bolt M6x12 | ||||
| 81 | 307947 | 1.35 | 1.63 | |
| Mount | ||||
| 82 | 331248 | 8.25 | 9.98 | |
| Tpe (sl),kor (sl) | ||||
| 83 | 949556 | 1.05 | 1.27 | |
| Handle Bolt | ||||
| 84 | 331247 | 4.20 | 5.08 | |
| Band | ||||
| 85 | 331246 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 86 | 330209 | |||
| Brush Cap | ||||
| 87 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 88 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 89 | 958900 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 90 | 938477 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 91 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 92 | 608VVM | 5.70 | 6.90 | |
| Bearing Holder | ||||
| 93 | 331254 | 2.10 | 2.54 | |
| Tail Cover | ||||
| 94 | 331202 | 7.50 | 9.08 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 95 | 302089 | 1.05 | 1.27 | |
| Capacitor | ||||
| 96 | 331203 | 4.20 | 5.08 | |
| Lever | ||||
| 97 | 331204 | 24.06 | 29.12 | |
| Internal Wiring 270l | ||||
| 98 | 330216 | 1.05 | 1.27 | |
| Cord (cord Armor D10.7) For Saf | ||||
| 101 | 500454Z | 15.54 | 18.80 | |
| Cord Armor D10.7 | ||||
| 102 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 102 | 958049 | 1.04 | 1.26 | |
| Internal wire | ||||
| 103 | 981974 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 104 | 313093 | |||
| Pillar Terminal Till 10.1999 For Aus | ||||
| 105 | 938307 | 2.13 | 2.57 | |
| Connector 50092 (10 Pcs.) | ||||
| 106 | 959141 | 3.75 | 4.54 | |
| Cord Clip | ||||
| 107 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 108 | 984750 | |||
| Handle Cover | ||||
| 109 | 331205 | 9.00 | 10.89 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 110 | 307028 | 1.05 | 1.27 | |
| Dust Seal | ||||
| 111 | 331547 | 1.88 | 2.27 | |
| Washer (fw) | ||||
| 112 | 331550 | 7.43 | 8.98 | |
| No information available, not orderable | ||||
| 501 | 331206 | |||
