Here you will find all available parts and drawings of the 'Hikoki DH36DMA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

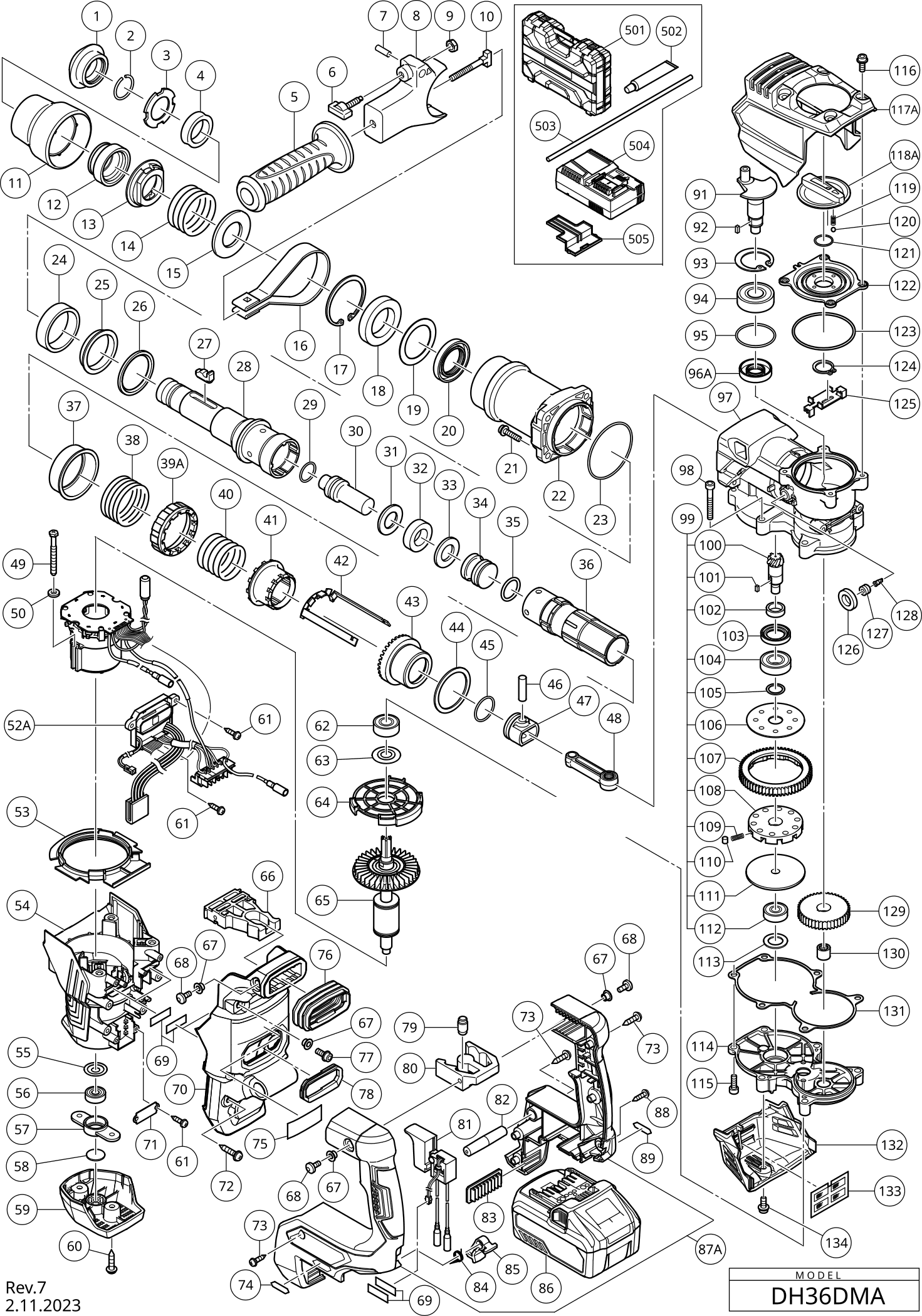

Technical drawing of model Hikoki DH36DMA
Spare parts list of model Hikoki DH36DMA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Crank Cover | ||||
| *117A | 373701 | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| *503 | 971786 | |||
| Wing Bolt | ||||
| *6 | 337577 | 1.04 | 1.26 | |
| Roll Pin D2x8 (10 Pcs.) | ||||
| *7 | 949859 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| *86 | 372121M | |||
| Tpe (sl),kor (sl) | ||||
| *9 | 949556 | 1.05 | 1.27 | |
| Front Cap | ||||
| 1 | 371151 | 1.80 | 2.18 | |
| Stopper Ring | ||||
| 2 | 331540 | 1.88 | 2.27 | |
| Retainer Washer | ||||
| 3 | 371138 | 1.95 | 2.36 | |
| Retainer Damper (a) | ||||
| 4 | 371152 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 5 | 330209 | |||
| Mount | ||||
| 8 | 371135 | 3.75 | 4.54 | |
| Handle Bolt | ||||
| 10 | 331247 | 4.20 | 5.08 | |
| Grip | ||||
| 11 | 371133 | 3.30 | 3.99 | |
| Bit Lock Holder | ||||
| 12 | 371157 | 3.60 | 4.36 | |
| Thrust Plate | ||||
| 13 | 371159 | 5.10 | 6.17 | |
| Retainer Spring | ||||
| 14 | 371167 | 1.04 | 1.26 | |
| Spring Holder (a) | ||||
| 15 | 371145 | 1.04 | 1.26 | |
| Band | ||||
| 16 | 331246 | 3.15 | 3.81 | |
| Retaining Ring D55 | ||||
| 17 | 371141 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 18 | 6907DD | |||
| Bearing Washer | ||||
| 19 | 371142 | 1.04 | 1.26 | |
| Oil Seal | ||||
| 20 | 371148 | 2.85 | 3.45 | |
| Hex. Socket Hd. Bolt (w/flange) M6x25 | ||||
| 21 | 991712 | 1.05 | 1.27 | |
| CYLINDER CASE | ||||
| 22 | 371125 | 10.20 | 12.34 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 23 | 956996 | 3.00 | 3.63 | |
| Retainer Damper (b) | ||||
| 24 | 371153 | 1.35 | 1.63 | |
| Damper Sleeve | ||||
| 25 | 371144 | 1.04 | 1.26 | |
| Retainer Damper Washer | ||||
| 26 | 371161 | 1.80 | 2.18 | |
| Bit Lock | ||||
| 27 | 370654 | 4.95 | 5.99 | |
| Retainer Sleeve | ||||
| 28 | 371155 | 42.49 | 51.41 | |
| O-ring (c) | ||||
| 29 | 313396 | 4.80 | 5.81 | |
| Second Hammer | ||||
| 30 | 371160 | 7.05 | 8.53 | |
| Damper Washer | ||||
| 31 | 371163 | 2.85 | 3.45 | |
| Damper | ||||
| 32 | 371316 | 10.95 | 13.25 | |
| Damper Holder | ||||
| 33 | 371164 | 1.65 | 2.00 | |
| Striker | ||||
| 34 | 371165 | 3.60 | 4.36 | |
| O-ring | ||||
| 35 | 986104 | 1.05 | 1.27 | |
| Cylinder | ||||
| 36 | 371156 | 24.06 | 29.12 | |
| Spring Holder (b) | ||||
| 37 | 331533 | 5.55 | 6.72 | |
| Holding Spring | ||||
| 38 | 331534 | 3.75 | 4.54 | |
| Lock Sleeve | ||||
| 39A | 331535 | 3.75 | 4.54 | |
| Clutch Spring | ||||
| 40 | 371166 | 1.04 | 1.26 | |
| Clutch | ||||
| 41 | 371137 | 1.04 | 1.26 | |
| Slider (1) | ||||
| 42 | 371147 | 1.95 | 2.36 | |
| Bevel Gear (1) | ||||
| 43 | 371158 | 15.26 | 18.47 | |
| Spring retaining ring | ||||
| 44 | 331234 | 1.05 | 1.27 | |
| O-ring | ||||
| 45 | 986104 | 1.05 | 1.27 | |
| Piston Pin | ||||
| 46 | 331221 | 1.05 | 1.27 | |
| Piston | ||||
| 47 | 326369 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 48 | 371175 | |||
| Hex. Hd. Tapping Screw D4x45 | ||||
| 49 | 981824 | 1.05 | 1.27 | |
| Bolt Washer M4 (black) For 220v-240v | ||||
| 50 | 323210 | 1.05 | 1.27 | |
| STATOR FET PCB | ||||
| 52A | 341000 | 129.53 | 156.73 | |
| FAN GUIDE (A) | ||||
| 53 | 373075 | 1.20 | 1.45 | |
| HOUSING | ||||
| 54 | 373077 | 17.05 | 20.63 | |
| Washer (a) | ||||
| 55 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 56 | 608VVM | 5.70 | 6.90 | |
| Bearing Holder | ||||
| 57 | 331254 | 2.10 | 2.54 | |
| Dust Seal | ||||
| 58 | 331547 | 1.88 | 2.27 | |
| Tail Cover | ||||
| 59 | 373090 | 2.85 | 3.45 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 60 | 302089 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 61 | 307811 | |||
| Ball Bearing 6201ddcmps2l | ||||
| 62 | 6201DD | 6.30 | 7.62 | |
| Dust Washer (b) | ||||
| 63 | 325003 | 1.05 | 1.27 | |
| FAN GUIDE (B) | ||||
| 64 | 373076 | 1.20 | 1.45 | |
| ROTOR | ||||
| 65 | 361085 | 101.89 | 123.28 | |
| JOINT | ||||
| 66 | 373093 | 3.75 | 4.54 | |
| Spacer bushing | ||||
| 67 | 991711 | 1.05 | 1.27 | |
| SEAL LOCK BUTTON BOLT M5 | ||||
| 68 | 373092 | 1.04 | 1.26 | |
| PROTECTION SHEET | ||||
| 69 | 373411 | 1.04 | 1.26 | |
| Felt | ||||
| 70 | 373409 | 8.25 | 9.98 | |
| PLATE NEW | ||||
| 71 | 373091 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 72 | 302089 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 73 | 307028 | 1.05 | 1.27 | |
| Bellows | ||||
| 76 | 373094 | 2.70 | 3.27 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 77 | 994192 | 1.04 | 1.26 | |
| PANEL RUBBER | ||||
| 78 | 373095 | 1.04 | 1.26 | |
| Handle Damper | ||||
| 79 | 310124 | 4.20 | 5.08 | |
| Holder | ||||
| 80 | 310123 | 11.85 | 14.34 | |
| SWITCH SET | ||||
| 81 | 373096 | 29.98 | 36.27 | |
| Handle Shaft | ||||
| 82 | 338175 | 1.04 | 1.26 | |
| BATTERY RUBBER (B) | ||||
| 83 | 373410 | 1.20 | 1.45 | |
| LEVER SPRING (B) | ||||
| 84 | 373097 | 2.10 | 2.54 | |
| STOP LEVER | ||||
| 85 | 373098 | 1.04 | 1.26 | |
| HANDGREEP (A+B) (OUD 373100) | ||||
| 87A | 376792 | 11.16 | 13.50 | |
| No information available, not orderable | ||||
| 88 | 307811 | |||
| Crank Shaft | ||||
| 91 | 371136 | 13.80 | 16.70 | |
| Feather Key 3x3x8 | ||||
| 92 | 944109 | 1.70 | 2.06 | |
| Retaining Ring For D40 Hole | ||||
| 93 | 948391 | 1.65 | 2.00 | |
| Ball Bearing 6203ddcmps2l | ||||
| 94 | 6203DD | 7.65 | 9.26 | |
| O-ring (s-40) | ||||
| 95 | 996363 | 1.65 | 2.00 | |
| OIL SEAL (B) (OLD 321274) | ||||
| 96A | 373199 | 1.00 | 1.21 | |
| Crank Case | ||||
| 97 | 371173 | 24.75 | 29.95 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 98 | 986940 | 1.05 | 1.27 | |
| Slip Clutch Ass'y Includ.80-82,84-92 | ||||
| 99 | 371176 | 42.08 | 50.91 | |
| Bevel Pinion | ||||
| 100 | 331211 | 12.45 | 15.06 | |
| Feather Key 3x3x8 | ||||
| 101 | 944109 | 1.70 | 2.06 | |
| Ring | ||||
| 102 | 321279 | 8.40 | 10.16 | |
| Oil Seal | ||||
| 103 | 313050 | 3.90 | 4.72 | |
| Ball Bearing 6002ddcmps2l | ||||
| 104 | 6002DD | 7.05 | 8.53 | |
| Ring | ||||
| 105 | 331213 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 106 | 331214 | 1.05 | 1.27 | |
| Second Gear | ||||
| 107 | 331215 | 19.11 | 23.13 | |
| Gear Holder | ||||
| 108 | 321281 | 17.88 | 21.63 | |
| Spring | ||||
| 109 | 321282 | 1.65 | 2.00 | |
| Needle Roller | ||||
| 110 | 331217 | 1.05 | 1.27 | |
| Spacer Ring | ||||
| 111 | 331219 | 11.40 | 13.79 | |
| Ball Bearing 629vv | ||||
| 112 | 629VVM | 5.85 | 7.08 | |
| Bearing Ring | ||||
| 113 | 331220 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 114 | 371124 | 13.20 | 15.97 | |
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 115 | 992803 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt (w/flange) M5x18 | ||||
| 116 | 371170 | 1.04 | 1.26 | |
| CHANGE LEVER (OLD 371134) | ||||
| 118A | 381391 | 1.00 | 1.21 | |
| Lever Spring | ||||
| 119 | 371168 | 1.04 | 1.26 | |
| Steel Ball D4.76 (10 pieces) | ||||
| 120 | 959149 | 1.04 | 1.26 | |
| O-ring (s-18) | ||||
| 121 | 878885 | 1.05 | 1.27 | |
| LEVER SHAFT HOLDER | ||||
| 122 | 371126 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 123 | 877315 | |||
| Retaining Ring D20 (10 Pcs.) | ||||
| 124 | 939547 | 3.90 | 4.72 | |
| Change Plate | ||||
| 125 | 371146 | 1.04 | 1.26 | |
| Felt Packing (a) | ||||
| 126 | 371178 | 1.04 | 1.26 | |
| Cap Screw | ||||
| 127 | 371179 | 17.46 | 21.13 | |
| Valve | ||||
| 128 | 995396 | 1.80 | 2.18 | |
| First Gear | ||||
| 129 | 371162 | 7.05 | 8.53 | |
| Needle Bearing | ||||
| 130 | 371169 | 1.20 | 1.45 | |
| Seal Packing | ||||
| 131 | 371143 | 1.95 | 2.36 | |
| Hood | ||||
| 132 | 371132 | 1.95 | 2.36 | |
| FILTER (C) | ||||
| 133 | 373414 | 1.50 | 1.82 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 134 | 998471 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 373391 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 502 | 981840 | 8.40 | 10.16 | |
| Battery Cover | ||||
| 505 | 329897 | 1.80 | 2.18 | |
