Here you will find all available parts and drawings of the 'Hikoki DH36DL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

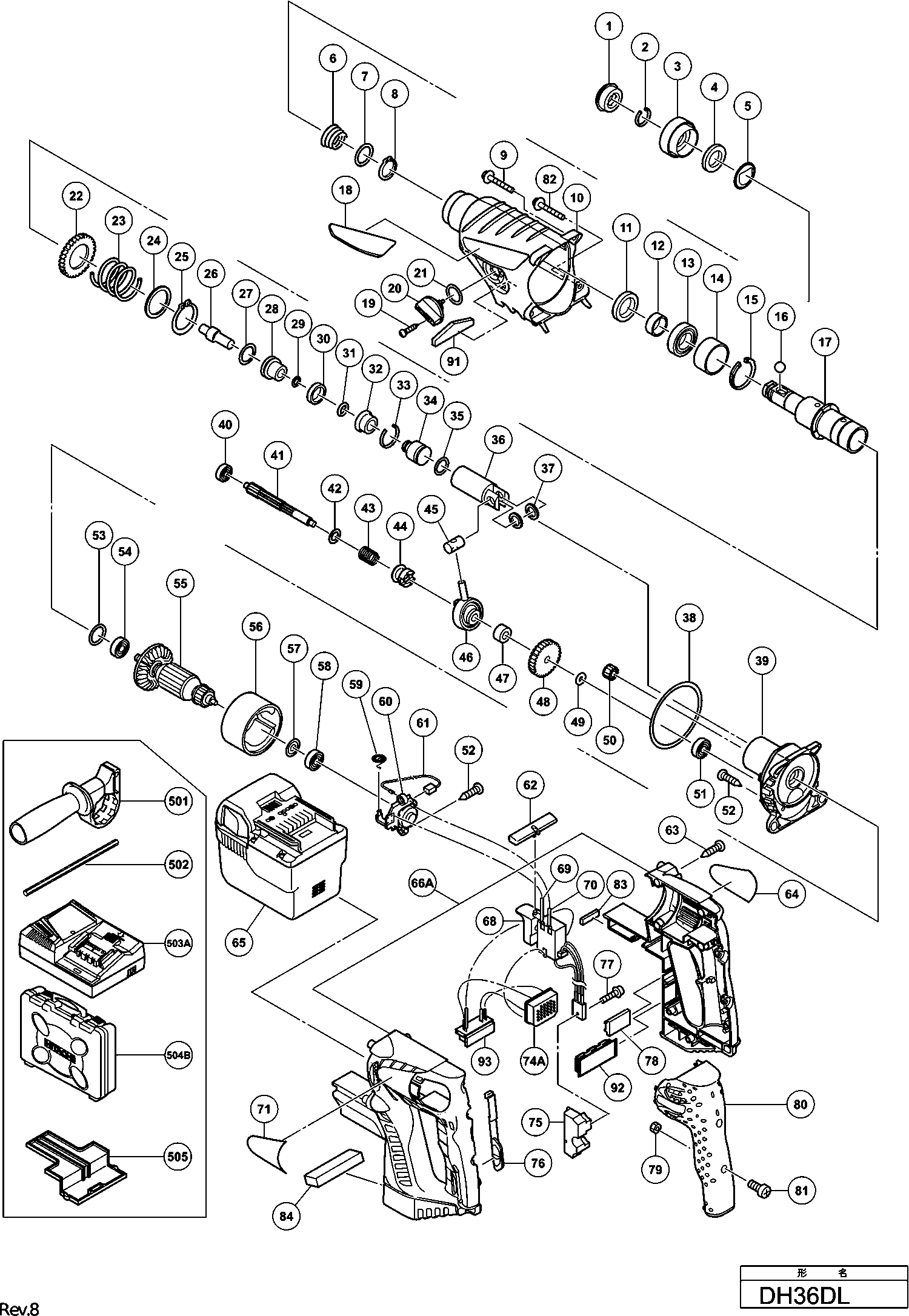

Technical drawing of model Hikoki DH36DL
Spare parts list of model Hikoki DH36DL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 306345 | |||
| Spring retaining ring | ||||
| 2 | 306340 | 1.35 | 1.63 | |
| Grip | ||||
| 3 | 323154 | 4.80 | 5.81 | |
| Ball Holder | ||||
| 4 | 324528 | 6.45 | 7.80 | |
| Holder Plate | ||||
| 5 | 324526 | 3.30 | 3.99 | |
| Spring | ||||
| 6 | 322812 | 1.65 | 2.00 | |
| Washer (b) | ||||
| 7 | 984118 | 1.05 | 1.27 | |
| Retaining Ring D20 (10 Pcs.) | ||||
| 8 | 939547 | 3.90 | 4.72 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 9 | 305558 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 10 | 323167 | 26.68 | 32.28 | |
| Oil Seal | ||||
| 11 | 307688 | 3.90 | 4.72 | |
| SLEEVE | ||||
| 12 | 322815 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 13 | 6904DD | |||
| BUS (A) | ||||
| 14 | 324522 | 3.30 | 3.99 | |
| Spring Washer 37MM | ||||
| 15 | 322813 | 1.65 | 2.00 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 16 | 959156 | 1.65 | 2.00 | |
| Cylinder | ||||
| 17 | 322814 | 73.01 | 88.35 | |
| Brand Plate (green) | ||||
| 18 | 323172 | 4.05 | 4.90 | |
| Tapping Screw D2.6x10 | ||||
| 19 | 323239 | 1.65 | 2.00 | |
| Change Lever | ||||
| 20 | 323161 | 1.20 | 1.45 | |
| O-ring (s-18) | ||||
| 21 | 878885 | 1.05 | 1.27 | |
| Second Gear | ||||
| 22 | 301677 | 23.38 | 28.28 | |
| Spring (a) | ||||
| 23 | 316135 | 6.15 | 7.44 | |
| Ring | ||||
| 24 | 301679 | 1.20 | 1.45 | |
| Retaining Ring For D30 Shaft | ||||
| 25 | 948310 | 1.35 | 1.63 | |
| Second Hammer | ||||
| 26 | 324525 | 6.45 | 7.80 | |
| O-ring (1ap-20) | ||||
| 27 | 944486 | 1.05 | 1.27 | |
| Hammer Holder | ||||
| 28 | 324523 | 11.55 | 13.98 | |
| O-ring (b) | ||||
| 29 | 322802 | 3.30 | 3.99 | |
| DEMPERRING (A) | ||||
| 30 | 322805 | 1.65 | 2.00 | |
| O-ring (c) | ||||
| 31 | 322808 | 1.65 | 2.00 | |
| Damper Holder | ||||
| 32 | 324524 | 6.45 | 7.80 | |
| STOPPER RING | ||||
| 33 | 322807 | 1.65 | 2.00 | |
| Striker | ||||
| 34 | 324535 | 10.20 | 12.34 | |
| O-ring | ||||
| 35 | 322834 | 3.30 | 3.99 | |
| Piston | ||||
| 36 | 324534 | 16.36 | 19.80 | |
| Washer (c) | ||||
| 37 | 322799 | 1.65 | 2.00 | |
| O-ring (i.d. 72) | ||||
| 38 | 325254 | 3.30 | 3.99 | |
| Inner Cover | ||||
| 39 | 323157 | 21.45 | 25.95 | |
| Ball Bearing 626vvc2ps2l | ||||
| 40 | 626VVM | 5.70 | 6.90 | |
| Gear Shaft | ||||
| 41 | 323151 | 24.61 | 29.78 | |
| Washer | ||||
| 42 | 301659 | 1.04 | 1.26 | |
| Clutch Spring | ||||
| 43 | 301660 | 1.04 | 1.26 | |
| Clutch | ||||
| 44 | 324532 | 11.55 | 13.98 | |
| Piston Pin | ||||
| 45 | 322798 | 1.65 | 2.00 | |
| Reciprocating Bearing | ||||
| 46 | 324533 | 37.95 | 45.92 | |
| Ring | ||||
| 47 | 323152 | 4.80 | 5.81 | |
| First Gear | ||||
| 48 | 323153 | 20.76 | 25.12 | |
| Distance ring AU 43 FF | ||||
| 49 | 301663 | 1.04 | 1.26 | |
| Gear | ||||
| 50 | 323170 | 5.40 | 6.53 | |
| Ball Bearing 626vvc2ps2l | ||||
| 51 | 626VVM | 5.70 | 6.90 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 52 | 305812 | 1.04 | 1.26 | |
| O-ring (p-22) | ||||
| 53 | 876796 | 1.05 | 1.27 | |
| Ball Bearing 608dd | ||||
| 54 | 608DDM | 5.55 | 6.72 | |
| ARMATURE AND PINION ASS'Y DC 36V INCLUD.50,54,57, | ||||
| 55 | 360801 | 68.48 | 82.85 | |
| Magnet | ||||
| 56 | 323156 | 24.68 | 29.86 | |
| Washer (a) | ||||
| 57 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608dd | ||||
| 58 | 608DDM | 5.55 | 6.72 | |
| Spring | ||||
| 59 | 308536 | 1.65 | 2.00 | |
| Brush Holder | ||||
| 60 | 323164 | 4.05 | 4.90 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 61 | 999090 | 14.40 | 17.42 | |
| Pushing Button | ||||
| 62 | 328064 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 63 | 302086 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 65 | 328036 | |||
| Housing (a).(b) Set | ||||
| 66A | 328067 | 40.01 | 48.42 | |
| Switch | ||||
| 68 | 328058 | 22.83 | 27.62 | |
| Internal Wiring (red) | ||||
| 69 | 323166 | 1.20 | 1.45 | |
| Internal Wire (black) 75l | ||||
| 70 | 323165 | 1.35 | 1.63 | |
| CONTROLLER TERMINAL SET | ||||
| 74A | 328060 | 36.30 | 43.92 | |
| Heat Sink | ||||
| 75 | 319812 | 2.85 | 3.45 | |
| Shift Knob | ||||
| 76 | 323159 | 1.20 | 1.45 | |
| Machine Screw (w/washers) M3x12 | ||||
| 77 | 993963 | 1.05 | 1.27 | |
| Rubber Holder (till 04.2010) | ||||
| 78 | 313591 | 3.15 | 3.81 | |
| Nut M4 (10 Pieces) | ||||
| 79 | 949554 | 1.05 | 1.27 | |
| Grip | ||||
| 80 | 323160 | 19.94 | 24.12 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 81 | 949215 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D5x30 (black) | ||||
| 82 | 328707 | 1.05 | 1.27 | |
| Cushion (a) | ||||
| 83 | 328708 | 2.10 | 2.54 | |
| Gasket | ||||
| 84 | 331415 | 1.20 | 1.45 | |
| Gasket | ||||
| 90 | 331415 | 1.20 | 1.45 | |
| Packing (c) | ||||
| 91 | 333144 | 1.05 | 1.27 | |
| Rubber Cushion | ||||
| 92 | 332668 | 2.10 | 2.54 | |
| Battery Terminal | ||||
| 93 | 333991 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 501 | 323155 | |||
| No information available, not orderable | ||||
| 502 | 303709 | |||
| No information available, not orderable | ||||
| 504A | 329319 | |||
| No information available, not orderable | ||||
| 504B | 337815 | |||
| Battery Cover | ||||
| 505 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 601 | 303332 | |||
| No information available, not orderable | ||||
| 602 | 303334 | |||
| No information available, not orderable | ||||
| 603 | 303335 | |||
| No information available, not orderable | ||||
| 604 | 321825 | |||
| No information available, not orderable | ||||
| 605 | 303623 | |||
| No information available, not orderable | ||||
| 606 | 321814 | |||
| No information available, not orderable | ||||
| 607 | 995344 | |||
| No information available, not orderable | ||||
| 608 | 987576 | |||
| No information available, not orderable | ||||
| 608A | 303334 | |||
| No information available, not orderable | ||||
| 609 | 321813 | |||
| No information available, not orderable | ||||
| 610 | 303334 | |||
| No information available, not orderable | ||||
| 611 | 971787 | |||
| No information available, not orderable | ||||
| 612 | 931844 | |||
| No information available, not orderable | ||||
| 613 | 971511Z | |||
| No information available, not orderable | ||||
| 614 | 971512Z | |||
| No information available, not orderable | ||||
| 615 | 971794 | |||
| No information available, not orderable | ||||
| 616 | 971795 | |||
| No information available, not orderable | ||||
| 617 | 971796 | |||
| No information available, not orderable | ||||
| 618 | 971797 | |||
| No information available, not orderable | ||||
| 619 | 971798 | |||
| No information available, not orderable | ||||
| 620 | 971799 | |||
| No information available, not orderable | ||||
| 621 | 971800 | |||
| No information available, not orderable | ||||
| 622 | 971801 | |||
| No information available, not orderable | ||||
| 623 | 971802 | |||
| No information available, not orderable | ||||
| 624 | 971803 | |||
| No information available, not orderable | ||||
| 625 | 944477 | |||
| No information available, not orderable | ||||
| 626 | 303617 | |||
| No information available, not orderable | ||||
| 627 | 303619 | |||
| No information available, not orderable | ||||
| 628 | 303620 | |||
| No information available, not orderable | ||||
| 629 | 303624 | |||
| No information available, not orderable | ||||
| 630 | 302976 | |||
| No information available, not orderable | ||||
| 631 | 302975 | |||
| No information available, not orderable | ||||
| 632 | 303621 | |||
| No information available, not orderable | ||||
| 633 | 302974 | |||
| No information available, not orderable | ||||
| 634 | 302979 | |||
| No information available, not orderable | ||||
| 635 | 302978 | |||
| No information available, not orderable | ||||
| 636 | 303622 | |||
| No information available, not orderable | ||||
| 637 | 302977 | |||
| No information available, not orderable | ||||
| 638 | 303044 | |||
| No information available, not orderable | ||||
| 639 | 303045 | |||
| No information available, not orderable | ||||
| 640 | 303625 | |||
| No information available, not orderable | ||||
| 641 | 303626 | |||
| No information available, not orderable | ||||
| 642 | 303627 | |||
| No information available, not orderable | ||||
| 643 | 306885 | |||
| Socket Adapter (b) | ||||
| 644 | 306910 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 645 | 944460 | |||
| No information available, not orderable | ||||
| 646 | 944461 | |||
| No information available, not orderable | ||||
| 647 | 993038 | |||
| No information available, not orderable | ||||
| 649 | 944500 | |||
| No information available, not orderable | ||||
| 651 | 944464 | |||
| No information available, not orderable | ||||
| 652 | 982672 | |||
| No information available, not orderable | ||||
| 653 | 982673 | |||
| No information available, not orderable | ||||
| 654 | 982674 | |||
| No information available, not orderable | ||||
| 655 | 982686 | |||
| No information available, not orderable | ||||
| 656 | 982675 | |||
| No information available, not orderable | ||||
| 657 | 982687 | |||
| No information available, not orderable | ||||
| 658 | 982676 | |||
| No information available, not orderable | ||||
| 659 | 982688 | |||
| No information available, not orderable | ||||
| 660 | 982677 | |||
| No information available, not orderable | ||||
| 661 | 982689 | |||
| No information available, not orderable | ||||
| 662 | 982678 | |||
| No information available, not orderable | ||||
| 663 | 982690 | |||
| No information available, not orderable | ||||
| 664 | 982684 | |||
| No information available, not orderable | ||||
| 665 | 982685 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 666 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 667 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 668 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 669 | 303046 | |||
