Here you will find all available parts and drawings of the 'Hikoki DH36DBML'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

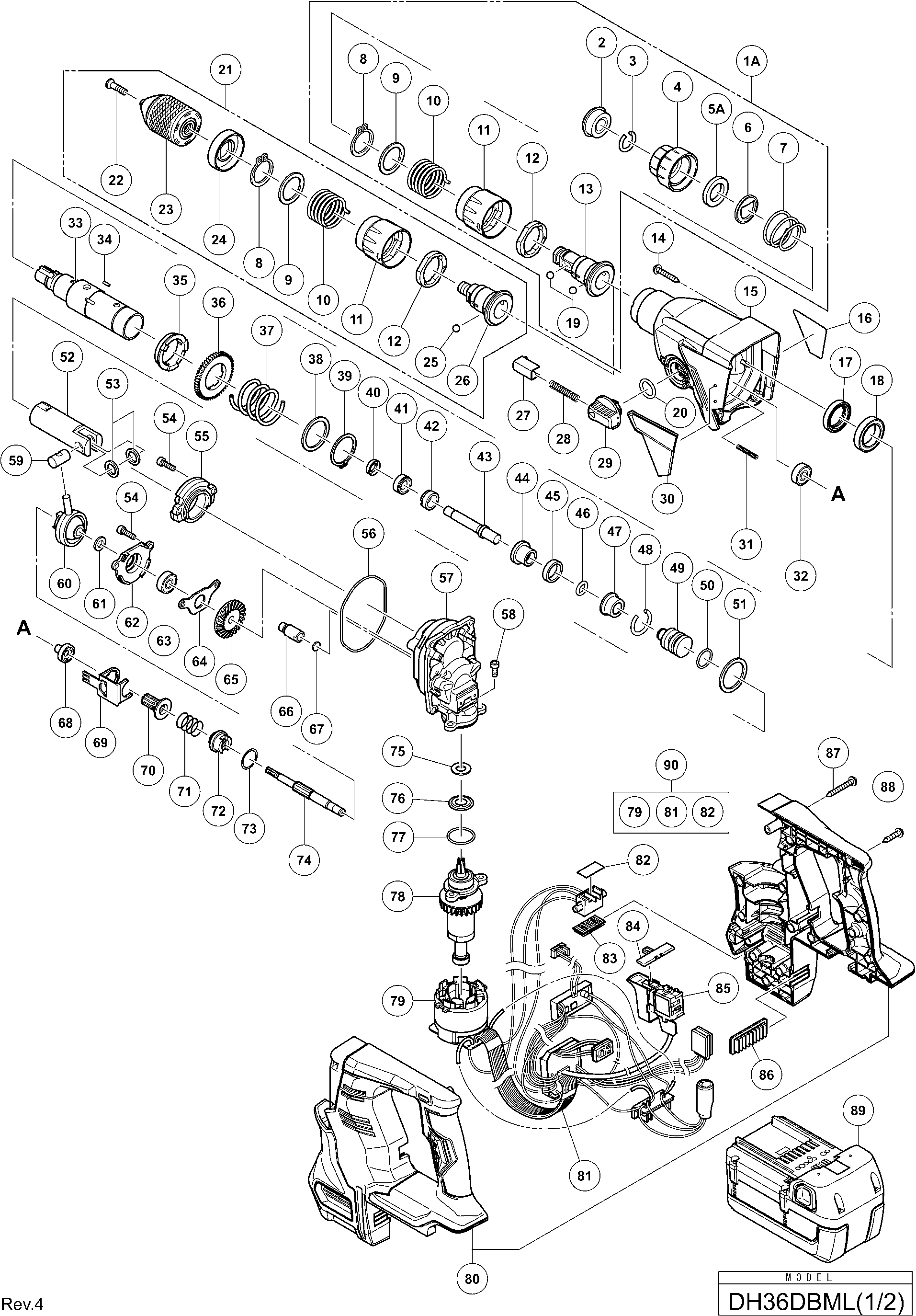

Technical drawing of model Hikoki DH36DBML

Spare parts list of model Hikoki DH36DBML

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
DRILL HOLDER SET
1A 371327 33.83 40.93
No information available, not orderable
2 306345
Spring retaining ring
3 306340 1.35 1.63
Grip
4 324527 3.30 3.99
BALL HOLDER (FW)
5A 371326 10.20 12.34
Holder Plate
6 324526 3.30 3.99
Spring
7 322812 1.65 2.00
Washer Spring
8 965469 1.05 1.27
Washer (b)
9 326520 6.45 7.80
Spring
10 326519 7.65 9.26
Grip
11 326387 4.80 5.81
Lock Ring
12 326801 32.18 38.93
Bit Holder
13 336849 18.43 22.29
Tapping Screw (w/flange) D5
14 370307 1.04 1.26
Gear Cover Ass'y Includ.17,18,32
15 370306 27.50 33.28
Oil Seal
17 335259 2.85 3.45
Ball Bearing 6805dd
18 335260 3.30 3.99
Steel Ball D7.0 (10 Pcs.)
19 335300 1.04 1.26
O-ring (s-18)
20 878885 1.05 1.27
Chuck Holder Ass'y Includ.8-12,22-26
21 370305 51.84 62.72
SPECIAL SCREW M6 (LEFT THREAD)
22 330094 1.05 1.27
No information available, not orderable
23 335451
Stopper
24 326527 3.30 3.99
Steel Ball D7.0 (10 Pcs.)
25 335300 1.04 1.26
Chuck Holder
26 336850 17.19 20.80
Pushing Button
27 322789 4.80 5.81
Pushing Spring
28 317223 1.65 2.00
Change Lever
29 334011 2.10 2.54
Brand Plate
30 370308 2.40 2.90
Spring (e)
31 335800 1.04 1.26
Ball Bearing 608vvc2ps2l
32 608VVM 5.70 6.90
Cylinder
33 336845 40.56 49.08
PIN D2.5
34 335264 1.04 1.26
Cylinder Clutch
35 335263 12.45 15.06
Second Gear
36 335265 6.15 7.44
Spring (a)
37 335266 1.50 1.82
Ring
38 301679 1.20 1.45
Retaining Ring For D30 Shaft
39 948310 1.35 1.63
Oil Seal (A)
40 335262 1.80 2.18
Hammer Holder (c)
41 336847 5.85 7.08
Sleeve (fw)
42 335795 4.20 5.08
Second Hammer
43 336846 5.25 6.35
Hammer Holder (a)
44 335267 3.00 3.63
DEMPERRING (A)
45 322805 1.65 2.00
O-ring (c)
46 322808 1.65 2.00
Damper Holder
47 324524 6.45 7.80
STOPPER RING
48 322807 1.65 2.00
Striker
49 335246 4.20 5.08
O-ring D17
50 335247 2.55 3.09
Ring
51 301679 1.20 1.45
Piston
52 335255 1.04 1.26
Piston Washer
53 335794 1.20 1.45
Seal Lock Hex. Socket Hd. Bolt M5x16
54 990079 1.05 1.27
Covering hood
55 370309 5.55 6.72
O-ring
56 370310 5.85 7.08
Inner Cover (a) Includ.66,67,75-77
57 370311 18.70 22.63
Seal Lock Hex. Socket Hd. Bolt M5x10
58 877839 1.05 1.27
Piston Pin
59 335793 3.15 3.81
Reciprocating Bearing
60 335249 13.65 16.52
Bearing Washer
61 335250 1.04 1.26
Bearing Holder (b)
62 370312 16.50 19.96
Ball Bearing 608vvc2ps2l
63 608VVM 5.70 6.90
Bearing Cover (a)
64 370313 1.65 2.00
Bevel Gear (a)
65 370314 21.73 26.29
Air Cap
66 334008 1.20 1.45
Felt Packing
67 324543 1.65 2.00
Pinion Sleeve
68 335275 3.00 3.63
Bearing Cover (1)
69 335276 11.10 13.43
Second Gear
70 335278 7.20 8.71
Clutch Spring
71 323182 1.65 2.00
Clutch
72 335254 3.90 4.72
Ring
73 331315 1.05 1.27
Second Shaft
74 335277 6.60 7.99
Felt Packing
75 370315 1.04 1.26
Packing Washer
76 370316 1.04 1.26
O-RING (S-26)
77 872470 1.65 2.00
Rotor (b)
78 361035 95.56 115.63
Field
79 340943 16.09 19.47
Housing (a).(b) Set
80 370318 24.20 29.28
Switch Controller Ass'y (b) Includ.85
81 370549 144.79 175.19
Rubber Cushion
82 370327 2.10 2.54
Terminal Rubber Base
83 370545 1.04 1.26
Pushing Button (b)
84 324225 1.05 1.27
Switch
85 370322 24.75 29.95
Battery Rubber (b)
86 370328 1.95 2.36
Tapping Screw (w/flange) D4x40 (black)
87 306664 1.05 1.27
Tapping Screw (w/flange) D4x20 (black)
88 301653 1.04 1.26
No information available, not orderable
89 339975
Wiring Ass'y Includ.79,81,82
90 370955 184.66 223.44
Nozzle Seal
111 370494 1.65 2.00
Nozzle (1)
112 370495 1.50 1.82
Brush Cap
113 370496 21.18 25.62
Retaining Ring D35
114 370497 1.04 1.26
Slide Pipe
115 370824 37.26 45.09
No information available, not orderable
116 307811
Latch Holder
118 370511 1.65 2.00
Spring (e)
119 370821 3.90 4.72
Latch (a)
120 370512 1.95 2.36
Tapping Screw D2.6
121 370500 1.04 1.26
Adjuster
122 370501 1.04 1.26
Spring (a)
123 370502 1.04 1.26
Button (a)
124 370838 1.65 2.00
Housing Set
125 370508 36.99 44.75
Adjustment Rail
126 370504 1.65 2.00
Fan Cover
127 370514 1.50 1.82
Motor Fan Set
128 370515 27.50 33.28
Rubber Bushing (a)
129 337801 1.04 1.26
Rubber Bushing (b)
130 337802 1.04 1.26
Support (d)
131 339343 1.20 1.45
Controller
132 370517 56.79 68.71
Button (b)
133 370509 1.04 1.26
Stopper
134 370510 1.04 1.26
Dust Box Ass'y Includ.136-140
135 370518 30.11 36.44
Dust Box
136 370822 12.00 14.52
Filter
137 370520 18.15 21.96
Packing (c)
138 370519 1.04 1.26
Filter Cover
139 370521 2.40 2.90
Packing (b)
140 370522 1.04 1.26
No information available, not orderable
502 303709
Side Handle
503 335273 8.85 10.71
No information available, not orderable
504 370333
Battery Cover
505 329897 1.80 2.18
Terminal Cover
506 371715 1.04 1.26
No information available, not orderable
601 303332
No information available, not orderable
602 303334
No information available, not orderable
603 303335
No information available, not orderable
604 321825
No information available, not orderable
605 303623
No information available, not orderable
606 321814
Flat Hd. Screw (left Hand) M6x20
607 331966 6.75 8.17
No information available, not orderable
608 987576
No information available, not orderable
609 321813
No information available, not orderable
610 971787
No information available, not orderable
611 931844
No information available, not orderable
612 971511Z
No information available, not orderable
613 971512Z
No information available, not orderable
614 306885
Socket Adapter (b)
615 306910 4.50 5.44
Grease For Rotary Hammer (60g)
616 335782 13.50 16.34
Grease For Rotary Hammer (500g)
617 335781 67.24 81.36
No information available, not orderable
618 402934
Battery Spacer
619 371714 5.85 7.08
