Here you will find all available parts and drawings of the 'Hikoki DH3640DA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

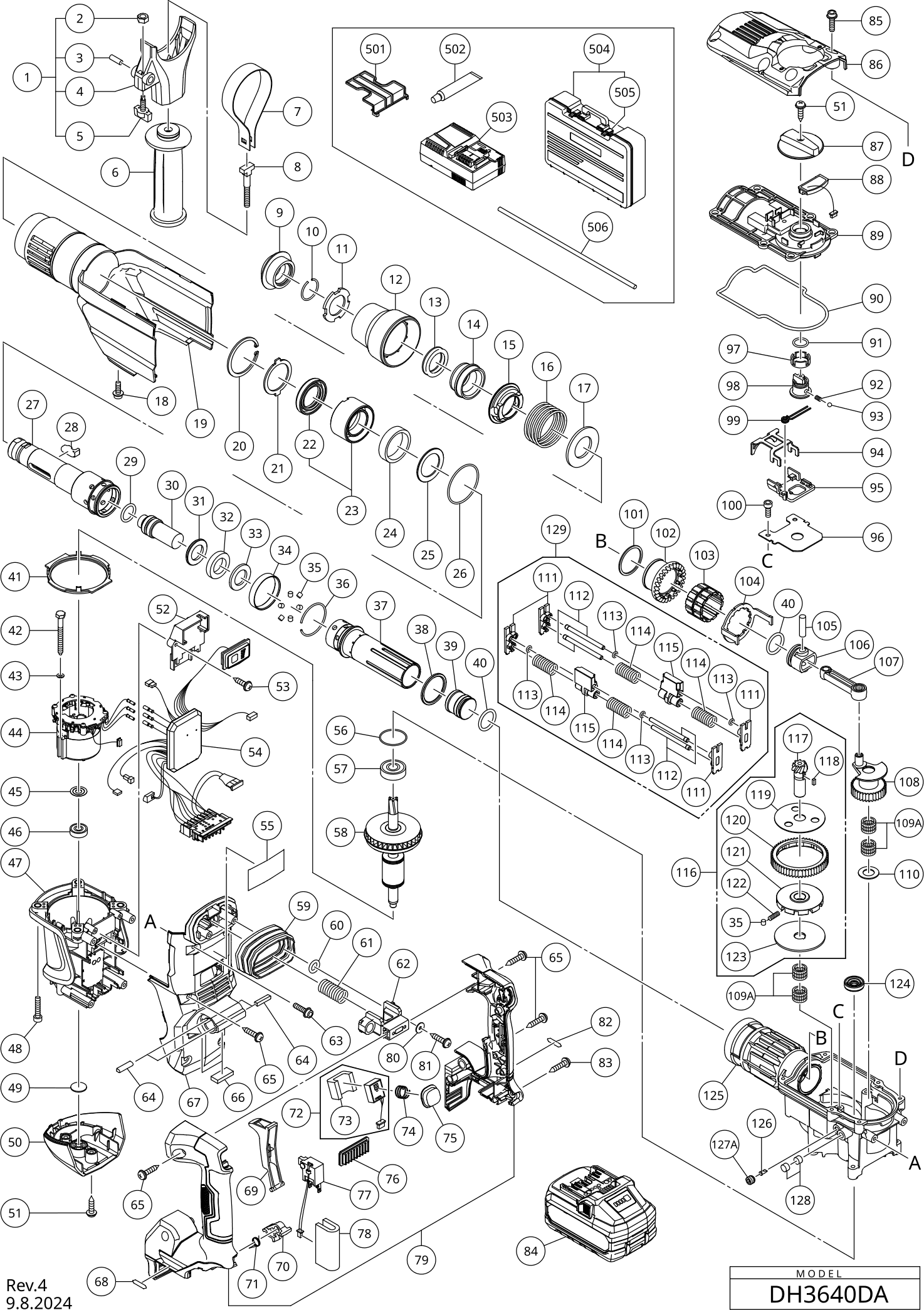

Technical drawing of model Hikoki DH3640DA
Spare parts list of model Hikoki DH3640DA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| MOUNT ASS'Y NEW | ||||
| *1 | 380209 | 2.34 | 2.83 | |
| Tpe (sl),kor (sl) | ||||
| *2 | 949556 | 1.05 | 1.27 | |
| Roll Pin D2x8 (10 Pcs.) | ||||
| *3 | 949859 | 1.20 | 1.45 | |
| Wing Bolt | ||||
| *5 | 337577 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *506 | 971786 | |||
| No information available, not orderable | ||||
| *84 | 380138 | |||
| MOUNT NEW | ||||
| 4 | 380324 | 1.74 | 2.11 | |
| SIDE HANDLE NEW | ||||
| 6 | 380210 | 4.44 | 5.37 | |
| BAND NEW | ||||
| 7 | 380208 | 2.58 | 3.12 | |
| Handle Bolt | ||||
| 8 | 331247 | 4.20 | 5.08 | |
| Front Cap | ||||
| 9 | 371151 | 1.80 | 2.18 | |
| Spring retaining ring | ||||
| 10 | 318590 | 1.65 | 2.00 | |
| Retainer Washer | ||||
| 11 | 371138 | 1.95 | 2.36 | |
| GRIP NEW | ||||
| 12 | 381003 | 3.72 | 4.50 | |
| Retainer Damper (a) | ||||
| 13 | 337559 | 1.05 | 1.27 | |
| BIT LOCK HOLDER NEW | ||||
| 14 | 380375 | 4.80 | 5.81 | |
| THRUST PLATE NEW | ||||
| 15 | 380374 | 6.54 | 7.91 | |
| Retainer Spring | ||||
| 16 | 337556 | 1.50 | 1.82 | |
| Spring Holder (a) | ||||
| 17 | 371145 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 18 | 998471 | 1.05 | 1.27 | |
| CYLINDER COVER NEW | ||||
| 19 | 380344 | 6.66 | 8.06 | |
| Retaining Ring For D52 Hole | ||||
| 20 | 967270 | 1.05 | 1.27 | |
| STOPPER WASHER NEW | ||||
| 21 | 380373 | 1.00 | 1.21 | |
| OIL SEAL (B) NEW | ||||
| 22 | 380370 | 1.00 | 1.21 | |
| METAL ASS'Y NEW | ||||
| 23 | 380369 | 8.76 | 10.60 | |
| RETAINER DAMPER (B) NEW | ||||
| 24 | 380371 | 1.00 | 1.21 | |
| RETAINER DAMPER WASHER NEW | ||||
| 25 | 380372 | 2.58 | 3.12 | |
| O-ring | ||||
| 26 | 331244 | 1.05 | 1.27 | |
| RETAINER SLEEVE NEW | ||||
| 27 | 380361 | 30.20 | 36.54 | |
| Bit Lock | ||||
| 28 | 370654 | 4.95 | 5.99 | |
| O-ring (c) | ||||
| 29 | 313396 | 4.80 | 5.81 | |
| SECOND HAMMER NEW | ||||
| 30 | 380362 | 6.54 | 7.91 | |
| DAMPER WASHER NEW | ||||
| 31 | 380363 | 2.58 | 3.12 | |
| DAMPER NEW | ||||
| 32 | 380364 | 3.30 | 3.99 | |
| DAMPER HOLDER NEW | ||||
| 33 | 380365 | 1.74 | 2.11 | |
| NEEDLE SLEEVE NEW | ||||
| 34 | 380367 | 2.46 | 2.98 | |
| Needle Roller | ||||
| 35 | 331217 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 36 | 323073 | 1.65 | 2.00 | |
| CYLINDER NEW | ||||
| 37 | 380366 | 17.98 | 21.76 | |
| THRUST WASHER (B) NEW | ||||
| 38 | 380368 | 2.46 | 2.98 | |
| STRIKER NEW | ||||
| 39 | 380355 | 3.72 | 4.50 | |
| O-ring | ||||
| 40 | 986104 | 1.05 | 1.27 | |
| FAN GUIDE NEW | ||||
| 41 | 380337 | 1.00 | 1.21 | |
| HEX. HD. TAPPING SCREW D4X45 | ||||
| 42 | 373634 | 1.04 | 1.26 | |
| Bolt Washer M4 (black) For 220v-240v | ||||
| 43 | 323210 | 1.05 | 1.27 | |
| STATOR SENSOR PCB SET NEW | ||||
| 44 | 341171 | 12.98 | 15.71 | |
| Washer (a) | ||||
| 45 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 46 | 608VVM | 5.70 | 6.90 | |
| HOUSING NEW | ||||
| 47 | 380335 | 11.94 | 14.45 | |
| Seal Lock Hex Socket Bolt M6x30 | ||||
| 48 | 993496 | 1.05 | 1.27 | |
| Dust Seal | ||||
| 49 | 333263 | 1.04 | 1.26 | |
| TAIL COVER DH3640DA NEW | ||||
| 50 | 380413 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 51 | 307811 | |||
| PANEL HOLDER NEW | ||||
| 52 | 380414 | 1.00 | 1.21 | |
| TAPPING SCREW D4X16 (W/FLANGE) NEW | ||||
| 53 | 375308 | 1.00 | 1.21 | |
| CONTROLLER ASS'Y NEW | ||||
| 54 | 380757 | 60.94 | 73.74 | |
| O-ring (s-32) | ||||
| 56 | 872767 | 1.65 | 2.00 | |
| Ball Bearing 6201ddcmps2l | ||||
| 57 | 6201DD | 6.30 | 7.62 | |
| ROTOR (B) NEW | ||||
| 58 | 361229 | 34.92 | 42.25 | |
| RUBBER DEMPER | ||||
| 59 | 375306 | 2.70 | 3.27 | |
| O-ring (c) | ||||
| 60 | 322808 | 1.65 | 2.00 | |
| HANDLE SPRING NEW | ||||
| 61 | 380388 | 1.00 | 1.21 | |
| HANDLE HOLDER NEW | ||||
| 62 | 380389 | 1.00 | 1.21 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 63 | 994192 | 1.04 | 1.26 | |
| Weight Bumper | ||||
| 64 | 338194 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 65 | 302089 | 1.05 | 1.27 | |
| Rubber | ||||
| 66 | 325910 | 1.80 | 2.18 | |
| BACK COVER NEW | ||||
| 67 | 380415 | 4.92 | 5.95 | |
| MV LABEL (A) (2) NEW | ||||
| 68 | 379349 | 1.00 | 1.21 | |
| TRIGGER NEW | ||||
| 69 | 380342 | 1.00 | 1.21 | |
| STOPPER LEVER NEW | ||||
| 70 | 380417 | 1.00 | 1.21 | |
| LEVER SPRING (B) NEW | ||||
| 71 | 380416 | 1.00 | 1.21 | |
| ON LOCK PCB (A) ASS'Y | ||||
| 72 | 380888 | 8.76 | 10.60 | |
| Packing (a) | ||||
| 73 | 339059 | 1.04 | 1.26 | |
| VEER | ||||
| 74 | 375321 | 1.00 | 1.21 | |
| Pushing Button | ||||
| 75 | 338171 | 1.05 | 1.27 | |
| Battery Rubber (b) | ||||
| 76 | 370328 | 1.95 | 2.36 | |
| SWITCH NEW | ||||
| 77 | 381005 | 11.58 | 14.01 | |
| Support (b) For Tpe,aus,saf,yem,europe | ||||
| 78 | 317492 | 1.65 | 2.00 | |
| HANDLE (A).(B) SET NEW | ||||
| 79 | 380652 | 12.98 | 15.71 | |
| Washer (1) | ||||
| 80 | 374772 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 81 | 305558 | 1.04 | 1.26 | |
| MV LABEL (B) (2) NEW | ||||
| 82 | 379350 | 1.00 | 1.21 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 83 | 301653 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt (w/flange) M5x18 | ||||
| 85 | 338177 | 1.04 | 1.26 | |
| CRANK COVER NEW | ||||
| 86 | 380386 | 4.68 | 5.66 | |
| CHANGE LEVER NEW | ||||
| 87 | 380645 | 3.30 | 3.99 | |
| ON LOCK PCB (B) NEW | ||||
| 88 | 380646 | 8.16 | 9.87 | |
| LEVER HOLDER NEW | ||||
| 89 | 380390 | 2.10 | 2.54 | |
| SEAL RING NEW | ||||
| 90 | 380385 | 2.82 | 3.41 | |
| O-ring | ||||
| 91 | 338312 | 1.20 | 1.45 | |
| Lever Spring | ||||
| 92 | 337567 | 1.04 | 1.26 | |
| Steel Ball D5 | ||||
| 93 | 370239 | 1.04 | 1.26 | |
| Steel Ball D4.76 (10 pieces) | ||||
| 93A | 959149 | 1.04 | 1.26 | |
| HOOK NEW | ||||
| 94 | 380384 | 1.08 | 1.31 | |
| SLIDER NEW | ||||
| 95 | 380382 | 1.00 | 1.21 | |
| CRANK PLATE NEW | ||||
| 96 | 380357 | 1.08 | 1.31 | |
| BALL HOLDER NEW | ||||
| 97 | 380381 | 2.46 | 2.98 | |
| LEVER SHAFT NEW | ||||
| 98 | 380380 | 1.26 | 1.52 | |
| CLUTCH SPRING NEW | ||||
| 99 | 380383 | 1.00 | 1.21 | |
| Seal Lock Hex. Socket Hd. Bolt M5x14 | ||||
| 100 | 984509 | 1.05 | 1.27 | |
| METAL WASHER NEW | ||||
| 101 | 380358 | 1.00 | 1.21 | |
| BEVEL GEAR NEW | ||||
| 102 | 380359 | 9.00 | 10.89 | |
| CLUTCH NEW | ||||
| 103 | 380360 | 3.84 | 4.65 | |
| LOCK PLATE NEW | ||||
| 104 | 380356 | 2.70 | 3.27 | |
| Piston Pin | ||||
| 105 | 331221 | 1.05 | 1.27 | |
| Piston | ||||
| 106 | 326369 | 3.30 | 3.99 | |
| Connecting Rod Ass'y Includ.40 | ||||
| 107 | 337535 | 11.25 | 13.61 | |
| CRANK GEAR NEW | ||||
| 108 | 380348 | 18.20 | 22.02 | |
| NEEDLE CAGE (OUD 380346) | ||||
| 109A | 382313 | 4.80 | 5.81 | |
| THRUST WASHER (A) NEW | ||||
| 110 | 380347 | 1.00 | 1.21 | |
| WEIGHT HOLDER NEW | ||||
| 111 | 380376 | 1.00 | 1.21 | |
| WEIGHT SHAFT NEW | ||||
| 112 | 380377 | 2.34 | 2.83 | |
| O-ring (4pc-5) | ||||
| 113 | 307292 | 1.05 | 1.27 | |
| WEIGHT SPRING NEW | ||||
| 114 | 380378 | 1.00 | 1.21 | |
| WEIGHT NEW | ||||
| 115 | 380379 | 5.16 | 6.24 | |
| SLIP CLUTCH ASS'Y NEW | ||||
| 116 | 380349 | 26.56 | 32.14 | |
| BEVEL PINION NEW | ||||
| 117 | 380350 | 4.80 | 5.81 | |
| Feather Key 3x3x8 | ||||
| 118 | 944109 | 1.70 | 2.06 | |
| CLUTCH WASHER NEW | ||||
| 119 | 380351 | 1.00 | 1.21 | |
| SECOND GEAR NEW | ||||
| 120 | 380352 | 7.92 | 9.58 | |
| GEAR HOLDER NEW | ||||
| 121 | 380353 | 8.04 | 9.73 | |
| Spring | ||||
| 122 | 321282 | 1.65 | 2.00 | |
| SPACER NEW | ||||
| 123 | 380354 | 4.08 | 4.94 | |
| OIL SEAL (A) NEW | ||||
| 124 | 380339 | 1.00 | 1.21 | |
| CRANK CASE NEW | ||||
| 125 | 380338 | 46.92 | 56.77 | |
| Valve | ||||
| 126 | 995396 | 1.80 | 2.18 | |
| Cap Screw | ||||
| 127A | 371179 | 17.46 | 21.13 | |
| FELT NEW | ||||
| 128 | 380345 | 1.00 | 1.21 | |
| WEIGHT SET | ||||
| 129 | 382071 | 24.42 | 29.55 | |
| Battery Cover | ||||
| 501 | 329897 | 1.80 | 2.18 | |
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 502 | 981840 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 504 | 380211 | |||
| Clamp | ||||
| 505 | 372113 | 1.80 | 2.18 | |
| MOUNT ASS'Y NEW | ||||
| 601 | 380209 | 2.34 | 2.83 | |
| Tpe (sl),kor (sl) | ||||
| 602 | 949556 | 1.05 | 1.27 | |
| Roll Pin D2x8 (10 Pcs.) | ||||
| 603 | 949859 | 1.20 | 1.45 | |
| Wing Bolt | ||||
| 604 | 337577 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 605 | 971786 | |||
