Here you will find all available parts and drawings of the 'Hikoki DH30PC2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

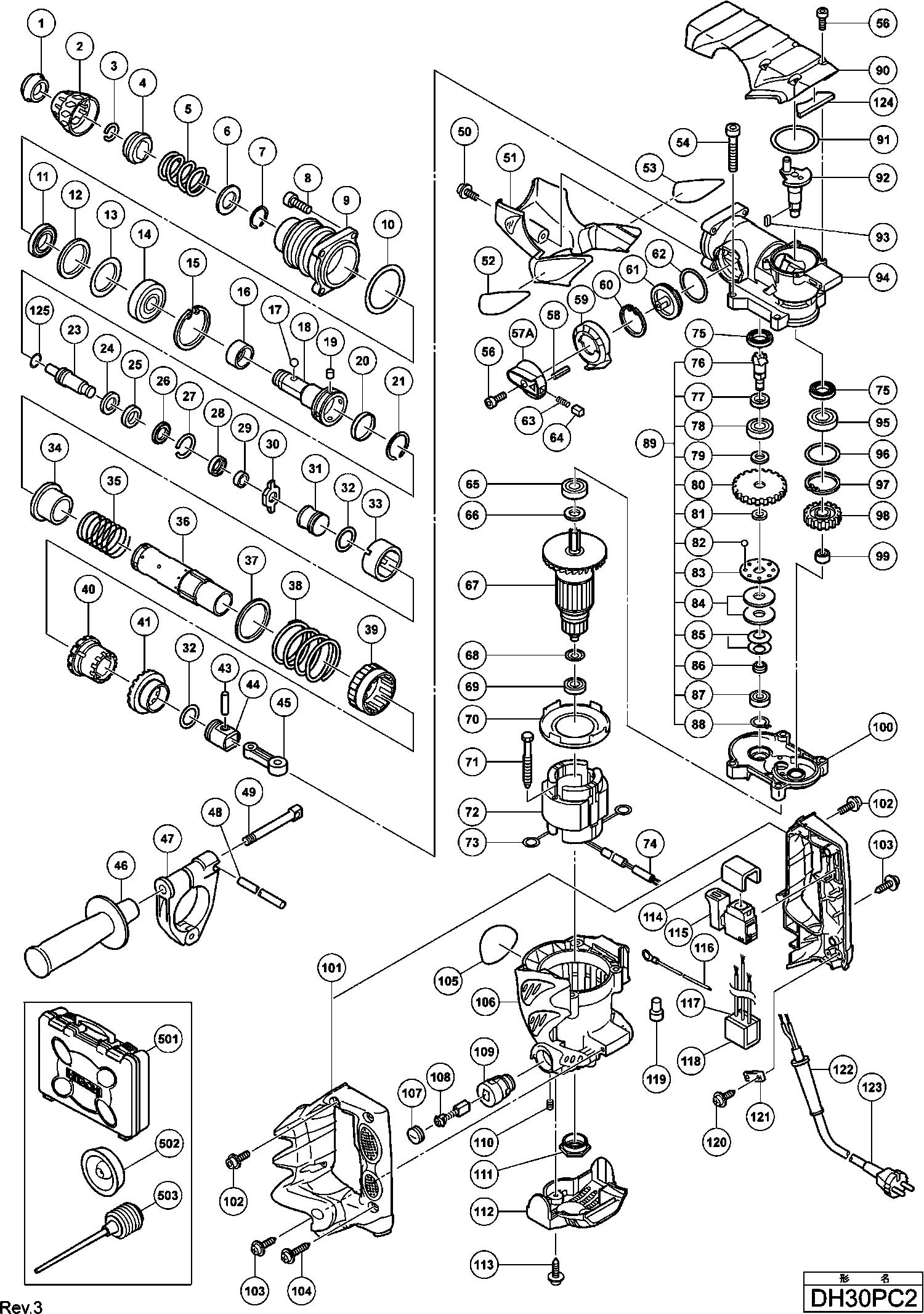

Technical drawing of model Hikoki DH30PC2
Spare parts list of model Hikoki DH30PC2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Support (b) For Tpe,aus,saf,yem,europe | ||||
| *118 | 317492 | 1.65 | 2.00 | |
| Connector 50091 (10 Pcs.) | ||||
| *119 | 959140 | 3.30 | 3.99 | |
| Cord Armor D10.1 | ||||
| *122 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.2) For Sin,mal | ||||
| *123 | 500440Z | 20.49 | 24.79 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *123 | 500447Z | 6.60 | 7.99 | |
| Armature 220-230 Volt | ||||
| *67 | 360768E | 107.94 | 130.60 | |
| ANKER 110 VOLT | ||||
| *67 | 360768C | 91.68 | 110.93 | |
| Stator 220v-230v | ||||
| *72 | 340672E | 99.14 | 119.96 | |
| VELD 110 VOLT | ||||
| *72 | 340672C | 92.56 | 112.00 | |
| Front Cap | ||||
| 1 | 323078 | 3.30 | 3.99 | |
| Grip | ||||
| 2 | 323077 | 4.80 | 5.81 | |
| Spring retaining ring | ||||
| 3 | 306340 | 1.35 | 1.63 | |
| Ball Holder | ||||
| 4 | 323076 | 25.44 | 30.78 | |
| Washer Spring | ||||
| 5 | 323075 | 3.30 | 3.99 | |
| Washer (d) | ||||
| 6 | 325668 | 3.30 | 3.99 | |
| Washer Spring | ||||
| 7 | 306993 | 1.35 | 1.63 | |
| Seal Lock Hex. Socket Hd. Bolt M6x22 | ||||
| 8 | 321313 | 1.65 | 2.00 | |
| Cylinder Case | ||||
| 9 | 325651 | 22.55 | 27.29 | |
| O-ring (s-55) | ||||
| 10 | 980744 | 2.55 | 3.09 | |
| Oil Seal | ||||
| 11 | 320324 | 3.30 | 3.99 | |
| Damper | ||||
| 12 | 320325 | 3.30 | 3.99 | |
| Damper Washer (b) | ||||
| 13 | 320326 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 14 | 326304 | |||
| Retaining Ring For D47 Hole | ||||
| 15 | 948227 | 1.35 | 1.63 | |
| Sleeve | ||||
| 16 | 325667 | 3.30 | 3.99 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 17 | 959156 | 1.65 | 2.00 | |
| Retainer Sleeve | ||||
| 18 | 325652 | 99.14 | 119.96 | |
| Needle Pin | ||||
| 19 | 325658 | 1.65 | 2.00 | |
| Sleeve | ||||
| 20 | 326301 | 14.70 | 17.79 | |
| Retaining Ring D38 | ||||
| 21 | 313420 | 1.95 | 2.36 | |
| Second Hammer | ||||
| 23 | 325653 | 21.73 | 26.29 | |
| Damper Washer | ||||
| 24 | 323059 | 9.30 | 11.25 | |
| Damper | ||||
| 25 | 323060 | 3.30 | 3.99 | |
| Damper Holder | ||||
| 26 | 323061 | 8.40 | 10.16 | |
| Stopper Ring | ||||
| 27 | 323062 | 1.65 | 2.00 | |
| Damper Holder (b) | ||||
| 28 | 326302 | 7.95 | 9.62 | |
| Damper | ||||
| 29 | 326303 | 3.30 | 3.99 | |
| Ring | ||||
| 30 | 326300 | 27.78 | 33.61 | |
| Striker | ||||
| 31 | 325660 | 12.75 | 15.43 | |
| O-ring (i.d 19.2) | ||||
| 32 | 319577 | 3.30 | 3.99 | |
| Slide Sleeve (b) | ||||
| 33 | 325656 | 3.30 | 3.99 | |
| Slide Sleeve (a) | ||||
| 34 | 325655 | 14.30 | 17.30 | |
| Clutch Spring | ||||
| 35 | 325664 | 7.05 | 8.53 | |
| Cylinder | ||||
| 36 | 325654 | 116.74 | 141.25 | |
| Washer (c) | ||||
| 37 | 325661 | 4.80 | 5.81 | |
| Holding Spring | ||||
| 38 | 325662 | 7.05 | 8.53 | |
| Lock Sleeve | ||||
| 39 | 325663 | 18.15 | 21.96 | |
| Clutch | ||||
| 40 | 325665 | 58.44 | 70.71 | |
| Gear | ||||
| 41 | 325666 | 58.44 | 70.71 | |
| Piston Pin | ||||
| 43 | 319581 | 1.65 | 2.00 | |
| Piston | ||||
| 44 | 319580 | 3.30 | 3.99 | |
| Connecting Rod | ||||
| 45 | 319585 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 46 | 313078 | |||
| Handle Holder | ||||
| 47 | 325672 | 14.30 | 17.30 | |
| Stopper Rod | ||||
| 48 | 320973 | 4.80 | 5.81 | |
| Handle Bolt | ||||
| 49 | 313080 | 11.85 | 14.34 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 50 | 998471 | 1.05 | 1.27 | |
| Hood | ||||
| 51 | 325677 | 9.00 | 10.89 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 54 | 986940 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 56 | 983162 | 1.05 | 1.27 | |
| Change Lever (old 321309) | ||||
| 57A | 331545 | 3.75 | 4.54 | |
| Pin D2x10 | ||||
| 58 | 321312 | 1.65 | 2.00 | |
| Lever Holder | ||||
| 59 | 325671 | 3.30 | 3.99 | |
| Retaining Ring For D40 Hole | ||||
| 60 | 948391 | 1.65 | 2.00 | |
| Lever Shaft | ||||
| 61 | 325670 | 22.55 | 27.29 | |
| O-ring | ||||
| 62 | 980948 | 1.05 | 1.27 | |
| Spring | ||||
| 63 | 321310 | 1.65 | 2.00 | |
| Pushing Button | ||||
| 64 | 321311 | 1.65 | 2.00 | |
| Ball Bearing 6001dducmps2s (old 980925) | ||||
| 65 | 6001DD | 6.45 | 7.80 | |
| Washer | ||||
| 66 | 971736 | 1.05 | 1.27 | |
| Armature 220-230 Volt | ||||
| 67 | 360768E | 107.94 | 130.60 | |
| ANKER 110 VOLT | ||||
| 67 | 360768C | 91.68 | 110.93 | |
| Washer (a) | ||||
| 68 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 69 | 608VVM | 5.70 | 6.90 | |
| Fan Guide | ||||
| 70 | 323083 | 3.30 | 3.99 | |
| Hex. Hd. Tapping Screw D5x50 | ||||
| 71 | 953121 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 72 | 340672E | 99.14 | 119.96 | |
| VELD 110 VOLT | ||||
| 72 | 340672C | 92.56 | 112.00 | |
| Brush Terminal | ||||
| 73 | 930703 | 2.40 | 2.90 | |
| Tube | ||||
| 74 | 321322 | 1.65 | 2.00 | |
| Oil Seal | ||||
| 75 | 981851 | 2.55 | 3.09 | |
| Bevel Pinion | ||||
| 76 | 325647 | 26.95 | 32.61 | |
| Ring | ||||
| 77 | 325648 | 1.65 | 2.00 | |
| Ball Bearing 6001dducmps2s (old 980925) | ||||
| 78 | 6001DD | 6.45 | 7.80 | |
| Ring | ||||
| 79 | 992503 | 1.04 | 1.26 | |
| Second Gear | ||||
| 80 | 325649 | 28.60 | 34.61 | |
| Stopper Washer | ||||
| 81 | 971087 | 1.04 | 1.26 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 82 | 959155 | 1.04 | 1.26 | |
| Clutch Plate | ||||
| 83 | 992916 | 2.10 | 2.54 | |
| Spring Plate | ||||
| 84 | 992926 | 1.05 | 1.27 | |
| Spring | ||||
| 85 | 980877 | 1.05 | 1.27 | |
| Washer | ||||
| 86 | 325650 | 4.80 | 5.81 | |
| Ball Bearing 608vvc2ps2l | ||||
| 87 | 608VVM | 5.70 | 6.90 | |
| Retaining Ring For D8 Shaft | ||||
| 88 | 940079 | 1.04 | 1.26 | |
| Slip Clutch Ass'y | ||||
| 89 | 325646 | 84.56 | 102.32 | |
| Crank Case Cover | ||||
| 90 | 325669 | 14.70 | 17.79 | |
| O-ring (s-48) | ||||
| 91 | 980715 | 2.40 | 2.90 | |
| Crank Shaft | ||||
| 92 | 325644 | 46.75 | 56.57 | |
| Feather Key 3x3x8 | ||||
| 93 | 944109 | 1.70 | 2.06 | |
| Crank Case | ||||
| 94 | 325643 | 67.10 | 81.19 | |
| Ball Bearing 6002ddcmps2l | ||||
| 95 | 6002DD | 7.05 | 8.53 | |
| O-ring (s-32) | ||||
| 96 | 872767 | 1.65 | 2.00 | |
| Stop Ring D32 | ||||
| 97 | 948001 | 1.20 | 1.45 | |
| First Gear | ||||
| 98 | 325645 | 24.34 | 29.45 | |
| Needle-roller Bearing | ||||
| 99 | 939299 | 10.65 | 12.89 | |
| Gear Cover | ||||
| 100 | 325674 | 32.18 | 38.93 | |
| Handle (a).(b) Set | ||||
| 101 | 325680 | 35.06 | 42.43 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 102 | 994192 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 103 | 302089 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 104 | 307028 | 1.05 | 1.27 | |
| Housing | ||||
| 106 | 325673 | 55.41 | 67.05 | |
| Brush Cap | ||||
| 107 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 108 | 999073 | 14.40 | 17.42 | |
| Brush Holder | ||||
| 109 | 958900 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 110 | 938477 | 1.05 | 1.27 | |
| BEARING BUSH (B) | ||||
| 111 | 310111 | 8.40 | 10.16 | |
| Tail Cover | ||||
| 112 | 323085 | 16.09 | 19.47 | |
| No information available, not orderable | ||||
| 113 | 307811 | |||
| Support (b) For Tpe,aus,saf,yem,europe | ||||
| 114 | 317492 | 1.65 | 2.00 | |
| Switch | ||||
| 115 | 325675 | 24.34 | 29.45 | |
| Internal wire | ||||
| 116 | 994190 | 1.05 | 1.27 | |
| Noise Suppressor | ||||
| 117 | 994273 | 4.29 | 5.19 | |
| Support (b) For Tpe,aus,saf,yem,europe | ||||
| 118 | 317492 | 1.65 | 2.00 | |
| Connector 50091 (10 Pcs.) | ||||
| 119 | 959140 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 120 | 984750 | |||
| Cord Clip | ||||
| 121 | 960266 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 122 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.2) For Sin,mal | ||||
| 123 | 500440Z | 20.49 | 24.79 | |
| Cord (cord Armor D10.7) For Saf | ||||
| 123 | 500454Z | 15.54 | 18.80 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 123 | 500447Z | 6.60 | 7.99 | |
| Felt Packing | ||||
| 124 | 326651 | 1.65 | 2.00 | |
| O-ring (c) | ||||
| 125 | 323058 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 501 | 325679 | |||
| No information available, not orderable | ||||
| 502 | 971787 | |||
| No information available, not orderable | ||||
| 503 | 318085 | |||
| No information available, not orderable | ||||
| 601 | 303046 | |||
| No information available, not orderable | ||||
| 602 | 303044 | |||
| No information available, not orderable | ||||
| 603 | 303045 | |||
| No information available, not orderable | ||||
| 604 | 303334 | |||
| No information available, not orderable | ||||
| 605 | 302976 | |||
| No information available, not orderable | ||||
| 606 | 930515 | |||
| No information available, not orderable | ||||
| 607 | 302975 | |||
| No information available, not orderable | ||||
| 608 | 303621 | |||
| No information available, not orderable | ||||
| 609 | 302974 | |||
| No information available, not orderable | ||||
| 610 | 302979 | |||
| No information available, not orderable | ||||
| 611 | 302978 | |||
| No information available, not orderable | ||||
| 612 | 303622 | |||
| No information available, not orderable | ||||
| 613 | 302977 | |||
| No information available, not orderable | ||||
| 614 | 303617 | |||
| No information available, not orderable | ||||
| 615 | 303618 | |||
| No information available, not orderable | ||||
| 616 | 303619 | |||
| No information available, not orderable | ||||
| 617 | 303620 | |||
| Special Screw M6x22 | ||||
| 618 | 981122 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 619 | 303627 | |||
| No information available, not orderable | ||||
| 620 | 303625 | |||
| No information available, not orderable | ||||
| 621 | 303626 | |||
| No information available, not orderable | ||||
| 622 | 303624 | |||
| No information available, not orderable | ||||
| 623 | 321825 | |||
| No information available, not orderable | ||||
| 624 | 303623 | |||
| No information available, not orderable | ||||
| 625 | 321814 | |||
| No information available, not orderable | ||||
| 626 | 995344 | |||
| No information available, not orderable | ||||
| 627 | 321813 | |||
| Grease For Hammer.hammer Drill (500g) | ||||
| 628 | 980927 | 73.01 | 88.35 | |
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 629 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 630 | 308471 | 12.75 | 15.43 | |
| No information available, not orderable | ||||
| 631 | 971511Z | |||
| No information available, not orderable | ||||
| 632 | 971512Z | |||
| No information available, not orderable | ||||
| 633 | 944477 | |||
| No information available, not orderable | ||||
| 634 | 982684 | |||
| No information available, not orderable | ||||
| 635 | 982685 | |||
| No information available, not orderable | ||||
| 636 | 315921 | |||
| No information available, not orderable | ||||
| 637 | 982672 | |||
| No information available, not orderable | ||||
| 638 | 982673 | |||
| No information available, not orderable | ||||
| 639 | 982674 | |||
| No information available, not orderable | ||||
| 640 | 982686 | |||
| No information available, not orderable | ||||
| 641 | 982675 | |||
| No information available, not orderable | ||||
| 642 | 982687 | |||
| No information available, not orderable | ||||
| 643 | 982676 | |||
| No information available, not orderable | ||||
| 644 | 982688 | |||
| No information available, not orderable | ||||
| 645 | 982677 | |||
| No information available, not orderable | ||||
| 646 | 982689 | |||
| No information available, not orderable | ||||
| 647 | 982678 | |||
| No information available, not orderable | ||||
| 648 | 982690 | |||
| No information available, not orderable | ||||
| 649 | 982679 | |||
| No information available, not orderable | ||||
| 650 | 982691 | |||
| No information available, not orderable | ||||
| 651 | 982680 | |||
| No information available, not orderable | ||||
| 652 | 982692 | |||
| No information available, not orderable | ||||
| 653 | 982681 | |||
| No information available, not orderable | ||||
| 654 | 982693 | |||
| No information available, not orderable | ||||
| 655 | 971794 | |||
| No information available, not orderable | ||||
| 656 | 971795 | |||
| No information available, not orderable | ||||
| 657 | 971796 | |||
| No information available, not orderable | ||||
| 658 | 971797 | |||
| No information available, not orderable | ||||
| 659 | 971798 | |||
| No information available, not orderable | ||||
| 660 | 971799 | |||
| No information available, not orderable | ||||
| 661 | 971800 | |||
| No information available, not orderable | ||||
| 662 | 971801 | |||
| No information available, not orderable | ||||
| 663 | 971802 | |||
| No information available, not orderable | ||||
| 664 | 971803 | |||
| No information available, not orderable | ||||
| 665 | 944460 | |||
| No information available, not orderable | ||||
| 666 | 944461 | |||
| No information available, not orderable | ||||
| 667 | 993038 | |||
| No information available, not orderable | ||||
| 669 | 944500 | |||
| No information available, not orderable | ||||
| 671 | 944464 | |||
| No information available, not orderable | ||||
| 672 | 320859 | |||
| No information available, not orderable | ||||
| 673 | 303571 | |||
| No information available, not orderable | ||||
| 674 | 303575 | |||
| No information available, not orderable | ||||
| 675 | 303578 | |||
| No information available, not orderable | ||||
| 676 | 303576 | |||
| No information available, not orderable | ||||
| 677 | 303581 | |||
| No information available, not orderable | ||||
| 678 | 303582 | |||
| No information available, not orderable | ||||
| 679 | 303584 | |||
| No information available, not orderable | ||||
| 680 | 303585 | |||
| No information available, not orderable | ||||
| 681 | 303586 | |||
| No information available, not orderable | ||||
| 682 | 303591 | |||
| No information available, not orderable | ||||
| 683 | 303606 | |||
| No information available, not orderable | ||||
| 684 | 303593 | |||
| No information available, not orderable | ||||
| 685 | 303595 | |||
| No information available, not orderable | ||||
| 686 | 303598 | |||
| No information available, not orderable | ||||
| 687 | 303599 | |||
| No information available, not orderable | ||||
| 688 | 303611 | |||
| No information available, not orderable | ||||
| 689 | 303601 | |||
| No information available, not orderable | ||||
| 690 | 303613 | |||
| No information available, not orderable | ||||
| 691 | 303614 | |||
| No information available, not orderable | ||||
| 692 | 303615 | |||
| No information available, not orderable | ||||
| 693 | 303616 | |||
| No information available, not orderable | ||||
| 694 | 319988 | |||
