Here you will find all available parts and drawings of the 'Hikoki DH28PFY'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

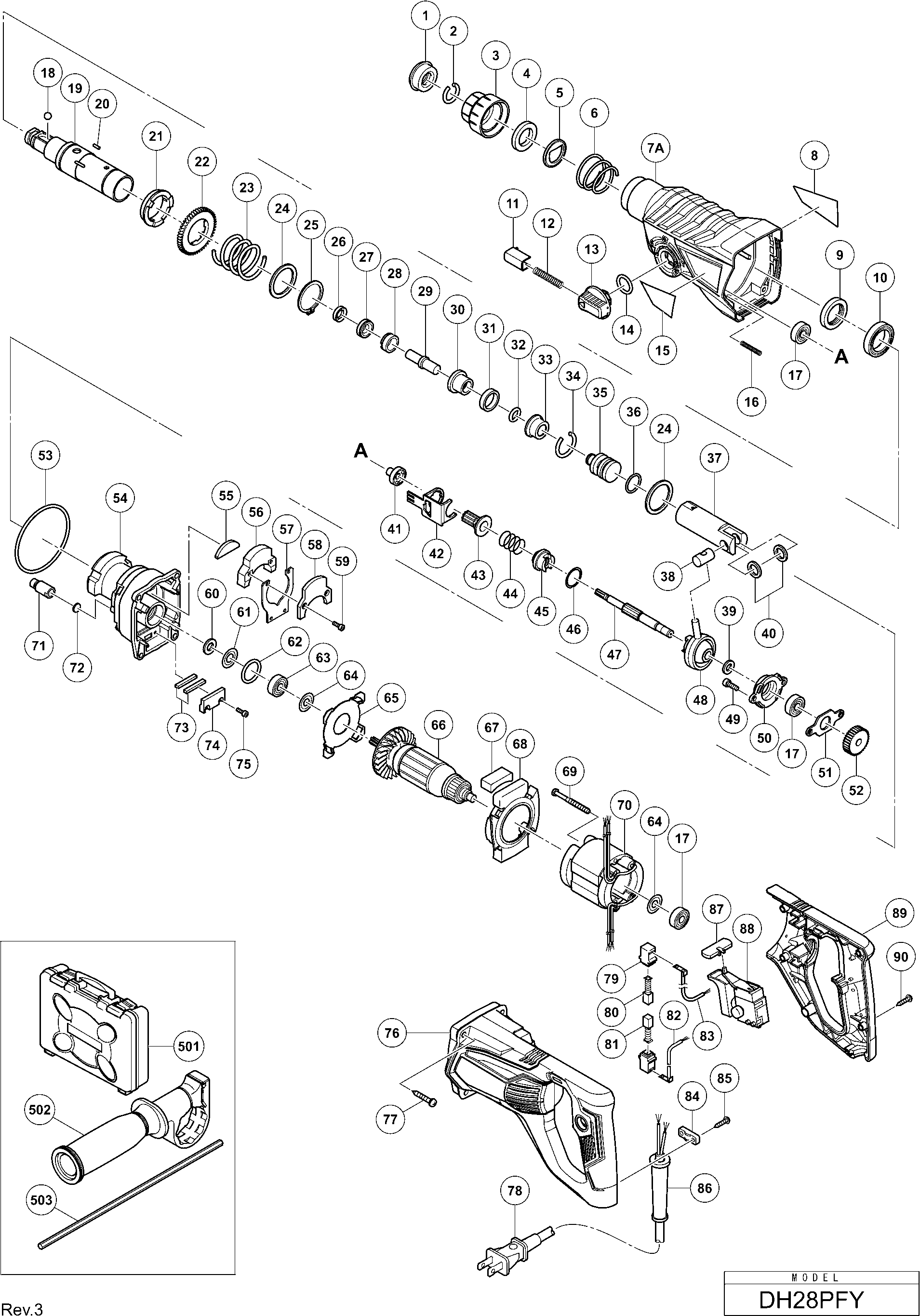

Technical drawing of model Hikoki DH28PFY
Spare parts list of model Hikoki DH28PFY
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *82 | 324586 | |||
| SWITCH 100-127 VOLT | ||||
| *88A | 374611 | 15.54 | 18.80 | |
| No information available, not orderable | ||||
| 1 | 306345 | |||
| Spring retaining ring | ||||
| 2 | 306340 | 1.35 | 1.63 | |
| Grip | ||||
| 3 | 324527 | 3.30 | 3.99 | |
| Ball Holder | ||||
| 4 | 324528 | 6.45 | 7.80 | |
| Holder Plate | ||||
| 5 | 324526 | 3.30 | 3.99 | |
| Spring | ||||
| 6 | 322812 | 1.65 | 2.00 | |
| Gear-box cover | ||||
| 7A | 335274 | 19.80 | 23.96 | |
| Oil Seal | ||||
| 9 | 335259 | 2.85 | 3.45 | |
| Ball Bearing 6805dd | ||||
| 10 | 335260 | 3.30 | 3.99 | |
| Pushing Button | ||||
| 11 | 322789 | 4.80 | 5.81 | |
| Pushing Spring | ||||
| 12 | 317223 | 1.65 | 2.00 | |
| Change Lever | ||||
| 13 | 334011 | 2.10 | 2.54 | |
| O-ring (s-18) | ||||
| 14 | 878885 | 1.05 | 1.27 | |
| Spring (e) | ||||
| 16 | 335800 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 17 | 608VVM | 5.70 | 6.90 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 18 | 335300 | 1.04 | 1.26 | |
| Cylinder | ||||
| 19 | 335261 | 22.28 | 26.95 | |
| PIN D2.5 | ||||
| 20 | 335264 | 1.04 | 1.26 | |
| Cylinder Clutch | ||||
| 21 | 335263 | 12.45 | 15.06 | |
| Second Gear | ||||
| 22 | 335265 | 6.15 | 7.44 | |
| Spring (a) | ||||
| 23 | 335266 | 1.50 | 1.82 | |
| Ring | ||||
| 24 | 301679 | 1.20 | 1.45 | |
| Retaining Ring For D30 Shaft | ||||
| 25 | 948310 | 1.35 | 1.63 | |
| Oil Seal (A) | ||||
| 26 | 335262 | 1.80 | 2.18 | |
| Hammer Holder (c) | ||||
| 27 | 335268 | 9.60 | 11.62 | |
| Sleeve (fw) | ||||
| 28 | 335795 | 4.20 | 5.08 | |
| Second Hammer | ||||
| 29 | 335269 | 3.90 | 4.72 | |
| Hammer Holder (a) | ||||
| 30 | 335267 | 3.00 | 3.63 | |
| DEMPERRING (A) | ||||
| 31 | 322805 | 1.65 | 2.00 | |
| O-ring (c) | ||||
| 32 | 322808 | 1.65 | 2.00 | |
| Damper Holder | ||||
| 33 | 324524 | 6.45 | 7.80 | |
| STOPPER RING | ||||
| 34 | 322807 | 1.65 | 2.00 | |
| Striker | ||||
| 35 | 335246 | 4.20 | 5.08 | |
| O-ring D17 | ||||
| 36 | 335247 | 2.55 | 3.09 | |
| Piston | ||||
| 37 | 335255 | 1.04 | 1.26 | |
| Piston Pin | ||||
| 38 | 335793 | 3.15 | 3.81 | |
| Bearing Washer | ||||
| 39 | 335250 | 1.04 | 1.26 | |
| Piston Washer | ||||
| 40 | 335794 | 1.20 | 1.45 | |
| Pinion Sleeve | ||||
| 41 | 335275 | 3.00 | 3.63 | |
| Bearing Cover (1) | ||||
| 42 | 335276 | 11.10 | 13.43 | |
| Second Gear | ||||
| 43 | 335278 | 7.20 | 8.71 | |
| Clutch Spring | ||||
| 44 | 323182 | 1.65 | 2.00 | |
| Clutch | ||||
| 45 | 335254 | 3.90 | 4.72 | |
| Ring | ||||
| 46 | 331315 | 1.05 | 1.27 | |
| Second Shaft | ||||
| 47 | 335277 | 6.60 | 7.99 | |
| Reciprocating Bearing | ||||
| 48 | 335249 | 13.65 | 16.52 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 49 | 990079 | 1.05 | 1.27 | |
| Bearing Holder | ||||
| 50 | 335270 | 11.40 | 13.79 | |
| Bearing Cover (1) | ||||
| 51 | 335271 | 1.04 | 1.26 | |
| First Gear | ||||
| 52 | 335253 | 6.75 | 8.17 | |
| O-ring D72.2 | ||||
| 53 | 335245 | 1.20 | 1.45 | |
| Inner Cover | ||||
| 54 | 335798 | 9.75 | 11.80 | |
| Weight Damper (a) | ||||
| 55 | 335285 | 1.04 | 1.26 | |
| Weight (a) | ||||
| 56 | 335280 | 3.75 | 4.54 | |
| Leaf Spring | ||||
| 57 | 335282 | 1.04 | 1.26 | |
| Weight (b) | ||||
| 58 | 335281 | 1.95 | 2.36 | |
| Seal Lock Hex. Socket Hd. Bolt M3x8 | ||||
| 59 | 325241 | 1.65 | 2.00 | |
| Felt Packing | ||||
| 60 | 322816 | 1.65 | 2.00 | |
| Packing Washer | ||||
| 61 | 322818 | 3.30 | 3.99 | |
| O-ring (p-22) | ||||
| 62 | 876796 | 1.05 | 1.27 | |
| Ball Bearing 608dd | ||||
| 63 | 608DDM | 5.55 | 6.72 | |
| Washer (a) | ||||
| 64 | 982631 | 1.04 | 1.26 | |
| Cover Plate | ||||
| 65 | 335279 | 1.04 | 1.26 | |
| ANKER 110-127 VOLT | ||||
| 66 | 360961U | 26.95 | 32.61 | |
| Weight Damper (b) | ||||
| 67 | 335286 | 1.04 | 1.26 | |
| Fan Guide | ||||
| 68 | 335244 | 1.04 | 1.26 | |
| Hex. Hd. Tapping Screw D4x50 | ||||
| 69 | 961672 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 70 | 340939C | |||
| No information available, not orderable | ||||
| 70A | 340939D | |||
| Air Cap | ||||
| 71 | 334008 | 1.20 | 1.45 | |
| Felt Packing | ||||
| 72 | 324543 | 1.65 | 2.00 | |
| Spring Damper | ||||
| 73 | 335284 | 1.04 | 1.26 | |
| Spring Holder | ||||
| 74 | 335283 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 75 | 983162 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 76 | 370102 | |||
| SCREW | ||||
| 77 | 301654 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 78 | 500249Z | |||
| Brush Holder | ||||
| 79 | 955203 | 2.40 | 2.90 | |
| Carbon Brush (1 Pair) | ||||
| 80 | 999041 | 4.50 | 5.44 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 81 | 999072 | 14.40 | 17.42 | |
| No information available, not orderable | ||||
| 82 | 324586 | |||
| No information available, not orderable | ||||
| 83 | 324587 | |||
| Cord Clip | ||||
| 84 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 85 | 984750 | |||
| No information available, not orderable | ||||
| 86 | 953327 | |||
| Pushing Button | ||||
| 87 | 322853 | 1.05 | 1.27 | |
| SCHAKELAAR 110-127 VOLT | ||||
| 88 | 337388 | 18.10 | 21.90 | |
| No information available, not orderable | ||||
| 89 | 370103 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 90 | 301653 | 1.04 | 1.26 | |
| GRIP ASS'Y | ||||
| 92 | 375172 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 93 | 382629 | |||
| No information available, not orderable | ||||
| 94 | 382630 | |||
| No information available, not orderable | ||||
| 501 | 370155 | |||
| Side Handle | ||||
| 502 | 335273 | 8.85 | 10.71 | |
| No information available, not orderable | ||||
| 503 | 310331 | |||
| No information available, not orderable | ||||
| 601 | 321814 | |||
| Flat Hd. Screw (left Hand) M6x20 | ||||
| 602 | 331966 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| 603 | 306885 | |||
| Socket Adapter (b) | ||||
| 604 | 306910 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 605 | 971787 | |||
| No information available, not orderable | ||||
| 606 | 931844 | |||
| No information available, not orderable | ||||
| 607 | 321813 | |||
| No information available, not orderable | ||||
| 608 | 971511Z | |||
| No information available, not orderable | ||||
| 609 | 971512Z | |||
| Grease For Rotary Hammer (60g) | ||||
| 613 | 335782 | 13.50 | 16.34 | |
| Grease For Rotary Hammer (500g) | ||||
| 614 | 335781 | 67.24 | 81.36 | |
