Here you will find all available parts and drawings of the 'Hikoki DH28PECWSZ'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

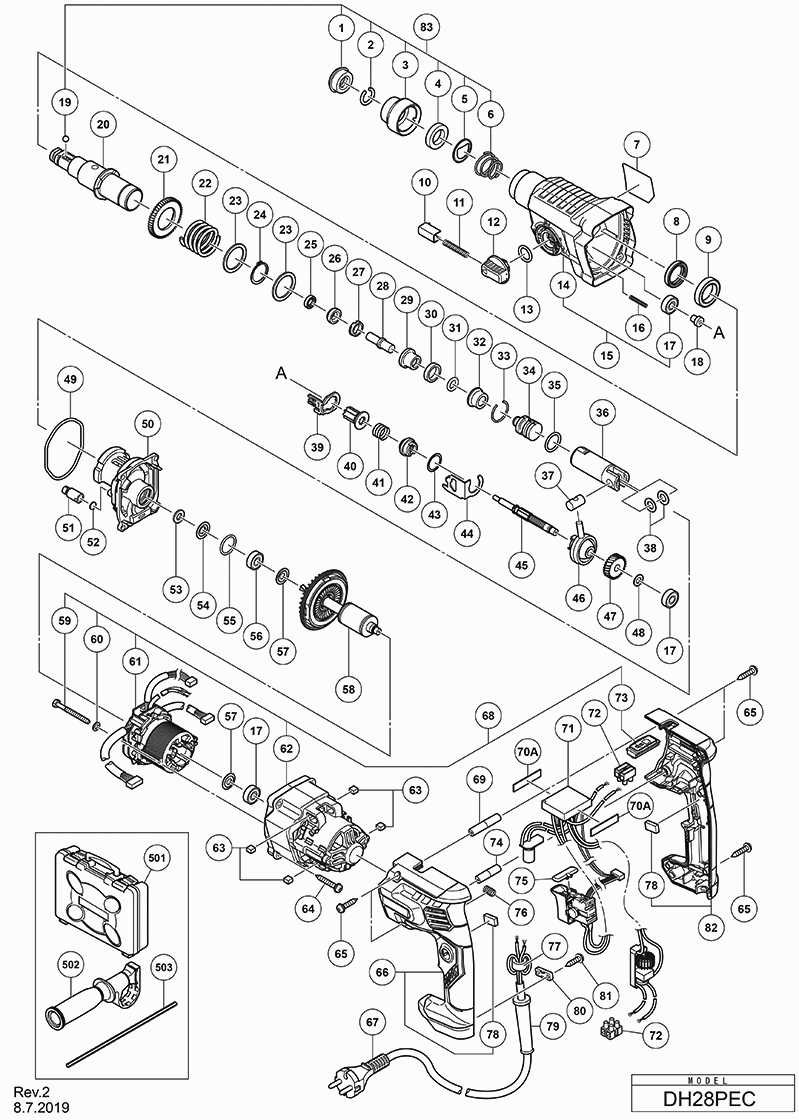

Technical drawing of model Hikoki DH28PECWSZ
Spare parts list of model Hikoki DH28PECWSZ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 306345 | |||
| Spring retaining ring | ||||
| 2 | 306340 | 1.35 | 1.63 | |
| Grip | ||||
| 3 | 374436 | 1.04 | 1.26 | |
| BALL HOLDER | ||||
| 4 | 374437 | 1.50 | 1.82 | |
| HOLDER PLATE | ||||
| 5 | 374435 | 1.04 | 1.26 | |
| Spring | ||||
| 6 | 322812 | 1.65 | 2.00 | |
| Oil Seal | ||||
| 8 | 335259 | 2.85 | 3.45 | |
| Ball Bearing 6805 | ||||
| 9 | 6805BB | 2.40 | 2.90 | |
| Pushing Button | ||||
| 10 | 322789 | 4.80 | 5.81 | |
| Pushing Spring | ||||
| 11 | 317223 | 1.65 | 2.00 | |
| Change Lever | ||||
| 12 | 334011 | 2.10 | 2.54 | |
| O-ring (s-18) | ||||
| 13 | 878885 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 14 | 374425 | 14.40 | 17.42 | |
| Gear Cover Ass'y Includ.3,17 | ||||
| 15 | 375021 | 14.16 | 17.14 | |
| Spring (e) | ||||
| 16 | 335800 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 17 | 608VVM | 5.70 | 6.90 | |
| SHAFT HOLDER (B) | ||||
| 18 | 374422 | 1.04 | 1.26 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 19 | 335300 | 1.04 | 1.26 | |
| Second Gear | ||||
| 21 | 335265 | 6.15 | 7.44 | |
| Spring (b) | ||||
| 22 | 374430 | 1.20 | 1.45 | |
| Ring | ||||
| 23 | 301679 | 1.20 | 1.45 | |
| Oil Seal (A) | ||||
| 25 | 335262 | 1.80 | 2.18 | |
| HAMMER HOLDER (B) | ||||
| 26 | 374431 | 1.20 | 1.45 | |
| HOLDER SLEEVE | ||||
| 27 | 374427 | 2.55 | 3.09 | |
| DEMPERRING (A) | ||||
| 30 | 322805 | 1.65 | 2.00 | |
| O-ring (c) | ||||
| 31 | 322808 | 1.65 | 2.00 | |
| Damper Holder | ||||
| 32 | 324524 | 6.45 | 7.80 | |
| STOPPER RING | ||||
| 33 | 322807 | 1.65 | 2.00 | |
| Striker | ||||
| 34 | 374443 | 3.90 | 4.72 | |
| O-Ring | ||||
| 35 | 372816 | 3.00 | 3.63 | |
| PISTON | ||||
| 36 | 372817 | 9.90 | 11.98 | |
| Piston Pin | ||||
| 37 | 335793 | 3.15 | 3.81 | |
| Piston Washer | ||||
| 38 | 335794 | 1.20 | 1.45 | |
| SECOND PINION | ||||
| 40 | 374440 | 6.30 | 7.62 | |
| Clutch Spring | ||||
| 41 | 323182 | 1.65 | 2.00 | |
| Clutch | ||||
| 42 | 375022 | 3.90 | 4.72 | |
| Ring | ||||
| 43 | 331315 | 1.05 | 1.27 | |
| CHANGE PLATE (C) | ||||
| 44 | 374439 | 1.04 | 1.26 | |
| SECOND SHAFT | ||||
| 45 | 374438 | 4.95 | 5.99 | |
| Reciprocating Bearing | ||||
| 46 | 335249 | 13.65 | 16.52 | |
| First Gear | ||||
| 47 | 374441 | 3.75 | 4.54 | |
| O-ring D72.2 | ||||
| 49 | 335245 | 1.20 | 1.45 | |
| INNER COVER | ||||
| 50 | 375369 | 6.90 | 8.35 | |
| Air Cap | ||||
| 51 | 334008 | 1.20 | 1.45 | |
| Felt Packing | ||||
| 52 | 324543 | 1.65 | 2.00 | |
| Felt Packing | ||||
| 53 | 322816 | 1.65 | 2.00 | |
| Packing Washer | ||||
| 54 | 322818 | 3.30 | 3.99 | |
| O-ring (p-22) | ||||
| 55 | 876796 | 1.05 | 1.27 | |
| Ball Bearing 608dd | ||||
| 56 | 608DDM | 5.55 | 6.72 | |
| Washer (a) | ||||
| 57 | 982631 | 1.04 | 1.26 | |
| HEX. TAPPING SCREW D6 | ||||
| 59 | 374450 | 1.04 | 1.26 | |
| Bolt Washer M4 (black) For 220v-240v | ||||
| 60 | 323210 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 61 | 341026 | |||
| HOUSING | ||||
| 62 | 375585 | 7.50 | 9.08 | |
| HANDLE DAMPER | ||||
| 63 | 374448 | 1.04 | 1.26 | |
| SCREW | ||||
| 64 | 301654 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 65 | 301653 | 1.04 | 1.26 | |
| HANDLE (A) ASS'Y | ||||
| 66 | 375579 | 4.80 | 5.81 | |
| Cord 4m 2 X 1.0 H07rn-f W/plug 16a Cee Form 2p+e 1 | ||||
| 67 | 500465Z | 37.95 | 45.92 | |
| Motor Ass'y Includ.49,50 | ||||
| 68 | 375583 | 183.56 | 222.11 | |
| HANDLE SHAFT (A) | ||||
| 69 | 374445 | 1.04 | 1.26 | |
| RUBBER SHEET | ||||
| 70A | 373635 | 1.04 | 1.26 | |
| DC FILTER SW PCB ASS'Y | ||||
| 71 | 374452 | 53.63 | 64.89 | |
| Pillar Terminal (a) | ||||
| 72 | 958308Z | 5.55 | 6.72 | |
| PANEL | ||||
| 73 | 375368 | 10.05 | 12.16 | |
| HANDLE SHAFT (B) | ||||
| 74 | 374446 | 1.04 | 1.26 | |
| Pushing Button | ||||
| 75 | 322853 | 1.05 | 1.27 | |
| HANDLE SPRING | ||||
| 76 | 374421 | 1.04 | 1.26 | |
| Ferrite Core Except For Sin,mal,uae | ||||
| 77 | 334379 | 4.65 | 5.63 | |
| SUPPORT (B) | ||||
| 78 | 375581 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 79 | 380090 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 80 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 81 | 984750 | |||
| HANDLE (B) ASS'Y | ||||
| 82 | 375580 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 501 | 374320 | |||
| SIDE HANDLE ASS'Y | ||||
| 502 | 374447 | 12.15 | 14.70 | |
| No information available, not orderable | ||||
| 503 | 303709 | |||
| No information available, not orderable | ||||
| 601 | 306885 | |||
| No information available, not orderable | ||||
| 602 | 986802 | |||
| No information available, not orderable | ||||
| 603 | 986803 | |||
| Seal | ||||
| 604 | 986804 | 3.38 | 4.08 | |
| Retaining Ring For D30 Shaft | ||||
| 605 | 948310 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 606 | 958063 | |||
| Steel Ball D6.35 (10 pieces) | ||||
| 607 | 959150 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 608 | 986805 | |||
| Socket | ||||
| 609 | 986806 | 5.10 | 6.17 | |
| Socket Adapter (b) | ||||
| 610 | 306910 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 611 | 971787 | |||
| No information available, not orderable | ||||
| 612 | 931844 | |||
| Grease For Rotary Hammer (500g) | ||||
| 632 | 335781 | 67.24 | 81.36 | |
| Grease For Rotary Hammer (60g) | ||||
| 633 | 335782 | 13.50 | 16.34 | |
