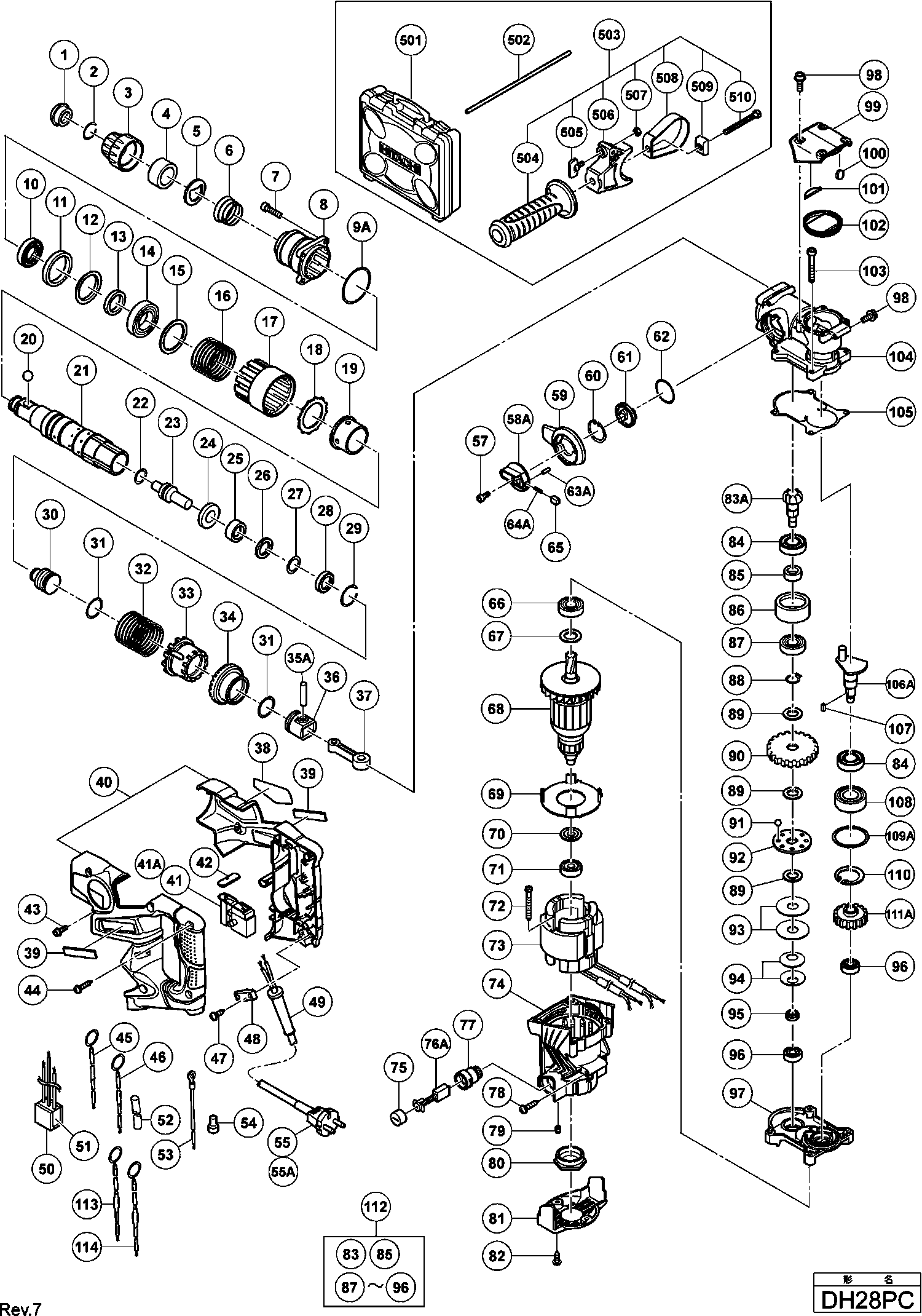

Technical drawing of model Hikoki DH28PC
Spare parts list of model Hikoki DH28PC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *113 | 335205 | |||
| No information available, not orderable | ||||
| *114 | 335206 | |||
| Brand Plate | ||||
| *39A | 886342 | 1.80 | 2.18 | |
| Cord Armor D10.7 | ||||
| *49 | 940778 | 2.10 | 2.54 | |
| Support (b) For Tpe,aus,saf,yem,europe | ||||
| *50 | 317492 | 1.65 | 2.00 | |
| Connector 50091 (10 Pcs.) | ||||
| *54 | 959140 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| *55 | 500477Z | |||
| Armature 230v | ||||
| *68 | 360857E | 55.14 | 66.72 | |
| Stator 220v-230v | ||||
| *73 | 340739E | 36.10 | 43.68 | |
| No information available, not orderable | ||||
| 1 | 306345 | |||
| Spring retaining ring | ||||
| 2 | 306340 | 1.35 | 1.63 | |
| Grip | ||||
| 3 | 324527 | 3.30 | 3.99 | |
| Ball Holder | ||||
| 4 | 330192 | 4.58 | 5.54 | |
| Holder Plate | ||||
| 5 | 324526 | 3.30 | 3.99 | |
| Spring | ||||
| 6 | 330191 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 7 | 992803 | 1.05 | 1.27 | |
| Cylinder Case | ||||
| 8 | 330174 | 8.70 | 10.53 | |
| O-ring (i.d 49.5) | ||||
| 9A | 334370 | 1.20 | 1.45 | |
| Oil Seal | ||||
| 10 | 328867 | 4.80 | 5.81 | |
| Damper (a) | ||||
| 11 | 330175 | 3.75 | 4.54 | |
| Damper Holder | ||||
| 12 | 330184 | 3.15 | 3.81 | |
| Felt Packing | ||||
| 13 | 304020 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 14 | 6905DD | |||
| Washer (a) | ||||
| 15 | 330176 | 1.05 | 1.27 | |
| Holding Spring | ||||
| 16 | 330177 | 1.05 | 1.27 | |
| Lock Sleeve | ||||
| 17 | 330178 | 10.05 | 12.16 | |
| Clamping Flange | ||||
| 18 | 330179 | 1.05 | 1.27 | |
| Slide Sleeve | ||||
| 19 | 330187 | 7.28 | 8.80 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 20 | 959156 | 1.65 | 2.00 | |
| Cylinder | ||||
| 21 | 330180 | 41.80 | 50.58 | |
| O-ring (c) | ||||
| 22 | 323058 | 3.30 | 3.99 | |
| Second Hammer | ||||
| 23 | 330181 | 6.90 | 8.35 | |
| Damper Washer | ||||
| 24 | 330182 | 2.10 | 2.54 | |
| Damper Ring (b) | ||||
| 25 | 330183 | 3.75 | 4.54 | |
| Damper Holder (a) | ||||
| 26 | 331672 | 2.10 | 2.54 | |
| O-ring (a) | ||||
| 27 | 330186 | 1.95 | 2.36 | |
| Damper Holder (b) | ||||
| 28 | 331673 | 3.15 | 3.81 | |
| Stopper Ring | ||||
| 29 | 323062 | 1.65 | 2.00 | |
| Striker | ||||
| 30 | 330185 | 4.20 | 5.08 | |
| O-ring (i.d 19.2) | ||||
| 31 | 319577 | 3.30 | 3.99 | |
| Clutch Spring | ||||
| 32 | 330188 | 1.05 | 1.27 | |
| Clutch | ||||
| 33 | 330189 | 34.18 | 41.35 | |
| Gear | ||||
| 34 | 330190 | 16.78 | 20.30 | |
| Piston Pin | ||||
| 35A | 330173 | 2.10 | 2.54 | |
| Piston | ||||
| 36 | 330172 | 7.43 | 8.98 | |
| Connecting Rod | ||||
| 37 | 319585 | 3.30 | 3.99 | |
| Brand Plate | ||||
| 39 | 886342 | 1.80 | 2.18 | |
| Set Of Handles | ||||
| 40 | 330256 | 26.60 | 32.19 | |
| Switch | ||||
| 41 | 331677 | 15.81 | 19.13 | |
| Switch (old 330214) | ||||
| 41A | 334371 | 18.84 | 22.79 | |
| Pushing Button | ||||
| 42 | 322853 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt (w/flange) M4x10 | ||||
| 43 | 316228 | 1.65 | 2.00 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 44 | 307028 | 1.05 | 1.27 | |
| Internal Wire 18awgx300l (blue) | ||||
| 45 | 330254 | 2.10 | 2.54 | |
| Internal Wire 18awgx300l(brown) | ||||
| 46 | 330255 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 47 | 984750 | |||
| Cord Clip | ||||
| 48 | 960266 | 1.04 | 1.26 | |
| Cord Armor D10.7 | ||||
| 49 | 940778 | 2.10 | 2.54 | |
| Support (b) For Tpe,aus,saf,yem,europe | ||||
| 50 | 317492 | 1.65 | 2.00 | |
| Capacitor | ||||
| 51 | 325566 | 9.00 | 10.89 | |
| Tube | ||||
| 52 | 321322 | 1.65 | 2.00 | |
| Internal wire | ||||
| 53 | 981500 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 54 | 959140 | 3.30 | 3.99 | |
| Cord 4m 2 X 1.0 H07rn-f W/plug 16a Cee Form 2p+e 1 | ||||
| 55 | 500465Z | 37.95 | 45.92 | |
| No information available, not orderable | ||||
| 55A | 500432Z | |||
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 57 | 983162 | 1.05 | 1.27 | |
| Change Lever (old 321309) | ||||
| 58A | 331545 | 3.75 | 4.54 | |
| Lever Holder | ||||
| 59 | 330207 | 1.95 | 2.36 | |
| Retaining Ring For D35 Hole (10 Pcs.) | ||||
| 60 | 939556 | 10.20 | 12.34 | |
| Lever Shaft | ||||
| 61 | 330206 | 5.03 | 6.08 | |
| O-ring | ||||
| 62 | 330205 | 1.05 | 1.27 | |
| Pin D2x10 | ||||
| 63A | 331548 | 1.88 | 2.27 | |
| Spring | ||||
| 64A | 331546 | 1.88 | 2.27 | |
| Pushing Button | ||||
| 65 | 321311 | 1.65 | 2.00 | |
| Ball Bearing 6001dducmps2s (old 980925) | ||||
| 66 | 6001DD | 6.45 | 7.80 | |
| Washer | ||||
| 67 | 971736 | 1.05 | 1.27 | |
| Armature 230v | ||||
| 68 | 360857E | 55.14 | 66.72 | |
| Fan Guide | ||||
| 69 | 330202 | 1.95 | 2.36 | |
| Washer (a) | ||||
| 70 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 71 | 608VVM | 5.70 | 6.90 | |
| HEX.HD. TAPSCHROEF D5X40 | ||||
| 72 | 980864 | 1.00 | 1.21 | |
| Stator 220v-230v | ||||
| 73 | 340739E | 36.10 | 43.68 | |
| Housing | ||||
| 74 | 330201 | 36.10 | 43.68 | |
| Brush Cap | ||||
| 75 | 935829 | 1.05 | 1.27 | |
| Carbon Brush 7x11x17 (1 Pair) | ||||
| 76A | 999004 | 7.05 | 8.53 | |
| Brush Holder (2) | ||||
| 77 | 957051 | 5.25 | 6.35 | |
| Brush Holder (2) | ||||
| 77A | 370925 | 8.70 | 10.53 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 78 | 302089 | 1.05 | 1.27 | |
| Hex Adjustment Screw M5x8 | ||||
| 79 | 938477 | 1.05 | 1.27 | |
| BEARING BUSH (B) | ||||
| 80 | 310111 | 8.40 | 10.16 | |
| Tail Cover | ||||
| 81 | 330203 | 8.25 | 9.98 | |
| No information available, not orderable | ||||
| 82 | 307811 | |||
| Bevel Pinion | ||||
| 83A | 330196 | 11.03 | 13.34 | |
| Oil Seal | ||||
| 84 | 981851 | 2.55 | 3.09 | |
| Ring | ||||
| 85 | 330197 | 2.10 | 2.54 | |
| Socket | ||||
| 86 | 330194 | 4.20 | 5.08 | |
| Ball Bearing 6001dducmps2s (old 980925) | ||||
| 87 | 6001DD | 6.45 | 7.80 | |
| Spring Washer D12 (10 pieces) | ||||
| 88 | 939542 | 1.50 | 1.82 | |
| Ring | ||||
| 89 | 992503 | 1.04 | 1.26 | |
| Second Gear | ||||
| 90 | 330198 | 11.40 | 13.79 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 91 | 959155 | 1.04 | 1.26 | |
| Clutch Plate | ||||
| 92 | 992916 | 2.10 | 2.54 | |
| Spring Plate | ||||
| 93 | 992926 | 1.05 | 1.27 | |
| Spring | ||||
| 94 | 980877 | 1.05 | 1.27 | |
| Washer | ||||
| 95 | 330199 | 2.10 | 2.54 | |
| Ball Bearing 608vvc2ps2l | ||||
| 96 | 608VVM | 5.70 | 6.90 | |
| Gear Cover | ||||
| 97 | 330200 | 14.65 | 17.73 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 98 | 994192 | 1.04 | 1.26 | |
| Crank Cover | ||||
| 99 | 330204 | 15.68 | 18.97 | |
| Felt Packing | ||||
| 100 | 324544 | 1.65 | 2.00 | |
| Felt Packing | ||||
| 101 | 331674 | 1.73 | 2.09 | |
| Rubber Seal | ||||
| 102 | 331675 | 3.38 | 4.08 | |
| Seal Lock Hex. Socket Hd. Bolt M5x40 | ||||
| 103 | 324060 | 1.65 | 2.00 | |
| Crank Case | ||||
| 104 | 330169 | 34.18 | 41.35 | |
| Gasket | ||||
| 105 | 331676 | 2.10 | 2.54 | |
| Crank Shaft | ||||
| 106A | 330170 | 18.43 | 22.29 | |
| Feather Key 3x3x8 | ||||
| 107 | 944109 | 1.70 | 2.06 | |
| Ball Bearing 6002ddcmps2l | ||||
| 108 | 6002DD | 7.05 | 8.53 | |
| O-ring (i.d 31.5) | ||||
| 109A | 334369 | 1.20 | 1.45 | |
| Stop Ring D32 | ||||
| 110 | 948001 | 1.20 | 1.45 | |
| First Gear | ||||
| 111A | 330171 | 17.13 | 20.72 | |
| Slip Clutch Ass'y Includ.95-106 | ||||
| 112 | 330195 | 39.88 | 48.25 | |
| No information available, not orderable | ||||
| 113 | 335205 | |||
| No information available, not orderable | ||||
| 114 | 335206 | |||
| No information available, not orderable | ||||
| 501 | 330220 | |||
| No information available, not orderable | ||||
| 502 | 982671 | |||
| No information available, not orderable | ||||
| 503 | 330208 | |||
| No information available, not orderable | ||||
| 504 | 330209 | |||
| Wing Bolt M6x12 | ||||
| 505 | 307947 | 1.35 | 1.63 | |
| Mount | ||||
| 506 | 330210 | 3.75 | 4.54 | |
| Tpe (sl),kor (sl) | ||||
| 507 | 949556 | 1.05 | 1.27 | |
| Band | ||||
| 508 | 330212 | 2.10 | 2.54 | |
| Holder | ||||
| 509 | 330211 | 1.95 | 2.36 | |
| Bolt M8x45 | ||||
| 510 | 330213 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 601 | 303046 | |||
| No information available, not orderable | ||||
| 602 | 303044 | |||
| No information available, not orderable | ||||
| 603 | 303045 | |||
| No information available, not orderable | ||||
| 604 | 303334 | |||
| No information available, not orderable | ||||
| 605 | 302976 | |||
| No information available, not orderable | ||||
| 606 | 930515 | |||
| No information available, not orderable | ||||
| 607 | 302975 | |||
| No information available, not orderable | ||||
| 608 | 303621 | |||
| No information available, not orderable | ||||
| 609 | 302974 | |||
| No information available, not orderable | ||||
| 610 | 302979 | |||
| No information available, not orderable | ||||
| 611 | 302978 | |||
| No information available, not orderable | ||||
| 612 | 303622 | |||
| No information available, not orderable | ||||
| 613 | 302977 | |||
| No information available, not orderable | ||||
| 614 | 303617 | |||
| No information available, not orderable | ||||
| 615 | 303618 | |||
| No information available, not orderable | ||||
| 616 | 303619 | |||
| No information available, not orderable | ||||
| 617 | 303620 | |||
| Special Screw M6x22 | ||||
| 618 | 981122 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 619 | 303627 | |||
| No information available, not orderable | ||||
| 620 | 303625 | |||
| No information available, not orderable | ||||
| 621 | 303626 | |||
| No information available, not orderable | ||||
| 622 | 303624 | |||
| No information available, not orderable | ||||
| 623 | 321825 | |||
| No information available, not orderable | ||||
| 624 | 303623 | |||
| No information available, not orderable | ||||
| 625 | 321814 | |||
| No information available, not orderable | ||||
| 626 | 995344 | |||
| No information available, not orderable | ||||
| 627 | 321813 | |||
| Grease For Hammer.hammer Drill (500g) | ||||
| 628 | 980927 | 73.01 | 88.35 | |
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 629 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 630 | 308471 | 12.75 | 15.43 | |
| No information available, not orderable | ||||
| 631 | 971511Z | |||
| No information available, not orderable | ||||
| 632 | 971512Z | |||
| No information available, not orderable | ||||
| 633 | 944477 | |||
| No information available, not orderable | ||||
| 634 | 982684 | |||
| No information available, not orderable | ||||
| 635 | 982685 | |||
| No information available, not orderable | ||||
| 636 | 315921 | |||
| No information available, not orderable | ||||
| 637 | 982672 | |||
| No information available, not orderable | ||||
| 638 | 982673 | |||
| No information available, not orderable | ||||
| 639 | 982674 | |||
| No information available, not orderable | ||||
| 640 | 982686 | |||
| No information available, not orderable | ||||
| 641 | 982675 | |||
| No information available, not orderable | ||||
| 642 | 982687 | |||
| No information available, not orderable | ||||
| 643 | 982676 | |||
| No information available, not orderable | ||||
| 644 | 982688 | |||
| No information available, not orderable | ||||
| 645 | 982677 | |||
| No information available, not orderable | ||||
| 646 | 982689 | |||
| No information available, not orderable | ||||
| 647 | 982678 | |||
| No information available, not orderable | ||||
| 648 | 982690 | |||
| No information available, not orderable | ||||
| 649 | 982679 | |||
| No information available, not orderable | ||||
| 650 | 982691 | |||
| No information available, not orderable | ||||
| 651 | 982680 | |||
| No information available, not orderable | ||||
| 652 | 982692 | |||
| No information available, not orderable | ||||
| 653 | 971794 | |||
| No information available, not orderable | ||||
| 654 | 971795 | |||
| No information available, not orderable | ||||
| 655 | 971796 | |||
| No information available, not orderable | ||||
| 656 | 971797 | |||
| No information available, not orderable | ||||
| 657 | 971798 | |||
| No information available, not orderable | ||||
| 658 | 971799 | |||
| No information available, not orderable | ||||
| 659 | 971800 | |||
| No information available, not orderable | ||||
| 660 | 971801 | |||
| No information available, not orderable | ||||
| 661 | 971802 | |||
| No information available, not orderable | ||||
| 662 | 971803 | |||
| No information available, not orderable | ||||
| 663 | 944460 | |||
| No information available, not orderable | ||||
| 664 | 944461 | |||
| No information available, not orderable | ||||
| 665 | 993038 | |||
| No information available, not orderable | ||||
| 667 | 944500 | |||
| No information available, not orderable | ||||
| 669 | 944464 | |||
| No information available, not orderable | ||||
| 670 | 320859 | |||
| No information available, not orderable | ||||
| 671 | 303571 | |||
| No information available, not orderable | ||||
| 672 | 303575 | |||
| No information available, not orderable | ||||
| 673 | 303578 | |||
| No information available, not orderable | ||||
| 674 | 303576 | |||
| No information available, not orderable | ||||
| 675 | 303581 | |||
| No information available, not orderable | ||||
| 676 | 303582 | |||
| No information available, not orderable | ||||
| 677 | 303584 | |||
| No information available, not orderable | ||||
| 678 | 303585 | |||
| No information available, not orderable | ||||
| 679 | 303586 | |||
| No information available, not orderable | ||||
| 680 | 303591 | |||
| No information available, not orderable | ||||
| 681 | 303606 | |||
| No information available, not orderable | ||||
| 682 | 303593 | |||
| No information available, not orderable | ||||
| 683 | 303595 | |||
| No information available, not orderable | ||||
| 684 | 303598 | |||
| No information available, not orderable | ||||
| 685 | 303599 | |||
| No information available, not orderable | ||||
| 686 | 303611 | |||
| No information available, not orderable | ||||
| 687 | 303601 | |||
| No information available, not orderable | ||||
| 688 | 303613 | |||
| No information available, not orderable | ||||
| 689 | 303614 | |||
| No information available, not orderable | ||||
| 690 | 303615 | |||
| No information available, not orderable | ||||
| 691 | 303616 | |||
| No information available, not orderable | ||||
| 692 | 971787 | |||
| No information available, not orderable | ||||
| 693 | 318085 | |||
| No information available, not orderable | ||||
| 694 | 306885 | |||
| No information available, not orderable | ||||
| 695 | 986802 | |||
| STOFVANGER | ||||
| 696 | 986803 | 6.54 | 7.91 | |
| Seal | ||||
| 697 | 986804 | 3.38 | 4.08 | |
| Retaining Ring For D30 Shaft | ||||
| 698 | 948310 | 1.35 | 1.63 | |
| RING | ||||
| 699 | 958063 | 1.00 | 1.21 | |
| Steel Ball D6.35 (10 pieces) | ||||
| 700 | 959150 | 1.35 | 1.63 | |
| OUTER RACE | ||||
| 701 | 986805 | 4.26 | 5.15 | |
| Socket | ||||
| 702 | 986806 | 5.10 | 6.17 | |
| Socket Adapter (b) | ||||
| 703 | 306910 | 4.50 | 5.44 | |
