Here you will find all available parts and drawings of the 'Hikoki DH26PC2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

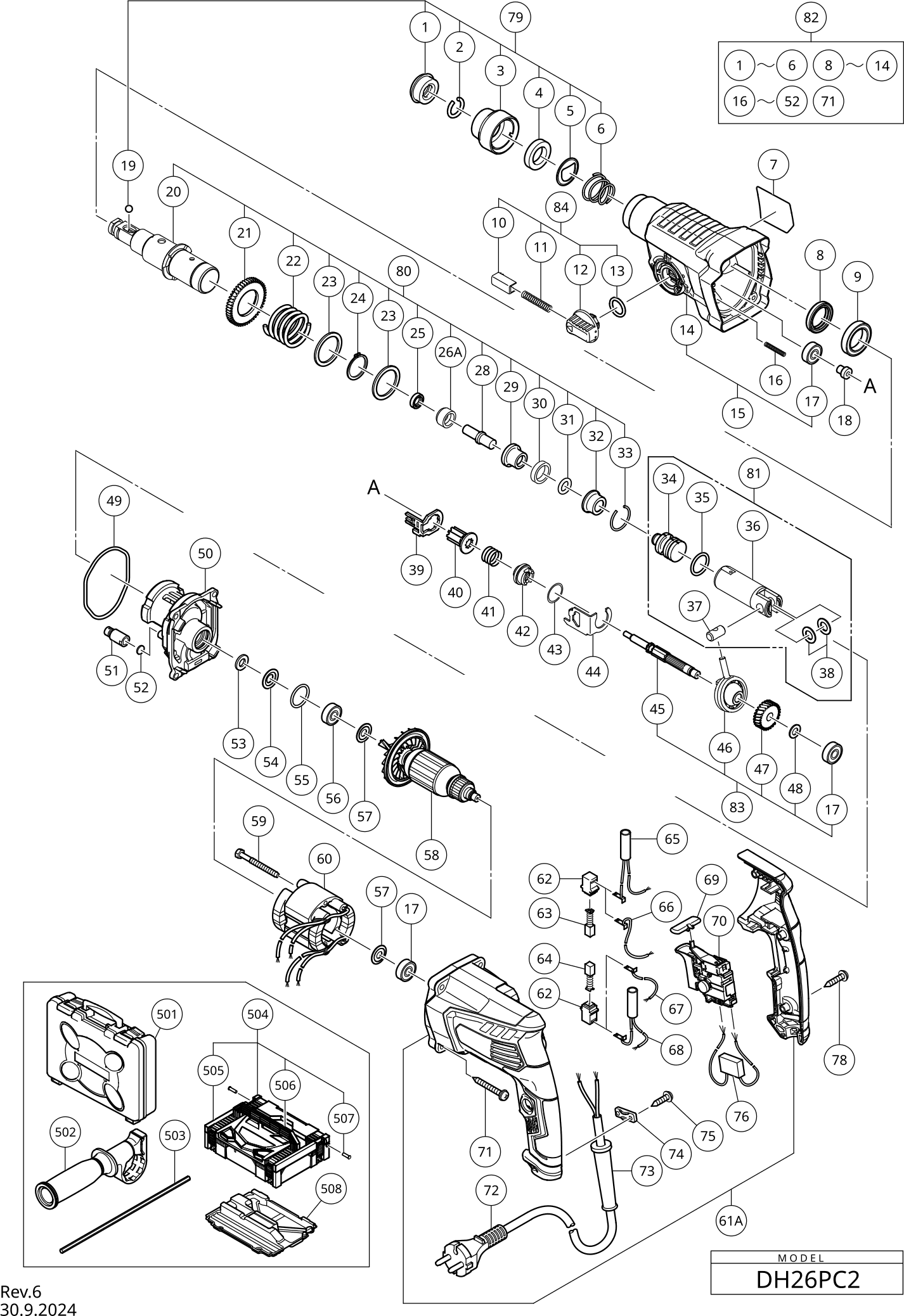

Technical drawing of model Hikoki DH26PC2

Spare parts list of model Hikoki DH26PC2

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No information available, not orderable
*503 310331
ARMATURE (A) 220-230 VOLT
*58 361106E 21.59 26.12
ARMATURE (A) 110 VOLT
*58 361106C 20.40 24.68
STATOR (A) 110 VOLT (W/CR)
*60 341028C 18.86 22.82
STATOR (A) 220-230 VOLT
*60 341028K 16.78 20.30
BEHUIZING (OUD 374616+374617)
*61A 376296 10.62 12.85
SWITCH 220-240 VOLT
*70 374610 15.54 18.80
SWITCH 100-127 VOLT
*70 374611 15.54 18.80
Cord (cord Armor D8.2) For Sin,mal
*72 500440Z 20.49 24.79
Cord Armor D8.8
*73 380090 1.04 1.26
Cord Armor D10.1
*73 938051 1.04 1.26
No information available, not orderable
1 306345
Spring retaining ring
2 306340 1.35 1.63
Grip
3 374436 1.04 1.26
BALL HOLDER
4 374437 1.50 1.82
HOLDER PLATE
5 374435 1.04 1.26
Spring
6 322812 1.65 2.00
Oil Seal
8 335259 2.85 3.45
Ball Bearing 6805
9 6805BB 2.40 2.90
Pushing Button
10 322789 4.80 5.81
Pushing Spring
11 317223 1.65 2.00
Change Lever
12 334011 2.10 2.54
O-ring (s-18)
13 878885 1.05 1.27
Gear Cover
14 374618 14.71 17.80
Gear Cover Ass'y Includ.3,17
15 375016 14.44 17.47
Spring (e)
16 335800 1.04 1.26
Ball Bearing 608vvc2ps2l
17 608VVM 5.70 6.90
SHAFT HOLDER (B)
18 374422 1.04 1.26
Steel Ball D7.0 (10 Pcs.)
19 335300 1.04 1.26
CYLINDER
20 374426 19.25 23.29
Second Gear
21 335265 6.15 7.44
Spring (b)
22 374430 1.20 1.45
Ring
23 301679 1.20 1.45
Retaining Ring For D30 Shaft
24 948310 1.35 1.63
Oil Seal (A)
25 335262 1.80 2.18
HAMMER HOLDER (D)
26A 375014 1.65 2.00
Second Hammer
28 374432 2.70 3.27
HAMMER HOLDER (A)
29 374429 2.25 2.72
DEMPERRING (A)
30 322805 1.65 2.00
O-ring (c)
31 322808 1.65 2.00
Damper Holder
32 324524 6.45 7.80
STOPPER RING
33 322807 1.65 2.00
Striker
34 374443 3.90 4.72
O-Ring
35 372816 3.00 3.63
PISTON
36 372817 9.90 11.98
Piston Pin
37 335793 3.15 3.81
Piston Washer
38 335794 1.20 1.45
LOCK PLATE
39 374434 1.04 1.26
SECOND PINION
40 374440 6.30 7.62
Clutch Spring
41 323182 1.65 2.00
Clutch
42 375022 3.90 4.72
Ring
43 331315 1.05 1.27
CHANGE PLATE (C)
44 374439 1.04 1.26
SECOND SHAFT
45 374438 4.95 5.99
Reciprocating Bearing
46 335249 13.65 16.52
First Gear
47 374441 3.75 4.54
BEARING WASHER
48 374442 1.04 1.26
O-ring D72.2
49 335245 1.20 1.45
INNER COVER
50 374433 8.10 9.80
Air Cap
51 334008 1.20 1.45
Felt Packing
52 324543 1.65 2.00
Felt Packing
53 322816 1.65 2.00
Packing Washer
54 322818 3.30 3.99
O-ring (p-22)
55 876796 1.05 1.27
Ball Bearing 608dd
56 608DDM 5.55 6.72
Washer (a)
57 982631 1.04 1.26
Hex. Hd. Tapping Screw D4x45
59 981824 1.05 1.27
Brush Holder
62 955203 2.40 2.90
Carbon Brush (1 Pair)
63 999041 4.50 5.44
Carbon Brush (auto Stop Type) (1 Pair)
64 999072 14.40 17.42
CHOKE COIL (BROWN)
65 374615 3.45 4.17
No information available, not orderable
66 374613
No information available, not orderable
67 374612
CHOKE COIL (BLUE)
68 374614 3.45 4.17
Pushing Button
69 322853 1.05 1.27
SCREW
71 301654 1.05 1.27
Cord Clip
74 937631 1.04 1.26
No information available, not orderable
75 984750
Noise Suppressor
76 930039 1.95 2.36
Tapping Screw (w/flange) D4x20 (black)
78 301653 1.04 1.26
GRIP SET
79 375363 2.85 3.45
CYLINDER ASS'Y NEW
80 381634 28.60 34.61
STRIKER ASS'Y NEW
81 381635 11.77 14.24
GEAR BOX ASS'Y NEW
82 381636 91.19 110.34
SECOND SHAFT ASS'Y NEW
83 381638 15.95 19.30
CHANGE LEVER ASS'Y NEW
84 381637 4.20 5.08
No information available, not orderable
501 374619
SIDE HANDLE ASS'Y
502 374447 12.15 14.70
No information available, not orderable
504 337739
No information available, not orderable
505 336472
No information available, not orderable
506 336473
No information available, not orderable
507 336474
No information available, not orderable
508 337741
No information available, not orderable
601 306885
No information available, not orderable
602 986802
STOFVANGER
603 986803 6.54 7.91
Seal
604 986804 3.38 4.08
Retaining Ring For D30 Shaft
605 948310 1.35 1.63
RING
606 958063 1.00 1.21
Steel Ball D6.35 (10 pieces)
607 959150 1.35 1.63
OUTER RACE
608 986805 4.26 5.15
Socket
609 986806 5.10 6.17
Socket Adapter (b)
610 306910 4.50 5.44
No information available, not orderable
611 971787
No information available, not orderable
612 931844
No information available, not orderable
613 321814
Flat Hd. Screw (left Hand) M6x20
614 331966 6.75 8.17
No information available, not orderable
615 321813
No information available, not orderable
616 971511Z
No information available, not orderable
617 971512Z
No information available, not orderable
618 971794
No information available, not orderable
619 971795
No information available, not orderable
620 971796
No information available, not orderable
621 971797
No information available, not orderable
622 971798
No information available, not orderable
623 971799
No information available, not orderable
624 971800
No information available, not orderable
625 971801
No information available, not orderable
626 971802
No information available, not orderable
627 971803
No information available, not orderable
628 320859
No information available, not orderable
629 944477
No information available, not orderable
630 982684
No information available, not orderable
631 982685
Grease For Rotary Hammer (500g)
632 335781 67.24 81.36
Grease For Rotary Hammer (60g)
633 335782 13.50 16.34
