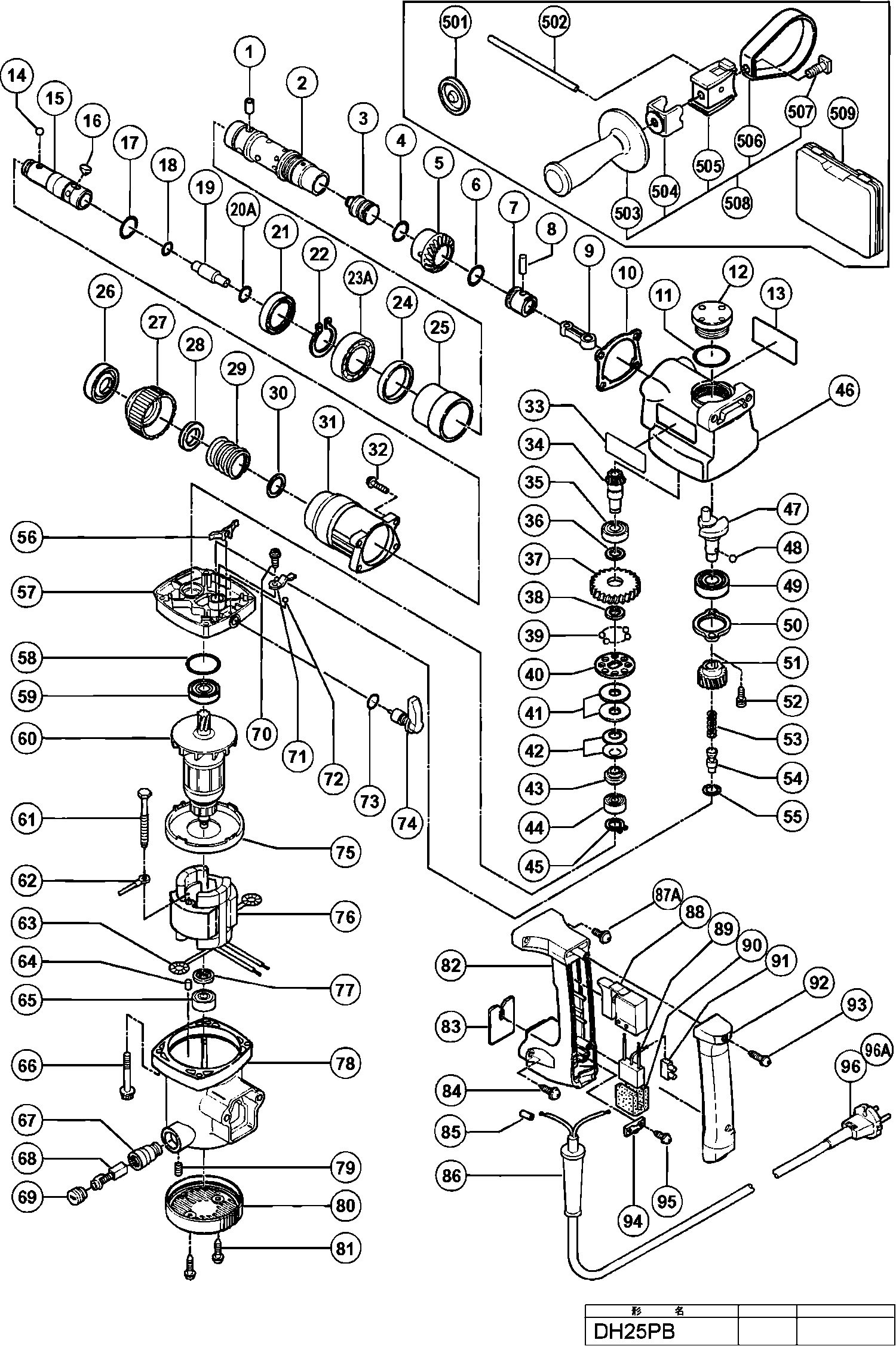

Technical drawing of model Hikoki DH25PB
Spare parts list of model Hikoki DH25PB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Needle Pin | ||||
| 1 | 318200 | 4.80 | 5.81 | |
| Cylinder | ||||
| 2 | 318022 | 47.58 | 57.57 | |
| Striker | ||||
| 3 | 318024 | 14.99 | 18.13 | |
| O-ring | ||||
| 4 | 971760 | 1.05 | 1.27 | |
| Third Gear | ||||
| 5 | 992933 | 37.95 | 45.92 | |
| O-ring | ||||
| 6 | 971760 | 1.05 | 1.27 | |
| Piston | ||||
| 7 | 992930 | 18.70 | 22.63 | |
| Piston Pin | ||||
| 8 | 992931 | 1.04 | 1.26 | |
| Connecting Rod | ||||
| 9 | 318020 | 4.80 | 5.81 | |
| Gasket | ||||
| 10 | 980896 | 1.35 | 1.63 | |
| O-ring | ||||
| 11 | 980948 | 1.05 | 1.27 | |
| Oil Cap | ||||
| 12 | 980880 | 1.35 | 1.63 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 14 | 959156 | 1.65 | 2.00 | |
| Retainer Sleeve | ||||
| 15 | 318023 | 61.33 | 74.20 | |
| Needle | ||||
| 16 | 318026 | 12.15 | 14.70 | |
| O-ring (d) | ||||
| 17 | 980890 | 1.05 | 1.27 | |
| O-ring | ||||
| 18 | 318199 | 1.65 | 2.00 | |
| Second Hammer | ||||
| 19 | 318025 | 10.23 | 12.37 | |
| O-ring (i.d. 10.5) | ||||
| 20A | 301680 | 2.40 | 2.90 | |
| Oil Seal | ||||
| 21 | 318027 | 10.65 | 12.89 | |
| Retaining Ring For D30 Shaft | ||||
| 22 | 948310 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 23A | 6906T2 | |||
| Urethane Ring | ||||
| 24 | 992906 | 5.85 | 7.08 | |
| Pipe | ||||
| 25 | 980891 | 4.20 | 5.08 | |
| Front Cap | ||||
| 26 | 318028 | 3.30 | 3.99 | |
| Grip | ||||
| 27 | 318029 | 4.80 | 5.81 | |
| Ball Holder | ||||
| 28 | 318030 | 4.20 | 5.08 | |
| Spring | ||||
| 29 | 306342 | 3.00 | 3.63 | |
| Washer (b) | ||||
| 30 | 984118 | 1.05 | 1.27 | |
| Cylinder Case | ||||
| 31 | 318021 | 15.40 | 18.63 | |
| Hex. Socket Hd. Bolt (w/flange) M5x25 | ||||
| 32 | 992253 | 1.05 | 1.27 | |
| Third Pinion | ||||
| 34 | 992914 | 35.06 | 42.43 | |
| Ball Bearing 6001dducmps2s (old 980925) | ||||
| 35 | 6001DD | 6.45 | 7.80 | |
| Ring | ||||
| 36 | 992503 | 1.04 | 1.26 | |
| Second Gear | ||||
| 37 | 992928 | 21.55 | 26.08 | |
| Stopper Washer | ||||
| 38 | 971087 | 1.04 | 1.26 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 39 | 959155 | 1.04 | 1.26 | |
| Clutch Plate | ||||
| 40 | 992916 | 2.10 | 2.54 | |
| Spring Plate | ||||
| 41 | 992926 | 1.05 | 1.27 | |
| Spring | ||||
| 42 | 980877 | 1.05 | 1.27 | |
| Washer | ||||
| 43 | 992504 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 44 | 608VVM | 5.70 | 6.90 | |
| Retaining Ring For D8 Shaft | ||||
| 45 | 940079 | 1.04 | 1.26 | |
| Crank Case | ||||
| 46 | 980920 | 32.78 | 39.66 | |
| No information available, not orderable | ||||
| 47 | 318034 | |||
| Steel Ball D4.76 (10 pieces) | ||||
| 48 | 959149 | 1.04 | 1.26 | |
| Ball Bearing 6202dd | ||||
| 49 | 6202DD | 6.75 | 8.17 | |
| Cover | ||||
| 50 | 980871 | 3.65 | 4.42 | |
| First Gear | ||||
| 51 | 992902 | 15.26 | 18.47 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 52 | 987203 | 1.05 | 1.27 | |
| Clutch Spring | ||||
| 53 | 992937 | 1.04 | 1.26 | |
| Clutch Shaft | ||||
| 54 | 992938 | 5.40 | 6.53 | |
| Thrust Washer | ||||
| 55 | 992506 | 1.04 | 1.26 | |
| STOPVEER | ||||
| 56 | 986276 | 1.38 | 1.67 | |
| Gear Cover | ||||
| 57 | 992925 | 37.95 | 45.92 | |
| O-RING (S-26) | ||||
| 58 | 872470 | 1.65 | 2.00 | |
| Ball Bearing 6000ddcmps2l | ||||
| 59 | 6000DD | 6.00 | 7.26 | |
| Armature 230v | ||||
| 60 | 360505E | 119.63 | 144.75 | |
| No longer available, no replacement | ||||
| 61 | 992509 | |||
| No information available, not orderable | ||||
| 62 | 318035 | |||
| Brush Terminal For Aus | ||||
| 63 | 930630 | 1.35 | 1.63 | |
| RUBBER PIN (OLD 976441) | ||||
| 64 | 946362 | 1.05 | 1.27 | |
| Ball Bearing 626vvc2ps2l | ||||
| 65 | 626VVM | 5.70 | 6.90 | |
| Hex. Socket Hd. Bolt (w/flange) M5x45 | ||||
| 66 | 980951 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 67 | 990721 | 3.30 | 3.99 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 68 | 999070 | 14.40 | 17.42 | |
| Brush Cap | ||||
| 69 | 937847 | 1.65 | 2.00 | |
| Seal Lock Screw (w/sp. Washer) M4x8 | ||||
| 70 | 991207 | 1.04 | 1.26 | |
| VEERPLAAT | ||||
| 71 | 992936 | 1.74 | 2.11 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 72 | 959148 | 1.05 | 1.27 | |
| O-ring (s-8) | ||||
| 73 | 992912 | 1.05 | 1.27 | |
| Change Lever Ass'y | ||||
| 74 | 302140 | 18.84 | 22.79 | |
| Fan Guide | ||||
| 75 | 992911 | 2.85 | 3.45 | |
| Stator Ass'y 220v Including.63 for Tha | ||||
| 76 | 340451F | 82.50 | 99.82 | |
| Stator Ass'y 220v-240v Including.63 | ||||
| 76 | 340451K | 69.55 | 84.16 | |
| Washer | ||||
| 77 | 992500 | 1.04 | 1.26 | |
| Housing Ass'y Includ.67,79 | ||||
| 78 | 986812 | 41.80 | 50.58 | |
| Hex Adjustment Screw M5x8 | ||||
| 79 | 938477 | 1.05 | 1.27 | |
| Cover Plate | ||||
| 80 | 318031 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 81 | 309470 | |||
| Handle | ||||
| 82 | 318018 | 19.94 | 24.12 | |
| Plate | ||||
| 83 | 980900 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 84 | 305558 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 85 | 981373 | 1.05 | 1.27 | |
| Cord Armor D10.1 | ||||
| 86 | 938051 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M5x30 (black) | ||||
| 87A | 880881 | 1.05 | 1.27 | |
| Switch | ||||
| 88 | 318032 | 35.06 | 42.43 | |
| Switch | ||||
| 88 | 318033 | 35.06 | 42.43 | |
| Noise Suppressor | ||||
| 89 | 994273 | 4.29 | 5.19 | |
| Support (b) For Tpe,aus,saf,yem,europe | ||||
| 90 | 317492 | 1.65 | 2.00 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 91 | 938307 | 2.13 | 2.57 | |
| Handle Cover | ||||
| 92 | 318019 | 19.94 | 24.12 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 93 | 301653 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 94 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 95 | 984750 | |||
| No longer available, no replacement | ||||
| 96 | 500391Z | |||
| Cord 4m 2 X 1.0 H07rn-f W/plug 16a Cee Form 2p+e 1 | ||||
| 96A | 500465Z | 37.95 | 45.92 | |
| No information available, not orderable | ||||
| 501 | 971787 | |||
| No information available, not orderable | ||||
| 502 | 980906 | |||
| No information available, not orderable | ||||
| 503 | 980901 | |||
| Rod Holder | ||||
| 504 | 980905 | 1.35 | 1.63 | |
| Side Handle Holder | ||||
| 505 | 980902 | 7.05 | 8.53 | |
| Band | ||||
| 506 | 980904 | 2.70 | 3.27 | |
| Square Bolt M8 | ||||
| 507 | 980903 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 508 | 980939 | |||
| No information available, not orderable | ||||
| 509 | 318307 | |||
| No information available, not orderable | ||||
| 601 | 303571 | |||
| No information available, not orderable | ||||
| 602 | 303572 | |||
| No information available, not orderable | ||||
| 603 | 303573 | |||
| No information available, not orderable | ||||
| 604 | 303574 | |||
| No information available, not orderable | ||||
| 605 | 303575 | |||
| No information available, not orderable | ||||
| 606 | 303578 | |||
| No information available, not orderable | ||||
| 607 | 303576 | |||
| No information available, not orderable | ||||
| 608 | 303577 | |||
| No information available, not orderable | ||||
| 609 | 303579 | |||
| No information available, not orderable | ||||
| 610 | 303580 | |||
| No information available, not orderable | ||||
| 611 | 303581 | |||
