Here you will find all available parts and drawings of the 'Hikoki DH24PM'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

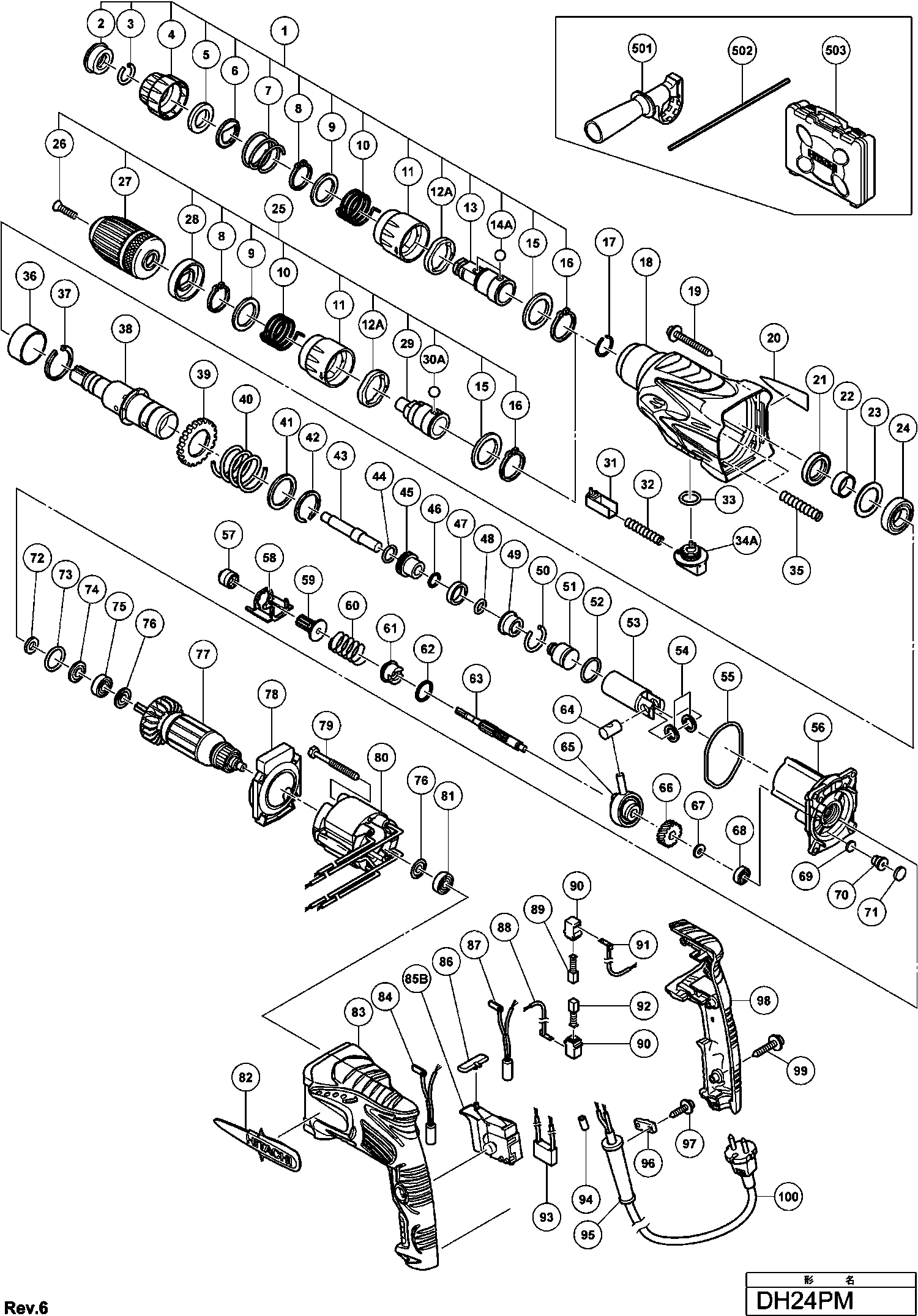

Technical drawing of model Hikoki DH24PM
Spare parts list of model Hikoki DH24PM
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Bit Holder Ass'y Includ.5-9,12,17-23 | ||||
| 1 | 326516 | 134.20 | 162.38 | |
| No information available, not orderable | ||||
| 2 | 306345 | |||
| Spring retaining ring | ||||
| 3 | 306340 | 1.35 | 1.63 | |
| Grip | ||||
| 4 | 324527 | 3.30 | 3.99 | |
| Ball Holder | ||||
| 5 | 324528 | 6.45 | 7.80 | |
| Holder Plate | ||||
| 6 | 324526 | 3.30 | 3.99 | |
| Spring | ||||
| 7 | 322812 | 1.65 | 2.00 | |
| Washer Spring | ||||
| 8 | 965469 | 1.05 | 1.27 | |
| Washer (b) | ||||
| 9 | 326520 | 6.45 | 7.80 | |
| Spring | ||||
| 10 | 326519 | 7.65 | 9.26 | |
| Grip | ||||
| 11 | 326387 | 4.80 | 5.81 | |
| Lock Ring | ||||
| 12A | 326801 | 32.18 | 38.93 | |
| Bit Holder | ||||
| 13 | 326517 | 87.59 | 105.98 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 14A | 335300 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 15 | 326518 | |||
| Retaining Ring (1) | ||||
| 16 | 962553 | 1.05 | 1.27 | |
| Washer Spring | ||||
| 17 | 306993 | 1.35 | 1.63 | |
| Gear Cover | ||||
| 18 | 324605 | 103.68 | 125.45 | |
| SCREW | ||||
| 19 | 301654 | 1.05 | 1.27 | |
| Oil Seal | ||||
| 21 | 307688 | 3.90 | 4.72 | |
| SLEEVE | ||||
| 22 | 322815 | 1.65 | 2.00 | |
| Felt Packing | ||||
| 23 | 323232 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 24 | 6904DD | |||
| Chuck Holder Ass'y Includ.2-10,12 | ||||
| 25 | 326271 | 116.74 | 141.25 | |
| No information available, not orderable | ||||
| 26 | 995344 | |||
| No information available, not orderable | ||||
| 27 | 322357 | |||
| Stopper | ||||
| 28 | 326527 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 29 | 326526 | |||
| Steel Ball D7.0 (10 Pcs.) | ||||
| 30A | 335300 | 1.04 | 1.26 | |
| Pushing Button | ||||
| 31 | 324530 | 1.65 | 2.00 | |
| Pushing Spring | ||||
| 32 | 317223 | 1.65 | 2.00 | |
| O-ring (s-18) | ||||
| 33 | 878885 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 34A | 333588 | |||
| Spring (b) | ||||
| 35 | 317238 | 1.65 | 2.00 | |
| BUS (A) | ||||
| 36 | 324522 | 3.30 | 3.99 | |
| Spring Washer 37MM | ||||
| 37 | 322813 | 1.65 | 2.00 | |
| Cylinder | ||||
| 38 | 326521 | 105.05 | 127.11 | |
| Second Gear | ||||
| 39 | 323185 | 20.21 | 24.46 | |
| Spring (a) | ||||
| 40 | 317233 | 7.35 | 8.89 | |
| Washer (a) | ||||
| 41 | 317234 | 3.30 | 3.99 | |
| Retaining Ring D30 | ||||
| 42 | 317235 | 1.65 | 2.00 | |
| Second Hammer | ||||
| 43 | 326522 | 20.49 | 24.79 | |
| O-ring (1ap-20) | ||||
| 44 | 944486 | 1.05 | 1.27 | |
| Hammer Holder | ||||
| 45 | 324523 | 11.55 | 13.98 | |
| O-ring (b) | ||||
| 46 | 322802 | 3.30 | 3.99 | |
| DEMPERRING (A) | ||||
| 47 | 322805 | 1.65 | 2.00 | |
| O-ring (c) | ||||
| 48 | 322808 | 1.65 | 2.00 | |
| Damper Holder | ||||
| 49 | 324524 | 6.45 | 7.80 | |
| STOPPER RING | ||||
| 50 | 322807 | 1.65 | 2.00 | |
| Striker | ||||
| 51 | 324535 | 10.20 | 12.34 | |
| O-ring | ||||
| 52 | 322834 | 3.30 | 3.99 | |
| Piston | ||||
| 53 | 324534 | 16.36 | 19.80 | |
| Washer (c) | ||||
| 54 | 322799 | 1.65 | 2.00 | |
| O-Ring | ||||
| 55 | 322793 | 3.30 | 3.99 | |
| Inner Cover Ass'y Includ.69-71 | ||||
| 56 | 324542 | 35.06 | 42.43 | |
| Pinion Sleeve | ||||
| 57 | 323249 | 46.75 | 56.57 | |
| Lock Plate | ||||
| 58 | 318522 | 21.73 | 26.29 | |
| Second Gear | ||||
| 59 | 323181 | 18.15 | 21.96 | |
| Clutch Spring | ||||
| 60 | 323182 | 1.65 | 2.00 | |
| Clutch | ||||
| 61 | 324606 | 14.03 | 16.97 | |
| Washer (d) | ||||
| 62 | 326524 | 1.65 | 2.00 | |
| Gear Shaft | ||||
| 63 | 323180 | 32.18 | 38.93 | |
| Piston Pin | ||||
| 64 | 322798 | 1.65 | 2.00 | |
| Reciprocating Bearing | ||||
| 65 | 324533 | 37.95 | 45.92 | |
| First Gear | ||||
| 66 | 322797 | 13.50 | 16.34 | |
| Spacer | ||||
| 67 | 322795 | 1.65 | 2.00 | |
| Ball Bearing 626vvc2ps2l | ||||
| 68 | 626VVM | 5.70 | 6.90 | |
| Felt Packing | ||||
| 69 | 324543 | 1.65 | 2.00 | |
| Valve | ||||
| 70 | 324545 | 1.65 | 2.00 | |
| Felt Packing | ||||
| 71 | 324544 | 1.65 | 2.00 | |
| Felt Packing | ||||
| 72 | 322816 | 1.65 | 2.00 | |
| O-ring (p-22) | ||||
| 73 | 876796 | 1.05 | 1.27 | |
| Packing Washer | ||||
| 74 | 322818 | 3.30 | 3.99 | |
| Ball Bearing 608dd | ||||
| 75 | 608DDM | 5.55 | 6.72 | |
| Washer (a) | ||||
| 76 | 982631 | 1.04 | 1.26 | |
| ANKER 110 -120 VOLT | ||||
| 77 | 360720U | 68.14 | 82.45 | |
| Armature 230v | ||||
| 77 | 360720E | 49.64 | 60.06 | |
| Fan Guide | ||||
| 78 | 324531 | 3.30 | 3.99 | |
| Hex. Hd. Tapping Screw D4x50 | ||||
| 79 | 961672 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 80 | 340635E | 61.33 | 74.20 | |
| VELD 110-120 VOLT | ||||
| 80 | 340635C | 57.26 | 69.28 | |
| Ball Bearing 608vvc2ps2l | ||||
| 81 | 608VVM | 5.70 | 6.90 | |
| Brand Plate | ||||
| 82 | 326523 | 7.65 | 9.26 | |
| Housing | ||||
| 83 | 324553 | 26.95 | 32.61 | |
| Choke Coil (a) Brown | ||||
| 84 | 324549 | 11.55 | 13.98 | |
| Switch | ||||
| 85B | 335796 | 17.05 | 20.63 | |
| Pushing Button | ||||
| 86 | 322853 | 1.05 | 1.27 | |
| Choke Coil (a) Blue | ||||
| 87 | 324551 | 11.55 | 13.98 | |
| Internal wire (a) (blue) | ||||
| 88 | 324538 | 4.35 | 5.26 | |
| Carbon Brush (1 Pair) | ||||
| 89 | 999041 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 90 | 955203 | 2.40 | 2.90 | |
| Wiring (a) Brown | ||||
| 91 | 324537 | 4.35 | 5.26 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 92 | 999072 | 14.40 | 17.42 | |
| Noise Suppressor | ||||
| 93 | 930039 | 1.95 | 2.36 | |
| Threaded cable sleeve | ||||
| 94 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 95 | 953327 | |||
| Cord Clip | ||||
| 96 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 97 | 984750 | |||
| Handle Cover | ||||
| 98 | 324554 | 14.03 | 16.97 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 99 | 301653 | 1.04 | 1.26 | |
| Cord (cord Armor D10.7) For Saf | ||||
| 100 | 500454Z | 15.54 | 18.80 | |
| No information available, not orderable | ||||
| 501 | 324548 | |||
| No information available, not orderable | ||||
| 502 | 310331 | |||
| No information available, not orderable | ||||
| 503 | 326525 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 601 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 602 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 603 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 604 | 306885 | |||
| No information available, not orderable | ||||
| 605 | 986802 | |||
| STOFVANGER | ||||
| 606 | 986803 | 6.54 | 7.91 | |
| Seal | ||||
| 607 | 986804 | 3.38 | 4.08 | |
| Retaining Ring For D30 Shaft | ||||
| 608 | 948310 | 1.35 | 1.63 | |
| RING | ||||
| 609 | 958063 | 1.00 | 1.21 | |
| Steel Ball D6.35 (10 pieces) | ||||
| 610 | 959150 | 1.35 | 1.63 | |
| OUTER RACE | ||||
| 611 | 986805 | 4.26 | 5.15 | |
| Socket | ||||
| 612 | 986806 | 5.10 | 6.17 | |
| Socket Adapter (b) | ||||
| 613 | 306910 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 614 | 971787 | |||
| No information available, not orderable | ||||
| 615 | 931844 | |||
| No information available, not orderable | ||||
| 616 | 321814 | |||
| No information available, not orderable | ||||
| 617 | 995344 | |||
| No information available, not orderable | ||||
| 618 | 321813 | |||
| No information available, not orderable | ||||
| 619 | 971511Z | |||
| No information available, not orderable | ||||
| 620 | 971512Z | |||
| No information available, not orderable | ||||
| 621 | 944477 | |||
| No information available, not orderable | ||||
| 622 | 982684 | |||
| No information available, not orderable | ||||
| 623 | 982685 | |||
| No information available, not orderable | ||||
| 624 | 982672 | |||
| No information available, not orderable | ||||
| 625 | 982673 | |||
| No information available, not orderable | ||||
| 626 | 982674 | |||
| No information available, not orderable | ||||
| 627 | 982686 | |||
| No information available, not orderable | ||||
| 628 | 982675 | |||
| No information available, not orderable | ||||
| 629 | 982687 | |||
| No information available, not orderable | ||||
| 630 | 982676 | |||
| No information available, not orderable | ||||
| 631 | 982688 | |||
| No information available, not orderable | ||||
| 632 | 982677 | |||
| No information available, not orderable | ||||
| 633 | 982689 | |||
| No information available, not orderable | ||||
| 634 | 982678 | |||
| No information available, not orderable | ||||
| 635 | 982690 | |||
| No information available, not orderable | ||||
| 636 | 971794 | |||
| No information available, not orderable | ||||
| 637 | 971795 | |||
| No information available, not orderable | ||||
| 638 | 971796 | |||
| No information available, not orderable | ||||
| 639 | 971797 | |||
| No information available, not orderable | ||||
| 640 | 971798 | |||
| No information available, not orderable | ||||
| 641 | 971799 | |||
| No information available, not orderable | ||||
| 642 | 971800 | |||
| No information available, not orderable | ||||
| 643 | 971801 | |||
| No information available, not orderable | ||||
| 644 | 971802 | |||
| No information available, not orderable | ||||
| 645 | 971803 | |||
| No information available, not orderable | ||||
| 646 | 944460 | |||
| No information available, not orderable | ||||
| 647 | 944461 | |||
| No information available, not orderable | ||||
| 648 | 993038 | |||
| No information available, not orderable | ||||
| 650 | 944500 | |||
| No information available, not orderable | ||||
| 652 | 944464 | |||
| No information available, not orderable | ||||
| 653 | 320859 | |||
| Service Kit (dh 24pb3,etc.) Includ.33,44,46-48,53 | ||||
| 654 | 326305 | 52.53 | 63.56 | |
| No information available, not orderable | ||||
| 655 | 303046 | |||
| No information available, not orderable | ||||
| 656 | 303044 | |||
| No information available, not orderable | ||||
| 657 | 303045 | |||
| No information available, not orderable | ||||
| 658 | 930515 | |||
| No information available, not orderable | ||||
| 659 | 302976 | |||
| No information available, not orderable | ||||
| 660 | 302975 | |||
| No information available, not orderable | ||||
| 661 | 303621 | |||
| No information available, not orderable | ||||
| 662 | 302974 | |||
| No information available, not orderable | ||||
| 663 | 302979 | |||
| No information available, not orderable | ||||
| 664 | 302978 | |||
| No information available, not orderable | ||||
| 665 | 303622 | |||
| No information available, not orderable | ||||
| 666 | 302977 | |||
| No information available, not orderable | ||||
| 667 | 303332 | |||
| No information available, not orderable | ||||
| 668 | 303334 | |||
| No information available, not orderable | ||||
| 669 | 303335 | |||
| No information available, not orderable | ||||
| 670 | 303617 | |||
| No information available, not orderable | ||||
| 671 | 303618 | |||
| No information available, not orderable | ||||
| 672 | 303619 | |||
| No information available, not orderable | ||||
| 673 | 303620 | |||
| Special Screw M6x22 | ||||
| 674 | 981122 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 675 | 303625 | |||
| No information available, not orderable | ||||
| 676 | 303626 | |||
| No information available, not orderable | ||||
| 677 | 303627 | |||
| No information available, not orderable | ||||
| 678 | 303624 | |||
| No information available, not orderable | ||||
| 679 | 321825 | |||
| No information available, not orderable | ||||
| 680 | 303623 | |||
| No information available, not orderable | ||||
| 683 | 306370 | |||
