Here you will find all available parts and drawings of the 'Hikoki DH24PH'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

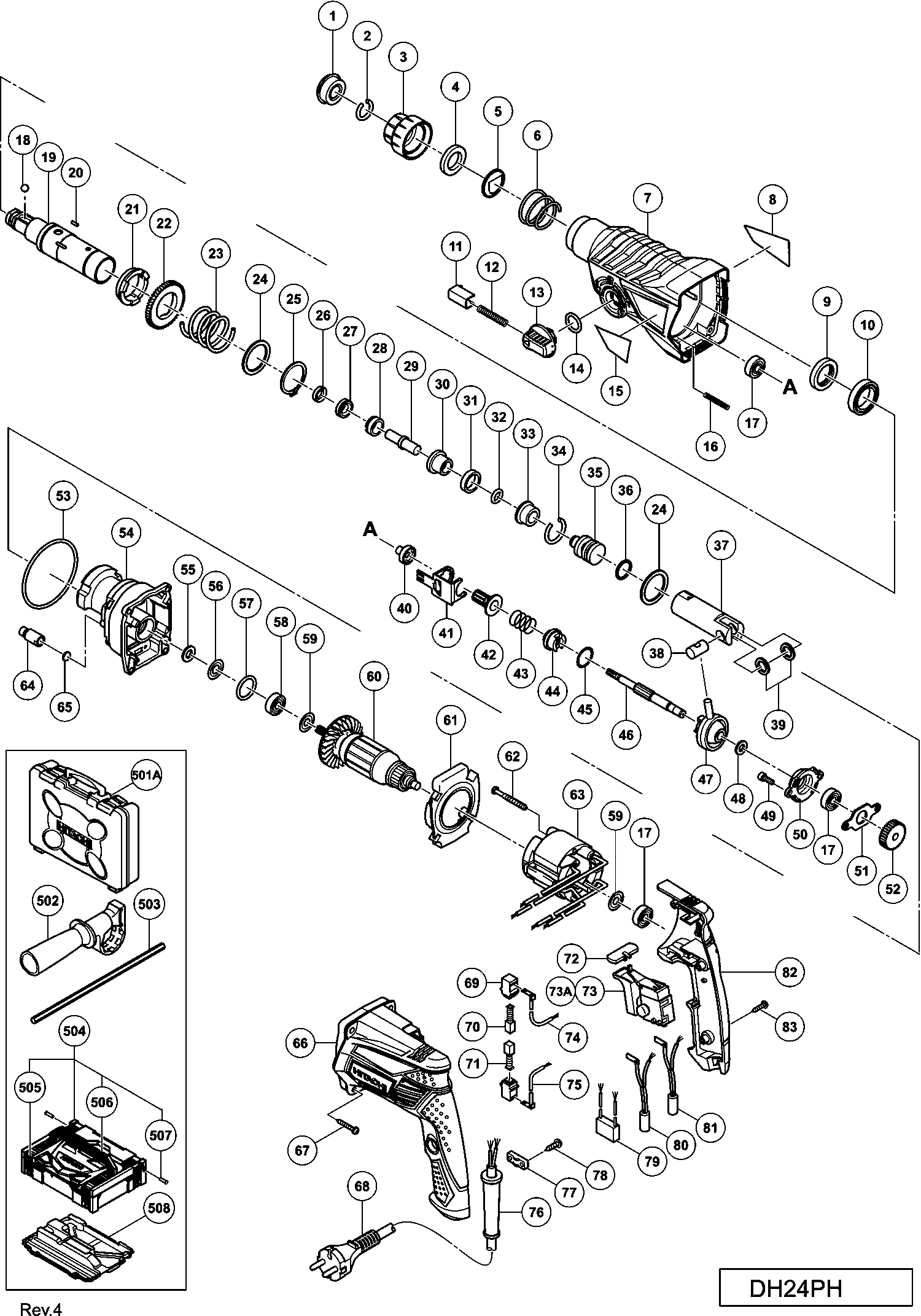

Technical drawing of model Hikoki DH24PH
Spare parts list of model Hikoki DH24PH
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *503 | 310331 | |||
| Armature 230v | ||||
| *60 | 360962E | 24.34 | 29.45 | |
| ARMATURE 110 VOLT | ||||
| *60 | 360962C | 22.72 | 27.49 | |
| Stator 220v-230v | ||||
| *63 | 340866E | 20.76 | 25.12 | |
| FIELD 110 VOLT | ||||
| *63 | 340866C | 19.69 | 23.82 | |
| Cord | ||||
| *68 | 930051 | 14.30 | 17.30 | |
| Cord (cord Armor D8.8) For Mex | ||||
| *68 | 500240Z | 13.18 | 15.94 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| *68 | 500247Z | 6.18 | 7.48 | |
| SWITCH 110-127 VOLT | ||||
| *73A | 337388 | 18.10 | 21.90 | |
| Wiring (a) Brown | ||||
| *74 | 324537 | 4.35 | 5.26 | |
| Internal wire (a) (blue) | ||||
| *75 | 324538 | 4.35 | 5.26 | |
| Cord Armor D10.1 | ||||
| *76 | 938051 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| *79 | 930039 | 1.95 | 2.36 | |
| Choke Coil (a) Brown | ||||
| *80 | 335857 | 1.95 | 2.36 | |
| Choke Coil (a) Blue | ||||
| *81 | 324551 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 1 | 306345 | |||
| Spring retaining ring | ||||
| 2 | 306340 | 1.35 | 1.63 | |
| Grip | ||||
| 3 | 324527 | 3.30 | 3.99 | |
| Ball Holder | ||||
| 4 | 324528 | 6.45 | 7.80 | |
| Holder Plate | ||||
| 5 | 324526 | 3.30 | 3.99 | |
| Spring | ||||
| 6 | 322812 | 1.65 | 2.00 | |
| Gear-box cover | ||||
| 7 | 335274 | 19.80 | 23.96 | |
| Gear-box cover | ||||
| 7A | 335274 | 19.80 | 23.96 | |
| Oil Seal | ||||
| 9 | 335259 | 2.85 | 3.45 | |
| Ball Bearing 6805dd | ||||
| 10 | 335260 | 3.30 | 3.99 | |
| Pushing Button | ||||
| 11 | 322789 | 4.80 | 5.81 | |
| Pushing Spring | ||||
| 12 | 317223 | 1.65 | 2.00 | |
| Change Lever | ||||
| 13 | 334011 | 2.10 | 2.54 | |
| O-ring (s-18) | ||||
| 14 | 878885 | 1.05 | 1.27 | |
| Spring (e) | ||||
| 16 | 335800 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 17 | 608VVM | 5.70 | 6.90 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 18 | 335300 | 1.04 | 1.26 | |
| Cylinder | ||||
| 19 | 335261 | 22.28 | 26.95 | |
| PIN D2.5 | ||||
| 20 | 335264 | 1.04 | 1.26 | |
| Cylinder Clutch | ||||
| 21 | 335263 | 12.45 | 15.06 | |
| Second Gear | ||||
| 22 | 335265 | 6.15 | 7.44 | |
| Spring (a) | ||||
| 23 | 335266 | 1.50 | 1.82 | |
| Ring | ||||
| 24 | 301679 | 1.20 | 1.45 | |
| Retaining Ring For D30 Shaft | ||||
| 25 | 948310 | 1.35 | 1.63 | |
| Oil Seal (A) | ||||
| 26 | 335262 | 1.80 | 2.18 | |
| Hammer Holder (c) | ||||
| 27 | 335268 | 9.60 | 11.62 | |
| Sleeve (fw) | ||||
| 28 | 335795 | 4.20 | 5.08 | |
| Second Hammer | ||||
| 29 | 335269 | 3.90 | 4.72 | |
| Hammer Holder (a) | ||||
| 30 | 335267 | 3.00 | 3.63 | |
| DEMPERRING (A) | ||||
| 31 | 322805 | 1.65 | 2.00 | |
| O-ring (c) | ||||
| 32 | 322808 | 1.65 | 2.00 | |
| Damper Holder | ||||
| 33 | 324524 | 6.45 | 7.80 | |
| STOPPER RING | ||||
| 34 | 322807 | 1.65 | 2.00 | |
| Striker | ||||
| 35 | 335246 | 4.20 | 5.08 | |
| O-ring D17 | ||||
| 36 | 335247 | 2.55 | 3.09 | |
| Piston | ||||
| 37 | 335255 | 1.04 | 1.26 | |
| Piston Pin | ||||
| 38 | 335793 | 3.15 | 3.81 | |
| Piston Washer | ||||
| 39 | 335794 | 1.20 | 1.45 | |
| Pinion Sleeve | ||||
| 40 | 335275 | 3.00 | 3.63 | |
| Bearing Cover (1) | ||||
| 41 | 335276 | 11.10 | 13.43 | |
| Second Gear | ||||
| 42 | 335278 | 7.20 | 8.71 | |
| Clutch Spring | ||||
| 43 | 323182 | 1.65 | 2.00 | |
| Clutch | ||||
| 44 | 335254 | 3.90 | 4.72 | |
| Ring | ||||
| 45 | 331315 | 1.05 | 1.27 | |
| Second Shaft | ||||
| 46 | 335277 | 6.60 | 7.99 | |
| Reciprocating Bearing | ||||
| 47 | 335249 | 13.65 | 16.52 | |
| Bearing Washer | ||||
| 48 | 335250 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 49 | 990079 | 1.05 | 1.27 | |
| Bearing Holder | ||||
| 50 | 335270 | 11.40 | 13.79 | |
| Bearing Cover (1) | ||||
| 51 | 335271 | 1.04 | 1.26 | |
| First Gear | ||||
| 52 | 335253 | 6.75 | 8.17 | |
| O-ring D72.2 | ||||
| 53 | 335245 | 1.20 | 1.45 | |
| Inner Cover | ||||
| 54 | 335272 | 9.90 | 11.98 | |
| Felt Packing | ||||
| 55 | 322816 | 1.65 | 2.00 | |
| Packing Washer | ||||
| 56 | 322818 | 3.30 | 3.99 | |
| O-ring (p-22) | ||||
| 57 | 876796 | 1.05 | 1.27 | |
| Ball Bearing 608dd | ||||
| 58 | 608DDM | 5.55 | 6.72 | |
| Washer (a) | ||||
| 59 | 982631 | 1.04 | 1.26 | |
| Armature 230v | ||||
| 60 | 360962E | 24.34 | 29.45 | |
| ARMATURE 110 VOLT | ||||
| 60 | 360962C | 22.72 | 27.49 | |
| Fan Guide | ||||
| 61 | 335244 | 1.04 | 1.26 | |
| Hex. Hd. Tapping Screw D4x45 | ||||
| 62 | 981824 | 1.05 | 1.27 | |
| Stator 220v-230v | ||||
| 63 | 340866E | 20.76 | 25.12 | |
| FIELD 110 VOLT | ||||
| 63 | 340866C | 19.69 | 23.82 | |
| Air Cap | ||||
| 64 | 334008 | 1.20 | 1.45 | |
| Felt Packing | ||||
| 65 | 324543 | 1.65 | 2.00 | |
| Housing | ||||
| 66 | 335660 | 7.50 | 9.08 | |
| Housing | ||||
| 66A | 335660 | 7.50 | 9.08 | |
| SCREW | ||||
| 67 | 301654 | 1.05 | 1.27 | |
| Cord | ||||
| 68 | 930051 | 14.30 | 17.30 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 68 | 500240Z | 13.18 | 15.94 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| 68 | 500247Z | 6.18 | 7.48 | |
| Brush Holder | ||||
| 69 | 955203 | 2.40 | 2.90 | |
| Carbon Brush (1 Pair) | ||||
| 70 | 999041 | 4.50 | 5.44 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 71 | 999072 | 14.40 | 17.42 | |
| Pushing Button | ||||
| 72 | 322853 | 1.05 | 1.27 | |
| Switch | ||||
| 73 | 335796 | 17.05 | 20.63 | |
| SWITCH 110-127 VOLT | ||||
| 73A | 337388 | 18.10 | 21.90 | |
| Wiring (a) Brown | ||||
| 74 | 324537 | 4.35 | 5.26 | |
| Internal wire (a) (blue) | ||||
| 75 | 324538 | 4.35 | 5.26 | |
| Cord Armor D10.1 | ||||
| 76 | 938051 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 77 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 78 | 984750 | |||
| Noise Suppressor | ||||
| 79 | 930039 | 1.95 | 2.36 | |
| Choke Coil (a) Brown | ||||
| 80 | 335857 | 1.95 | 2.36 | |
| Choke Coil (a) Blue | ||||
| 81 | 324551 | 11.55 | 13.98 | |
| Handle Cover | ||||
| 82 | 335661 | 3.45 | 4.17 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 83 | 301653 | 1.04 | 1.26 | |
| GRIP ASS'Y | ||||
| 85 | 375172 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 501A | 337257 | |||
| No information available, not orderable | ||||
| 502 | 324548 | |||
| No information available, not orderable | ||||
| 503 | 310331 | |||
| No information available, not orderable | ||||
| 504 | 337739 | |||
| No information available, not orderable | ||||
| 505 | 336472 | |||
| No information available, not orderable | ||||
| 506 | 336473 | |||
| No information available, not orderable | ||||
| 507 | 336474 | |||
| No information available, not orderable | ||||
| 508 | 337741 | |||
| No information available, not orderable | ||||
| 601 | 306885 | |||
| No information available, not orderable | ||||
| 602 | 986802 | |||
| Dust collector | ||||
| 603 | 986803 | 6.54 | 7.91 | |
| Seal | ||||
| 604 | 986804 | 3.38 | 4.08 | |
| Retaining Ring For D30 Shaft | ||||
| 605 | 948310 | 1.35 | 1.63 | |
| RING | ||||
| 606 | 958063 | 1.00 | 1.21 | |
| Steel Ball D6.35 (10 pieces) | ||||
| 607 | 959150 | 1.35 | 1.63 | |
| Outer race | ||||
| 608 | 986805 | 4.26 | 5.15 | |
| Socket | ||||
| 609 | 986806 | 5.10 | 6.17 | |
| Socket Adapter (b) | ||||
| 610 | 306910 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 611 | 971787 | |||
| No information available, not orderable | ||||
| 612 | 931844 | |||
| No information available, not orderable | ||||
| 613 | 321814 | |||
| Flat Hd. Screw (left Hand) M6x20 | ||||
| 614 | 331966 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| 615 | 321813 | |||
| No information available, not orderable | ||||
| 616 | 971511Z | |||
| No information available, not orderable | ||||
| 617 | 971512Z | |||
| No information available, not orderable | ||||
| 618 | 944477 | |||
| No information available, not orderable | ||||
| 619 | 982684 | |||
| No information available, not orderable | ||||
| 620 | 982685 | |||
| No information available, not orderable | ||||
| 621 | 982672 | |||
| No information available, not orderable | ||||
| 622 | 982673 | |||
| No information available, not orderable | ||||
| 623 | 982674 | |||
| No information available, not orderable | ||||
| 624 | 982686 | |||
| No information available, not orderable | ||||
| 625 | 982675 | |||
| No information available, not orderable | ||||
| 626 | 982687 | |||
| No information available, not orderable | ||||
| 627 | 982676 | |||
| No information available, not orderable | ||||
| 628 | 982688 | |||
| No information available, not orderable | ||||
| 629 | 982677 | |||
| No information available, not orderable | ||||
| 630 | 982689 | |||
| No information available, not orderable | ||||
| 631 | 982678 | |||
| No information available, not orderable | ||||
| 632 | 982690 | |||
| No information available, not orderable | ||||
| 633 | 971794 | |||
| No information available, not orderable | ||||
| 634 | 971795 | |||
| No information available, not orderable | ||||
| 635 | 971796 | |||
| No information available, not orderable | ||||
| 636 | 971797 | |||
| No information available, not orderable | ||||
| 637 | 971798 | |||
| No information available, not orderable | ||||
| 638 | 971799 | |||
| No information available, not orderable | ||||
| 639 | 971800 | |||
| No information available, not orderable | ||||
| 640 | 971801 | |||
| No information available, not orderable | ||||
| 641 | 971802 | |||
| No information available, not orderable | ||||
| 642 | 971803 | |||
| No information available, not orderable | ||||
| 643 | 944460 | |||
| No information available, not orderable | ||||
| 644 | 944461 | |||
| No information available, not orderable | ||||
| 645 | 993038 | |||
| No information available, not orderable | ||||
| 647 | 944500 | |||
| No information available, not orderable | ||||
| 649 | 944464 | |||
| No information available, not orderable | ||||
| 650 | 320859 | |||
| No information available, not orderable | ||||
| 651 | 303046 | |||
| No information available, not orderable | ||||
| 652 | 303044 | |||
| No information available, not orderable | ||||
| 653 | 303045 | |||
| Special Screw M6x22 | ||||
| 654 | 981122 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 655 | 930515 | |||
| No information available, not orderable | ||||
| 656 | 302976 | |||
| No information available, not orderable | ||||
| 657 | 302975 | |||
| No information available, not orderable | ||||
| 658 | 303621 | |||
| No information available, not orderable | ||||
| 659 | 302974 | |||
| No information available, not orderable | ||||
| 660 | 302979 | |||
| No information available, not orderable | ||||
| 661 | 302978 | |||
| No information available, not orderable | ||||
| 662 | 303622 | |||
| No information available, not orderable | ||||
| 663 | 302977 | |||
| No information available, not orderable | ||||
| 664 | 303332 | |||
| No information available, not orderable | ||||
| 665 | 303334 | |||
| No information available, not orderable | ||||
| 666 | 303335 | |||
| No information available, not orderable | ||||
| 667 | 303617 | |||
| No information available, not orderable | ||||
| 668 | 303618 | |||
| No information available, not orderable | ||||
| 669 | 303619 | |||
| No information available, not orderable | ||||
| 670 | 303620 | |||
| No information available, not orderable | ||||
| 671 | 303625 | |||
| No information available, not orderable | ||||
| 672 | 303626 | |||
| No information available, not orderable | ||||
| 673 | 303627 | |||
| No information available, not orderable | ||||
| 674 | 303624 | |||
| No information available, not orderable | ||||
| 675 | 321825 | |||
| No information available, not orderable | ||||
| 676 | 303623 | |||
| No information available, not orderable | ||||
| 677 | 306370 | |||
| Grease For Rotary Hammer (500g) | ||||
| 678 | 335781 | 67.24 | 81.36 | |
| Grease For Rotary Hammer (60g) | ||||
| 679 | 335782 | 13.50 | 16.34 | |
