Here you will find all available parts and drawings of the 'Hikoki DH24PD3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

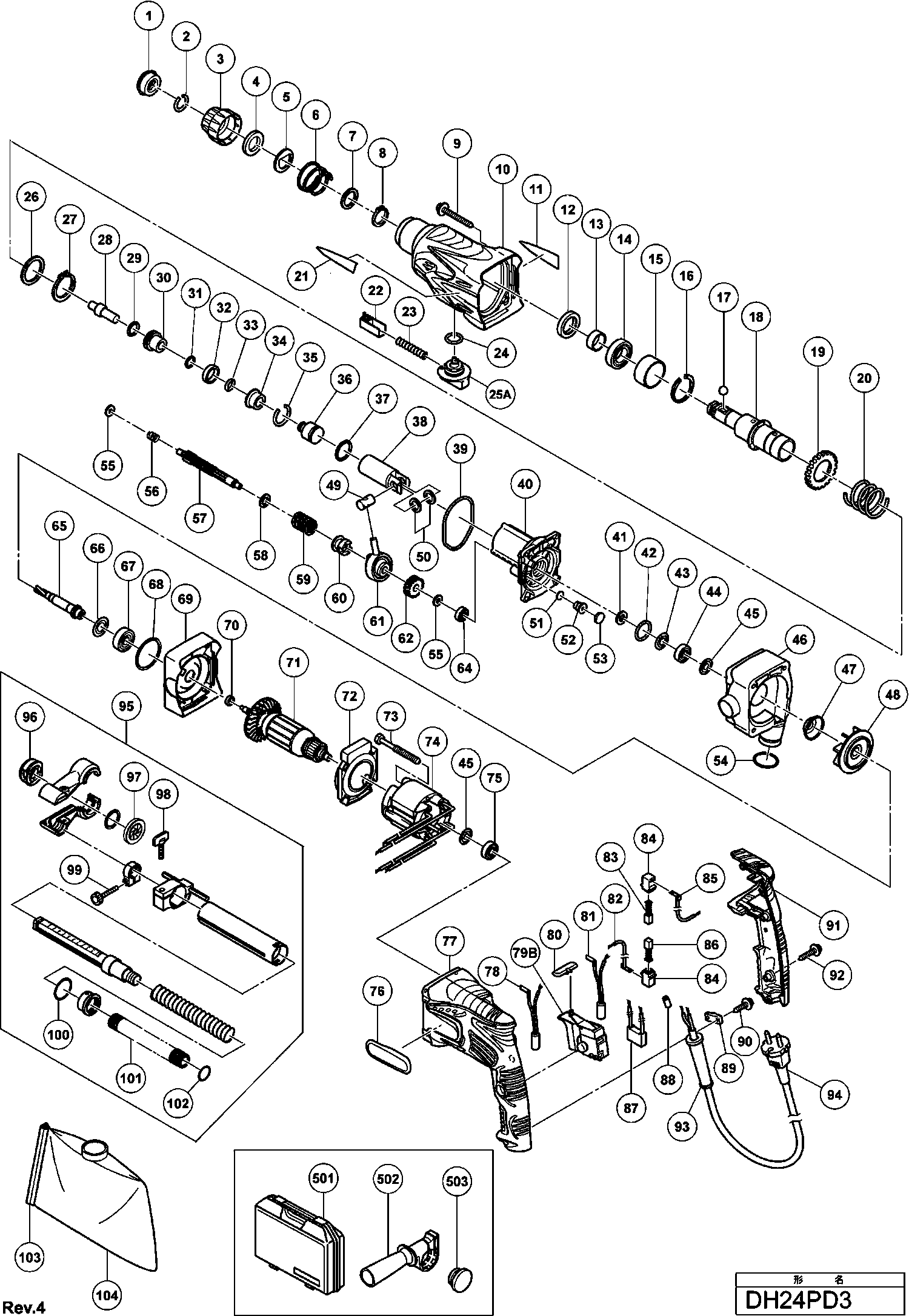

Technical drawing of model Hikoki DH24PD3
Spare parts list of model Hikoki DH24PD3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ANKER 120 VOLT | ||||
| *71 | 360746U | 92.81 | 112.30 | |
| Armature 230v | ||||
| *71 | 360746E | 82.23 | 99.49 | |
| Stator 220v-230v | ||||
| *74 | 340635E | 61.33 | 74.20 | |
| FIELD 110-120 VOLT | ||||
| *74 | 340635C | 57.26 | 69.28 | |
| Cord Armor D10.1 | ||||
| *93 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *94 | 500390Z | |||
| No information available, not orderable | ||||
| 1 | 306345 | |||
| Spring retaining ring | ||||
| 2 | 306340 | 1.35 | 1.63 | |
| Grip | ||||
| 3 | 324527 | 3.30 | 3.99 | |
| Ball Holder | ||||
| 4 | 324528 | 6.45 | 7.80 | |
| Holder Plate | ||||
| 5 | 324526 | 3.30 | 3.99 | |
| Spring | ||||
| 6 | 322812 | 1.65 | 2.00 | |
| Washer (b) | ||||
| 7 | 984118 | 1.05 | 1.27 | |
| Retaining Ring D20 (10 Pcs.) | ||||
| 8 | 939547 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| 9 | 302210 | |||
| Gear Cover | ||||
| 10 | 324546 | 73.01 | 88.35 | |
| Oil Seal | ||||
| 12 | 307688 | 3.90 | 4.72 | |
| SLEEVE | ||||
| 13 | 322815 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 14 | 6904DD | |||
| BUS (A) | ||||
| 15 | 324522 | 3.30 | 3.99 | |
| Spring Washer 37MM | ||||
| 16 | 322813 | 1.65 | 2.00 | |
| Retaining Ring For D30 Shaft | ||||
| 16 | 948310 | 1.35 | 1.63 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 17 | 959156 | 1.65 | 2.00 | |
| Cylinder | ||||
| 18 | 322814 | 73.01 | 88.35 | |
| Second Gear | ||||
| 19 | 301677 | 23.38 | 28.28 | |
| Spring | ||||
| 20 | 301678 | 3.30 | 3.99 | |
| Pushing Button | ||||
| 22 | 324530 | 1.65 | 2.00 | |
| Pushing Spring | ||||
| 23 | 317223 | 1.65 | 2.00 | |
| O-ring (s-18) | ||||
| 24 | 878885 | 1.05 | 1.27 | |
| Change Lever | ||||
| 25A | 322787 | 6.45 | 7.80 | |
| Ring | ||||
| 26 | 301679 | 1.20 | 1.45 | |
| Spring Washer 37MM | ||||
| 27 | 322813 | 1.65 | 2.00 | |
| Retaining Ring For D30 Shaft | ||||
| 27 | 948310 | 1.35 | 1.63 | |
| Second Hammer | ||||
| 28 | 324525 | 6.45 | 7.80 | |
| O-ring (1ap-20) | ||||
| 29 | 944486 | 1.05 | 1.27 | |
| Damper Holder | ||||
| 30 | 324524 | 6.45 | 7.80 | |
| O-ring (b) | ||||
| 31 | 322802 | 3.30 | 3.99 | |
| DEMPERRING (A) | ||||
| 32 | 322805 | 1.65 | 2.00 | |
| O-ring (c) | ||||
| 33 | 322808 | 1.65 | 2.00 | |
| Hammer Holder | ||||
| 34 | 324523 | 11.55 | 13.98 | |
| STOPPER RING | ||||
| 35 | 322807 | 1.65 | 2.00 | |
| Striker | ||||
| 36 | 324535 | 10.20 | 12.34 | |
| O-ring | ||||
| 37 | 322834 | 3.30 | 3.99 | |
| Piston | ||||
| 38 | 324534 | 16.36 | 19.80 | |
| O-Ring | ||||
| 39 | 322793 | 3.30 | 3.99 | |
| Inner Cover Ass'y Includ.69-71 | ||||
| 40 | 324542 | 35.06 | 42.43 | |
| Felt Packing | ||||
| 41 | 322816 | 1.65 | 2.00 | |
| O-ring (p-22) | ||||
| 42 | 876796 | 1.05 | 1.27 | |
| Packing Washer | ||||
| 43 | 322818 | 3.30 | 3.99 | |
| Ball Bearing 608dd | ||||
| 44 | 608DDM | 5.55 | 6.72 | |
| Washer (a) | ||||
| 45 | 982631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 46 | 325152 | |||
| Seal Plate | ||||
| 47 | 302113 | 1.95 | 2.36 | |
| Dust Fan | ||||
| 48 | 302111 | 8.70 | 10.53 | |
| Piston Pin | ||||
| 49 | 322798 | 1.65 | 2.00 | |
| Washer (c) | ||||
| 50 | 322799 | 1.65 | 2.00 | |
| Felt Packing | ||||
| 51 | 324543 | 1.65 | 2.00 | |
| Valve | ||||
| 52 | 324545 | 1.65 | 2.00 | |
| Felt Packing | ||||
| 53 | 324544 | 1.65 | 2.00 | |
| O-ring Dh22vd/dh24pd/vd | ||||
| 54 | 302371 | 1.05 | 1.27 | |
| Spacer | ||||
| 55 | 322795 | 1.65 | 2.00 | |
| Spring (b) | ||||
| 56 | 322796 | 3.30 | 3.99 | |
| Gear Shaft | ||||
| 57 | 322794 | 18.70 | 22.63 | |
| Washer | ||||
| 58 | 301659 | 1.04 | 1.26 | |
| Clutch Spring | ||||
| 59 | 301660 | 1.04 | 1.26 | |
| Clutch | ||||
| 60 | 324532 | 11.55 | 13.98 | |
| Reciprocating Bearing | ||||
| 61 | 324533 | 37.95 | 45.92 | |
| First Gear | ||||
| 62 | 322797 | 13.50 | 16.34 | |
| Ball Bearing 626vvc2ps2l | ||||
| 64 | 626VVM | 5.70 | 6.90 | |
| Spindle Ass'y | ||||
| 65 | 323176 | 69.03 | 83.52 | |
| Dust Ring | ||||
| 66 | 993052 | 1.05 | 1.27 | |
| Ball Bearing 6001dducmps2s (old 980925) | ||||
| 67 | 6001DD | 6.45 | 7.80 | |
| Felt Washer | ||||
| 68 | 302372 | 1.05 | 1.27 | |
| Casing (a) | ||||
| 69 | 325153 | 9.90 | 11.98 | |
| Rubber Sleeve | ||||
| 70 | 302114 | 1.95 | 2.36 | |
| ANKER 120 VOLT | ||||
| 71 | 360746U | 92.81 | 112.30 | |
| Armature 230v | ||||
| 71 | 360746E | 82.23 | 99.49 | |
| Fan Guide | ||||
| 72 | 324531 | 3.30 | 3.99 | |
| Hex. Hd. Tapping Screw D4x50 | ||||
| 73 | 961672 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 74 | 340635E | 61.33 | 74.20 | |
| FIELD 110-120 VOLT | ||||
| 74 | 340635C | 57.26 | 69.28 | |
| Ball Bearing 608vvc2ps2l | ||||
| 75 | 608VVM | 5.70 | 6.90 | |
| No longer available, no replacement | ||||
| 76 | 325154 | |||
| Housing | ||||
| 77 | 324553 | 26.95 | 32.61 | |
| Choke Coil (a) Brown | ||||
| 78 | 324549 | 11.55 | 13.98 | |
| Switch | ||||
| 79B | 335796 | 17.05 | 20.63 | |
| Pushing Button | ||||
| 80 | 322853 | 1.05 | 1.27 | |
| Choke Coil (a) Blue | ||||
| 81 | 324551 | 11.55 | 13.98 | |
| Internal wire (a) (blue) | ||||
| 82 | 324538 | 4.35 | 5.26 | |
| Carbon Brush (1 Pair) | ||||
| 83 | 999041 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 84 | 955203 | 2.40 | 2.90 | |
| Wiring (a) Brown | ||||
| 85 | 324537 | 4.35 | 5.26 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 86 | 999072 | 14.40 | 17.42 | |
| Noise Suppressor | ||||
| 87 | 930039 | 1.95 | 2.36 | |
| Threaded cable sleeve | ||||
| 88 | 981373 | 1.05 | 1.27 | |
| Cord Clip | ||||
| 89 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 90 | 984750 | |||
| Handle Cover | ||||
| 91 | 324554 | 14.03 | 16.97 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 92 | 301653 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 93 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 94 | 500390Z | |||
| No information available, not orderable | ||||
| 95 | 302074 | |||
| Nozzle Seal | ||||
| 96 | 302077 | 6.75 | 8.17 | |
| Rubber Cap | ||||
| 97 | 302075 | 2.55 | 3.09 | |
| Wing Bolt M6x27 | ||||
| 98 | 301801 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 99 | 303159 | |||
| O-RING (S-26) | ||||
| 100 | 872470 | 1.65 | 2.00 | |
| O-RING | ||||
| 100A | 378089 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| 101 | 302076 | |||
| O-ring (p-16) | ||||
| 102 | 873095 | 1.04 | 1.26 | |
| O-RING | ||||
| 102A | 378090 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 103 | 302386 | |||
| No information available, not orderable | ||||
| 104 | 302048 | |||
| No information available, not orderable | ||||
| 501 | 325099 | |||
| No information available, not orderable | ||||
| 502 | 324548 | |||
| No information available, not orderable | ||||
| 503 | 302374 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 601 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 602 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 603 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 604 | 306885 | |||
| Socket Adapter (b) | ||||
| 605 | 306910 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 606 | 303625 | |||
| No information available, not orderable | ||||
| 607 | 303626 | |||
| No information available, not orderable | ||||
| 608 | 303627 | |||
| No information available, not orderable | ||||
| 609 | 303624 | |||
| No information available, not orderable | ||||
| 610 | 321825 | |||
| No information available, not orderable | ||||
| 611 | 303623 | |||
| No information available, not orderable | ||||
| 614 | 306370 | |||
| No information available, not orderable | ||||
| 615 | 931844 | |||
| No information available, not orderable | ||||
| 616 | 321814 | |||
| No information available, not orderable | ||||
| 617 | 995344 | |||
| No information available, not orderable | ||||
| 618 | 321813 | |||
| No information available, not orderable | ||||
| 619 | 971511Z | |||
| No information available, not orderable | ||||
| 620 | 971512Z | |||
| No information available, not orderable | ||||
| 621 | 944477 | |||
| No information available, not orderable | ||||
| 622 | 982684 | |||
| No information available, not orderable | ||||
| 623 | 982685 | |||
| No information available, not orderable | ||||
| 624 | 982672 | |||
| No information available, not orderable | ||||
| 625 | 982673 | |||
| No information available, not orderable | ||||
| 626 | 982674 | |||
| No information available, not orderable | ||||
| 627 | 982686 | |||
| No information available, not orderable | ||||
| 628 | 982675 | |||
| No information available, not orderable | ||||
| 629 | 982687 | |||
| No information available, not orderable | ||||
| 630 | 982676 | |||
| No information available, not orderable | ||||
| 631 | 982688 | |||
| No information available, not orderable | ||||
| 632 | 982677 | |||
| No information available, not orderable | ||||
| 633 | 982689 | |||
| No information available, not orderable | ||||
| 634 | 982678 | |||
| No information available, not orderable | ||||
| 635 | 982690 | |||
| No information available, not orderable | ||||
| 636 | 971794 | |||
| No information available, not orderable | ||||
| 637 | 971795 | |||
| No information available, not orderable | ||||
| 638 | 971796 | |||
| No information available, not orderable | ||||
| 639 | 971797 | |||
| No information available, not orderable | ||||
| 640 | 971798 | |||
| No information available, not orderable | ||||
| 641 | 971799 | |||
| No information available, not orderable | ||||
| 642 | 971800 | |||
| No information available, not orderable | ||||
| 643 | 971801 | |||
| No information available, not orderable | ||||
| 644 | 971802 | |||
| No information available, not orderable | ||||
| 645 | 971803 | |||
| No information available, not orderable | ||||
| 646 | 944460 | |||
| No information available, not orderable | ||||
| 647 | 944461 | |||
| No information available, not orderable | ||||
| 648 | 993038 | |||
| No information available, not orderable | ||||
| 650 | 944500 | |||
| No information available, not orderable | ||||
| 652 | 944464 | |||
| No information available, not orderable | ||||
| 653 | 320859 | |||
| No information available, not orderable | ||||
| 654 | 303046 | |||
| No information available, not orderable | ||||
| 655 | 303044 | |||
| No information available, not orderable | ||||
| 656 | 303045 | |||
| No information available, not orderable | ||||
| 657 | 303334 | |||
| No information available, not orderable | ||||
| 658 | 302976 | |||
| No information available, not orderable | ||||
| 659 | 930515 | |||
| No information available, not orderable | ||||
| 660 | 302975 | |||
| No information available, not orderable | ||||
| 661 | 303621 | |||
| No information available, not orderable | ||||
| 662 | 302974 | |||
| No information available, not orderable | ||||
| 663 | 302979 | |||
| No information available, not orderable | ||||
| 664 | 302978 | |||
| No information available, not orderable | ||||
| 665 | 303622 | |||
| No information available, not orderable | ||||
| 666 | 302977 | |||
| No information available, not orderable | ||||
| 667 | 303332 | |||
| No information available, not orderable | ||||
| 668 | 303334 | |||
| No information available, not orderable | ||||
| 669 | 303335 | |||
| No information available, not orderable | ||||
| 670 | 303617 | |||
| No information available, not orderable | ||||
| 671 | 303618 | |||
| No information available, not orderable | ||||
| 672 | 303619 | |||
| No information available, not orderable | ||||
| 673 | 303620 | |||
| Special Screw M6x22 | ||||
| 674 | 981122 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 675 | 971787 | |||
| Service Kit (dh 24pb3,etc.) Includ.33,44,46-48,53 | ||||
| 676 | 326305 | 52.53 | 63.56 | |
