Here you will find all available parts and drawings of the 'Hikoki DH24PB3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

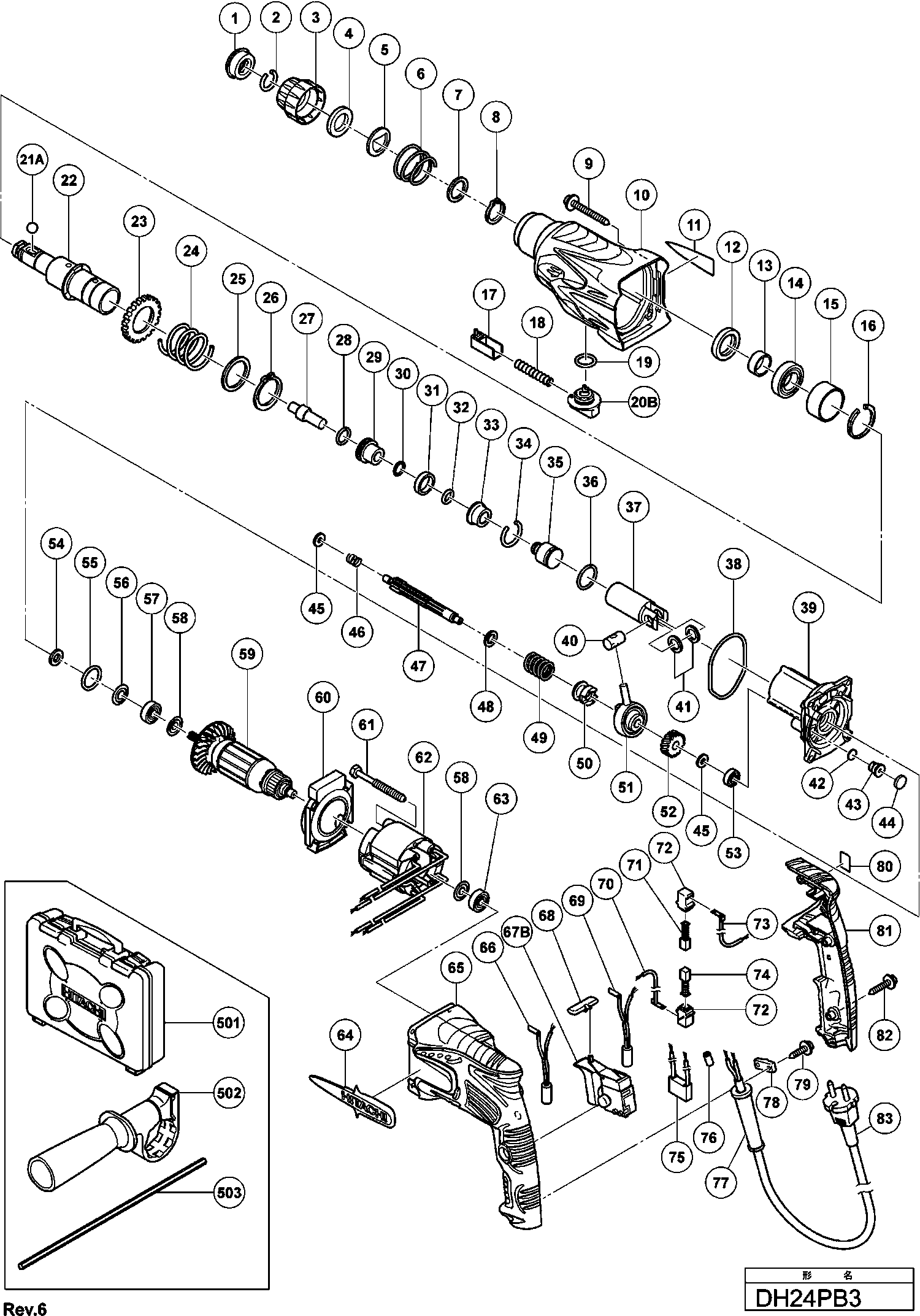

Technical drawing of model Hikoki DH24PB3
Spare parts list of model Hikoki DH24PB3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 306345 | |||
| Spring retaining ring | ||||
| 2 | 306340 | 1.35 | 1.63 | |
| Grip | ||||
| 3 | 324527 | 3.30 | 3.99 | |
| Ball Holder | ||||
| 4 | 324528 | 6.45 | 7.80 | |
| Holder Plate | ||||
| 5 | 324526 | 3.30 | 3.99 | |
| Spring | ||||
| 6 | 322812 | 1.65 | 2.00 | |
| Washer (b) | ||||
| 7 | 984118 | 1.05 | 1.27 | |
| Retaining Ring D20 (10 Pcs.) | ||||
| 8 | 939547 | 3.90 | 4.72 | |
| SCREW | ||||
| 9 | 301654 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 10 | 324546 | 73.01 | 88.35 | |
| Oil Seal | ||||
| 12 | 307688 | 3.90 | 4.72 | |
| SLEEVE | ||||
| 13 | 322815 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 14 | 6904DD | |||
| BUS (A) | ||||
| 15 | 324522 | 3.30 | 3.99 | |
| Spring Washer 37MM | ||||
| 16 | 322813 | 1.65 | 2.00 | |
| Pushing Button | ||||
| 17 | 324530 | 1.65 | 2.00 | |
| Pushing Spring | ||||
| 18 | 317223 | 1.65 | 2.00 | |
| O-ring (s-18) | ||||
| 19 | 878885 | 1.05 | 1.27 | |
| Change Lever | ||||
| 20B | 322787 | 6.45 | 7.80 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 21A | 335300 | 1.04 | 1.26 | |
| Cylinder | ||||
| 22 | 322814 | 73.01 | 88.35 | |
| Second Gear | ||||
| 23 | 301677 | 23.38 | 28.28 | |
| Spring | ||||
| 24 | 301678 | 3.30 | 3.99 | |
| Ring | ||||
| 25 | 301679 | 1.20 | 1.45 | |
| Retaining Ring For D30 Shaft | ||||
| 26 | 948310 | 1.35 | 1.63 | |
| Second Hammer | ||||
| 27 | 324525 | 6.45 | 7.80 | |
| O-ring (1ap-20) | ||||
| 28 | 944486 | 1.05 | 1.27 | |
| Hammer Holder | ||||
| 29 | 324523 | 11.55 | 13.98 | |
| O-ring (b) | ||||
| 30 | 322802 | 3.30 | 3.99 | |
| DEMPERRING (A) | ||||
| 31 | 322805 | 1.65 | 2.00 | |
| O-ring (c) | ||||
| 32 | 322808 | 1.65 | 2.00 | |
| Damper Holder | ||||
| 33 | 324524 | 6.45 | 7.80 | |
| STOPPER RING | ||||
| 34 | 322807 | 1.65 | 2.00 | |
| Striker | ||||
| 35 | 324535 | 10.20 | 12.34 | |
| O-ring | ||||
| 36 | 322834 | 3.30 | 3.99 | |
| Piston | ||||
| 37 | 324534 | 16.36 | 19.80 | |
| O-Ring | ||||
| 38 | 322793 | 3.30 | 3.99 | |
| Inner Cover Ass'y Includ.69-71 | ||||
| 39 | 324542 | 35.06 | 42.43 | |
| Piston Pin | ||||
| 40 | 322798 | 1.65 | 2.00 | |
| Washer (c) | ||||
| 41 | 322799 | 1.65 | 2.00 | |
| Felt Packing | ||||
| 42 | 324543 | 1.65 | 2.00 | |
| Valve | ||||
| 43 | 324545 | 1.65 | 2.00 | |
| Felt Packing | ||||
| 44 | 324544 | 1.65 | 2.00 | |
| Spacer | ||||
| 45 | 322795 | 1.65 | 2.00 | |
| Spring (b) | ||||
| 46 | 322796 | 3.30 | 3.99 | |
| Gear Shaft | ||||
| 47 | 322794 | 18.70 | 22.63 | |
| Washer | ||||
| 48 | 301659 | 1.04 | 1.26 | |
| Clutch Spring | ||||
| 49 | 301660 | 1.04 | 1.26 | |
| Clutch | ||||
| 50 | 324532 | 11.55 | 13.98 | |
| Reciprocating Bearing | ||||
| 51 | 324533 | 37.95 | 45.92 | |
| First Gear | ||||
| 52 | 322797 | 13.50 | 16.34 | |
| Ball Bearing 626vvc2ps2l | ||||
| 53 | 626VVM | 5.70 | 6.90 | |
| Felt Packing | ||||
| 54 | 322816 | 1.65 | 2.00 | |
| O-ring (p-22) | ||||
| 55 | 876796 | 1.05 | 1.27 | |
| Packing Washer | ||||
| 56 | 322818 | 3.30 | 3.99 | |
| Ball Bearing 608dd | ||||
| 57 | 608DDM | 5.55 | 6.72 | |
| Washer (a) | ||||
| 58 | 982631 | 1.04 | 1.26 | |
| ANKER 110 -120 VOLT | ||||
| 59 | 360720U | 68.14 | 82.45 | |
| Armature 230v | ||||
| 59 | 360720E | 49.64 | 60.06 | |
| Fan Guide | ||||
| 60 | 324531 | 3.30 | 3.99 | |
| Hex. Hd. Tapping Screw D4x50 | ||||
| 61 | 961672 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 62 | 340635E | 61.33 | 74.20 | |
| VELD 110-120 VOLT | ||||
| 62 | 340635C | 57.26 | 69.28 | |
| Ball Bearing 608vvc2ps2l | ||||
| 63 | 608VVM | 5.70 | 6.90 | |
| Brand Plate | ||||
| 64 | 324539 | 4.80 | 5.81 | |
| Housing | ||||
| 65 | 324553 | 26.95 | 32.61 | |
| Choke Coil (a) Brown | ||||
| 66 | 324549 | 11.55 | 13.98 | |
| Switch | ||||
| 67B | 335796 | 17.05 | 20.63 | |
| Pushing Button | ||||
| 68 | 322853 | 1.05 | 1.27 | |
| Choke Coil (a) Blue | ||||
| 69 | 324551 | 11.55 | 13.98 | |
| Internal wire (a) (blue) | ||||
| 70 | 324538 | 4.35 | 5.26 | |
| Carbon Brush (1 Pair) | ||||
| 71 | 999041 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 72 | 955203 | 2.40 | 2.90 | |
| Wiring (a) Brown | ||||
| 73 | 324537 | 4.35 | 5.26 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 74 | 999072 | 14.40 | 17.42 | |
| Noise Suppressor | ||||
| 75 | 930039 | 1.95 | 2.36 | |
| Threaded cable sleeve | ||||
| 76 | 981373 | 1.05 | 1.27 | |
| Cord Armor D10.1 | ||||
| 77 | 938051 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 78 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 79 | 984750 | |||
| Handle Cover | ||||
| 81 | 324554 | 14.03 | 16.97 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 82 | 301653 | 1.04 | 1.26 | |
| Cord 4m 2 X 1.0 H07rn-f W/plug 16a Cee Form 2p+e 1 | ||||
| 83 | 500465Z | 37.95 | 45.92 | |
| Cord (cord Armor D8.2) For Sin,mal | ||||
| 83 | 500440Z | 20.49 | 24.79 | |
| No information available, not orderable | ||||
| 501 | 324555 | |||
| No information available, not orderable | ||||
| 502 | 324548 | |||
| No information available, not orderable | ||||
| 503 | 310331 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 601 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 602 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 603 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 604 | 306885 | |||
| No information available, not orderable | ||||
| 605 | 986802 | |||
| STOFVANGER | ||||
| 606 | 986803 | 6.54 | 7.91 | |
| Seal | ||||
| 607 | 986804 | 3.38 | 4.08 | |
| Retaining Ring For D30 Shaft | ||||
| 608 | 948310 | 1.35 | 1.63 | |
| RING | ||||
| 609 | 958063 | 1.00 | 1.21 | |
| Steel Ball D6.35 (10 pieces) | ||||
| 610 | 959150 | 1.35 | 1.63 | |
| OUTER RACE | ||||
| 611 | 986805 | 4.26 | 5.15 | |
| Socket | ||||
| 612 | 986806 | 5.10 | 6.17 | |
| Socket Adapter (b) | ||||
| 613 | 306910 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 614 | 971787 | |||
| No information available, not orderable | ||||
| 615 | 931844 | |||
| No information available, not orderable | ||||
| 616 | 321814 | |||
| No information available, not orderable | ||||
| 617 | 995344 | |||
| No information available, not orderable | ||||
| 618 | 321813 | |||
| No information available, not orderable | ||||
| 619 | 971511Z | |||
| No information available, not orderable | ||||
| 620 | 971512Z | |||
| No information available, not orderable | ||||
| 621 | 944477 | |||
| No information available, not orderable | ||||
| 622 | 982684 | |||
| No information available, not orderable | ||||
| 623 | 982685 | |||
| No information available, not orderable | ||||
| 624 | 982672 | |||
| No information available, not orderable | ||||
| 625 | 982673 | |||
| No information available, not orderable | ||||
| 626 | 982674 | |||
| No information available, not orderable | ||||
| 627 | 982686 | |||
| No information available, not orderable | ||||
| 628 | 982675 | |||
| No information available, not orderable | ||||
| 629 | 982687 | |||
| No information available, not orderable | ||||
| 630 | 982676 | |||
| No information available, not orderable | ||||
| 631 | 982688 | |||
| No information available, not orderable | ||||
| 632 | 982677 | |||
| No information available, not orderable | ||||
| 633 | 982689 | |||
| No information available, not orderable | ||||
| 634 | 982678 | |||
| No information available, not orderable | ||||
| 635 | 982690 | |||
| No information available, not orderable | ||||
| 636 | 971794 | |||
| No information available, not orderable | ||||
| 637 | 971795 | |||
| No information available, not orderable | ||||
| 638 | 971796 | |||
| No information available, not orderable | ||||
| 639 | 971797 | |||
| No information available, not orderable | ||||
| 640 | 971798 | |||
| No information available, not orderable | ||||
| 641 | 971799 | |||
| No information available, not orderable | ||||
| 642 | 971800 | |||
| No information available, not orderable | ||||
| 643 | 971801 | |||
| No information available, not orderable | ||||
| 644 | 971802 | |||
| No information available, not orderable | ||||
| 645 | 971803 | |||
| No information available, not orderable | ||||
| 646 | 944460 | |||
| No information available, not orderable | ||||
| 647 | 944461 | |||
| No information available, not orderable | ||||
| 648 | 993038 | |||
| No information available, not orderable | ||||
| 650 | 944500 | |||
| No information available, not orderable | ||||
| 652 | 944464 | |||
| No information available, not orderable | ||||
| 653 | 320859 | |||
| No information available, not orderable | ||||
| 654 | 303046 | |||
| No information available, not orderable | ||||
| 655 | 303044 | |||
| No information available, not orderable | ||||
| 656 | 303045 | |||
| No information available, not orderable | ||||
| 657 | 303334 | |||
| No information available, not orderable | ||||
| 658 | 302976 | |||
| No information available, not orderable | ||||
| 659 | 930515 | |||
| No information available, not orderable | ||||
| 660 | 302975 | |||
| No information available, not orderable | ||||
| 661 | 303621 | |||
| No information available, not orderable | ||||
| 662 | 302974 | |||
| No information available, not orderable | ||||
| 663 | 302979 | |||
| No information available, not orderable | ||||
| 664 | 302978 | |||
| No information available, not orderable | ||||
| 665 | 303622 | |||
| No information available, not orderable | ||||
| 666 | 302977 | |||
| No information available, not orderable | ||||
| 667 | 303332 | |||
| No information available, not orderable | ||||
| 668 | 303334 | |||
| No information available, not orderable | ||||
| 669 | 303335 | |||
| No information available, not orderable | ||||
| 670 | 303617 | |||
| No information available, not orderable | ||||
| 671 | 303618 | |||
| No information available, not orderable | ||||
| 672 | 303619 | |||
| No information available, not orderable | ||||
| 673 | 303620 | |||
| Special Screw M6x22 | ||||
| 674 | 981122 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 675 | 303625 | |||
| No information available, not orderable | ||||
| 676 | 303626 | |||
| No information available, not orderable | ||||
| 677 | 303627 | |||
| No information available, not orderable | ||||
| 678 | 303624 | |||
| No information available, not orderable | ||||
| 679 | 321825 | |||
| No information available, not orderable | ||||
| 680 | 303623 | |||
| No information available, not orderable | ||||
| 683 | 306370 | |||
| Service Kit (dh 24pb3,etc.) Includ.33,44,46-48,53 | ||||
| 684 | 326305 | 52.53 | 63.56 | |
