Here you will find all available parts and drawings of the 'Hikoki DH18DSL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

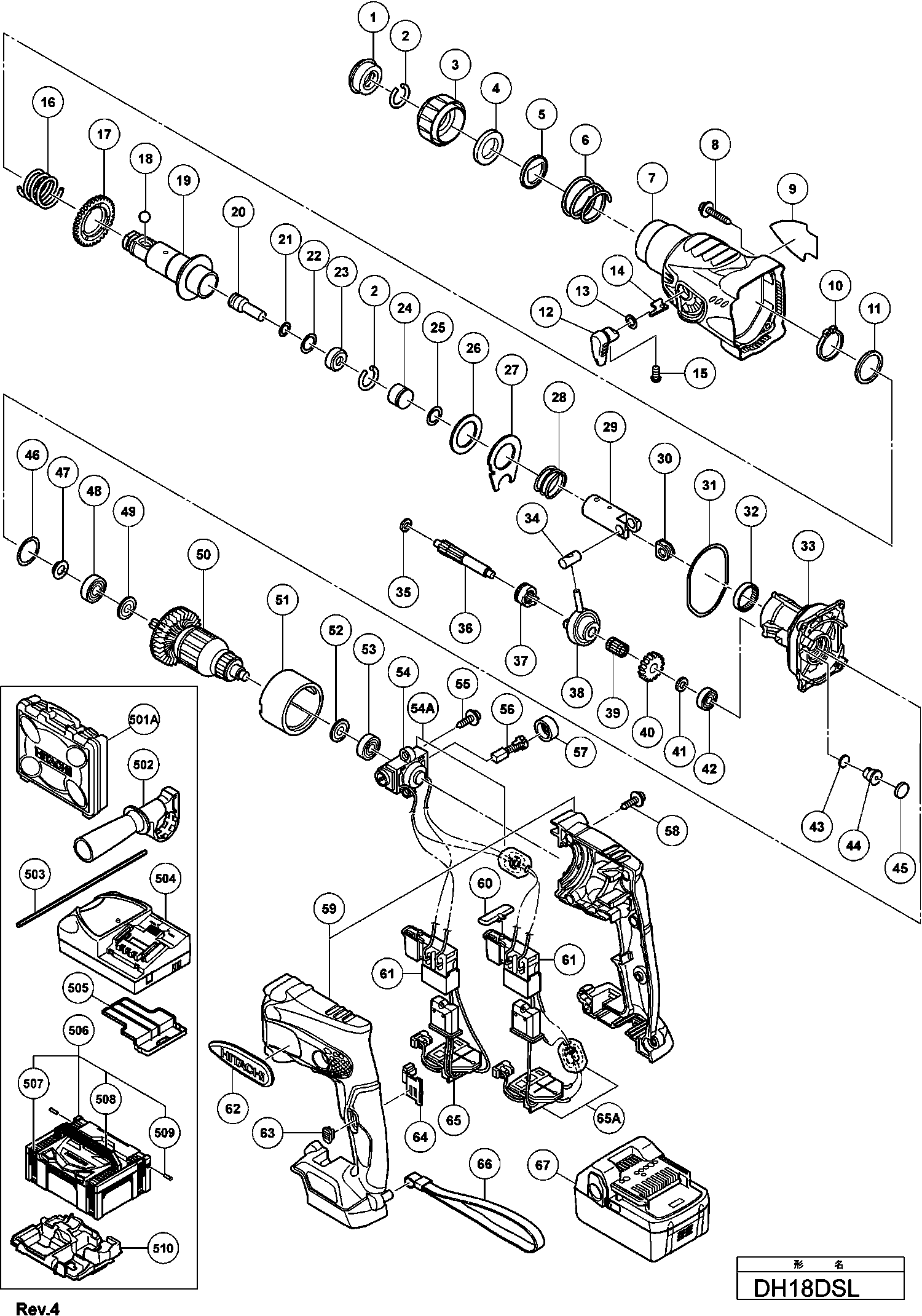

Technical drawing of model Hikoki DH18DSL
Spare parts list of model Hikoki DH18DSL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *67 | 330068 | |||
| No information available, not orderable | ||||
| 1 | 306345 | |||
| Spring retaining ring | ||||
| 2 | 306340 | 1.35 | 1.63 | |
| Baffle | ||||
| 3 | 325597 | 3.30 | 3.99 | |
| Ball Holder | ||||
| 4 | 327879 | 3.15 | 3.81 | |
| Holder Plate | ||||
| 5 | 324526 | 3.30 | 3.99 | |
| Spring | ||||
| 6 | 322812 | 1.65 | 2.00 | |
| Gear Cover | ||||
| 7 | 325593 | 67.10 | 81.19 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 8 | 305490 | 1.04 | 1.26 | |
| Washer Spring | ||||
| 10 | 965469 | 1.05 | 1.27 | |
| Ring | ||||
| 11 | 944274 | 1.05 | 1.27 | |
| Lever | ||||
| 12 | 325594 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 13 | 872654 | |||
| Stopper | ||||
| 14 | 327875 | 1.65 | 2.00 | |
| Machine Screw M4x5 (10 Pcs.) | ||||
| 15 | 949213 | 1.05 | 1.27 | |
| Spring (a) | ||||
| 16 | 306334 | 3.60 | 4.36 | |
| Second Gear | ||||
| 17 | 306333 | 18.98 | 22.96 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 18 | 959156 | 1.65 | 2.00 | |
| Cylinder | ||||
| 19 | 327876 | 22.83 | 27.62 | |
| Second Hammer | ||||
| 20 | 327877 | 2.10 | 2.54 | |
| O-ring (b) | ||||
| 21 | 301672 | 1.05 | 1.27 | |
| O-ring (p-15) | ||||
| 22 | 311814 | 1.05 | 1.27 | |
| Hammer Holder | ||||
| 23 | 327878 | 2.10 | 2.54 | |
| Striker | ||||
| 24 | 325601 | 4.80 | 5.81 | |
| O-ring (a) | ||||
| 25 | 306326 | 3.00 | 3.63 | |
| Thrust Washer | ||||
| 26 | 327880 | 1.05 | 1.27 | |
| Thrust Plate | ||||
| 27 | 325588 | 3.30 | 3.99 | |
| Spring (b) | ||||
| 28 | 306976 | 3.60 | 4.36 | |
| Piston | ||||
| 29 | 306324 | 14.10 | 17.06 | |
| Ring | ||||
| 30 | 321007 | 3.30 | 3.99 | |
| O-ring (i.d. D61) | ||||
| 31 | 325583 | 1.65 | 2.00 | |
| Needle-roller Bearing | ||||
| 32 | 306328 | 4.80 | 5.81 | |
| Inner Cover | ||||
| 33 | 328479 | 32.31 | 39.10 | |
| Piston Pin | ||||
| 34 | 306322 | 6.15 | 7.44 | |
| Spacer | ||||
| 35 | 325587 | 1.65 | 2.00 | |
| Second Shaft | ||||
| 36 | 327871 | 5.85 | 7.08 | |
| Clutch | ||||
| 37 | 325584 | 9.00 | 10.89 | |
| Reciprocating Bearing | ||||
| 38 | 325585 | 26.95 | 32.61 | |
| Needle Cage | ||||
| 39 | 306320 | 5.25 | 6.35 | |
| First Gear | ||||
| 40 | 327872 | 4.20 | 5.08 | |
| Washer | ||||
| 41 | 995634 | 1.05 | 1.27 | |
| Ball Bearing 626vvc2ps2l | ||||
| 42 | 626VVM | 5.70 | 6.90 | |
| Felt Packing | ||||
| 43 | 324543 | 1.65 | 2.00 | |
| Valve | ||||
| 44 | 324545 | 1.65 | 2.00 | |
| Felt Packing | ||||
| 45 | 324544 | 1.65 | 2.00 | |
| O-ring (s-24) | ||||
| 46 | 878609 | 1.05 | 1.27 | |
| Fringer | ||||
| 47 | 306312 | 1.95 | 2.36 | |
| Ball bearing 609ddc3ps2-l | ||||
| 48 | 609DDC | 12.66 | 15.32 | |
| Bearing Ring | ||||
| 49 | 958915 | 1.04 | 1.26 | |
| Armature 18v | ||||
| 50 | 360809 | 45.65 | 55.24 | |
| Magnet | ||||
| 51 | 328482 | 17.19 | 20.80 | |
| Washer | ||||
| 52 | 980865 | 1.04 | 1.26 | |
| Ball Bearing 626vvc2ps2l | ||||
| 53 | 626VVM | 5.70 | 6.90 | |
| Brush Block | ||||
| 54 | 328486 | 12.45 | 15.06 | |
| Brush Block | ||||
| 54A | 334890 | 14.58 | 17.64 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 55 | 305812 | 1.04 | 1.26 | |
| Carbon Brush (1 Pair) | ||||
| 56 | 999100 | 4.20 | 5.08 | |
| Brush Cap | ||||
| 57 | 319847 | 1.65 | 2.00 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 58 | 301653 | 1.04 | 1.26 | |
| Housing (a).(b) Set | ||||
| 59 | 330075 | 26.68 | 32.28 | |
| Pushing Button | ||||
| 60 | 322853 | 1.05 | 1.27 | |
| Switch | ||||
| 61 | 328484 | 32.31 | 39.10 | |
| Tappet | ||||
| 63 | 326276 | 1.05 | 1.27 | |
| Bolt | ||||
| 64 | 328480 | 1.20 | 1.45 | |
| Controller Terminal Set | ||||
| 65 | 330074 | 123.20 | 149.07 | |
| Controller | ||||
| 65A | 334895 | 91.30 | 110.47 | |
| Strap (black) | ||||
| 66 | 306952 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 67 | 330068 | |||
| No information available, not orderable | ||||
| 501A | 337088 | |||
| No information available, not orderable | ||||
| 502 | 324548 | |||
| No information available, not orderable | ||||
| 503 | 303709 | |||
| Battery Cover | ||||
| 505 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 506 | 336471 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336474 | |||
| No information available, not orderable | ||||
| 510 | 337114 | |||
| Grease For Hammer.hammer Drill (500g) | ||||
| 601 | 980927 | 73.01 | 88.35 | |
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 602 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 603 | 308471 | 12.75 | 15.43 | |
| No information available, not orderable | ||||
| 604 | 306885 | |||
| No information available, not orderable | ||||
| 605 | 986802 | |||
| Dust collector | ||||
| 606 | 986803 | 6.54 | 7.91 | |
| Seal | ||||
| 607 | 986804 | 3.38 | 4.08 | |
| Retaining Ring For D30 Shaft | ||||
| 608 | 948310 | 1.35 | 1.63 | |
| RING | ||||
| 609 | 958063 | 1.00 | 1.21 | |
| Steel Ball D6.35 (10 pieces) | ||||
| 610 | 959150 | 1.35 | 1.63 | |
| Outer race | ||||
| 611 | 986805 | 4.26 | 5.15 | |
| Socket | ||||
| 612 | 986806 | 5.10 | 6.17 | |
| Socket Adapter (b) | ||||
| 613 | 306910 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 614 | 971787 | |||
| No information available, not orderable | ||||
| 615 | 931844 | |||
| No information available, not orderable | ||||
| 616 | 321814 | |||
| No information available, not orderable | ||||
| 617 | 995344 | |||
| No information available, not orderable | ||||
| 618 | 321813 | |||
| No information available, not orderable | ||||
| 619 | 971511Z | |||
| No information available, not orderable | ||||
| 620 | 971512Z | |||
| No information available, not orderable | ||||
| 621 | 944477 | |||
| No information available, not orderable | ||||
| 622 | 982684 | |||
| No information available, not orderable | ||||
| 623 | 982685 | |||
| No information available, not orderable | ||||
| 624 | 982672 | |||
| No information available, not orderable | ||||
| 625 | 982673 | |||
| No information available, not orderable | ||||
| 626 | 982674 | |||
| No information available, not orderable | ||||
| 627 | 982686 | |||
| No information available, not orderable | ||||
| 628 | 982675 | |||
| No information available, not orderable | ||||
| 629 | 982687 | |||
| No information available, not orderable | ||||
| 630 | 982676 | |||
| No information available, not orderable | ||||
| 631 | 982688 | |||
| No information available, not orderable | ||||
| 632 | 982677 | |||
| No information available, not orderable | ||||
| 633 | 982689 | |||
| No information available, not orderable | ||||
| 635 | 982690 | |||
| No information available, not orderable | ||||
| 636 | 971794 | |||
| No information available, not orderable | ||||
| 637 | 971795 | |||
| No information available, not orderable | ||||
| 638 | 971796 | |||
| No information available, not orderable | ||||
| 639 | 971797 | |||
| No information available, not orderable | ||||
| 640 | 971798 | |||
| No information available, not orderable | ||||
| 641 | 971799 | |||
| No information available, not orderable | ||||
| 642 | 971800 | |||
| No information available, not orderable | ||||
| 643 | 971801 | |||
| No information available, not orderable | ||||
| 644 | 971802 | |||
| No information available, not orderable | ||||
| 645 | 971803 | |||
| No information available, not orderable | ||||
| 647 | 944461 | |||
| No information available, not orderable | ||||
| 648 | 993038 | |||
| No information available, not orderable | ||||
| 650 | 944500 | |||
| No information available, not orderable | ||||
| 653 | 303046 | |||
| No information available, not orderable | ||||
| 654 | 303044 | |||
| No information available, not orderable | ||||
| 655 | 303045 | |||
| No information available, not orderable | ||||
| 656 | 303617 | |||
| No information available, not orderable | ||||
| 657 | 303619 | |||
| No information available, not orderable | ||||
| 658 | 303620 | |||
| No information available, not orderable | ||||
| 659 | 303624 | |||
| No information available, not orderable | ||||
| 660 | 303623 | |||
| No information available, not orderable | ||||
| 661 | 302976 | |||
| No information available, not orderable | ||||
| 662 | 302975 | |||
| No information available, not orderable | ||||
| 663 | 303621 | |||
| No information available, not orderable | ||||
| 664 | 302974 | |||
| No information available, not orderable | ||||
| 665 | 302979 | |||
| No information available, not orderable | ||||
| 666 | 302978 | |||
| No information available, not orderable | ||||
| 667 | 303622 | |||
| No information available, not orderable | ||||
| 668 | 302977 | |||
| No information available, not orderable | ||||
| 669 | 303625 | |||
| No information available, not orderable | ||||
| 670 | 303626 | |||
| No information available, not orderable | ||||
| 671 | 303627 | |||
| No information available, not orderable | ||||
| 672 | 303332 | |||
| No information available, not orderable | ||||
| 673 | 303334 | |||
| No information available, not orderable | ||||
| 674 | 303335 | |||
| No information available, not orderable | ||||
| 675 | 321825 | |||
| No information available, not orderable | ||||
| 676 | 303623 | |||
| No information available, not orderable | ||||
| 677 | 321814 | |||
| No information available, not orderable | ||||
| 678 | 987576 | |||
| No information available, not orderable | ||||
| 678A | 303334 | |||
| No information available, not orderable | ||||
| 679 | 995344 | |||
| No information available, not orderable | ||||
| 680 | 930515 | |||
