Here you will find all available parts and drawings of the 'Hikoki DH18DBQL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

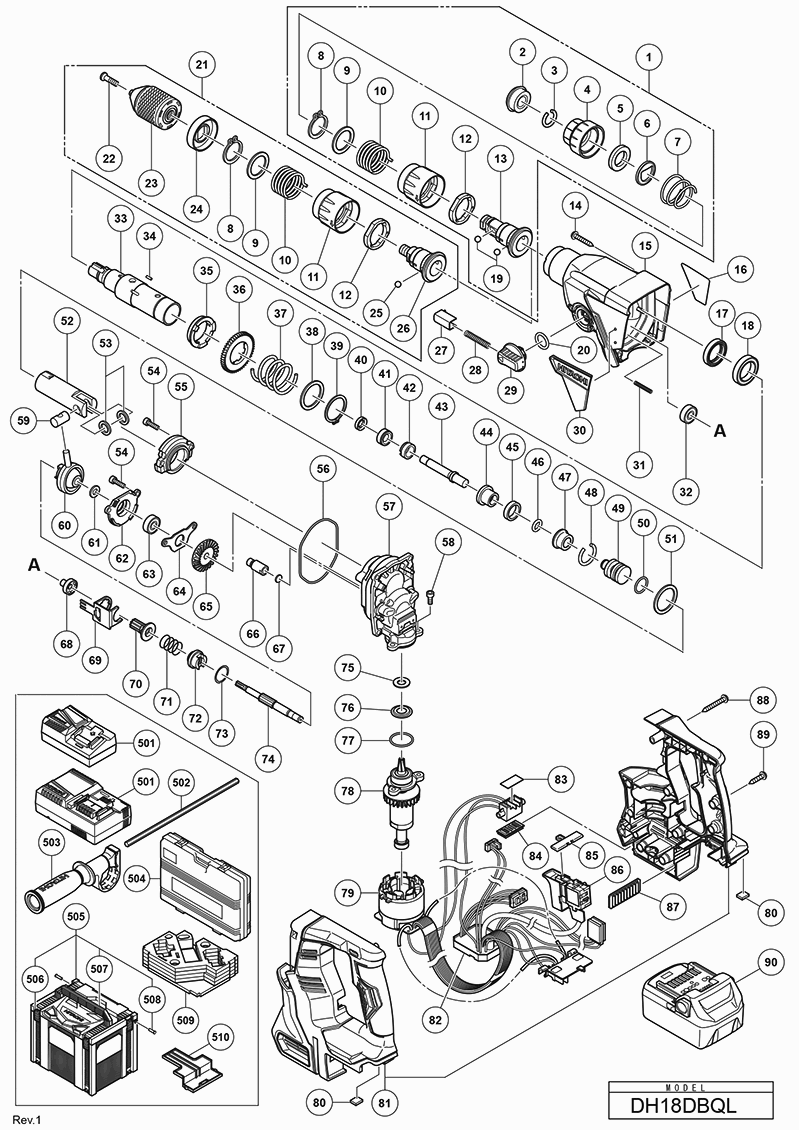

Technical drawing of model Hikoki DH18DBQL
Spare parts list of model Hikoki DH18DBQL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Bit Holder Ass'y Includ.5-9,12,17-23 | ||||
| 1 | 326516 | 134.20 | 162.38 | |
| DRILL HOLDER SET | ||||
| 1A | 371327 | 33.83 | 40.93 | |
| No information available, not orderable | ||||
| 2 | 306345 | |||
| Spring retaining ring | ||||
| 3 | 306340 | 1.35 | 1.63 | |
| Grip | ||||
| 4 | 324527 | 3.30 | 3.99 | |
| Baffle | ||||
| 4 | 325597 | 3.30 | 3.99 | |
| Ball Holder | ||||
| 5 | 324528 | 6.45 | 7.80 | |
| BALL HOLDER (FW) | ||||
| 5A | 371326 | 10.20 | 12.34 | |
| Holder Plate | ||||
| 6 | 324526 | 3.30 | 3.99 | |
| Spring | ||||
| 7 | 322812 | 1.65 | 2.00 | |
| Washer Spring | ||||
| 8 | 965469 | 1.05 | 1.27 | |
| Washer (b) | ||||
| 9 | 326520 | 6.45 | 7.80 | |
| Spring | ||||
| 10 | 326519 | 7.65 | 9.26 | |
| Grip | ||||
| 11 | 326387 | 4.80 | 5.81 | |
| Lock Ring | ||||
| 12 | 326801 | 32.18 | 38.93 | |
| Bit Holder | ||||
| 13 | 336849 | 18.43 | 22.29 | |
| Tapping Screw (w/flange) D5 | ||||
| 14 | 370307 | 1.04 | 1.26 | |
| Gear Cover Ass'y Includ.17,18,32 | ||||
| 15 | 370306 | 27.50 | 33.28 | |
| Oil Seal | ||||
| 17 | 335259 | 2.85 | 3.45 | |
| Ball Bearing 6805dd | ||||
| 18 | 335260 | 3.30 | 3.99 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 19 | 335300 | 1.04 | 1.26 | |
| O-ring (s-18) | ||||
| 20 | 878885 | 1.05 | 1.27 | |
| Chuck Holder Ass'y Includ.8-12,22-26 | ||||
| 21 | 370305 | 51.84 | 62.72 | |
| SPECIAL SCREW M6 (LEFT THREAD) | ||||
| 22 | 330094 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 23 | 335451 | |||
| Stopper | ||||
| 24 | 326527 | 3.30 | 3.99 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 25 | 335300 | 1.04 | 1.26 | |
| Chuck Holder | ||||
| 26 | 336850 | 17.19 | 20.80 | |
| Pushing Button | ||||
| 27 | 322789 | 4.80 | 5.81 | |
| Pushing Spring | ||||
| 28 | 317223 | 1.65 | 2.00 | |
| Change Lever | ||||
| 29 | 334011 | 2.10 | 2.54 | |
| Brand Plate | ||||
| 30 | 370308 | 2.40 | 2.90 | |
| Brand Plate | ||||
| 30B | 370308 | 2.40 | 2.90 | |
| Spring (e) | ||||
| 31 | 335800 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 32 | 608VVM | 5.70 | 6.90 | |
| Cylinder | ||||
| 33 | 336845 | 40.56 | 49.08 | |
| PIN D2.5 | ||||
| 34 | 335264 | 1.04 | 1.26 | |
| Cylinder Clutch | ||||
| 35 | 335263 | 12.45 | 15.06 | |
| Second Gear | ||||
| 36 | 335265 | 6.15 | 7.44 | |
| Spring (a) | ||||
| 37 | 335266 | 1.50 | 1.82 | |
| Ring | ||||
| 38 | 301679 | 1.20 | 1.45 | |
| Retaining Ring For D30 Shaft | ||||
| 39 | 948310 | 1.35 | 1.63 | |
| Oil Seal (A) | ||||
| 40 | 335262 | 1.80 | 2.18 | |
| Hammer Holder (c) | ||||
| 41 | 336847 | 5.85 | 7.08 | |
| Sleeve (fw) | ||||
| 42 | 335795 | 4.20 | 5.08 | |
| Second Hammer | ||||
| 43 | 336846 | 5.25 | 6.35 | |
| Hammer Holder (a) | ||||
| 44 | 335267 | 3.00 | 3.63 | |
| DEMPERRING (A) | ||||
| 45 | 322805 | 1.65 | 2.00 | |
| O-ring (c) | ||||
| 46 | 322808 | 1.65 | 2.00 | |
| Damper Holder | ||||
| 47 | 324524 | 6.45 | 7.80 | |
| STOPPER RING | ||||
| 48 | 322807 | 1.65 | 2.00 | |
| Striker | ||||
| 49 | 335246 | 4.20 | 5.08 | |
| O-ring D17 | ||||
| 50 | 335247 | 2.55 | 3.09 | |
| Ring | ||||
| 51 | 301679 | 1.20 | 1.45 | |
| Piston | ||||
| 52 | 335255 | 1.04 | 1.26 | |
| Piston Washer | ||||
| 53 | 335794 | 1.20 | 1.45 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 54 | 990079 | 1.05 | 1.27 | |
| Covering hood | ||||
| 55 | 370309 | 5.55 | 6.72 | |
| O-ring | ||||
| 56 | 370310 | 5.85 | 7.08 | |
| Inner Cover (a) Includ.66,67,75-77 | ||||
| 57 | 370311 | 18.70 | 22.63 | |
| Seal Lock Hex. Socket Hd. Bolt M5x10 | ||||
| 58 | 877839 | 1.05 | 1.27 | |
| Piston Pin | ||||
| 59 | 335793 | 3.15 | 3.81 | |
| Reciprocating Bearing | ||||
| 60 | 335249 | 13.65 | 16.52 | |
| Bearing Washer | ||||
| 61 | 335250 | 1.04 | 1.26 | |
| Bearing Holder (b) | ||||
| 62 | 370312 | 16.50 | 19.96 | |
| Ball Bearing 608vvc2ps2l | ||||
| 63 | 608VVM | 5.70 | 6.90 | |
| Bearing Cover (a) | ||||
| 64 | 370313 | 1.65 | 2.00 | |
| Bevel Gear (a) | ||||
| 65 | 370314 | 21.73 | 26.29 | |
| Air Cap | ||||
| 66 | 334008 | 1.20 | 1.45 | |
| Felt Packing | ||||
| 67 | 324543 | 1.65 | 2.00 | |
| Pinion Sleeve | ||||
| 68 | 335275 | 3.00 | 3.63 | |
| Bearing Cover (1) | ||||
| 69 | 335276 | 11.10 | 13.43 | |
| Second Gear | ||||
| 70 | 335278 | 7.20 | 8.71 | |
| Clutch Spring | ||||
| 71 | 323182 | 1.65 | 2.00 | |
| Clutch | ||||
| 72 | 335254 | 3.90 | 4.72 | |
| Ring | ||||
| 73 | 331315 | 1.05 | 1.27 | |
| Second Shaft | ||||
| 74 | 335277 | 6.60 | 7.99 | |
| Felt Packing | ||||
| 75 | 370315 | 1.04 | 1.26 | |
| Packing Washer | ||||
| 76 | 370316 | 1.04 | 1.26 | |
| O-RING (S-26) | ||||
| 77 | 872470 | 1.65 | 2.00 | |
| Rotor (b) | ||||
| 78 | 361035 | 95.56 | 115.63 | |
| Field | ||||
| 79 | 340944 | 16.09 | 19.47 | |
| Damper (a) | ||||
| 80 | 370321 | 1.04 | 1.26 | |
| Housing (a).(b) Set Includ.80 | ||||
| 81A | 370676 | 18.43 | 22.29 | |
| Switch Controller Ass'y (a) Includ.86 | ||||
| 82 | 370548 | 130.08 | 157.39 | |
| Switch Controller Ass'y (a) Includ.86 | ||||
| 82A | 370548 | 130.08 | 157.39 | |
| Rubber Cushion | ||||
| 83 | 370327 | 2.10 | 2.54 | |
| Terminal Rubber Base | ||||
| 84 | 370545 | 1.04 | 1.26 | |
| Pushing Button (b) | ||||
| 85 | 324225 | 1.05 | 1.27 | |
| Switch | ||||
| 86 | 370322 | 24.75 | 29.95 | |
| Battery Rubber (a) | ||||
| 87 | 370329 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x40 (black) | ||||
| 88 | 306664 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 89 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 90 | 338892 | |||
| No information available, not orderable | ||||
| 90A | 376073 | |||
| Wiring Ass'y Includ.79,82,83 | ||||
| 91 | 370954 | 166.79 | 201.81 | |
| Terminal Cover | ||||
| 92 | 371715 | 1.04 | 1.26 | |
| BATTERY TERMINAL DH18 | ||||
| 93 | 376195 | 10.05 | 12.16 | |
| No information available, not orderable | ||||
| 502 | 303709 | |||
| Side Handle | ||||
| 503 | 335273 | 8.85 | 10.71 | |
| No information available, not orderable | ||||
| 504 | 370332 | |||
| No information available, not orderable | ||||
| 505 | 337528 | |||
| No information available, not orderable | ||||
| 506 | 336472 | |||
| No information available, not orderable | ||||
| 507 | 336473 | |||
| No information available, not orderable | ||||
| 508 | 336474 | |||
| No information available, not orderable | ||||
| 509 | 370331 | |||
| No information available, not orderable | ||||
| 509A | 376002 | |||
| Battery Cover | ||||
| 510 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 601 | 303332 | |||
| No information available, not orderable | ||||
| 602 | 303334 | |||
| No information available, not orderable | ||||
| 603 | 303335 | |||
| No information available, not orderable | ||||
| 604 | 321825 | |||
| No information available, not orderable | ||||
| 605 | 303623 | |||
| No information available, not orderable | ||||
| 606 | 321814 | |||
| Flat Hd. Screw (left Hand) M6x20 | ||||
| 607 | 331966 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| 608 | 987576 | |||
| No information available, not orderable | ||||
| 608A | 303334 | |||
| No information available, not orderable | ||||
| 609 | 321813 | |||
| No information available, not orderable | ||||
| 610 | 971787 | |||
| No information available, not orderable | ||||
| 611 | 931844 | |||
| No information available, not orderable | ||||
| 612 | 971511Z | |||
| No information available, not orderable | ||||
| 613 | 971512Z | |||
| No information available, not orderable | ||||
| 614 | 306885 | |||
| Socket Adapter (b) | ||||
| 615 | 306910 | 4.50 | 5.44 | |
| Grease For Rotary Hammer (60g) | ||||
| 616 | 335782 | 13.50 | 16.34 | |
| Grease For Rotary Hammer (500g) | ||||
| 617 | 335781 | 67.24 | 81.36 | |
