Here you will find all available parts and drawings of the 'Hikoki DC120'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

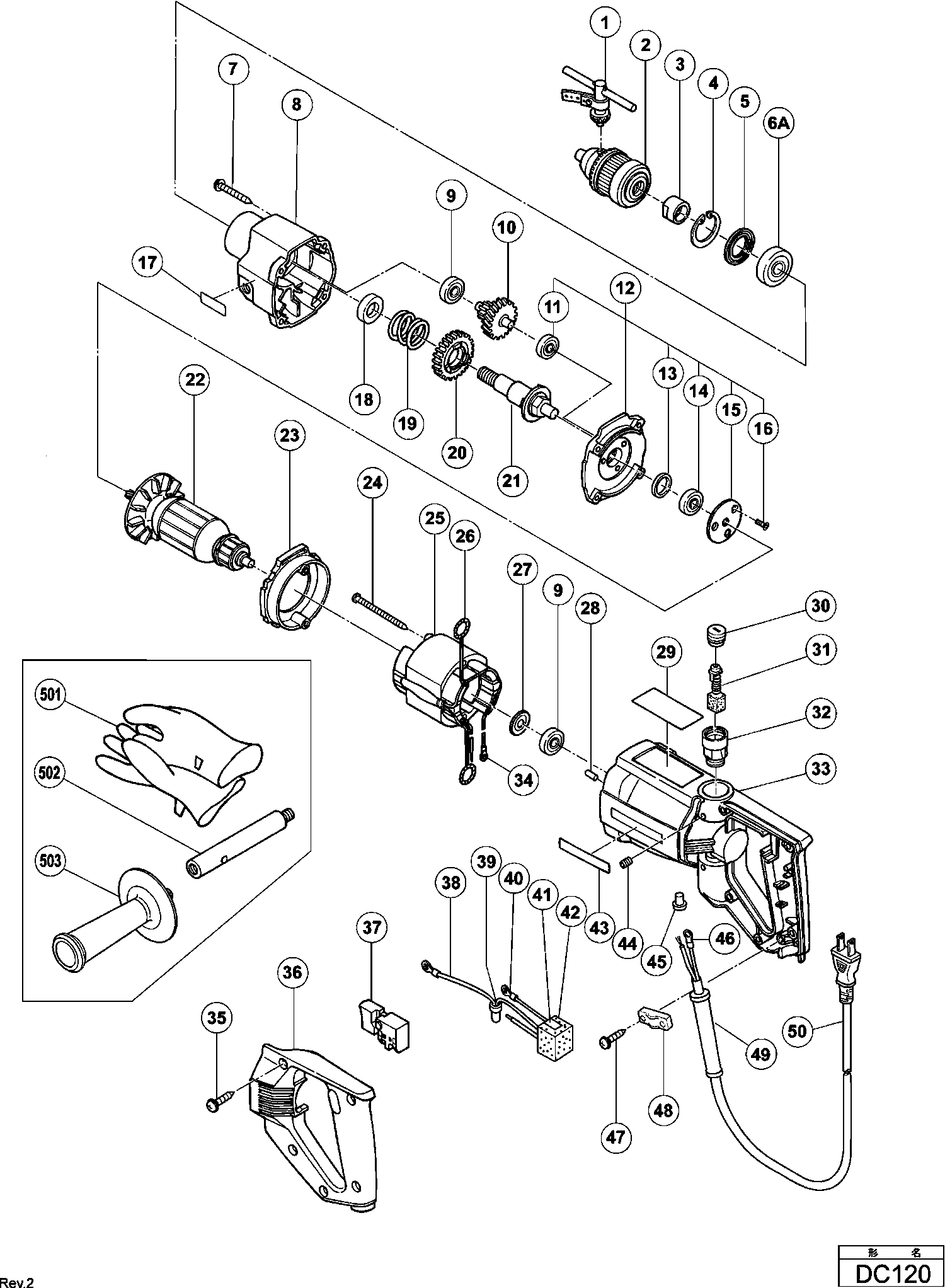

Technical drawing of model Hikoki DC120
Spare parts list of model Hikoki DC120
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 303334 | |||
| No information available, not orderable | ||||
| 2 | 321813 | |||
| No information available, not orderable | ||||
| 3 | 300400 | |||
| Retaining Ring For D35 Hole (10 Pcs.) | ||||
| 4 | 939556 | 10.20 | 12.34 | |
| Gasket | ||||
| 5 | 981572 | 3.30 | 3.99 | |
| Ball Bearing 6202dd | ||||
| 6A | 6202DD | 6.75 | 8.17 | |
| Tapping Screw (w/sp. Washer) D5x35 | ||||
| 7 | 986140 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 8 | 300395 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 9 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 10 | 300401 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 11 | 608VVM | 5.70 | 6.90 | |
| Inner Cover Ass'y Includ.19,30-32 | ||||
| 12 | 981581 | 32.18 | 38.93 | |
| Ring | ||||
| 13 | 984357 | 1.05 | 1.27 | |
| Ball bearing 609vvmc2ps2s | ||||
| 14 | 609VVM | 6.00 | 7.26 | |
| Bearing Holder | ||||
| 15 | 981585 | 2.70 | 3.27 | |
| Seal Lock Hex.socket Flat Hd. Bolt M5x16 | ||||
| 16 | 981588 | 1.04 | 1.26 | |
| Sleeve | ||||
| 18 | 300399 | 7.35 | 8.89 | |
| Spring | ||||
| 19 | 309167 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 20 | 300397 | |||
| Spindle | ||||
| 21 | 300396 | 37.95 | 45.92 | |
| No information available, not orderable | ||||
| 22 | 981583 | |||
| Fan Guide | ||||
| 23 | 981562 | 2.55 | 3.09 | |
| Tapping Screw D5x60 | ||||
| 24 | 991007 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 25 | 323973 | |||
| Brush Terminal | ||||
| 26 | 930703 | 2.40 | 2.90 | |
| Dust Seal (a) Till 2.1995 | ||||
| 27 | 956387 | 2.10 | 2.54 | |
| RUBBER PIN (OLD 976441) | ||||
| 28 | 946362 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 30 | 961781 | 2.55 | 3.09 | |
| Carbon Brush (1 Pair) | ||||
| 31 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 32 | 981586 | 6.45 | 7.80 | |
| Housing | ||||
| 33 | 981560 | 43.86 | 53.07 | |
| Terminal (a) M3.5 (10 Pcs.) | ||||
| 34 | 960356 | 3.00 | 3.63 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 35 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 36 | 301522 | |||
| Switch | ||||
| 37 | 981821 | 14.03 | 16.97 | |
| No information available, not orderable | ||||
| 38 | 971825 | |||
| Connector 50091 (10 Pcs.) | ||||
| 39 | 959140 | 3.30 | 3.99 | |
| connecting terminal | ||||
| 40 | 980063 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 41 | 994273 | 4.29 | 5.19 | |
| Rubber | ||||
| 42 | 930153 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 43 | 957561 | |||
| Hex. Socket Set Screw M4x6 Since 3.1986 | ||||
| 44 | 985114 | 1.05 | 1.27 | |
| Connector 50092 (10 Pcs.) | ||||
| 45 | 959141 | 3.75 | 4.54 | |
| connecting terminal | ||||
| 46 | 980063 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 47 | 984750 | |||
| Cord Clip | ||||
| 48 | 960266 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 49 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 50 | 323974 | |||
| No information available, not orderable | ||||
| 501 | 944164 | |||
| No information available, not orderable | ||||
| 502 | 930886 | |||
| No information available, not orderable | ||||
| 503 | 956633 | |||
