Here you will find all available parts and drawings of the 'Hikoki DB3DL2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

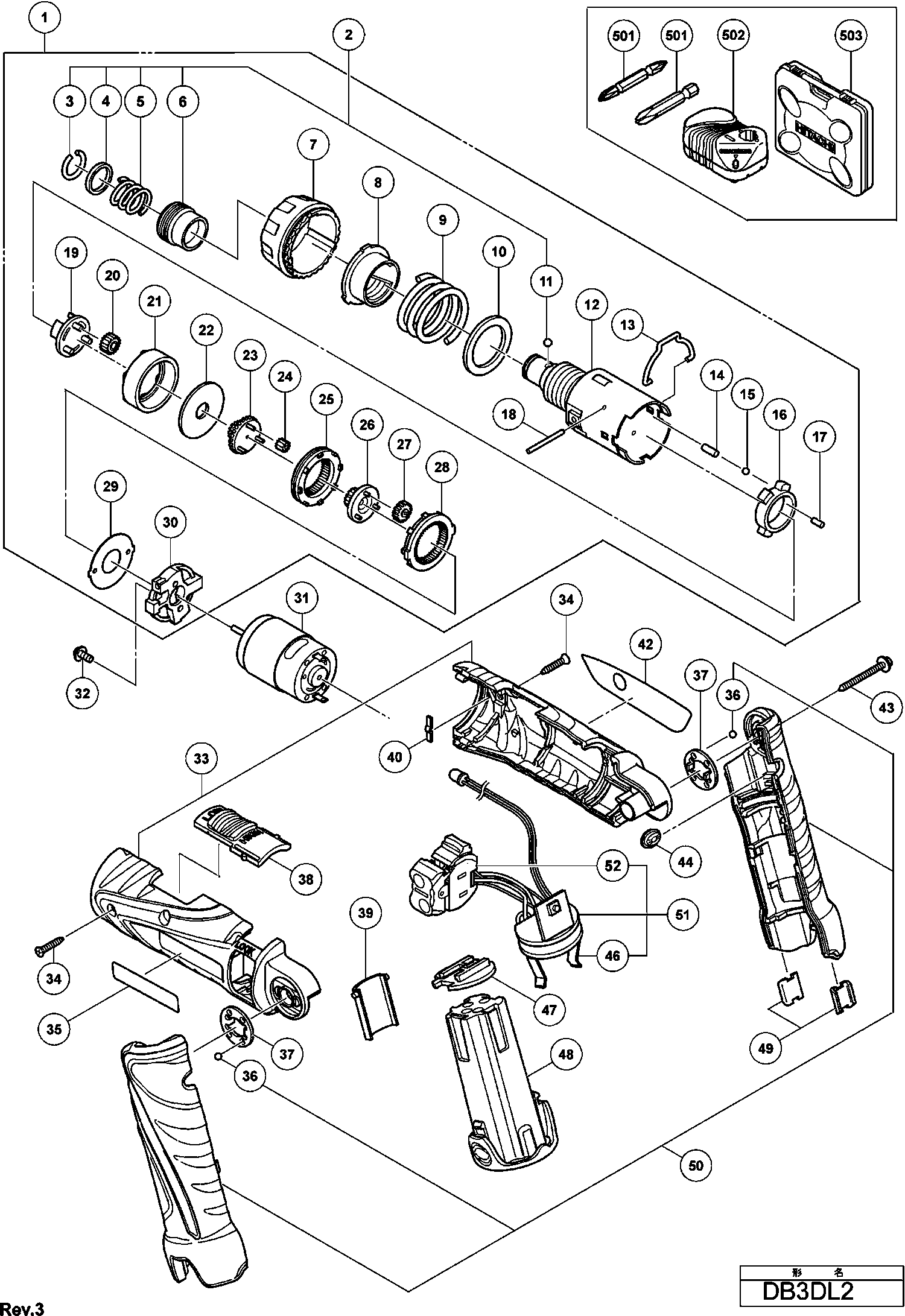

Technical drawing of model Hikoki DB3DL2
Spare parts list of model Hikoki DB3DL2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gear Box Ass'y Includ.3-30 | ||||
| 1 | 332759 | 75.98 | 91.93 | |
| Guide Sleeve Set Including 3-6,11 | ||||
| 2 | 320085 | 12.75 | 15.43 | |
| Spring washer | ||||
| 3 | 315984 | 1.65 | 2.00 | |
| WASHER | ||||
| 4 | 315983 | 1.65 | 2.00 | |
| Guide Spring | ||||
| 5 | 320409 | 1.65 | 2.00 | |
| Guide Bush | ||||
| 6 | 319921 | 7.65 | 9.26 | |
| Clutch Dial | ||||
| 7 | 332762 | 10.58 | 12.80 | |
| Spring Holder | ||||
| 8 | 326341 | 1.65 | 2.00 | |
| Spring | ||||
| 9 | 326340 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 10 | 326339 | |||
| STEEL BALL D3,5 (10 pieces) | ||||
| 11 | 319535 | 1.65 | 2.00 | |
| Gear Cover | ||||
| 12 | 332761 | 22.83 | 27.62 | |
| Shift Arm | ||||
| 13 | 326345 | 1.65 | 2.00 | |
| Pin Set (3 Pcs.) | ||||
| 14 | 326338 | 1.50 | 1.82 | |
| Steel Ball D3 | ||||
| 15 | 317788 | 1.65 | 2.00 | |
| Lock Ring | ||||
| 16 | 326323 | 3.30 | 3.99 | |
| Needle Roller Set (6pcs.) | ||||
| 17 | 326324 | 1.65 | 2.00 | |
| Pin | ||||
| 18 | 326329 | 1.65 | 2.00 | |
| Carrier | ||||
| 19 | 326325 | 1.65 | 2.00 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 20 | 326327 | 1.65 | 2.00 | |
| Ring Gear | ||||
| 21 | 326326 | 3.30 | 3.99 | |
| Washer (b) | ||||
| 22 | 326328 | 1.65 | 2.00 | |
| Pinion (c) | ||||
| 23 | 332768 | 10.20 | 12.34 | |
| Planet Gear (b) Set (3 Pcs.) | ||||
| 24 | 332766 | 12.45 | 15.06 | |
| Slide Ring Gear | ||||
| 25 | 332767 | 5.03 | 6.08 | |
| Pinion (b) | ||||
| 26 | 332765 | 10.20 | 12.34 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| 27 | 326335 | 1.65 | 2.00 | |
| First Ring Gear | ||||
| 28 | 326334 | 1.65 | 2.00 | |
| Washer (a) | ||||
| 29 | 332764 | 4.20 | 5.08 | |
| Motor Spacer | ||||
| 30 | 332763 | 7.88 | 9.53 | |
| Motor Dc 3.6v | ||||
| 31 | 332755 | 9.15 | 11.07 | |
| Machine Screw (w/sp. Washer) M2.6x6 | ||||
| 32 | 330755 | 1.20 | 1.45 | |
| Housing (a).(b) Set | ||||
| 33 | 332754 | 10.65 | 12.89 | |
| Screw D3x8 | ||||
| 34 | 984319 | 1.05 | 1.27 | |
| Steel Ball D3 | ||||
| 36 | 317788 | 1.65 | 2.00 | |
| Click Plate | ||||
| 37 | 326315 | 2.10 | 2.54 | |
| Shift Knob | ||||
| 38 | 332757 | 4.20 | 5.08 | |
| Handle Cover | ||||
| 39 | 332975 | 1.73 | 2.09 | |
| Click Spring | ||||
| 40 | 326309 | 1.65 | 2.00 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 43 | 302086 | 1.05 | 1.27 | |
| Knob | ||||
| 44 | 332756 | 1.05 | 1.27 | |
| Terminal | ||||
| 46 | 332771 | 2.10 | 2.54 | |
| Terminal Support B#9r192292 | ||||
| 47 | 326316 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 48 | 330757 | |||
| Clip | ||||
| 49 | 326318 | 1.05 | 1.27 | |
| Handle (a) (b) Set (black) | ||||
| 50 | 332588 | 22.83 | 27.62 | |
| Handle (a).(b) Set | ||||
| 50 | 332752 | 12.90 | 15.61 | |
| Wiring | ||||
| 51 | 333316 | 42.63 | 51.58 | |
| Switch | ||||
| 52 | 337436 | 8.85 | 10.71 | |
| No information available, not orderable | ||||
| 501 | 992671 | |||
| No information available, not orderable | ||||
| 503 | 332844 | |||
| No information available, not orderable | ||||
| 601 | 326665 | |||
| No information available, not orderable | ||||
| 602 | 992670 | |||
| No information available, not orderable | ||||
| 603 | 992672 | |||
| No information available, not orderable | ||||
| 604 | 992675 | |||
| No information available, not orderable | ||||
| 605 | 992676 | |||
| No information available, not orderable | ||||
| 606 | 992677 | |||
| No information available, not orderable | ||||
| 607 | 321823 | |||
| No information available, not orderable | ||||
| 608 | 307543 | |||
| No information available, not orderable | ||||
| 609 | 987575 | |||
