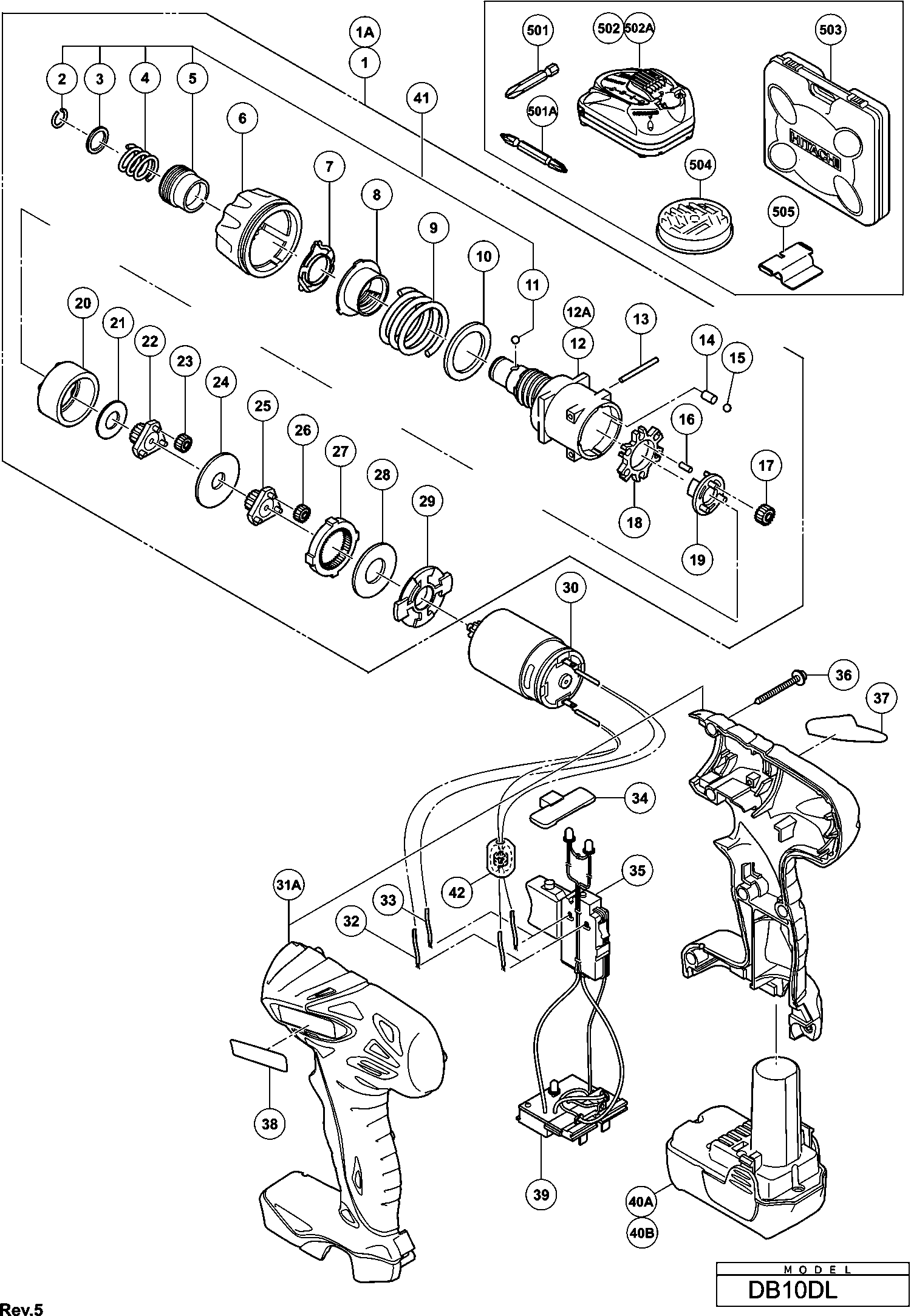

Technical drawing of model Hikoki DB10DL
Spare parts list of model Hikoki DB10DL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *40C | 372962 | |||
| Battery Cover | ||||
| *505 | 331086 | 1.05 | 1.27 | |
| Gear Box Ass'y Till 03.2009 For Tpe | ||||
| 1 | 329557 | 70.40 | 85.18 | |
| No information available, not orderable | ||||
| 1A | 329723 | |||
| Spring washer | ||||
| 2 | 315984 | 1.65 | 2.00 | |
| WASHER | ||||
| 3 | 315983 | 1.65 | 2.00 | |
| Guide Spring | ||||
| 4 | 320409 | 1.65 | 2.00 | |
| Guide Bush | ||||
| 5 | 319921 | 7.65 | 9.26 | |
| Clutch Dial | ||||
| 6 | 329578 | 5.10 | 6.17 | |
| Click Spring | ||||
| 7 | 329579 | 1.80 | 2.18 | |
| Spring Holder | ||||
| 8 | 329577 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 9 | 329576 | |||
| Washer (d) | ||||
| 10 | 329575 | 1.80 | 2.18 | |
| STEEL BALL D3,5 (10 pieces) | ||||
| 11 | 319535 | 1.65 | 2.00 | |
| Gear Cover | ||||
| 12 | 329558 | 14.10 | 17.06 | |
| STEEL BALL D3,5 (10 pieces) | ||||
| 12 | 319535 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 12A | 329724 | |||
| Pin | ||||
| 13 | 329565 | 1.80 | 2.18 | |
| Pin Set (6 Pcs.) | ||||
| 14 | 329574 | 3.45 | 4.17 | |
| Steel Ball D4 (10 Pcs.) | ||||
| 15 | 321905 | 4.80 | 5.81 | |
| Needle Roller Set (6pcs.) | ||||
| 16 | 329560 | 1.80 | 2.18 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 17 | 329563 | 1.80 | 2.18 | |
| Lock Ring | ||||
| 18 | 329559 | 6.75 | 8.17 | |
| Carrier | ||||
| 19 | 329561 | 3.45 | 4.17 | |
| Ring Gear | ||||
| 20 | 329562 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 21 | 329564 | |||
| Pinion (c) | ||||
| 22 | 329566 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 23 | 329568 | |||
| Washer (b) | ||||
| 24 | 329567 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 25 | 329569 | |||
| No information available, not orderable | ||||
| 26 | 329571 | |||
| First Ring Gear | ||||
| 27 | 329570 | 1.80 | 2.18 | |
| Washer (a) | ||||
| 28 | 329572 | 1.80 | 2.18 | |
| Motor Spacer | ||||
| 29 | 329573 | 1.80 | 2.18 | |
| Motor | ||||
| 30 | 329582 | 27.36 | 33.11 | |
| Housing (a).(b) Set | ||||
| 31A | 329556 | 44.00 | 53.24 | |
| Internal Wire (black) Except For Europe(till 2.20 | ||||
| 32 | 329584 | 3.30 | 3.99 | |
| Internal Wire (red) Except For Europe(till 2.2013 | ||||
| 33 | 329583 | 3.30 | 3.99 | |
| Pushing Button (a) | ||||
| 34 | 329548 | 1.65 | 2.00 | |
| Switch | ||||
| 35 | 329581 | 35.20 | 42.59 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 36 | 313687 | 1.04 | 1.26 | |
| Controller (b) | ||||
| 39 | 329580 | 35.20 | 42.59 | |
| No information available, not orderable | ||||
| 40A | 331065 | |||
| No information available, not orderable | ||||
| 40B | 329389 | |||
| Guide Sleeve Set Including 3-6,11 | ||||
| 41 | 320085 | 12.75 | 15.43 | |
| No information available, not orderable | ||||
| 42 | 334854 | |||
| No information available, not orderable | ||||
| 501 | 992671 | |||
| No information available, not orderable | ||||
| 501A | 983006 | |||
| No information available, not orderable | ||||
| 503 | 329585 | |||
| Battery Cover | ||||
| 505 | 331086 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 601 | 992670 | |||
| No information available, not orderable | ||||
| 602 | 992672 | |||
| No information available, not orderable | ||||
| 603 | 321823 | |||
| No information available, not orderable | ||||
| 604 | 307543 | |||
| No information available, not orderable | ||||
| 605 | 987575 | |||
| No information available, not orderable | ||||
| 606 | 983004 | |||
| No information available, not orderable | ||||
| 607 | 983011 | |||
| No information available, not orderable | ||||
| 608 | 983005 | |||
| No information available, not orderable | ||||
| 609 | 983010 | |||
