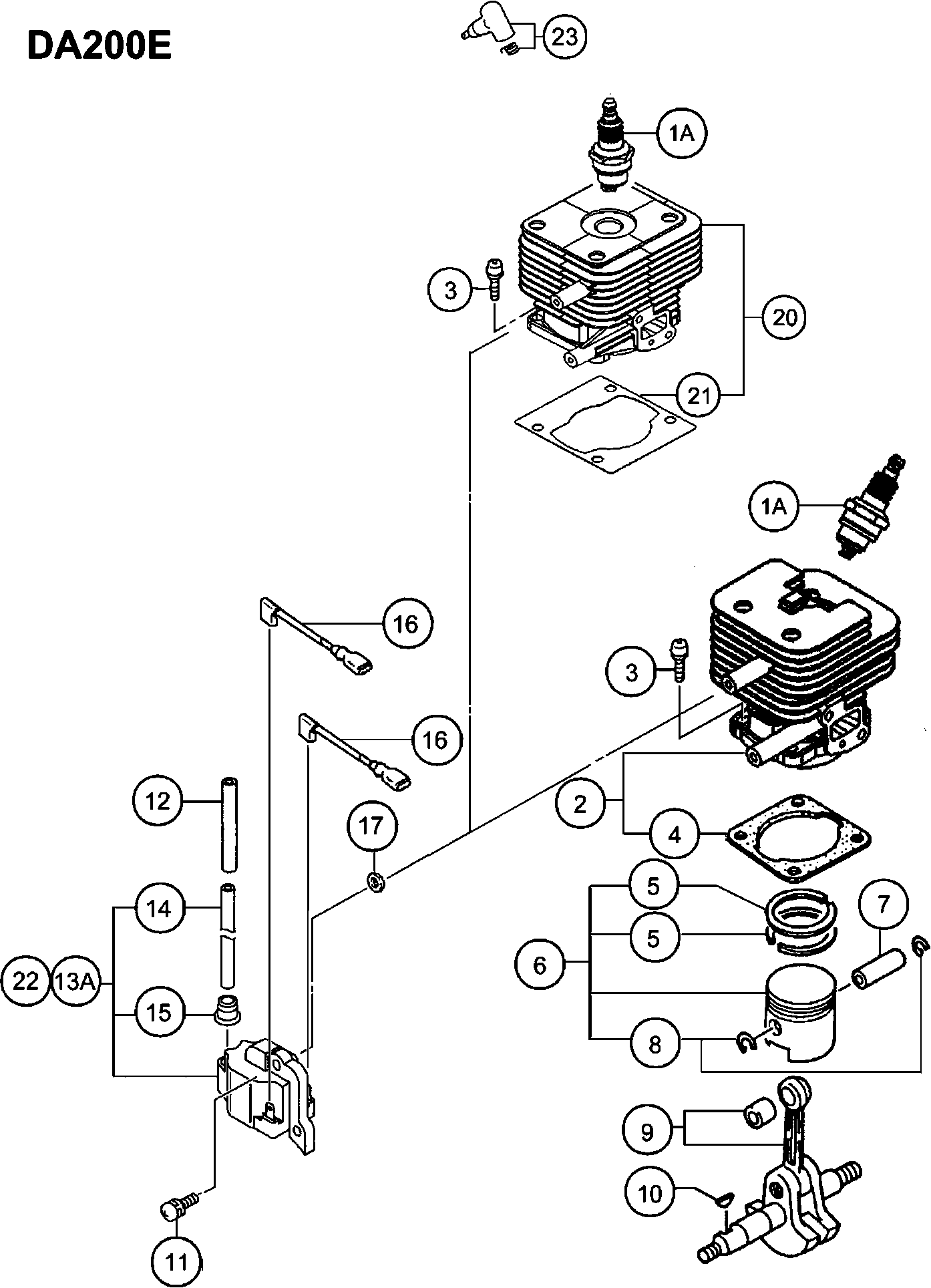

Technical drawing of model Hikoki DA200E

Spare parts list of model Hikoki DA200E

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Spark Plug Ass'y Rcj6y For Europe,aus
1A 6699326 3.30 3.99
Cylinder Set (old 001-07031-91/6685486)
2 6685487 52.34 63.33
Hex. Hole Bolt M5x16/s
3 6684903 2.15 2.60
Cylinder Gasket
4 6685746 1.15 1.39
Piston Ring (xr1-1856)
5 6685331 4.05 4.90
Piston Set
6 6685898 24.20 29.28
Piston Pin
7 6686008 2.31 2.80
Circlip
8 6685078 1.15 1.39
Crank Shaft Comp
9 6696499 67.00 81.07
Woodruff Key 3x13x4.5 Till B023800
10 6684899 2.15 2.60
High Tension Screw 4x18ws Since H124041
11 6695407 1.15 1.39
Insulator Tube, 110l
12 6688319 1.15 1.39
Ignition Coil Ass'y Till G165840
13A 6699772 17.85 21.60
High Tension Cord 140l Till G165840
14 6687888 2.31 2.80
Rubber Cap
15 6684602 2.15 2.60
Stop Cord B160m
16 6687874 2.31 2.80
Washer T1.6
17 6684600 2.15 2.60
Cylinder Set (old 001-07250-90)
20 6685491 60.35 73.02
Cylinder Gasket
21 6685749 1.15 1.39
Ignition Coil Ass'y
22 6687719 28.14 34.05
Spark Plug Cap Ass'y Till G165840
23 6687468 2.31 2.80
Oil Seal
24 6684607 4.29 5.19
Ball Bearing 6001 C3
25 6684608 3.80 4.60
Crank Case Gasket
26 6686721 1.15 1.39
No information available, not orderable
27 6686723
Crank Case Gasket Since J014621
27A 6699280 1.04 1.26
Gear Shaft Shim 0.20
28 6684604 2.15 2.60
Gear Shaft Shim 0.30
28 6684605 2.15 2.60
Magneto Rotor Comp.
29 6687375 20.11 24.34
Hex. Nut M8
30 6684612 2.15 2.60
Ring
31 6695184 1.15 1.39
Hex. Hole Bolt M5x16/s
32 6684903 2.15 2.60
Hex. Hole Bolt M5x16/s
33 6684903 2.15 2.60
Hex. Hole Bolt M5x16/s
33A 6684903 2.15 2.60
Crank Case Ass'y
34 6686580 38.26 46.30
No information available, not orderable
35 6686586
Crank Case Ass'y Since J014621
35A 6699279 29.80 36.06
Inlet Manifold Gasket
41 6689864 1.15 1.39
Inlet Manifold Gasket
41 6689895 1.15 1.39
Carburetor Insulator Set,spare (old 404-0143c-90)
42 6689924 6.60 7.99
Insulator Set
42 6689972 6.28 7.59
Hex.hole Bolt 5x22/ws
43 6695514 1.15 1.39
Hex. Hole Bolt M5x25ws
43 6695515 1.15 1.39
Carburetor Packing
44 6684616 2.15 2.60
Wire Return Spring (old 902-10243-20)
45 6694055 1.15 1.39
Choke Plate 2.0
46 6691276 1.15 1.39
Choke Plate 1.0
46 6691278 1.15 1.39
Cleaner Body Comp.
47 6690120 4.45 5.38
Cleaner Sponge
48 6690365 1.15 1.39
Cleaner Cover
49 6690421 13.86 16.77
Cleaner Cover
49 6690402 10.23 12.37
Cover Fixing Bolt Comp.
50 6698730 3.15 3.81
Screw 5x57/s
51 6695353 1.15 1.39
Small Washer 5
52 6684864 2.15 2.60
Carburetor Set,wyj135a Till B027700 For Europe,au
53 6690501 86.36 104.50
Carburetor Set Wyj399 Since B027701 For Europe,au
53 6690515 86.36 104.50
Carburetor Set Wyj464
53 6690516 68.36 82.72
Choke Control Lever
55 6691239 1.15 1.39
Tank Comp. Wht
56 6691588 11.71 14.17
Tank F T
57 6699336 24.20 29.28
Collar 5.8 Till G103930
58 6692244 1.15 1.39
No longer available, no replacement
59 6688156
Fuel Pipe 3x5x85
60 6684880 2.15 2.60
No information available, not orderable
61 6684620
Clip D6
62 6685198 1.15 1.39
Fuel Pipe Ass'y
63 6688169 2.31 2.80
Hex. Hole Bolt 5x16/ps
64 6695504 1.15 1.39
No information available, not orderable
65 6685049
Tap Screw 4x14 P
67 6695280 1.15 1.39
Ring
68 6685070 1.15 1.39
No information available, not orderable
70 6684625
Return Grommet Till 7.2014
75 6697846 1.04 1.26
Washer M5 (black)
76 6684918 2.15 2.60
Tank Fixing Collar
77 6692183 1.15 1.39
Hex. Hole Bolt M5x25/s
79 6684709 2.15 2.60
Hex. Hole Bolt 5x16/ps
80 6695504 1.15 1.39
S.washer 5
84 6684662 2.15 2.60
Shield Tube 3x5x180
85 6684618 4.29 5.19
Muffler Protector
91 6692804 7.75 9.38
No information available, not orderable
92 6692497
Hex. Hole Bolt M6x55
93 6684638 2.15 2.60
Ring
94 6684639 2.15 2.60
Heat Shield
95 6687260 3.30 3.99
Muffler Gasket
96 6692732 1.15 1.39
Clutch Arm Comp.
97 6688610 7.59 9.18
Clutch Spring
98 6689420 2.31 2.80
Ring
99 6689645 1.15 1.39
Clutch Set Ass'y
100 6688482 12.88 15.58
Washer
101 6695203 1.15 1.39
Clutch Step Bolt
102 6689628 2.31 2.80
Screw 4x14/ps
103A 6695372 1.15 1.39
Spark Plug Cap Ass'y
104 6687478 5.28 6.38
Deflector
105 6687211 3.30 3.99
Screw 5x20/ws
106A 6695421 1.05 1.27
Fan Housing
107 6687022 18.75 22.69
No information available, not orderable
107A 6697733
Stud Bolt 6x36
108 6686772 1.15 1.39
Primary Cord Grommet
109 6688057 1.15 1.39
Cylinder Cover Blk
110 6685689 5.78 6.99
Screw 5x16/ps
112A 6695386 1.15 1.39
Hex.hole Bolt 6x65 (old 990-51060-653)
113 6695067 1.15 1.39
No information available, not orderable
114 6699602
Tail Pipe Set
115 6692716 4.79 5.79
Screw M4x8/ws
116 6684651 2.15 2.60
Spark Arrester
117 6692702 2.31 2.80
Muffler Special Gasket
118 6692886 1.15 1.39
Muffler Protector Blk
119 6692812 10.40 12.58
Heat Shield
120 6687263 4.45 5.38
Air Deflector
121 6687213 3.30 3.99
Tapping Screw 4x14
122 6684751 2.15 2.60
Recoil Starter Body Ass'y (old 762-0720f-92/669298
131 6692991 20.11 24.34
Recoil Starter Body Comp. Since C237092
132 6693040 7.75 9.38
Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo
133 6684674 4.29 5.19
Recoil Spring Till 7.2014
134 6684675 11.55 13.98
No longer available, no replacement
135 6693081
Damper Spring For (s) Type Since 7.2012 For Aus
136 6684677 8.58 10.38
No information available, not orderable
137 6692938
Set Screw (old 839-03045-20)
138 6684679 2.15 2.60
Starter Handle
139 6684680 2.15 2.60
Ring
140 6689645 1.15 1.39
Starter Pulley Ass'y For (s) Type Since 7.2012 Fo
141 6684681 13.20 15.97
Hex. Hole Bolt 4x20 Ps Since C237092
142 6695503 1.15 1.39
Screw 4x18/ps Since H124041
142 6695375 1.15 1.39
D4e Retaining Ring (old 993-55040-001)
143 6685101 1.15 1.39
Starter Pawl Spring
144 6684684 4.29 5.19
Starter Pawl
145 6684685 4.29 5.19
Pump Body Comp.
161 6684879 62.16 75.22
Priming Pump Comp.
162 6684687 16.34 19.77
Diaphragm Cover
163 6684688 8.58 10.38
Priming Body
164 6684689 6.44 7.79
Metering Diaphragm Comp.
165 6690830 11.88 14.37
Diaphragm Gasket
166 6684691 8.58 10.38
Pump Diaphragm
167 6684693 8.58 10.38
Pump Gasket (old 577-25100-20)
168 6691457 7.10 8.59
Main Jet #38.5 (old 599-200bw-38/6691874)
169 6696130 5.78 6.99
Main Jet #43
169 6691848 4.45 5.38
O-RING (old 550-25100-20)
170 6684695 4.29 5.19
Stop Ring
171 6684696 2.15 2.60
Swivel
172 6684697 6.44 7.79
Throttle Set Screw
173 6684870 2.15 2.60
Cable Adjuster Stay
174 6684873 6.44 7.79
Lock Nut M6
175 6684872 2.15 2.60
Cable Adjuster Since B027701
176 6692009 4.95 5.99
Cleaner Packing
177 6684875 4.29 5.19
Set Screw
178 6684699 2.15 2.60
Thrust Washer
179 6684874 2.15 2.60
Inlet Screen
180 6684700 4.29 5.19
Pump Body Comp.
201 6684879 62.16 75.22
Priming Pump Comp.
202 6684687 16.34 19.77
Diaphragm Cover
203 6684688 8.58 10.38
Priming Body
204 6684689 6.44 7.79
Metering Diaphragm Comp. Till B027700
205 6690827 11.71 14.17
Diaphragm Gasket
206 6684691 8.58 10.38
Pump Diaphragm
207 6684693 8.58 10.38
Pump Gasket (old 577-25100-20)
208 6691457 7.10 8.59
Stop Ring
209 6684696 2.15 2.60
Thrust Washer
210 6684874 2.15 2.60
Swivel
211 6684697 6.44 7.79
Throttle Valve Till B027700
212 6690947 36.15 43.74
Throttle Set Screw
213 6684870 2.15 2.60
Cable Adjuster Stay
214 6684873 6.44 7.79
Lock Nut M6
215 6684872 2.15 2.60
No information available, not orderable
216 6697616
Cleaner Packing
217 6684875 4.29 5.19
Set Screw
218 6684699 2.15 2.60
No information available, not orderable
219 6690700
High/low Adjust Spring (old 623-25032-20)
220 6692048 2.31 2.80
Ring
221 6691317 1.05 1.27
O-ring Till B027700
222 6691322 2.10 2.54
Inlet Screen
223 6684700 4.29 5.19
Clutch Housing Comp.
241 6688203 28.14 34.05
No information available, not orderable
242 6688029
Gear Case Gasket B
243 6688059 1.15 1.39
Spring Nut 6
244 6695475 1.15 1.39
Gear 2
245 6688136 28.14 34.05
Ball Bearing #6202z
246 6695559 6.44 7.79
No information available, not orderable
247 6695557
Stop Ring C-15, Outer
248 6695285 1.15 1.39
Gear Case B
250 6688035 24.20 29.28
Gear Case Gasket C
251 6688063 1.15 1.39
Screw 5x30/s
252 6695345 1.15 1.39
Wood-ruff Key 3x13x5.0
253 6686459 1.15 1.39
Gear 3 (old 222-32465-20)
254 6688162 18.15 21.96
No information available, not orderable
255 6695524
Ring
256 6684639 2.15 2.60
Screw 6x8 (old 990-11060-081)
257 6694923 1.15 1.39
Stop Ring C-17, Outer
258 6695286 1.15 1.39
No information available, not orderable
271 6688179
Drive Shaft
272 6688189 36.15 43.74
Knock Pin 4x12 (old 999-05041-203)
273 6695521 1.15 1.39
Gear Case C
274 6688043 19.51 23.61
Screw 5x50
275 6694910 1.15 1.39
S.washer 5
276 6684662 2.15 2.60
Screw 5x30/s
277 6695345 1.15 1.39
Thrust Bearing 2035 (old 999-62203-572)
278 6695617 16.94 20.49
Gear Shaft Collar A
279 6688223 3.30 3.99
Ball Bearing 6904zz
280 6695584 13.70 16.58
Stop Ring C-37, Inner
281 6695297 1.15 1.39
Gear Shaft Collar B
282 6688234 5.11 6.19
Pin For Europe,aus
283 6693553 1.15 1.39
Snap Pin 8
284 6693558 1.15 1.39
Bolt Washer M8
285 6684611 2.15 2.60
Handle Ass'y
291 6686254 144.60 174.97
Ring
292 6695219 1.15 1.39
Plus Bolt 6x18
293 6695020 1.15 1.39
Cord Clamp
294 6688015 1.15 1.39
Throttle Lever Ass'y
295 6693695 14.35 17.36
Stop Switch Ass'y
296 6687434 9.90 11.98
Stop Button Bracket
297 6692138 3.30 3.99
Stop Button Mark
298 6694589 2.31 2.80
Plus Bolt 6x30
299 6695022 1.15 1.39
Ring
300 6684639 2.15 2.60
Ring
301 6684822 2.15 2.60
Throttle Lever Band
302 6693808 2.31 2.80
Square Nut 6 (old 991-91060-061)
303 6696512 1.04 1.26
Throttle Arm
304 6693801 4.95 5.99
Protection Tube 10x42
305 6687578 2.31 2.80
Protection Tube 10x420l (old 164-10042-00)
305 6687577 1.15 1.39
Split Protection Tube 13x150l
306 6687602 1.15 1.39
Throttle Wire 640+45
307 6693927 7.93 9.59
Throttle Wire Comp.
307 6693926 5.28 6.38
Button Stop
308 6688366 1.15 1.39
Screw 3x10
309 6684913 2.15 2.60
Spanner 10x13 Till K062490
501 6693479 2.31 2.80
Combi. Box Spanner 10x19 ,plus
502 6685997 4.45 5.38
Symbol Mark Da200e(s)
601 6694657 1.15 1.39
Symbol Mark Da200e(sp)
602 6694660 1.05 1.27
No information available, not orderable
603 6694474
