Here you will find all available parts and drawings of the 'Hikoki D6Y'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

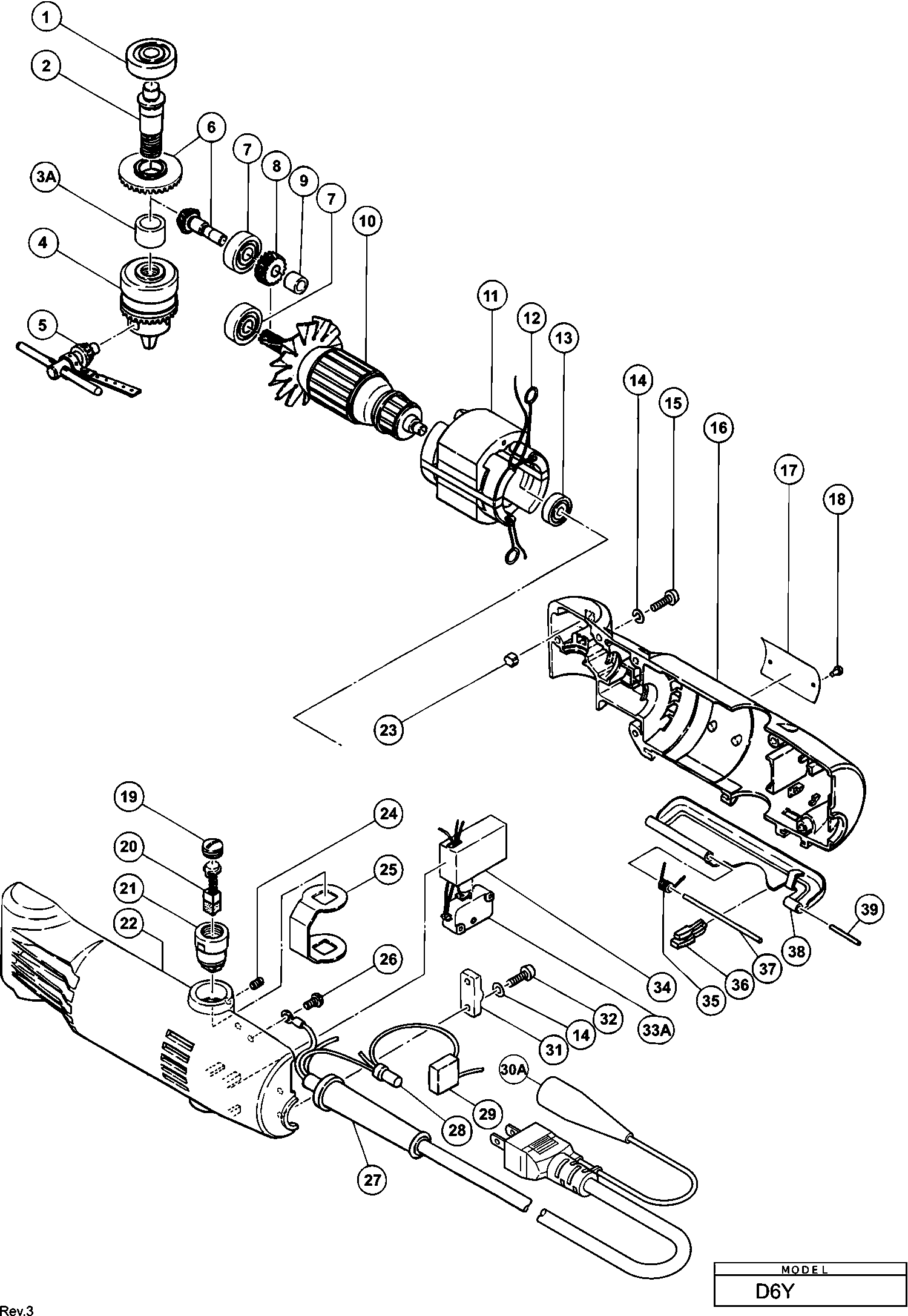

Technical drawing of model Hikoki D6Y
Spare parts list of model Hikoki D6Y
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ball Bearing 629vv | ||||
| 1 | 629VVM | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 2 | 981471 | |||
| Needle Bearing (hk1210fm) | ||||
| 3A | 331359 | 8.93 | 10.80 | |
| No information available, not orderable | ||||
| 4 | 950283 | |||
| No information available, not orderable | ||||
| 5 | 930029 | |||
| Gear | ||||
| 6 | 981463 | 55.41 | 67.05 | |
| Ball Bearing 608vvc2ps2l | ||||
| 7 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 8 | 981462 | |||
| No information available, not orderable | ||||
| 9 | 937874 | |||
| No information available, not orderable | ||||
| 10 | 981473 | |||
| No information available, not orderable | ||||
| 11 | 981472 | |||
| Brush Terminal For Aus | ||||
| 12 | 930630 | 1.35 | 1.63 | |
| Ball Bearing 626vvc2ps2l | ||||
| 13 | 626VVM | 5.70 | 6.90 | |
| Spring Washer M4 (10 pieces) | ||||
| 14 | 949453 | 1.05 | 1.27 | |
| Machine Screw M4x16 (10 Pcs.) | ||||
| 15 | 949219 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 16 | 981467 | |||
| No information available, not orderable | ||||
| 18 | 949509 | |||
| Brush Cap | ||||
| 19 | 936551 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 20 | 999021 | |||
| No information available, not orderable | ||||
| 21 | 937701 | |||
| No information available, not orderable | ||||
| 22 | 981460 | |||
| No information available, not orderable | ||||
| 23 | 981461 | |||
| HEXAGON SOCKET SET SCREW M4X4 | ||||
| 24 | 981478 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 25 | 981476 | |||
| No information available, not orderable | ||||
| 26 | 949292 | |||
| Cord Armor D10.1 | ||||
| 27 | 938051 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 28 | 959140 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 29 | 930030 | |||
| No information available, not orderable | ||||
| 30A | 339986 | |||
| Cord Clip | ||||
| 31 | 937631 | 1.04 | 1.26 | |
| Machine Screw M4x14 (10 Pcs.) | ||||
| 32 | 949218 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 33A | 995472 | |||
| No information available, not orderable | ||||
| 34 | 981466 | |||
| No information available, not orderable | ||||
| 35 | 981470 | |||
| No information available, not orderable | ||||
| 36 | 981475 | |||
| No information available, not orderable | ||||
| 37 | 981469 | |||
| No information available, not orderable | ||||
| 38 | 981468 | |||
| No information available, not orderable | ||||
| 39 | 981477 | |||
