Here you will find all available parts and drawings of the 'Hikoki D28770'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

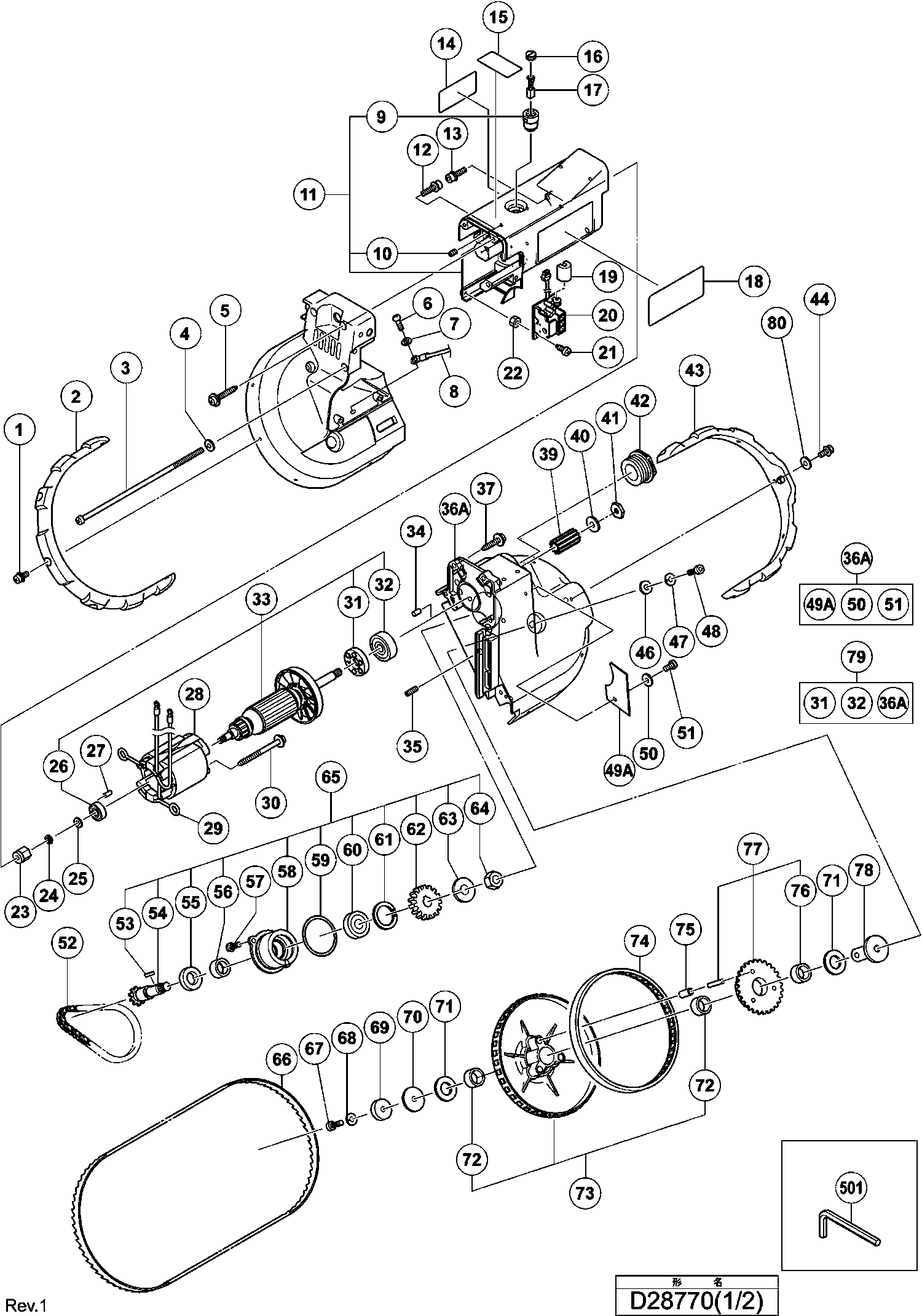

Technical drawing of model Hikoki D28770
Spare parts list of model Hikoki D28770
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Machine Screw (w/washers) M4x10 (black) | ||||
| 1 | 304043 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 2 | 322698 | |||
| No information available, not orderable | ||||
| 3 | 319161 | |||
| Spring Washer M5 (10 pieces) | ||||
| 4 | 949454 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x35 (black) | ||||
| 5 | 323209 | 1.35 | 1.63 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 6 | 949216 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 7 | 949453 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 8 | 323044 | |||
| BRUSH HOLDER | ||||
| 9 | 937701 | 1.74 | 2.11 | |
| HEX SOCKET SET SCREW M4X6 | ||||
| 10 | 308073 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 11 | 322674 | |||
| Hex. Socket Hd. Bolt (w/washers) M5x20 | ||||
| 12 | 316107 | 1.80 | 2.18 | |
| Hex. Socket Hd. Bolt (w/washers) M5x20 | ||||
| 13 | 316107 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 15 | 323201 | |||
| Brush Cap | ||||
| 16 | 936551 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 17 | 999021 | |||
| No information available, not orderable | ||||
| 18 | 323202 | |||
| No information available, not orderable | ||||
| 19 | 323203 | |||
| No information available, not orderable | ||||
| 20 | 326660 | |||
| No information available, not orderable | ||||
| 21 | 319531 | |||
| Lock Nut M5 (10 Pcs.) | ||||
| 22 | 949566 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 23 | 309817 | |||
| Super Lock Washer M6 Single-phase | ||||
| 24 | 948167 | 1.04 | 1.26 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 25 | 949432 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 26 | 608VVM | 5.70 | 6.90 | |
| RUBBER PIN (OLD 976441) | ||||
| 27 | 946362 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 28 | 340579D | |||
| Brush Terminal | ||||
| 29 | 931867 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 30 | 319358 | |||
| No information available, not orderable | ||||
| 31 | 322676 | |||
| Ball Bearing 6300vvcmps2l | ||||
| 32 | 6300VV | 8.25 | 9.98 | |
| No information available, not orderable | ||||
| 33 | 360638U | |||
| PIN D4X10 (10 PCS.) | ||||
| 34 | 949891 | 1.98 | 2.40 | |
| Hex. Socket Set Screw M5x16 | ||||
| 35 | 971884 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 36A | 326272 | |||
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 37 | 305558 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 38 | 323204 | |||
| No information available, not orderable | ||||
| 39 | 319146 | |||
| Bolt Washer M8 (black) | ||||
| 40 | 323212 | 1.05 | 1.27 | |
| Lock Nut M8 (10 Pcs.) | ||||
| 41 | 949568 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 42 | 319147 | |||
| No information available, not orderable | ||||
| 43 | 322697 | |||
| Machine Screw (w/washers) M4x10 (black) | ||||
| 44 | 304043 | 1.05 | 1.27 | |
| Washer (h) | ||||
| 46 | 322677 | 1.65 | 2.00 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 47 | 949455 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M6x20 (10 Pcs.) | ||||
| 48 | 949660 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 49A | 326273 | |||
| Bolt Washer M4 (black) For 220v-240v | ||||
| 50 | 323210 | 1.05 | 1.27 | |
| Machine Screw M4x8 (black) | ||||
| 51 | 323211 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 52 | 325372 | |||
| Feather Key 4x4x12 | ||||
| 53 | 931008 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 54 | 319149 | |||
| No information available, not orderable | ||||
| 55 | 977102 | |||
| NEEDLE BEARING | ||||
| 56 | 319150 | 5.52 | 6.68 | |
| Machine Screw M5X16 (10 pieces) | ||||
| 57 | 949239 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 58 | 319151 | |||
| No information available, not orderable | ||||
| 59 | 977100 | |||
| Ball Bearing 6201vv | ||||
| 60 | 6201VV | 6.45 | 7.80 | |
| Stop Ring D32 | ||||
| 61 | 948001 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 62 | 323240 | |||
| Spring Washer M10 (10 Pcs.) | ||||
| 63 | 949458 | 1.05 | 1.27 | |
| Lock Nut M10 (10 Pcs.) | ||||
| 64 | 949572 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 65 | 325412 | |||
| Hex. Socket Hd. Bolt M6x20 (10 Pcs.) | ||||
| 67 | 949660 | 3.30 | 3.99 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 68 | 949455 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 69 | 977109 | |||
| WASHER (B) | ||||
| 70 | 936311 | 1.00 | 1.21 | |
| PLASTIC RING | ||||
| 71 | 977108 | 1.00 | 1.21 | |
| NEEDLE BEARING | ||||
| 72 | 319150 | 5.52 | 6.68 | |
| No information available, not orderable | ||||
| 73 | 322678 | |||
| RUBBER WHEEL | ||||
| 74 | 977110 | 7.50 | 9.08 | |
| RUBBER BUSHING | ||||
| 75 | 319157 | 1.50 | 1.82 | |
| NEEDLE BEARING | ||||
| 76 | 319150 | 5.52 | 6.68 | |
| No information available, not orderable | ||||
| 77 | 325371 | |||
| No information available, not orderable | ||||
| 78 | 319152 | |||
| No information available, not orderable | ||||
| 79 | 323207 | |||
| Bolt Washer M4 (black) For 220v-240v | ||||
| 80 | 323210 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 81 | 322704 | |||
| Machine Screw M5X16 (10 pieces) | ||||
| 82 | 949239 | 1.05 | 1.27 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 83 | 949431 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 84 | 322682 | |||
| connecting terminal | ||||
| 85 | 980063 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 86 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 87 | 984750 | |||
| No information available, not orderable | ||||
| 88 | 981276 | |||
| Bolt Washer M4 (black) For 220v-240v | ||||
| 89 | 323210 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 90 | 319505 | |||
| No information available, not orderable | ||||
| 91 | 322684 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 92 | 302086 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 93 | 304035 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 94 | 322683 | |||
| Machine Screw M6x16 (10 Pcs.) | ||||
| 95 | 949256 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 96 | 320504 | |||
| Connector 50091 (10 Pcs.) | ||||
| 97 | 959140 | 3.30 | 3.99 | |
| CORD CLAMP | ||||
| 98 | 975144 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 99 | 322703 | |||
| No information available, not orderable | ||||
| 100 | 322699 | |||
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 101 | 949455 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M6x16 (10 Pcs.) | ||||
| 102 | 949755 | 3.00 | 3.63 | |
| Machine Screw M5x10 (black) | ||||
| 103 | 323040 | 1.05 | 1.27 | |
| BLADE COVER (C) | ||||
| 104 | 322694 | 1.86 | 2.25 | |
| Hex socket flat head screw M6X16, new | ||||
| 105 | 968771 | 1.00 | 1.21 | |
| GUIDE PLATE | ||||
| 106 | 319165 | 6.42 | 7.77 | |
| Square Nut M6 | ||||
| 107 | 319166 | 1.80 | 2.18 | |
| Machine Screw M5x30 (black) | ||||
| 108 | 323041 | 1.05 | 1.27 | |
| PIN D4X10 (10 PCS.) | ||||
| 109 | 949891 | 1.98 | 2.40 | |
| No information available, not orderable | ||||
| 110 | 325375 | |||
| Bolt Washer M5 (10 Pcs.) | ||||
| 111 | 949431 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 112 | 323042 | |||
| Bolt Washer M6 (10 Pcs.) | ||||
| 113 | 949432 | 1.05 | 1.27 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 114 | 949455 | 1.05 | 1.27 | |
| Bearing Pin (b) | ||||
| 115 | 322681 | 1.20 | 1.45 | |
| Bolt Washer M4 (black) For 220v-240v | ||||
| 116 | 323210 | 1.05 | 1.27 | |
| Roller 604vv | ||||
| 117 | 323043 | 3.15 | 3.81 | |
| Bearing Pin | ||||
| 118 | 322680 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 119 | 322679 | |||
| Hex. Socket Hd. Bolt M6x20 (10 Pcs.) | ||||
| 120 | 949660 | 3.30 | 3.99 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 121 | 949455 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 122 | 977109 | |||
| WASHER (B) | ||||
| 123 | 936311 | 1.00 | 1.21 | |
| PLASTIC RING | ||||
| 124 | 977108 | 1.00 | 1.21 | |
| NEEDLE BEARING | ||||
| 125 | 319150 | 5.52 | 6.68 | |
| BLADE PULLEY ASSEMBLY | ||||
| 126 | 322690 | 14.90 | 18.03 | |
| RUBBER WHEEL | ||||
| 127 | 977110 | 7.50 | 9.08 | |
| PULLEY SHAFT (B) | ||||
| 128 | 322689 | 5.52 | 6.68 | |
| NUT | ||||
| 129 | 322686 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 130 | 322685 | |||
| SHAFT | ||||
| 131 | 977116 | 10.86 | 13.14 | |
| Hex. Socket Hd. Bolt M6x16 (10 Pcs.) | ||||
| 132 | 949755 | 3.00 | 3.63 | |
| SCREW (A) | ||||
| 133 | 977117 | 2.58 | 3.12 | |
| RETAINING RING | ||||
| 134 | 973040 | 1.74 | 2.11 | |
| SCREW (A) | ||||
| 135 | 977117 | 2.58 | 3.12 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 136 | 949455 | 1.05 | 1.27 | |
| Washer M8 (10 Pcs.) | ||||
| 137 | 949426 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 138 | 322688 | |||
| Split Pin D2x12 (10 Pcs.) | ||||
| 139 | 949531 | 1.05 | 1.27 | |
| CAMSHAFT (A) | ||||
| 140 | 322687 | 13.20 | 15.97 | |
| BEARING HOLDER (B) | ||||
| 141 | 320172 | 11.70 | 14.16 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 142 | 949431 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 143 | 323042 | |||
| Bolt Washer M6 (10 Pcs.) | ||||
| 144 | 949432 | 1.05 | 1.27 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 145 | 949455 | 1.05 | 1.27 | |
| Bearing Pin (b) | ||||
| 146 | 322681 | 1.20 | 1.45 | |
| Bolt Washer M4 (black) For 220v-240v | ||||
| 147 | 323210 | 1.05 | 1.27 | |
| Roller 604vv | ||||
| 148 | 323043 | 3.15 | 3.81 | |
| Bearing Pin | ||||
| 149 | 322680 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 150 | 322691 | |||
| No information available, not orderable | ||||
| 151 | 323205 | |||
| No information available, not orderable | ||||
| 152 | 323045 | |||
| No information available, not orderable | ||||
| 153 | 323046 | |||
| Lamp (12v 5w) | ||||
| 154 | 315229 | 9.30 | 11.25 | |
| No information available, not orderable | ||||
| 155 | 317838 | |||
| No information available, not orderable | ||||
| 156 | 319169 | |||
| No information available, not orderable | ||||
| 157 | 322692 | |||
| No information available, not orderable | ||||
| 158 | 322701 | |||
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 159 | 305558 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 160 | 323206 | |||
| No information available, not orderable | ||||
| 161 | 322702 | |||
| No information available, not orderable | ||||
| 162 | 319840 | |||
| Machine Screw (w/washers) M5x12 (black) | ||||
| 163 | 996247 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 164 | 323047 | |||
| Stainless steel spring pin D4X20 | ||||
| 165 | 321956 | 1.50 | 1.82 | |
| Bearing | ||||
| 166 | 322695 | 3.15 | 3.81 | |
| PIN D4X10 (10 PCS.) | ||||
| 167 | 949891 | 1.98 | 2.40 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 168 | 949455 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M6x20 (10 Pcs.) | ||||
| 169 | 949660 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 170 | 322693 | |||
| No information available, not orderable | ||||
| 171 | 323208 | |||
| No information available, not orderable | ||||
| 172 | 323038 | |||
| Bolt Washer M8 (black) | ||||
| 173 | 323212 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 174 | 323039 | |||
| ROLL PIN D4X20 (10 PCS.) | ||||
| 175 | 949499 | 1.74 | 2.11 | |
| SPANNER | ||||
| 176 | 977119 | 20.79 | 25.16 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
