Here you will find all available parts and drawings of the 'Hikoki D13Y'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

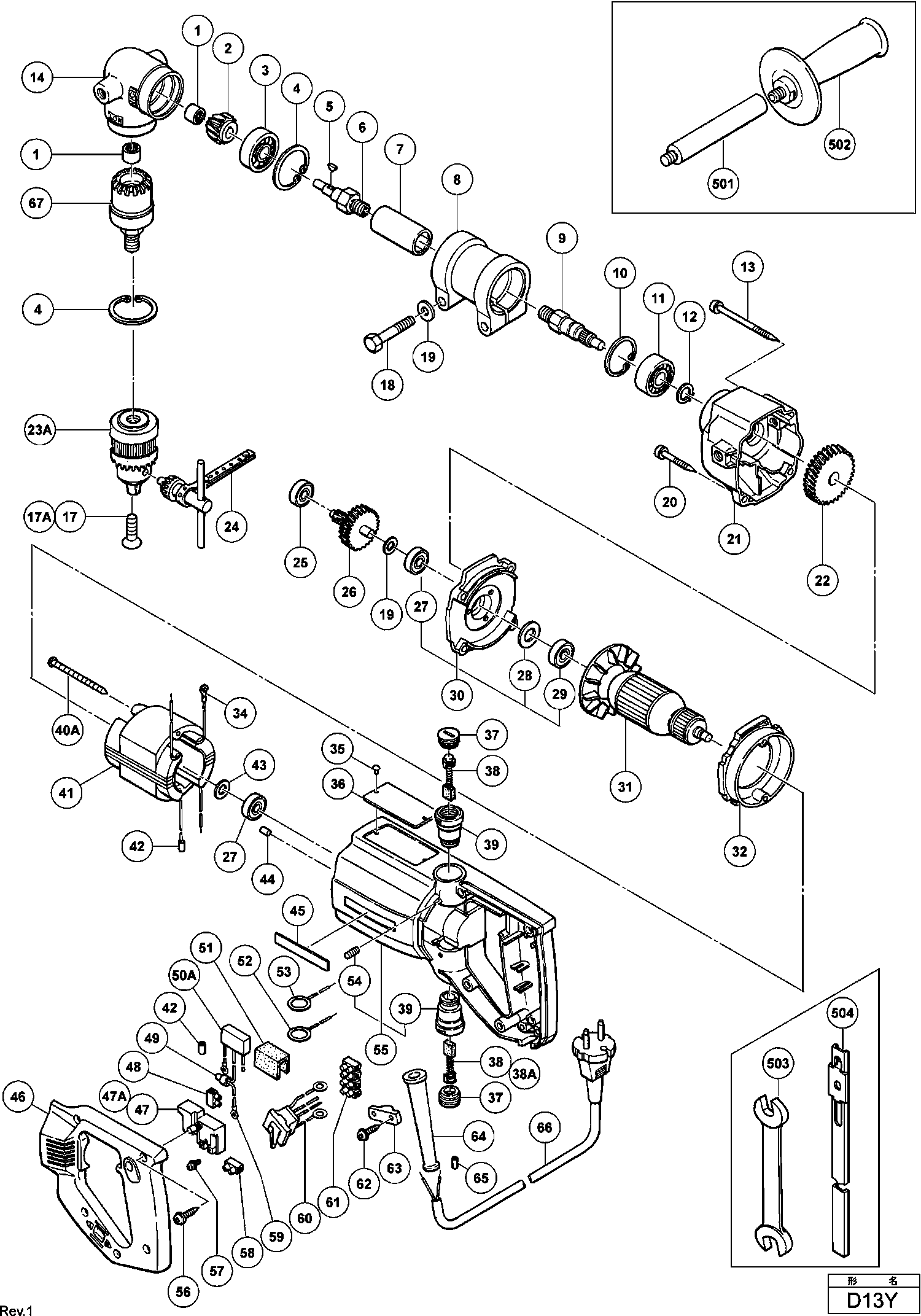

Technical drawing of model Hikoki D13Y
Spare parts list of model Hikoki D13Y
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Needle Bearing (hk0810) | ||||
| 1 | 670714 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 2 | 986149 | |||
| Ball Bearing 6301vvcmps2l | ||||
| 3 | 6301VV | 8.55 | 10.35 | |
| Ring | ||||
| 4 | 986147 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 5 | 932819 | |||
| No information available, not orderable | ||||
| 6 | 986146 | |||
| Connector | ||||
| 7 | 986143 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| 8 | 986142 | |||
| Spindle Ass'y | ||||
| 9 | 981667 | 32.18 | 38.93 | |
| Retaining Ring For D35 Hole (10 Pcs.) | ||||
| 10 | 939556 | 10.20 | 12.34 | |
| Ball Bearing 6202vvcmps2l | ||||
| 11 | 6202VV | 7.05 | 8.53 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 12 | 939544 | 2.13 | 2.57 | |
| No information available, not orderable | ||||
| 13 | 986141 | |||
| No information available, not orderable | ||||
| 14 | 986144 | |||
| Special Screw M6x22 | ||||
| 17 | 981122 | 1.35 | 1.63 | |
| Flat Hd. Screw (left Hand) M6x20 | ||||
| 17A | 331966 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| 18 | 949632 | |||
| Washer M8 (10 Pcs.) | ||||
| 19 | 949426 | 1.05 | 1.27 | |
| Tapping Screw (w/sp. Washer) D5x35 | ||||
| 20 | 986140 | 1.05 | 1.27 | |
| Gear Cover (Old 981650Z) | ||||
| 21 | 981650 | 31.90 | 38.60 | |
| Gear | ||||
| 22 | 983448 | 16.09 | 19.47 | |
| No information available, not orderable | ||||
| 23A | 321814 | |||
| No information available, not orderable | ||||
| 24 | 930515 | |||
| Ball Bearing 627vvc2ps2l | ||||
| 25 | 627VVM | 5.55 | 6.72 | |
| Gear | ||||
| 26 | 981652Z | 19.11 | 23.13 | |
| Ball Bearing 608vvc2ps2l | ||||
| 27 | 608VVM | 5.70 | 6.90 | |
| Ring | ||||
| 28 | 984357 | 1.05 | 1.27 | |
| Ball bearing 609vvmc2ps2s | ||||
| 29 | 609VVM | 6.00 | 7.26 | |
| Inner Cover Ass'y Includ.27-29 | ||||
| 30 | 982791 | 41.11 | 49.75 | |
| Armature Ass'y 240v | ||||
| 31 | 981657F | 92.13 | 111.47 | |
| Armature 220-230 Volt | ||||
| 31 | 981657E | 91.16 | 110.31 | |
| Fan Guide | ||||
| 32 | 981562 | 2.55 | 3.09 | |
| Terminal (a) M3.5 (10 Pcs.) | ||||
| 34 | 960356 | 3.00 | 3.63 | |
| Brush Cap | ||||
| 37 | 961781 | 2.55 | 3.09 | |
| Carbon Brush (1 Pair) | ||||
| 38 | 999043 | 4.50 | 5.44 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 38A | 999073 | 14.40 | 17.42 | |
| Brush Holder | ||||
| 39 | 981586 | 6.45 | 7.80 | |
| Tapping Screw D5x60 | ||||
| 40A | 991007 | 1.35 | 1.63 | |
| Field | ||||
| 41 | 981656G | 26.13 | 31.61 | |
| Threaded cable sleeve | ||||
| 42 | 981373 | 1.05 | 1.27 | |
| Washer (c) | ||||
| 43 | 984367 | 1.05 | 1.27 | |
| RUBBER PIN (OLD 976441) | ||||
| 44 | 946362 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 45 | 957561 | |||
| No information available, not orderable | ||||
| 46 | 981661 | |||
| Pillar Terminal (b) Till 10.1999 | ||||
| 48 | 982805Z | 2.55 | 3.09 | |
| Connector 50091 (10 Pcs.) | ||||
| 49 | 959140 | 3.30 | 3.99 | |
| Noise Suppressor | ||||
| 50A | 994273 | 4.29 | 5.19 | |
| Rubber | ||||
| 51 | 930153 | 1.04 | 1.26 | |
| Hex. Socket Set Screw M4x5 | ||||
| 54 | 961681 | 1.04 | 1.26 | |
| Housing | ||||
| 55 | 981560 | 43.86 | 53.07 | |
| Tapping Screw (w/washer) D4x20 | ||||
| 56 | 982095 | 1.04 | 1.26 | |
| Machine Screw (w/washer) M3.5x5 | ||||
| 57 | 980060 | 1.05 | 1.27 | |
| Internal Wire | ||||
| 59 | 986277 | 1.04 | 1.26 | |
| Reversing Switch | ||||
| 60 | 981658Z | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 61 | 981666Z | |||
| No information available, not orderable | ||||
| 62 | 984750 | |||
| Cord Clip | ||||
| 63 | 960266 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 64 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 64 | 938051 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 65 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 66 | 500439Z | |||
| No information available, not orderable | ||||
| 67 | 986156 | |||
| No information available, not orderable | ||||
| 501 | 930886 | |||
| No information available, not orderable | ||||
| 502 | 956633 | |||
| No information available, not orderable | ||||
| 503 | 949168 | |||
| No information available, not orderable | ||||
| 504 | 981655Z | |||
| No information available, not orderable | ||||
| 601A | 312831 | |||
| No information available, not orderable | ||||
| 602A | 931161 | |||
