Here you will find all available parts and drawings of the 'Hikoki D13VL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

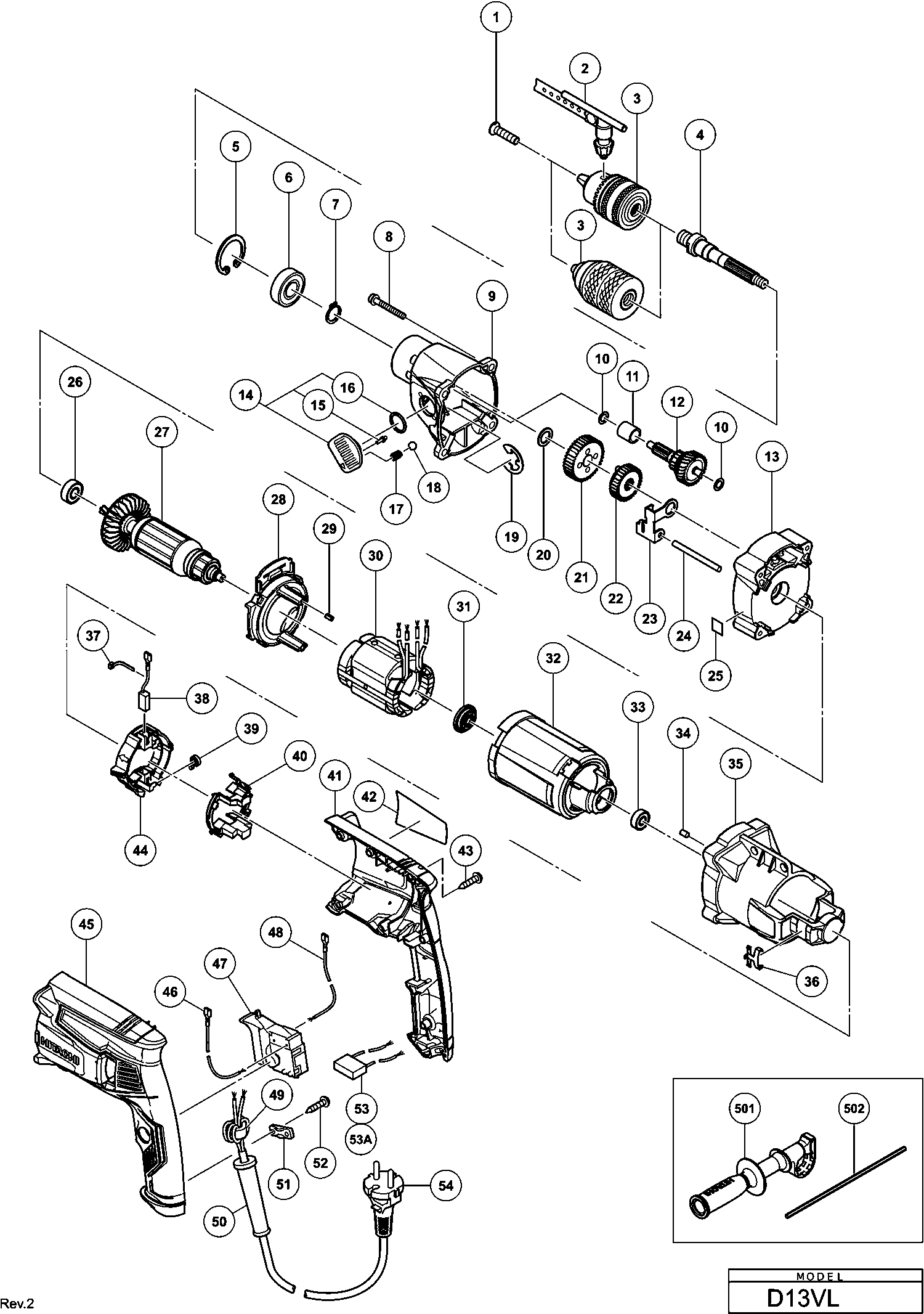

Technical drawing of model Hikoki D13VL
Spare parts list of model Hikoki D13VL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature 230v | ||||
| *27 | 361003E | 23.51 | 28.45 | |
| ARMATURE 110 V | ||||
| *27 | 361003B | 20.13 | 24.36 | |
| No information available, not orderable | ||||
| *3 | 321814 | |||
| Stator 230v | ||||
| *30 | 340906E | 15.26 | 18.47 | |
| Cord Armor D10.1 | ||||
| *50 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *54 | 500468Z | |||
| No information available, not orderable | ||||
| 1 | 995344 | |||
| No information available, not orderable | ||||
| 2 | 987576 | |||
| No information available, not orderable | ||||
| 2A | 303334 | |||
| No information available, not orderable | ||||
| 3 | 321814 | |||
| Spindle (1) | ||||
| 4 | 339139 | 12.15 | 14.70 | |
| Retaining Ring For D35 Hole (10 Pcs.) | ||||
| 5 | 939556 | 10.20 | 12.34 | |
| Ball Bearing 6202dd | ||||
| 6 | 6202DD | 6.75 | 8.17 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 7 | 939544 | 2.13 | 2.57 | |
| Hex. Socket Hd. Bolt (w/flange) M5x45 | ||||
| 8 | 338764 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 9 | 339137 | |||
| Washer (b) | ||||
| 10 | 322852 | 1.05 | 1.27 | |
| Distance Piece | ||||
| 11 | 338744 | 1.95 | 2.36 | |
| Second Pinion (a) | ||||
| 12 | 338743 | 24.89 | 30.11 | |
| Inner Cover (a) | ||||
| 13 | 339276 | 14.25 | 17.24 | |
| Shift Lever Ass'y Includ.22,23 | ||||
| 14 | 338737 | 1.65 | 2.00 | |
| Shift Pin | ||||
| 15 | 322848 | 1.05 | 1.27 | |
| O-ring (s-18) | ||||
| 16 | 878885 | 1.05 | 1.27 | |
| Spring (see 984123) | ||||
| 17 | 981328 | 1.05 | 1.27 | |
| Steel Ball D3.5 (10 Pcs.) | ||||
| 18 | 335299 | 1.04 | 1.26 | |
| Retaining Ring (e-type) For D15 Shaft | ||||
| 19 | 323048 | 1.35 | 1.63 | |
| Washer (c) | ||||
| 20 | 322799 | 1.65 | 2.00 | |
| Low Speed Gear | ||||
| 21 | 338740 | 6.60 | 7.99 | |
| High Speed Gear | ||||
| 22 | 338741 | 12.15 | 14.70 | |
| Shift Arm | ||||
| 23 | 338742 | 1.05 | 1.27 | |
| Pin | ||||
| 24 | 984104 | 1.95 | 2.36 | |
| Ball Bearing 608dd | ||||
| 26 | 608DDM | 5.55 | 6.72 | |
| Armature 230v | ||||
| 27 | 361003E | 23.51 | 28.45 | |
| ARMATURE 110 V | ||||
| 27 | 361003B | 20.13 | 24.36 | |
| Fan Guide (b) | ||||
| 28 | 338766 | 1.35 | 1.63 | |
| Rubber Bush | ||||
| 29 | 338755 | 1.04 | 1.26 | |
| Stator 230v | ||||
| 30 | 340906E | 15.26 | 18.47 | |
| Dust Seal (1) | ||||
| 31 | 338751 | 1.04 | 1.26 | |
| Stator Holder | ||||
| 32 | 338750 | 3.60 | 4.36 | |
| Ball Bearing 607vv | ||||
| 33 | 607VVC | 5.70 | 6.90 | |
| Ball bearing 607VVC2 | ||||
| 33A | 381409 | 1.00 | 1.21 | |
| RUBBER PEN | ||||
| 34 | 931701 | 1.05 | 1.27 | |
| Housing (b) | ||||
| 35 | 338749 | 13.95 | 16.88 | |
| Click Plate | ||||
| 36 | 338761 | 1.04 | 1.26 | |
| Band | ||||
| 37 | 331759 | 1.73 | 2.09 | |
| Wire Band | ||||
| 37A | 313505 | 1.05 | 1.27 | |
| Carbon Brush (1 Pair) | ||||
| 38 | 999088 | 4.50 | 5.44 | |
| Spring | ||||
| 39 | 339292 | 1.80 | 2.18 | |
| Brush Cover | ||||
| 40 | 338760 | 1.04 | 1.26 | |
| Handle Cover (b) | ||||
| 41 | 338753 | 6.00 | 7.26 | |
| HANDLE COVER (B) NEW ASSEMBLY | ||||
| 41A | 375876 | 7.05 | 8.53 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 43 | 301653 | 1.04 | 1.26 | |
| Brush Holder (2) | ||||
| 44 | 338759 | 3.15 | 3.81 | |
| Handle Cover (a) | ||||
| 45 | 338752 | 6.00 | 7.26 | |
| HANDLE COVER (A) ASSEMBLY | ||||
| 45C | 375874 | 7.35 | 8.89 | |
| Internal Wire L100 | ||||
| 46 | 338758 | 1.04 | 1.26 | |
| Switch (1) | ||||
| 47 | 338756 | 25.58 | 30.95 | |
| Internal Wire L180 | ||||
| 48 | 338757 | 1.04 | 1.26 | |
| Ferrite Core Except For Sin,mal,uae | ||||
| 49 | 334379 | 4.65 | 5.63 | |
| Cord Armor D10.1 | ||||
| 50 | 938051 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 51 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 52 | 984750 | |||
| Noise Suppressor For Kor | ||||
| 53 | 997174 | 2.10 | 2.54 | |
| Noise Suppressor | ||||
| 53A | 930039 | 1.95 | 2.36 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 54 | 500461Z | 17.88 | 21.63 | |
| CUSHION RUBBER | ||||
| 56 | 339577 | 1.05 | 1.27 | |
| Side Handle | ||||
| 501 | 338768 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 502 | 303709 | |||
