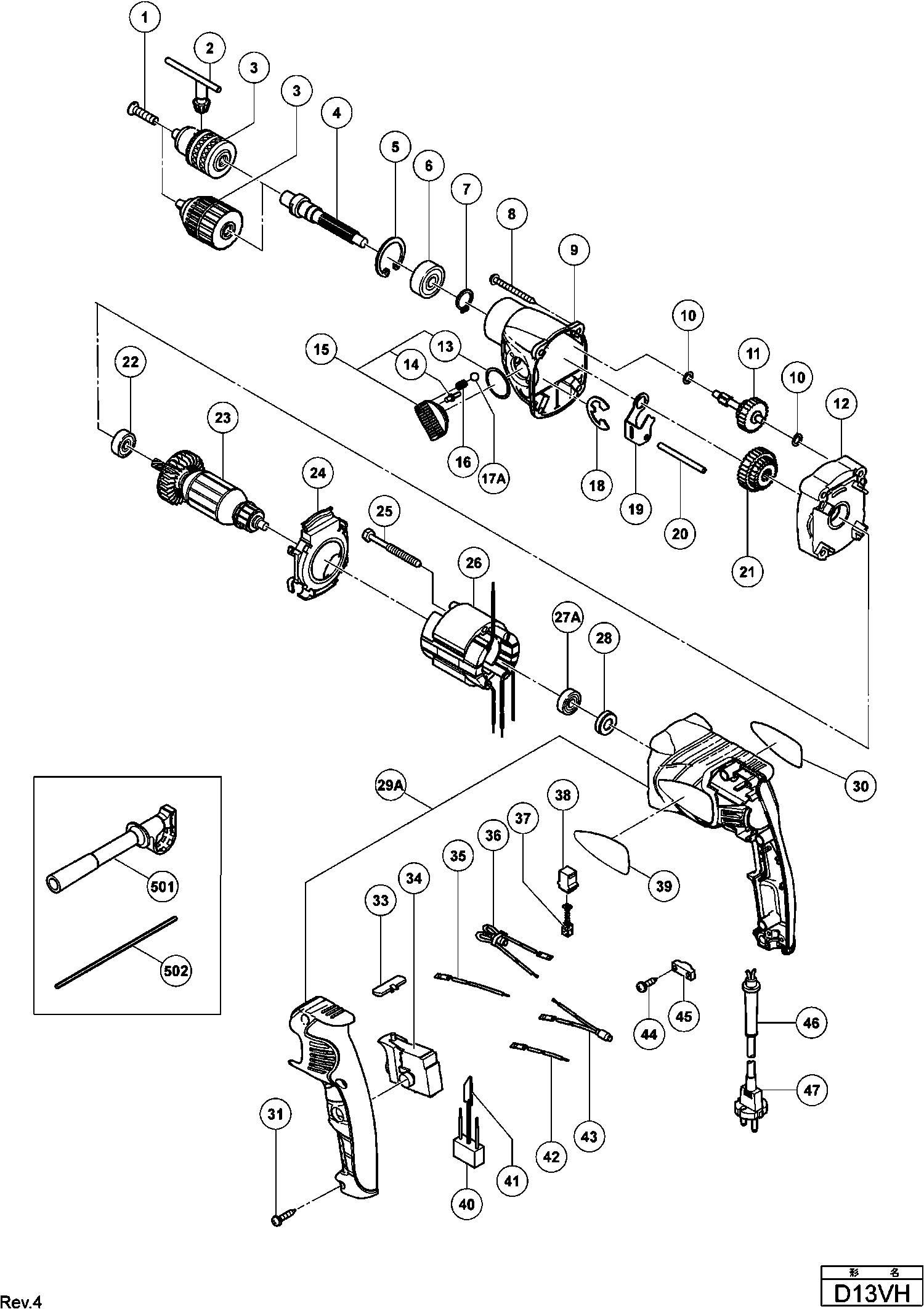

Technical drawing of model Hikoki D13VH
Spare parts list of model Hikoki D13VH
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature 230v | ||||
| *23 | 360655E | 36.16 | 43.76 | |
| ANKER 110 VOLT | ||||
| *23 | 360655C | 33.77 | 40.86 | |
| Stator 220v-230v | ||||
| *26 | 340589E | 16.36 | 19.80 | |
| VELD 110 VOLT | ||||
| *26 | 340589C | 15.29 | 18.50 | |
| No information available, not orderable | ||||
| *3 | 322625 | |||
| Cord Armor D8.8 | ||||
| *46 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| *46 | 938051 | 1.04 | 1.26 | |
| SNOER 2.5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 50 | ||||
| *47 | 500423Z | 12.87 | 15.57 | |
| No information available, not orderable | ||||
| 1 | 995344 | |||
| No information available, not orderable | ||||
| 2 | 987576 | |||
| No information available, not orderable | ||||
| 2A | 303334 | |||
| No information available, not orderable | ||||
| 3 | 322625 | |||
| Spindle (e) | ||||
| 4 | 323956 | 16.91 | 20.46 | |
| Retaining Ring For D35 Hole (10 Pcs.) | ||||
| 5 | 939556 | 10.20 | 12.34 | |
| Ball Bearing 6202dd | ||||
| 6 | 6202DD | 6.75 | 8.17 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 7 | 939544 | 2.13 | 2.57 | |
| Tapping Screw (w/flange) D5x45 | ||||
| 8 | 316321 | 1.65 | 2.00 | |
| Gear Cover | ||||
| 9 | 323959 | 20.90 | 25.29 | |
| Washer (b) | ||||
| 10 | 322852 | 1.05 | 1.27 | |
| Second Pinion And Gear Set | ||||
| 11 | 322858 | 23.51 | 28.45 | |
| Inner Cover | ||||
| 12 | 323958 | 16.64 | 20.13 | |
| O-ring (s-22) | ||||
| 13 | 306353 | 1.04 | 1.26 | |
| Shift Pin | ||||
| 14 | 322848 | 1.05 | 1.27 | |
| Shift Lever Ass'y | ||||
| 15 | 322847 | 3.00 | 3.63 | |
| Spring (see 984123) | ||||
| 16 | 981328 | 1.05 | 1.27 | |
| Steel Ball D3.5 (10 Pcs.) | ||||
| 17A | 335299 | 1.04 | 1.26 | |
| Retaining Ring (e-type) For D15 Shaft | ||||
| 18 | 323048 | 1.35 | 1.63 | |
| Shift Arm | ||||
| 19 | 322849 | 1.05 | 1.27 | |
| Pin D5 | ||||
| 20 | 322860 | 1.05 | 1.27 | |
| Gear | ||||
| 21 | 322846 | 20.90 | 25.29 | |
| Ball Bearing 608dd | ||||
| 22 | 608DDM | 5.55 | 6.72 | |
| Armature 230v | ||||
| 23 | 360655E | 36.16 | 43.76 | |
| ANKER 110 VOLT | ||||
| 23 | 360655C | 33.77 | 40.86 | |
| Fan Guide | ||||
| 24 | 322843 | 2.10 | 2.54 | |
| Hex. Hd. Tapping Screw D4x45 | ||||
| 25 | 981824 | 1.05 | 1.27 | |
| Stator 220v-230v | ||||
| 26 | 340589E | 16.36 | 19.80 | |
| VELD 110 VOLT | ||||
| 26 | 340589C | 15.29 | 18.50 | |
| Ball Bearing 698vvc2 | ||||
| 27A | 698VVC | 3.15 | 3.81 | |
| Rubber Ring | ||||
| 28 | 309929 | 1.04 | 1.26 | |
| Handle + Cover (old 322861+322862) | ||||
| 29A | 331663 | 44.00 | 53.24 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 31 | 301653 | 1.04 | 1.26 | |
| Pushing Button | ||||
| 33 | 322853 | 1.05 | 1.27 | |
| Switch | ||||
| 34 | 322854 | 20.90 | 25.29 | |
| Internal Wire (brown) 100l For Kuw,ina,sau,sin | ||||
| 35 | 321630 | 3.30 | 3.99 | |
| Choke Coil (brown) 220v-240v | ||||
| 36 | 322517 | 7.65 | 9.26 | |
| Carbon Brush (1 Pair) | ||||
| 37 | 999041 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 38 | 955203 | 2.40 | 2.90 | |
| Noise Suppressor | ||||
| 40 | 994273 | 4.29 | 5.19 | |
| Earth Terminal | ||||
| 41 | 992635 | 1.05 | 1.27 | |
| Internal Wire (blue) 55l For Kuw,ina,sau,sin | ||||
| 42 | 321631 | 3.30 | 3.99 | |
| Interf. suppr. | ||||
| 43 | 321634 | 6.15 | 7.44 | |
| No information available, not orderable | ||||
| 44 | 984750 | |||
| Cord Clip | ||||
| 45 | 937631 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 46 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 46 | 938051 | 1.04 | 1.26 | |
| SNOER 2.5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 50 | ||||
| 47 | 500423Z | 12.87 | 15.57 | |
| Side Handle | ||||
| 501 | 323050 | 28.53 | 34.52 | |
| No information available, not orderable | ||||
| 502 | 303709 | |||
| No information available, not orderable | ||||
| 601 | 321814 | |||
