Here you will find all available parts and drawings of the 'Hikoki D13VG'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

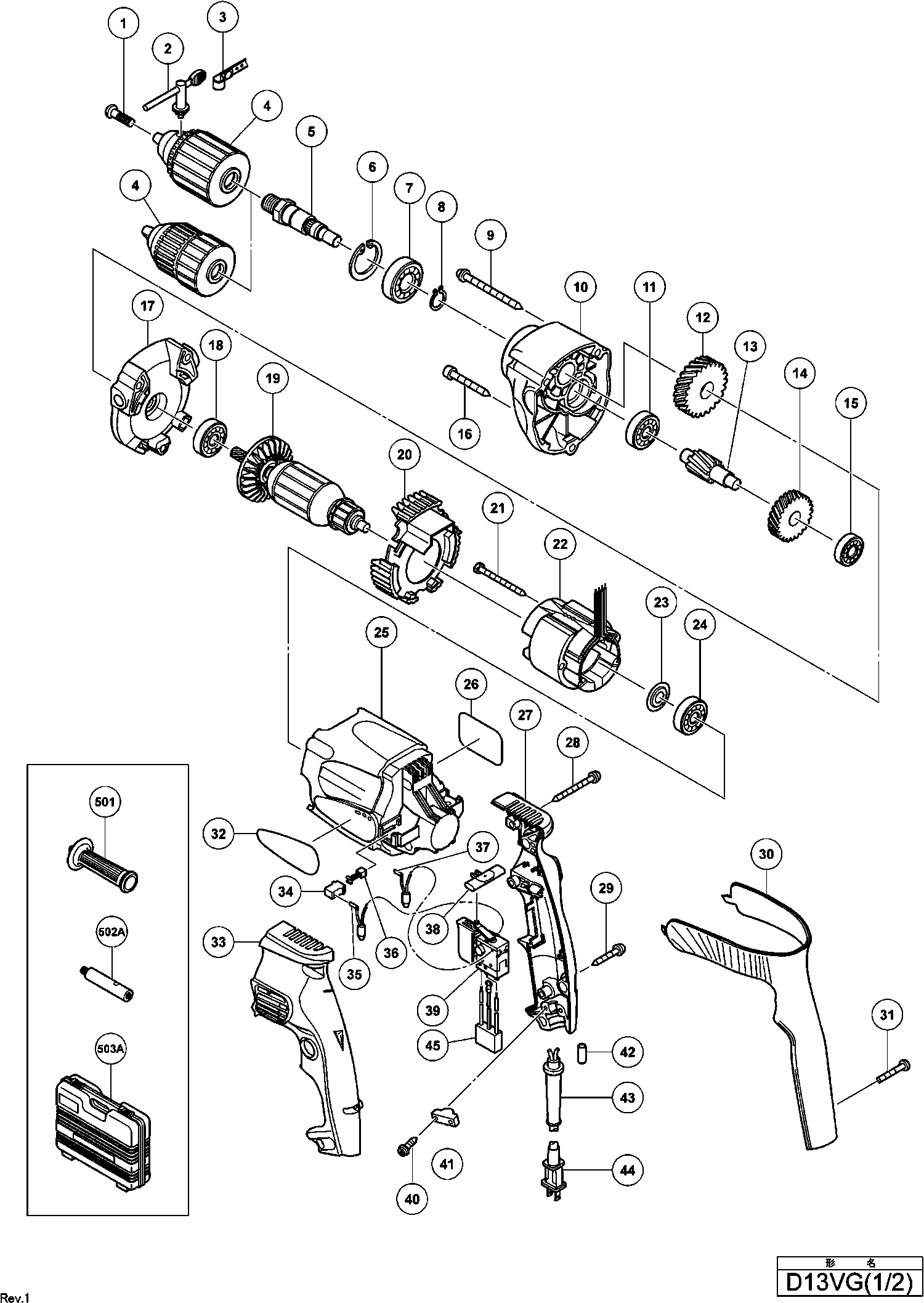

Technical drawing of model Hikoki D13VG
Spare parts list of model Hikoki D13VG
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature 230v | ||||
| *19 | 360543E | 67.24 | 81.36 | |
| Stator 230v-240v | ||||
| *22 | 340504E | 41.94 | 50.74 | |
| Stator 120v For Pan (127v),bra (127v) | ||||
| *22 | 340486C | 38.64 | 46.75 | |
| Interf. suppr. | ||||
| *35 | 320197 | 6.60 | 7.99 | |
| Interf. suppr. | ||||
| *37 | 320196 | 6.60 | 7.99 | |
| Switch | ||||
| *39 | 320195 | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| *4 | 319304 | |||
| Cord (cord Armor D8.8) For Pan | ||||
| *44 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *44 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| *47 | 384056 | |||
| Special Screw (left Hand) M6x23 | ||||
| 1 | 311959 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 2 | 319527 | |||
| No information available, not orderable | ||||
| 3 | 950288 | |||
| No information available, not orderable | ||||
| 4 | 319304 | |||
| Drive Shaft | ||||
| 5 | 319346 | 13.83 | 16.73 | |
| Stop Ring D32 | ||||
| 6 | 948001 | 1.20 | 1.45 | |
| Ball Bearing 6002vvcmps2l | ||||
| 7 | 6002VV | 7.35 | 8.89 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 8 | 939544 | 2.13 | 2.57 | |
| Tapping Screw (w/flange) D5x60 | ||||
| 9 | 305701 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 10 | 319345 | 21.86 | 26.45 | |
| Ball Bearing 627vvc2ps2l | ||||
| 11 | 627VVM | 5.55 | 6.72 | |
| Final Gear | ||||
| 12 | 319305 | 7.20 | 8.71 | |
| Second Gear | ||||
| 13 | 319548 | 6.68 | 8.08 | |
| First Gear | ||||
| 14 | 319544 | 5.40 | 6.53 | |
| Ball Bearing 606vv | ||||
| 15 | 606ZZM | 15.40 | 18.63 | |
| Tapping Screw D5x40 (black) | ||||
| 16 | 316458 | 1.50 | 1.82 | |
| Inner Cover | ||||
| 17 | 319344 | 24.06 | 29.12 | |
| Ball Bearing 608dd | ||||
| 18 | 608DDM | 5.55 | 6.72 | |
| Armature 230v | ||||
| 19 | 360543E | 67.24 | 81.36 | |
| Fan Guide | ||||
| 20 | 319329 | 3.90 | 4.72 | |
| Hex head self-tapping screw D4x55 | ||||
| 21 | 981421 | 1.04 | 1.26 | |
| Stator 230v-240v | ||||
| 22 | 340504E | 41.94 | 50.74 | |
| Stator 120v For Pan (127v),bra (127v) | ||||
| 22 | 340486C | 38.64 | 46.75 | |
| Washer (a) | ||||
| 23 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 24 | 608VVM | 5.70 | 6.90 | |
| Housing | ||||
| 25 | 319328 | 12.89 | 15.59 | |
| Handle (b) | ||||
| 27 | 319331 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 27A | 384059 | |||
| Tapping Screw (w/flange) D4x35 (black) | ||||
| 28 | 303694 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 29 | 301653 | 1.04 | 1.26 | |
| Grip | ||||
| 30 | 319332 | 15.26 | 18.47 | |
| Screw (plastic Tie) D4x25 | ||||
| 31 | 319337 | 1.50 | 1.82 | |
| Handle | ||||
| 33 | 319330 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 33A | 384058 | |||
| Brush Holder | ||||
| 34 | 955203 | 2.40 | 2.90 | |
| Interf. suppr. | ||||
| 35 | 320197 | 6.60 | 7.99 | |
| Internal Wire Blue 86l | ||||
| 35 | 319341 | 1.50 | 1.82 | |
| Carbon Brush (1 Pair) | ||||
| 36 | 999041 | 4.50 | 5.44 | |
| Interf. suppr. | ||||
| 37 | 320196 | 6.60 | 7.99 | |
| Pushing Button | ||||
| 38 | 316166 | 1.65 | 2.00 | |
| Switch | ||||
| 39 | 319302 | 37.95 | 45.92 | |
| Switch | ||||
| 39 | 320195 | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| 39A | 384057 | |||
| No information available, not orderable | ||||
| 40 | 984750 | |||
| Cord Clip | ||||
| 41 | 937631 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 42 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 43 | 953327 | |||
| Cord (cord Armor D8.8) For Mex | ||||
| 44 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 44 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 44 | 500247Z | 6.18 | 7.48 | |
| Capacitor | ||||
| 45 | 320198 | 10.95 | 13.25 | |
| No information available, not orderable | ||||
| 46 | 378115 | |||
| Side Handle For M10 | ||||
| 501 | 981205 | 5.85 | 7.08 | |
| Handle Joint | ||||
| 502A | 319550 | 7.45 | 9.01 | |
| No information available, not orderable | ||||
| 503A | 319543 | |||
| No information available, not orderable | ||||
| 601 | 319528 | |||
| Needle Bearing (hk0810) | ||||
| 602 | 670714 | 6.45 | 7.80 | |
| TANDWIEL | ||||
| 603 | 986149 | 19.69 | 23.82 | |
| Ball Bearing 6301vvcmps2l | ||||
| 604 | 6301VV | 8.55 | 10.35 | |
| Ring | ||||
| 605 | 986147 | 1.05 | 1.27 | |
| INLEGSPIE 3X10 *TD5-1-2* | ||||
| 606 | 932819 | 1.26 | 1.52 | |
| AS | ||||
| 607 | 986146 | 26.46 | 32.02 | |
| Connector | ||||
| 608 | 986143 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| 609 | 986142 | |||
| BOUT M8X45 (10 STUKS) | ||||
| 610 | 949632 | 2.34 | 2.83 | |
| Washer M8 (10 Pcs.) | ||||
| 611 | 949426 | 1.05 | 1.27 | |
| TANDWIELHUIS + NAALDLAGER | ||||
| 612 | 986144 | 40.70 | 49.25 | |
| AS EN TANDWIELSET | ||||
| 613 | 986156 | 64.52 | 78.07 | |
| No information available, not orderable | ||||
| 614 | 949168 | |||
| Hook | ||||
| 615 | 317676 | 3.30 | 3.99 | |
