Here you will find all available parts and drawings of the 'Hikoki D13VB3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

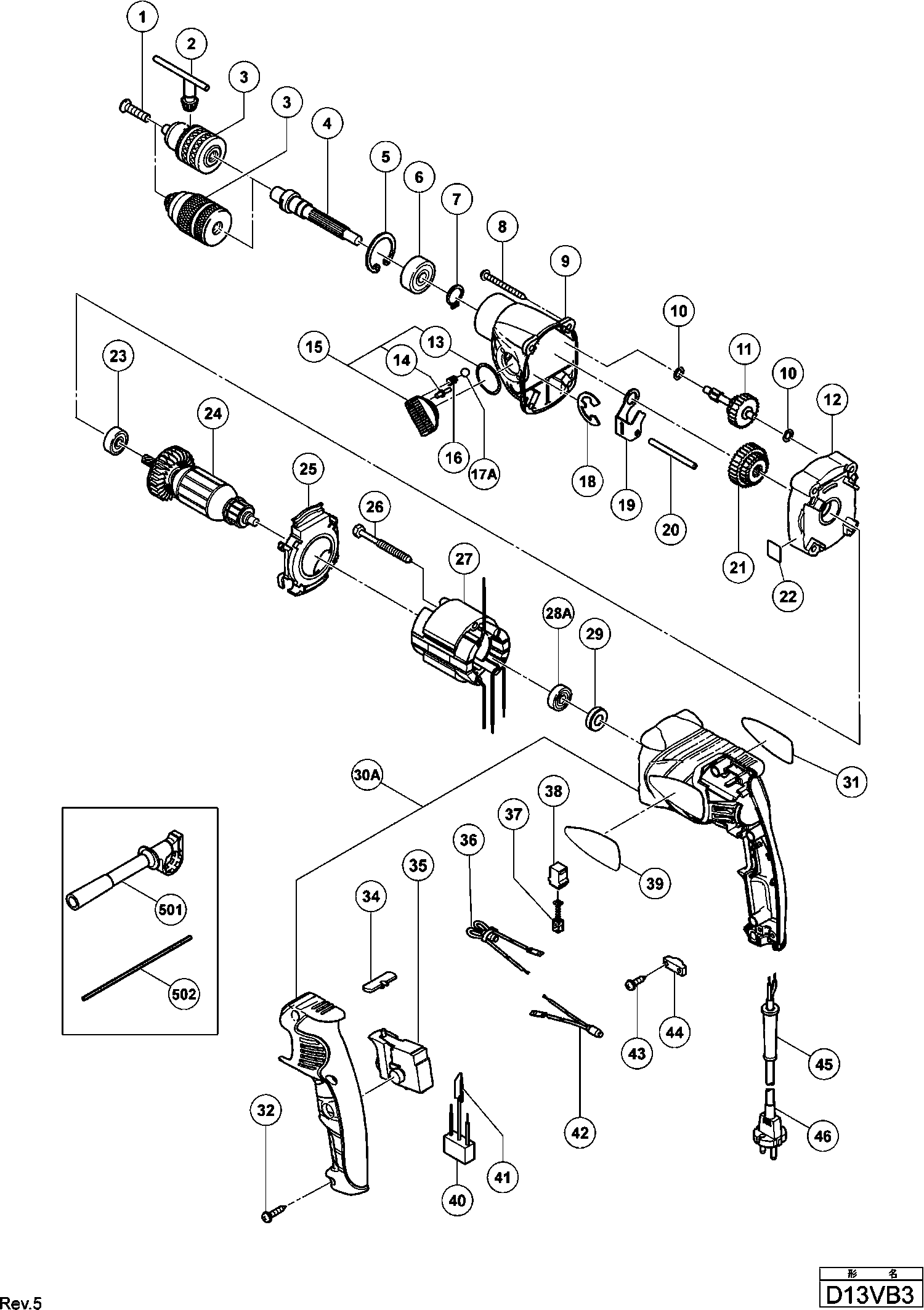

Technical drawing of model Hikoki D13VB3
Spare parts list of model Hikoki D13VB3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature 230v | ||||
| *24 | 360652E | 36.16 | 43.76 | |
| ARMATURE 110 V | ||||
| *24 | 360652C | 33.77 | 40.86 | |
| Stator 230v | ||||
| *27 | 340587E | 23.51 | 28.45 | |
| FIELD 110 VOLT | ||||
| *27 | 340587C | 21.94 | 26.55 | |
| No information available, not orderable | ||||
| *3 | 321814 | |||
| Choke Coil (brown) 220v-240v | ||||
| *36 | 322517 | 7.65 | 9.26 | |
| Interf. suppr. | ||||
| *42 | 321634 | 6.15 | 7.44 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *46 | 500447Z | 6.60 | 7.99 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| *46 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| 1 | 995344 | |||
| No information available, not orderable | ||||
| 2 | 987576 | |||
| No information available, not orderable | ||||
| 2A | 303334 | |||
| No information available, not orderable | ||||
| 3 | 321814 | |||
| Spindle Ass'y | ||||
| 4 | 323971 | 22.55 | 27.29 | |
| Retaining Ring For D35 Hole (10 Pcs.) | ||||
| 5 | 939556 | 10.20 | 12.34 | |
| Ball Bearing 6202dd | ||||
| 6 | 6202DD | 6.75 | 8.17 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 7 | 939544 | 2.13 | 2.57 | |
| Tapping Screw (w/flange) D5x50 (black) For Slip C | ||||
| 8 | 322869 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 9 | 323959 | 20.90 | 25.29 | |
| Washer (b) | ||||
| 10 | 322852 | 1.05 | 1.27 | |
| Second Pinion And Gear Set For Slip Clutch | ||||
| 11 | 322867 | 36.16 | 43.76 | |
| Inner Cover | ||||
| 12 | 323972 | 20.90 | 25.29 | |
| O-ring (s-22) | ||||
| 13 | 306353 | 1.04 | 1.26 | |
| Shift Pin | ||||
| 14 | 322848 | 1.05 | 1.27 | |
| Shift Lever Ass'y | ||||
| 15 | 322847 | 3.00 | 3.63 | |
| Spring (see 984123) | ||||
| 16 | 981328 | 1.05 | 1.27 | |
| Steel Ball D3.5 (10 Pcs.) | ||||
| 17A | 335299 | 1.04 | 1.26 | |
| Retaining Ring (e-type) For D15 Shaft | ||||
| 18 | 323048 | 1.35 | 1.63 | |
| Shift Arm | ||||
| 19 | 322849 | 1.05 | 1.27 | |
| Pin | ||||
| 20 | 984104 | 1.95 | 2.36 | |
| Gear | ||||
| 21 | 322846 | 20.90 | 25.29 | |
| Ball Bearing 608dd | ||||
| 23 | 608DDM | 5.55 | 6.72 | |
| Armature 230v | ||||
| 24 | 360652E | 36.16 | 43.76 | |
| ARMATURE 110 V | ||||
| 24 | 360652C | 33.77 | 40.86 | |
| Fan Guide | ||||
| 25 | 322843 | 2.10 | 2.54 | |
| Hex. Hd. Tapping Screw D4x50 | ||||
| 26 | 961672 | 1.04 | 1.26 | |
| Stator 230v | ||||
| 27 | 340587E | 23.51 | 28.45 | |
| FIELD 110 VOLT | ||||
| 27 | 340587C | 21.94 | 26.55 | |
| No information available, not orderable | ||||
| 28A | 698VVC | |||
| Rubber Ring | ||||
| 29 | 309929 | 1.04 | 1.26 | |
| Handle + Cover (old 322861+322862) | ||||
| 30A | 331663 | 44.00 | 53.24 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 32 | 301653 | 1.04 | 1.26 | |
| Pushing Button | ||||
| 34 | 322853 | 1.05 | 1.27 | |
| Switch | ||||
| 35 | 322854 | 20.90 | 25.29 | |
| Choke Coil (brown) 220v-240v | ||||
| 36 | 322517 | 7.65 | 9.26 | |
| Brown choke coil 110 V | ||||
| 36 | 322518 | 7.14 | 8.64 | |
| Carbon Brush (1 Pair) | ||||
| 37 | 999041 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 38 | 955203 | 2.40 | 2.90 | |
| Noise Suppressor | ||||
| 40 | 994273 | 4.29 | 5.19 | |
| Earth Terminal | ||||
| 41 | 992635 | 1.05 | 1.27 | |
| Interf. suppr. | ||||
| 42 | 321634 | 6.15 | 7.44 | |
| CHOKE COIL, BLUE, 110 V | ||||
| 42 | 322519 | 5.46 | 6.61 | |
| No information available, not orderable | ||||
| 43 | 984750 | |||
| Cord Clip | ||||
| 44 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 45 | 953327 | |||
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 46 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 46 | 500447Z | 6.60 | 7.99 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| 46 | 500247Z | 6.18 | 7.48 | |
| Side Handle | ||||
| 501 | 323050 | 28.53 | 34.52 | |
| No information available, not orderable | ||||
| 502 | 303709 | |||
