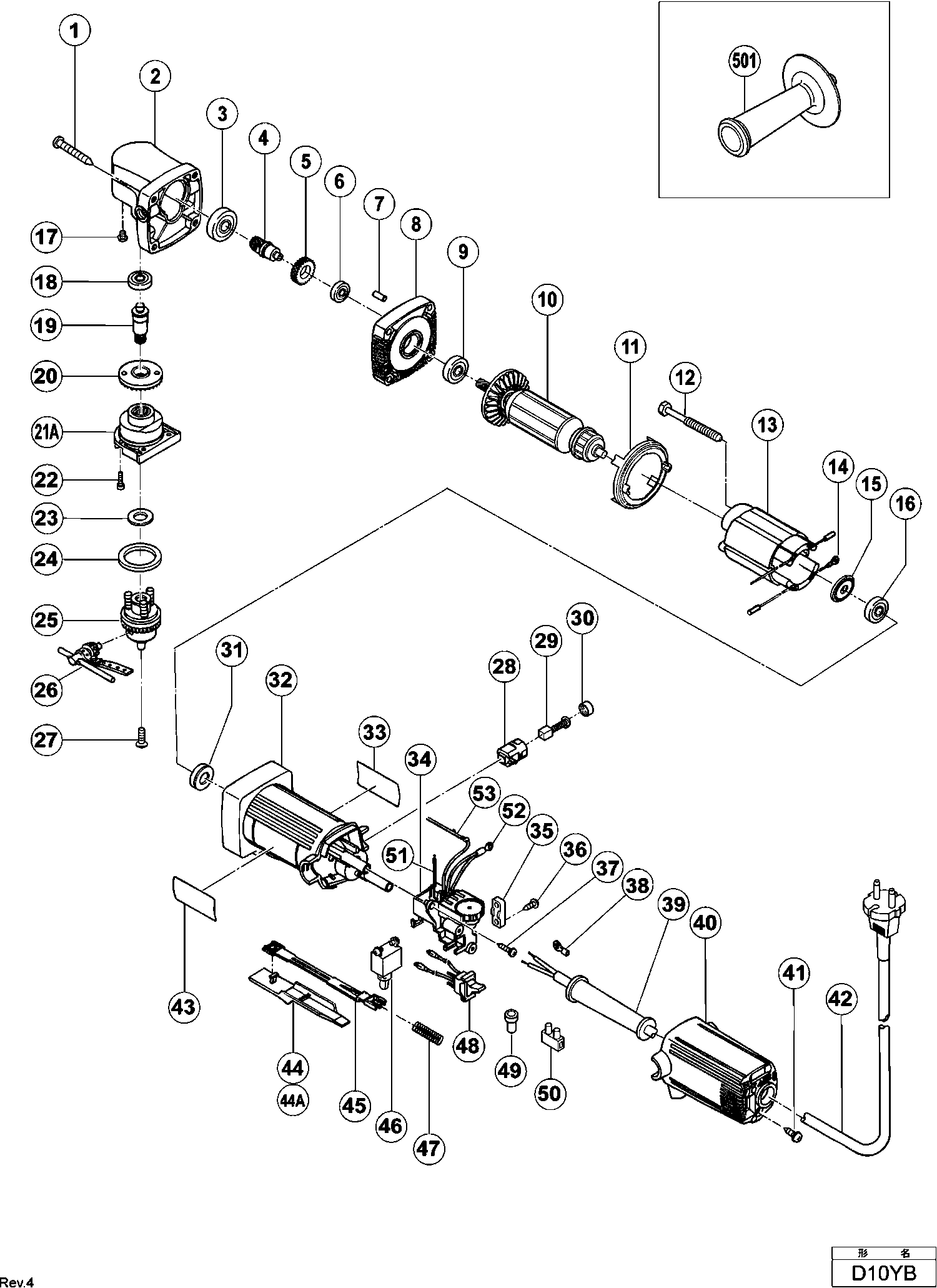

Technical drawing of model Hikoki D10YB
Spare parts list of model Hikoki D10YB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature 230v | ||||
| *10 | 360528E | 128.29 | 155.23 | |
| Armature 240v | ||||
| *10 | 360528F | 128.29 | 155.23 | |
| Stator Ass'y 240v Includ.14 | ||||
| *13 | 340469F | 43.86 | 53.07 | |
| VELD 110-115 VOLT | ||||
| *13 | 340469C | 40.98 | 49.59 | |
| Controller Circuit Holder | ||||
| *34 | 319059 | 67.10 | 81.19 | |
| SNOER 2.5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 50 | ||||
| *42 | 500423Z | 12.87 | 15.57 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *42 | 500447Z | 6.60 | 7.99 | |
| Slide Knob | ||||
| *44 | 318825 | 3.30 | 3.99 | |
| SCHAKELAAR | ||||
| *46 | 314603 | 11.88 | 14.37 | |
| Reversing Switch | ||||
| *48 | 319061 | 20.49 | 24.79 | |
| Capacitor | ||||
| *51 | 325566 | 9.00 | 10.89 | |
| Noise Suppressor | ||||
| *51 | 994273 | 4.29 | 5.19 | |
| Tapping Screw D5x40 (black) | ||||
| 1 | 316458 | 1.50 | 1.82 | |
| Gear Cover | ||||
| 2 | 318828 | 28.05 | 33.94 | |
| Ball Bearing 6001vv | ||||
| 3 | 6001VV | 6.60 | 7.99 | |
| Second Gear | ||||
| 4 | 318833 | 22.28 | 26.95 | |
| First Gear | ||||
| 5 | 318834 | 11.25 | 13.61 | |
| Ball Bearing 606vv | ||||
| 6 | 606ZZM | 15.40 | 18.63 | |
| RUBBER PEN | ||||
| 7 | 931701 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 8 | 318827 | |||
| Ball Bearing 608dd | ||||
| 9 | 608DDM | 5.55 | 6.72 | |
| ARMATURE ASS'Y 110-115 VOLT | ||||
| 10 | 360528U | 138.98 | 168.17 | |
| Armature 240v | ||||
| 10 | 360528F | 128.29 | 155.23 | |
| Armature 230v | ||||
| 10 | 360528E | 128.29 | 155.23 | |
| Fan Guide | ||||
| 11 | 306840 | 1.80 | 2.18 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 12 | 982021 | 1.04 | 1.26 | |
| Stator Ass'y 240v Includ.14 | ||||
| 13 | 340469F | 43.86 | 53.07 | |
| Stator 220v-230v | ||||
| 13 | 340469E | 43.86 | 53.07 | |
| VELD 110-115 VOLT | ||||
| 13 | 340469C | 40.98 | 49.59 | |
| connecting terminal | ||||
| 14 | 980063 | 1.04 | 1.26 | |
| Dust Seal | ||||
| 15 | 313775 | 1.05 | 1.27 | |
| Ball Bearing 626vvc2ps2l | ||||
| 16 | 626VVM | 5.70 | 6.90 | |
| Flat Fillister Hd. Screw M4x10 | ||||
| 17 | 985414 | 1.95 | 2.36 | |
| Ball Bearing 607vv | ||||
| 18 | 607VVC | 5.70 | 6.90 | |
| KOGELLAGER 607VVC2 | ||||
| 18A | 381409 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 19 | 318830 | 23.65 | 28.62 | |
| Gear | ||||
| 20 | 318829 | 37.95 | 45.92 | |
| Inner Cover | ||||
| 21A | 318831 | 22.83 | 27.62 | |
| Seal Lock Hex. Socket Hd. Bolt M3x12 | ||||
| 22 | 318832 | 1.65 | 2.00 | |
| Felt Packing (a) | ||||
| 23 | 936973 | 1.05 | 1.27 | |
| Felt Packing | ||||
| 24 | 943153 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 25 | 318835 | |||
| No information available, not orderable | ||||
| 26 | 319070 | |||
| Flat Hd. Screw (left Hand) M5x15 | ||||
| 27 | 317995 | 1.65 | 2.00 | |
| Brush Holder | ||||
| 28 | 313777 | 1.50 | 1.82 | |
| No longer available, no replacement | ||||
| 29 | 999021 | |||
| Brush Cap | ||||
| 30 | 936551 | 1.05 | 1.27 | |
| Rubber Ring | ||||
| 31 | 309929 | 1.04 | 1.26 | |
| Housing Ass'y Includ.31 | ||||
| 32 | 318839 | 15.26 | 18.47 | |
| No information available, not orderable | ||||
| 33 | 320521 | |||
| Controller Circuit Holder | ||||
| 34 | 319059 | 67.10 | 81.19 | |
| CONTROLLER CIRCUIT HOLDER 110 VOLT | ||||
| 34 | 319058 | 57.04 | 69.02 | |
| Cord Clip | ||||
| 35 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 36 | 984750 | |||
| No information available, not orderable | ||||
| 37 | 305095 | |||
| connecting terminal | ||||
| 38 | 980063 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 39 | 380090 | 1.04 | 1.26 | |
| Tail Cover | ||||
| 40 | 318836 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 41 | 307811 | |||
| Cord (cord Armor D8.8) For Mex | ||||
| 42 | 500240Z | 13.18 | 15.94 | |
| SNOER 2.5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 50 | ||||
| 42 | 500423Z | 12.87 | 15.57 | |
| Cord (cord Armor D8.8) For Saf | ||||
| 42 | 500237Z | 11.40 | 13.79 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 42 | 500447Z | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 42A | 334187 | |||
| Slide Knob | ||||
| 44 | 318825 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 44A | 330153 | |||
| Slide Bar | ||||
| 45 | 318826 | 3.30 | 3.99 | |
| SCHAKELAAR | ||||
| 46 | 314603 | 11.88 | 14.37 | |
| Spring | ||||
| 47 | 314429 | 1.04 | 1.26 | |
| Reversing Switch | ||||
| 48 | 319061 | 20.49 | 24.79 | |
| Connector 50091 (10 Pcs.) | ||||
| 49 | 959140 | 3.30 | 3.99 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 50 | 938307 | 2.13 | 2.57 | |
| Capacitor | ||||
| 51 | 325566 | 9.00 | 10.89 | |
| Noise Suppressor | ||||
| 51 | 994273 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 52 | 930800 | |||
| Earth Terminal For Tpe | ||||
| 53 | 314854 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 501 | 956633 | |||
