Here you will find all available parts and drawings of the 'Hikoki D10VST'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

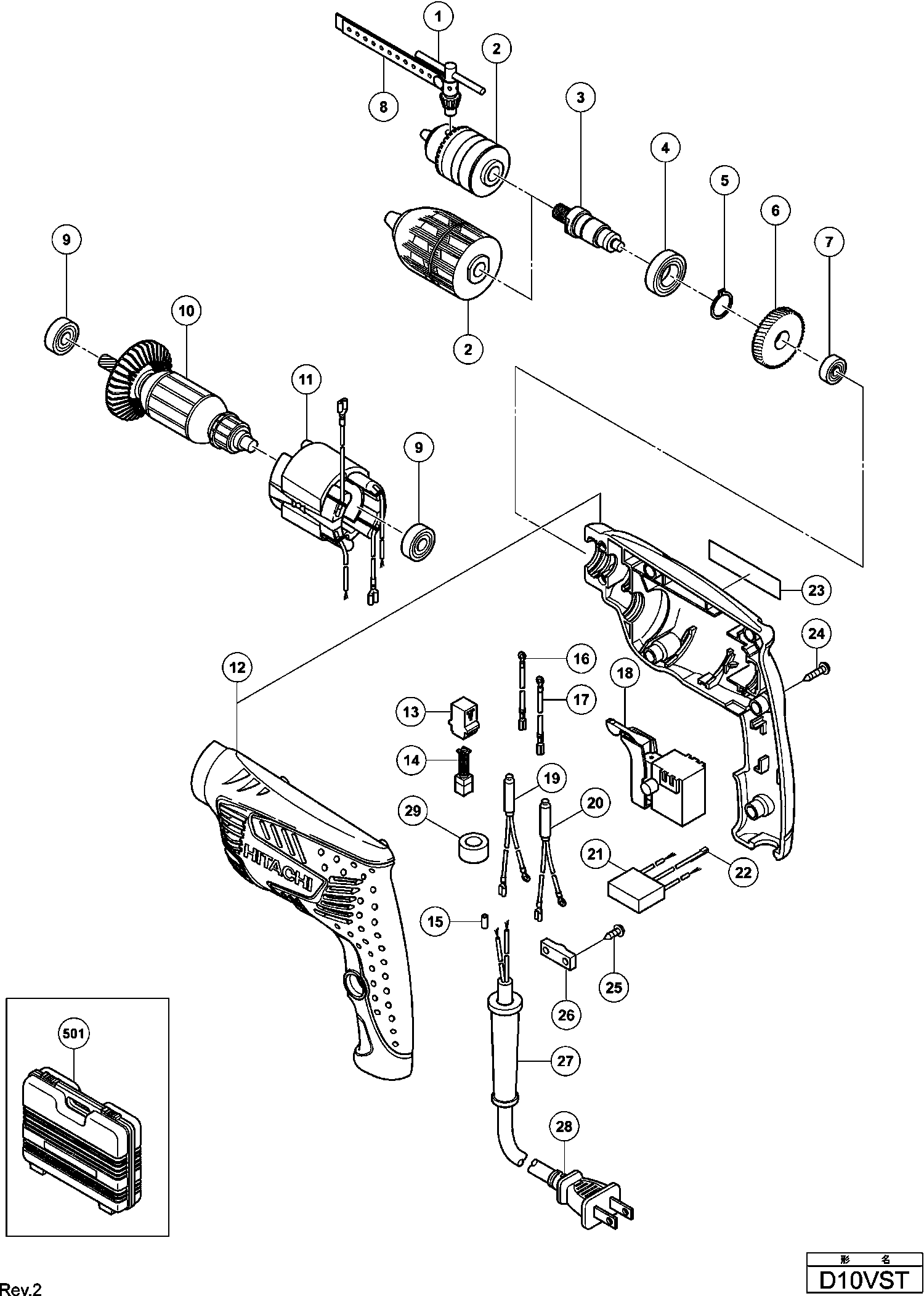

Technical drawing of model Hikoki D10VST
Spare parts list of model Hikoki D10VST
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature 230v | ||||
| *10 | 360926E | 45.65 | 55.24 | |
| Stator 230v | ||||
| *11 | 340814E | 22.83 | 27.62 | |
| No information available, not orderable | ||||
| *12B | 334196M | |||
| No information available, not orderable | ||||
| *16 | 334194 | |||
| No information available, not orderable | ||||
| *17 | 334195 | |||
| Switch | ||||
| *18 | 330716 | 22.41 | 27.12 | |
| No information available, not orderable | ||||
| *19 | 334191 | |||
| No information available, not orderable | ||||
| *20 | 334190 | |||
| Cord Armor D10.1 | ||||
| *27 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Mex | ||||
| *28 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Saf | ||||
| *28 | 500237Z | 11.40 | 13.79 | |
| Drill Chuck 10tlre Includ.1a | ||||
| *2A | 371351 | 7.35 | 8.89 | |
| Chuck Wrench 10tlre For Drill Chuck | ||||
| 1A | 371352 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 2 | 331602 | |||
| Drill Chuck 10tlre Includ.1a | ||||
| 2A | 371351 | 7.35 | 8.89 | |
| Spindle Ass'y | ||||
| 3 | 334198 | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 4 | 6902VV | |||
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 5 | 939544 | 2.13 | 2.57 | |
| Gear | ||||
| 6 | 334197 | 9.60 | 11.62 | |
| Ball Bearing 606vv | ||||
| 7 | 606ZZM | 15.40 | 18.63 | |
| No information available, not orderable | ||||
| 8 | 950288 | |||
| Ball Bearing 608vv | ||||
| 9 | 333945 | 1.80 | 2.18 | |
| Armature 230v | ||||
| 10 | 360926E | 45.65 | 55.24 | |
| Stator 230v | ||||
| 11 | 340814E | 22.83 | 27.62 | |
| No information available, not orderable | ||||
| 12 | 334196 | |||
| Carbon Brush Holder | ||||
| 13 | 930483 | 1.65 | 2.00 | |
| Carbon Brush (1 Pair) | ||||
| 14 | 999041 | 4.50 | 5.44 | |
| Threaded cable sleeve | ||||
| 15 | 981373 | 1.05 | 1.27 | |
| Switch | ||||
| 18 | 330716 | 22.41 | 27.12 | |
| No information available, not orderable | ||||
| 19 | 334191 | |||
| No information available, not orderable | ||||
| 20 | 334190 | |||
| Capacitor | ||||
| 21 | 334472 | 3.15 | 3.81 | |
| Earth Terminal | ||||
| 22 | 302488 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 24 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 25 | 984750 | |||
| Cord Clip | ||||
| 26 | 937631 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 27 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 28 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Saf | ||||
| 28 | 500237Z | 11.40 | 13.79 | |
